Distribution Amplifiers

RB-DA6

6 Way Stereo Distribution Amplifier

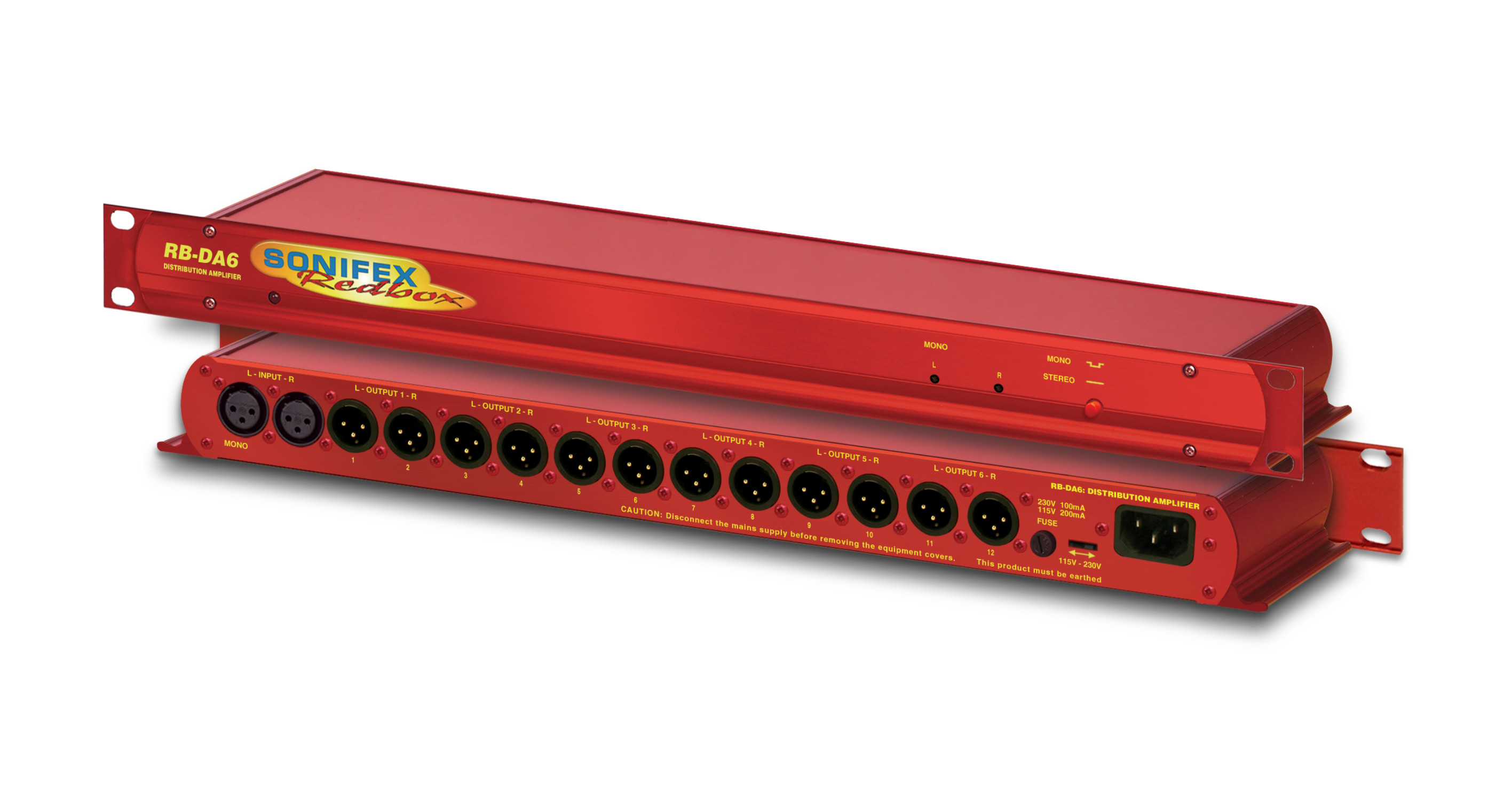

The RB-DA6 is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs.

RK3_logo-optimized

About RB-DA6

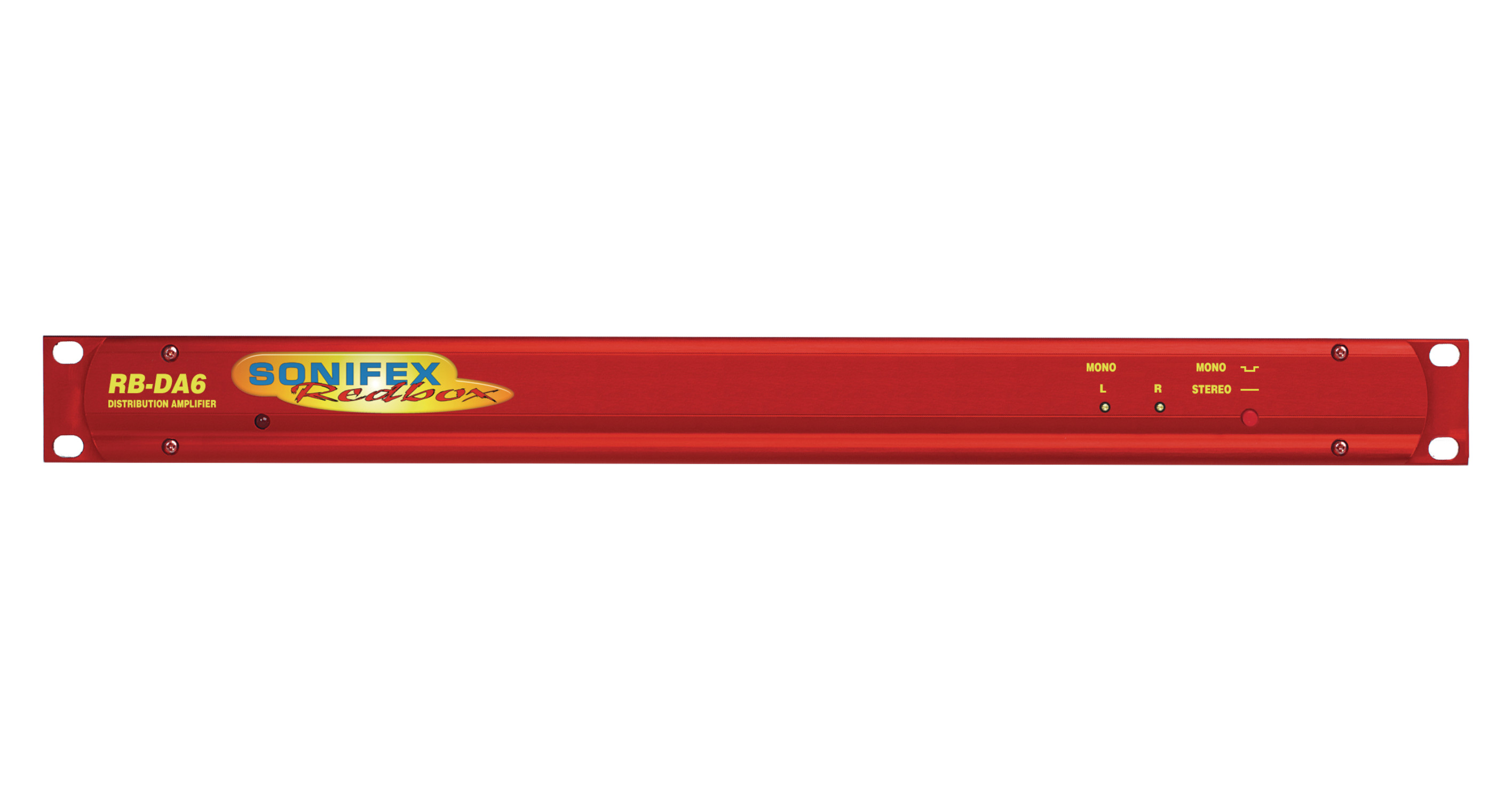

The RB-DA6 is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. The RB-DA6 has one stereo input and six stereo outputs. It can also be configured to distribute a single mono input to twelve outputs. This is enabled via a recessed front-panel switch to prevent unintended switching. The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others. The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel. The output gain may be varied from -8dB to 18dB which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively.

Typical Applications

Distribute line level signals to multiple reporters in a broadcast centre, distribute main programme output from a mixer to other studios.

Product Data

Technical Specifications

Audio Specification
Maximum Input Level:
+28dBu
Maximum Output Level:
+28dBu
Frequency Response:
20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Gain Range:
Adjustable 8dB loss to 18dB gain (L & R adjust)
Common Mode Rejection:
>66dB typically
Input impedance:
>20kΩ bridging
Output impedance:
<50Ω
Distortion:
0.01% THD @ 1kHz, ref +8dBu output
Noise:
-100dB unity gain, ref +8dBu output

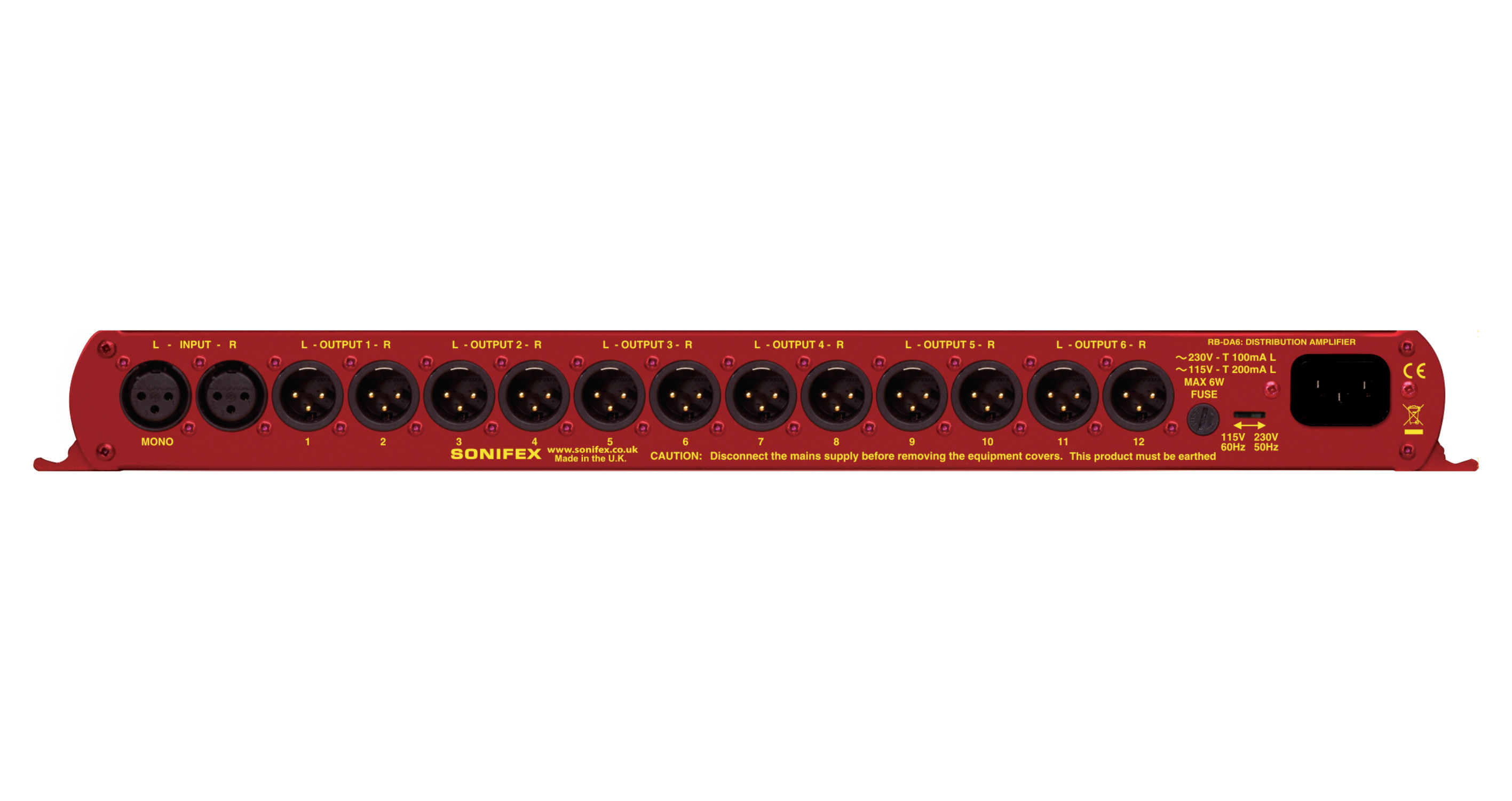

Connections
Inputs:
2 x XLR 3 pin female (balanced, can be unbalanced)
Outputs:
12 x XLR 3 pin male (balanced, can be unbalanced)
Mains Input:
Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating:
Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating:
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-DA6
6 way stereo distribution amplifier
Physical Specification
Dimensions (Raw):
48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
58.5cm (W) x 22.5cm (D) x 7cm (H)
Dimensions (Boxed):
23” (W) x 8.9” (D) x 2.8” (H)
Weight:
Nett: 1.3kg  Gross: 1.9kg
Weight:
Nett: 2.9lbs Gross: 4.2lbs
