Distribution Amplifiers
RB-DDA6S
6 Way Stereo S/PDIF Digital Distribution Amplifier
The RB-DDA6S digital distribution amplifier is used for distributing digital audio data in S/PDIF format. Repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels
About RB-DDA6S

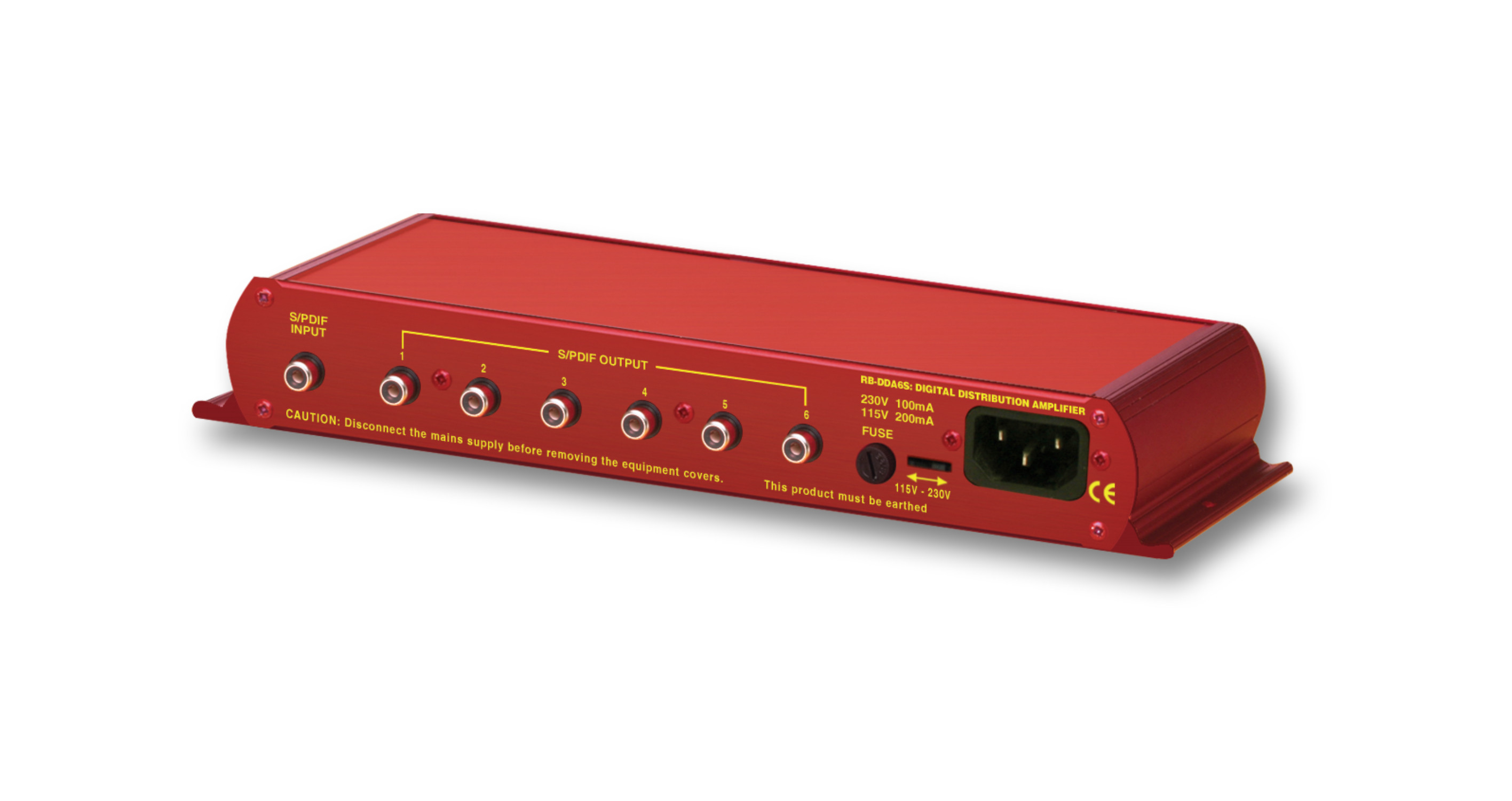

The RB-DDA6S digital distribution amplifier is similar to the RB-DDA6A except that it is used for distributing digital audio data in S/PDIF format. It has a single S/PDIF audio input which is distributed to 6 x S/PDIF audio outputs at the same level and condition as the input signal. It can accept input sample rates in the range of 30kHz – 100kHz, and bit rates of 16, 20 and 24 bit. Uses include audio distribution at 16 bit 44.1kHz from a standard media player to multiple digital recorders, distribution of high quality 24 bit 96kHz signals from digital mixing desks to recorders and connection of the output of a media player to multiple studios.
Typical Applications
Audio distribution at 16 bit 44.1kHz from a consumer media player to multiple digital recorders, distribution of high quality 24 bit 96kHz signals from digital mixing desks to recorders and connection of the output a media player to multiple studios.Product Data
Technical Specifications
Audio Specification
Connections
Equipment Type
Physical Specification
Downloads & Resources
Support
Handbooks & Guides
Firmware
No firmware currently listed.
Firmware Notes
Full release notes for all firmware versions will appear here when available.
