RB-DA4x5
4 Input, 4 x 5 Output Distribution Amplifier/Mixer
The RB-DA4x5 is a 1U rack-mount combined distribution amplifier and mixer.
RB-DA4x5
4 Input, 4 x 5 Output Distribution Amplifier/Mixer

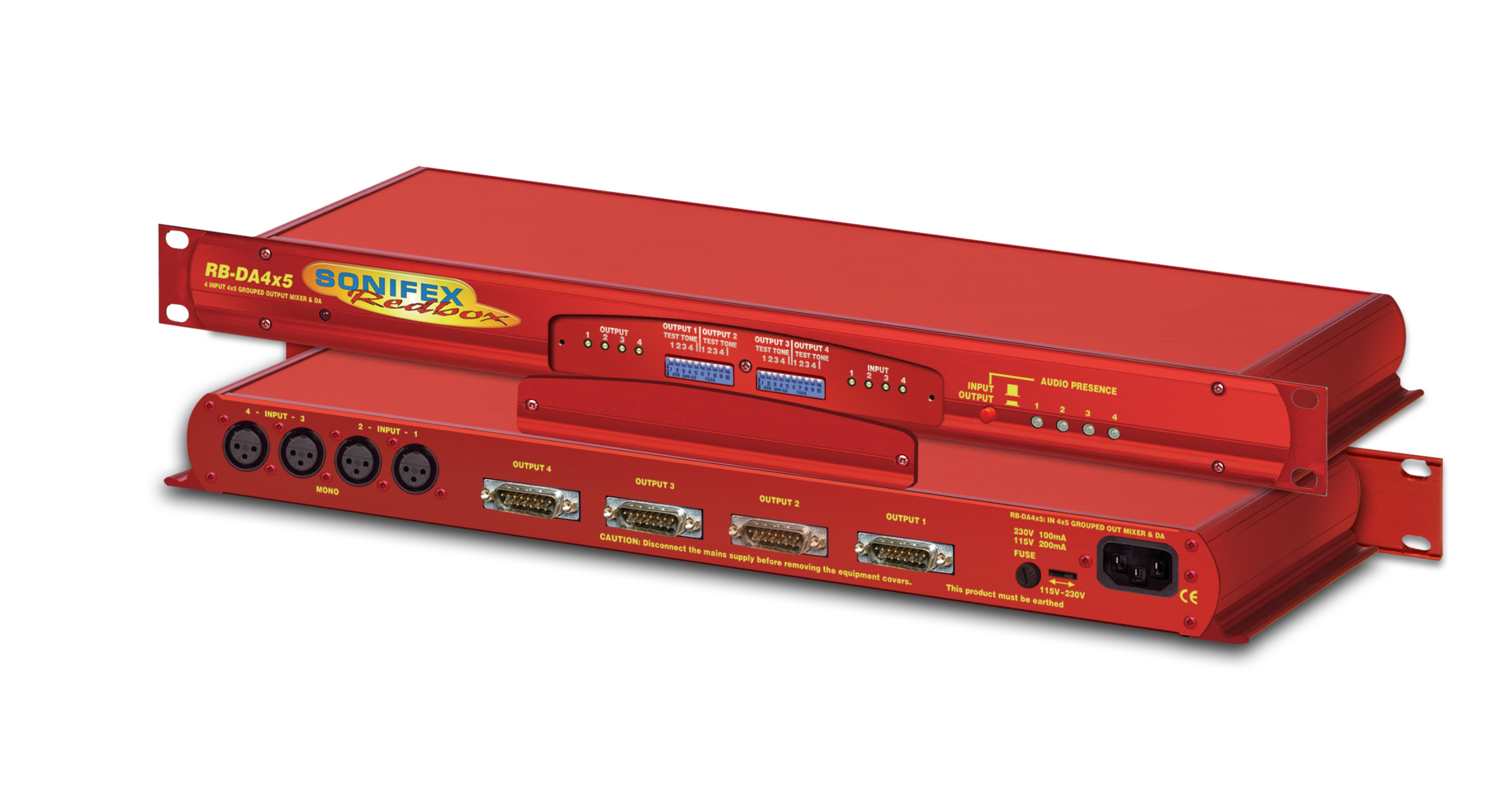

The RB-DA4x5 is a 1U rack-mount combined distribution amplifier and mixer, featuring four mono analogue audio inputs on female XLR connectors and four groups of five outputs on 15-way D-type connectors.

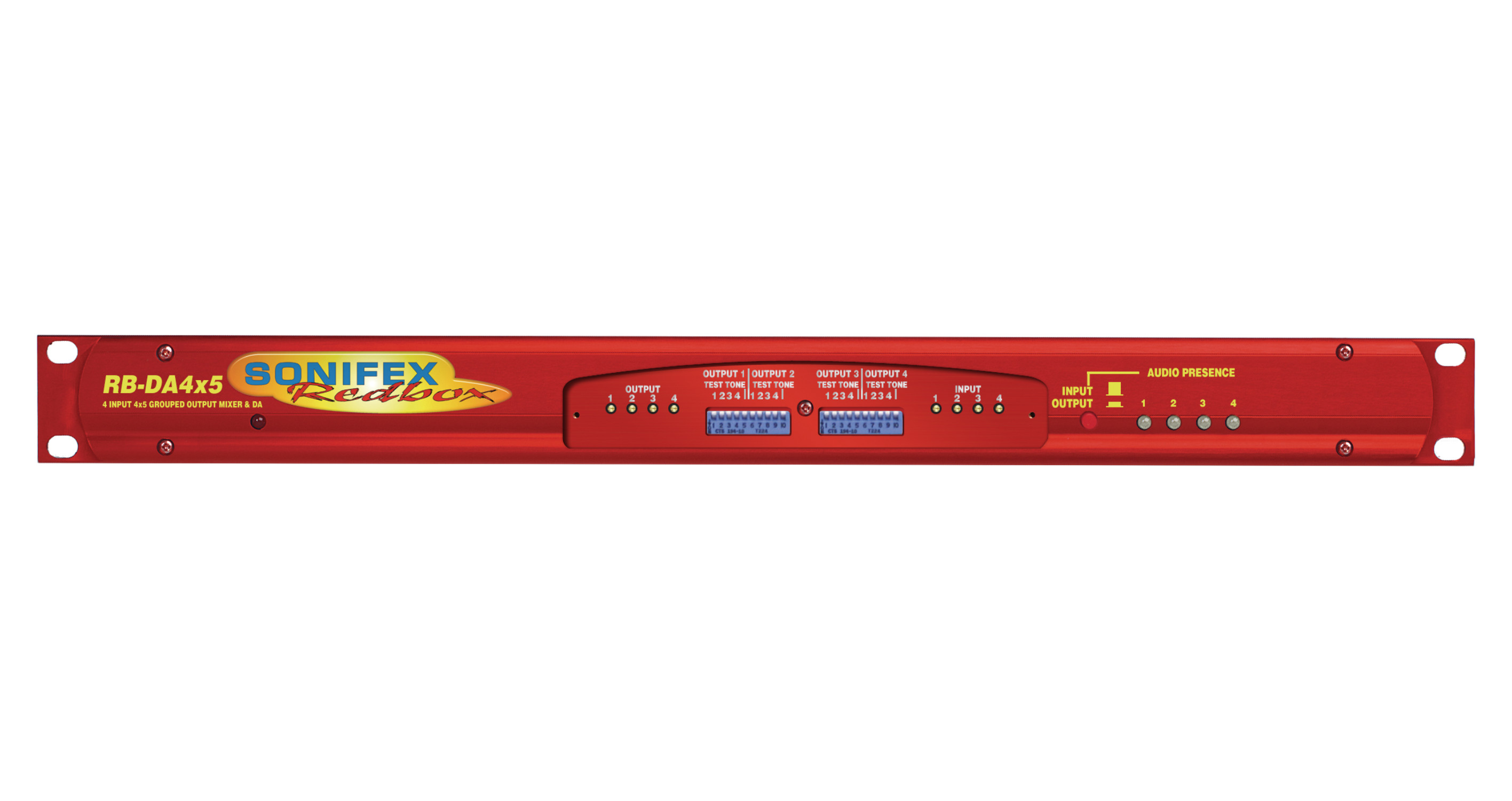

Each output group is controlled by a front-panel 5-way DIP switch, allowing selection and mixing of any input, or a 1kHz 0dBu test tone, to that group.
All inputs and outputs are electronically balanced, with each input offering adjustable gain from -8dB to +18dB via preset potentiometers. Output groups also have adjustable gain across the same range.
Each output is individually buffered, ensuring a fault on one does not affect the others.
The DIP switches and gain controls are recessed behind a screw-on front cover to prevent accidental adjustment in secure installations.
Four front-panel LEDs display signal presence for either inputs or output groups (selectable via the AUDIO PRESENCE button), indicating levels as follows: green (-12dB to 0dB), amber (0dB to +6dB), and red (+6dB and above).
Product Features
Balanced I/O that can be wired unbalanced.
4 input, 4x 5-way (20 output) distribution / mixing.
DIP switch source selection.
Outputs a 1kHz test tone e.g. to check transmission lines.
Input and output gain adjustment.
Front panel cover to secure settings.
Audio present LED’s for inputs or outputs.
Typical Applications
Product Category
Distribution AmplifiersTECHNICAL SPECIFICATIONS
Audio Specification | |
|---|---|
| Maximum Input Level: | +28dBu |
| Maximum Output Level: | +28dBu |
| Frequency Response: | 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz) |
| Input Gain Range: | Adjustable 8dB loss to 18dB gain (channel 1-4 adjust) |
| Output Gain Range: | Adjustable 8dB loss to 18dB gain (group 1-4 adjust) |
| Input impedance: | >20kΩ bridging |
| Output impedance: | <50Ω |
| Distortion: | 0.01% THD @ 1kHz, ref +8dBu output |
| Noise: | -100dB unity gain, ref +8dBu output |
| Common Mode Rejection: | >66dB typically |
Connections | |

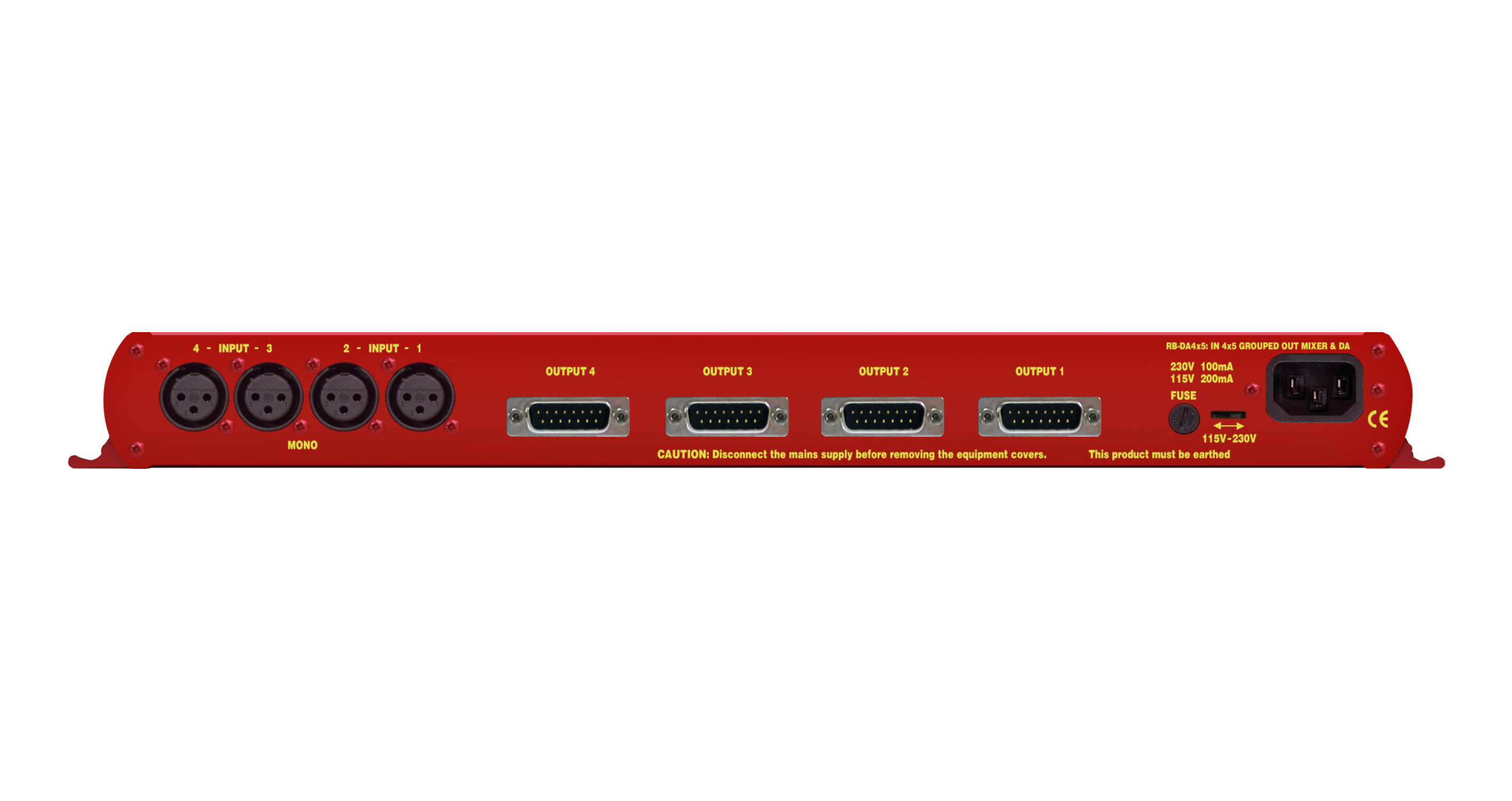

| Inputs (4 x Mono): | 4 x XLR 3 pin female (balanced, can be unbalanced) |
| Outputs (20 x Mono): | 4 x 15 way D-type male plug (balanced, can be unbalanced) |
| Mains Input: | Filtered IEC, switchable 110-120V, or 220-240V, fused, 9W max |
| Fuse Rating: | Anti-surge fuse 100mA 20 x 5mm (230VAC) |
| Fuse Rating: | Anti-surge fuse 250mA 20 x 5mm (115VAC) |
Equipment Type | |
| RB-DA4x5 | 4 Input, 4 x 5 output distribution amplifier/mixer |
Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U) |
| Dimensions (Raw): | 19” (W) x 6.2” (D*) x 1.7 (H) (1U) |
| Dimensions (Boxed): | 59cm (W) x 27.5cm (D*) x 11cm (H) |
| Dimensions (Boxed): | 23.2” (W) x 10.8” (D*) x 4.3” (H) |
| Weight: | Nett: 1.6kg Gross: 2.2kg |
| Weight: | Nett: 3.5lbs Gross: 4.8lbs |
| * Note that this product is deeper than standard Redboxes | |
