RB-DDA6A3

6 way AES-3id distribution amplifier

The RB-DDA6A3 digital distribution amplifier is used for distributing AES-3id digital audio, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels.

24bit96_logo-optimized RK1_logo-optimized RK2_logo-optimized

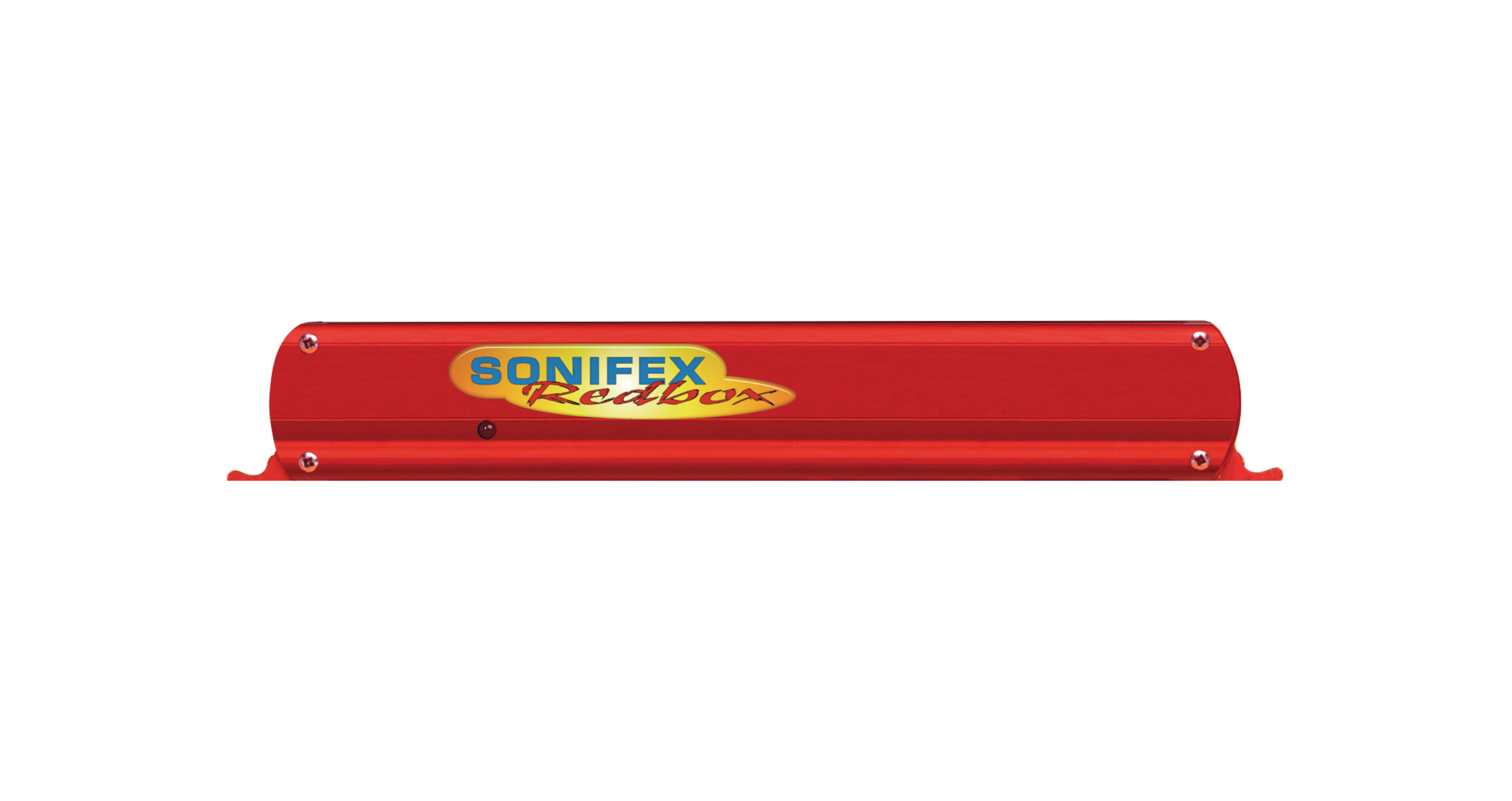

About RB-DDA6A3

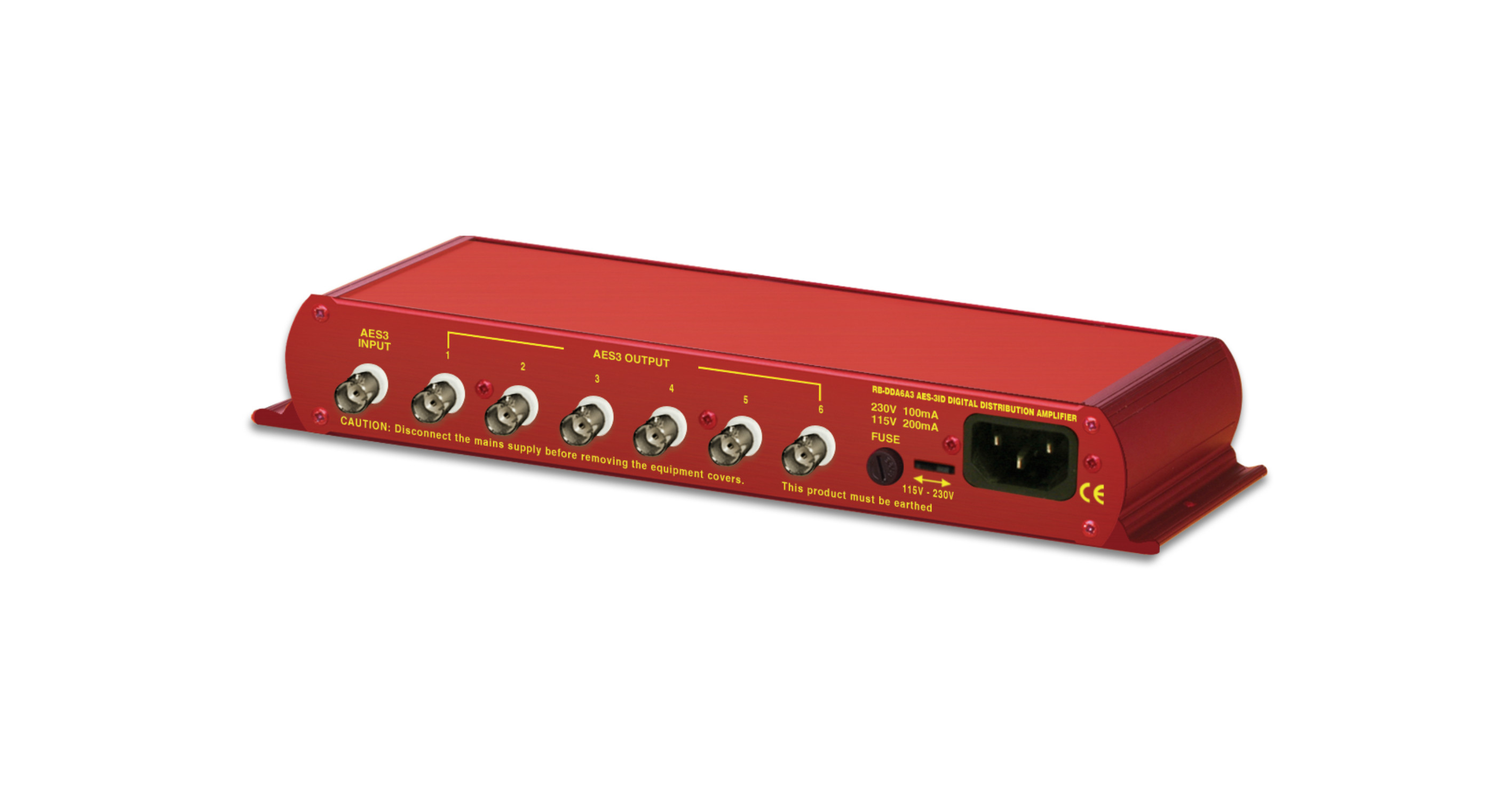

The RB-DDA6A3 digital distribution amplifier is used for distributing AES-3id digital audio, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels. It has a single BNC AES-3id audio input which is distributed to 6 BNC AES-3id audio outputs. Applications include distributing audio from media to recorders, or feeding multiple studios with an output from a master clock. It can accept input sample rates in the range of 30kHz – 100kHz, and bit rates of 16, 20 and 24 bit.

Typical Applications

Distribution of audio from a media player to recorders, or feeding multiple studios with an output from a master clock.

Product Data

Technical Specifications

Audio Specification
Input impedance:
75Ω
Output impedance:
75Ω
Sample Freq Range:
30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz & 96kHz)
Signal Level:
1V ±20% peak to peak (output 1.17V to drive long cable lengths)

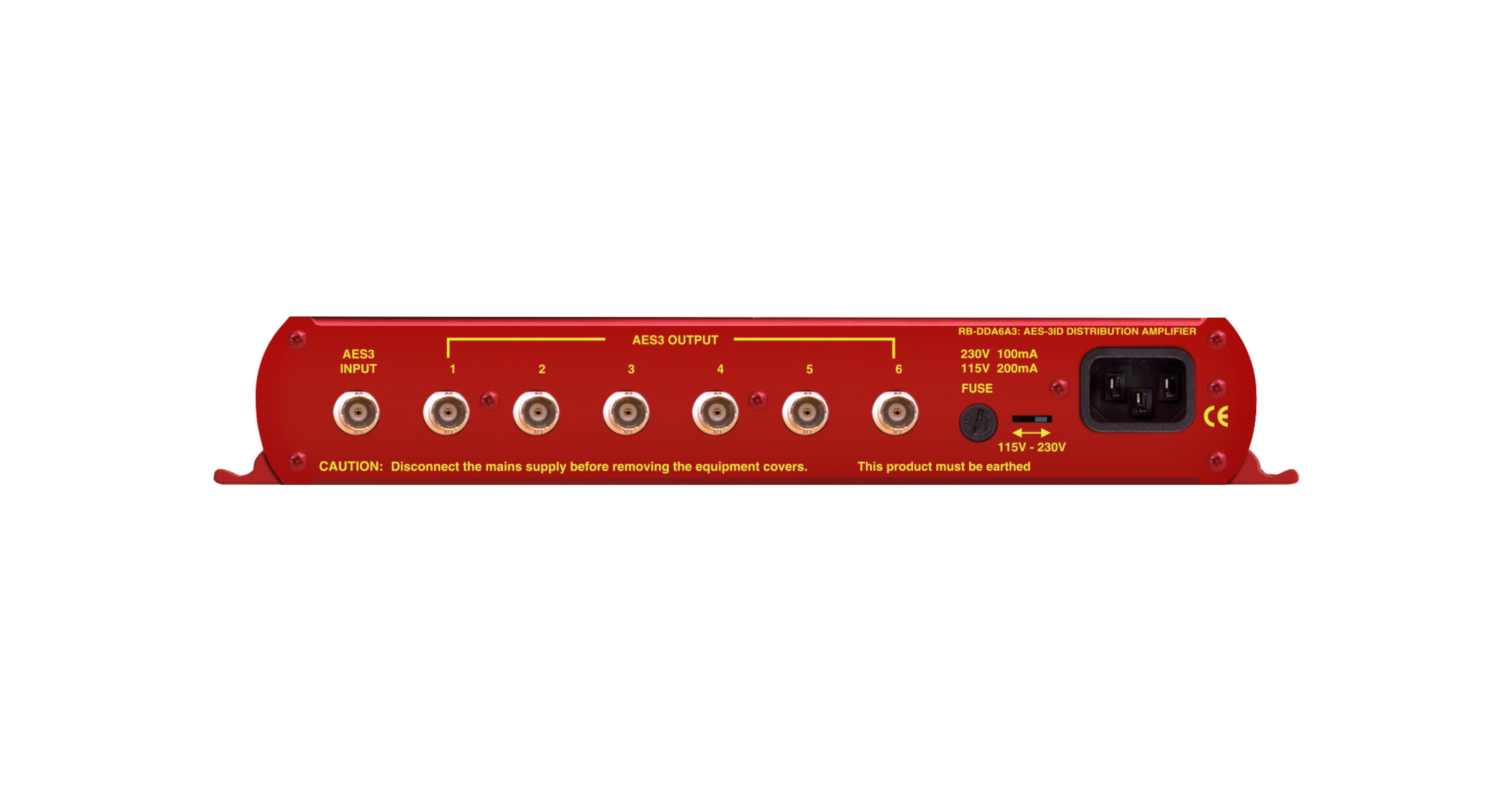

Connections
Inputs:
1 x BNC female
Outputs:
6 x BNC female
Mains Input:
Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating:
Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating:
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-DDA6A3
6 way stereo AES-3id digital audio distribution amplifier
Physical Specification
Dimensions (Raw):
28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
11” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
36cm (W) x 20.5cm (D) x 6cm (H)
Dimensions (Boxed):
14.2” (W) x 8” (D) x 2.4” (H)
Weight:
Nett: 0.95kg Gross: 1.4kg
Weight:
Nett: 2.1lbs   Gross: 3.2lbs
