S2-25

Chassis Design

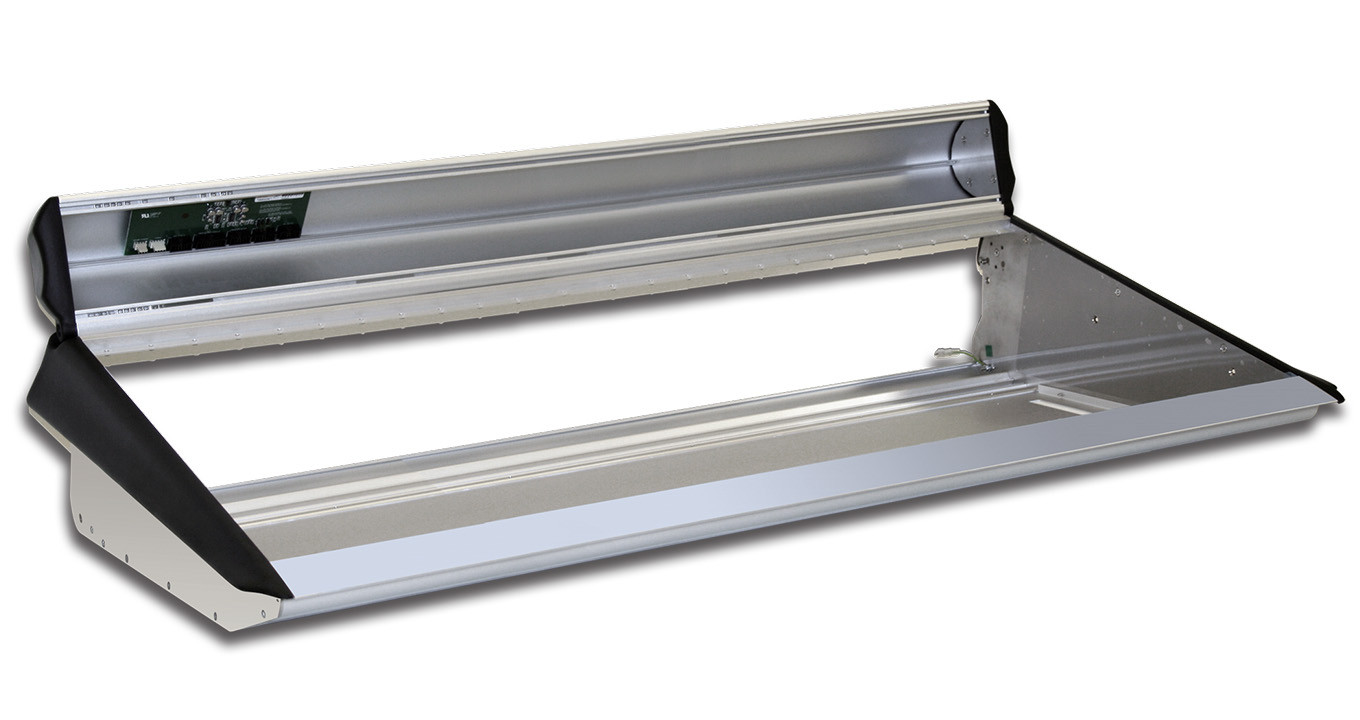

The S2-25 is a 25 channel width mixer desk or console.

About S2-25

The S2 chassis is available in 5, 10, 15, 20, 25 and 30 channel width mixers. This means S2 can be used for small newsrooms or large on-air situations. The S2-25 is a twenty five-channel width chassis.

Typical Applications

Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.

Product Data

Technical Specifications

Physical Specification
Dimensions (Raw):
103.8cm (W) x 54.4cm (D) x 29.7cm (18cm above and 11.7cm below the desk) (H)
Dimensions (Raw):
40.87" (W) x 21.4" (D) x 11.69" (H)
Dimensions (Boxed):
100cm (W) x 70cm (D) x 45cm (H)
Dimensions (Boxed):
39.4" (W) 27.6" (D) x 17.7" (H)
Hole Size in Desktop to Accomodate Chassis:
95.8cm (W) x 50.6cm (H)
Weight - Chassis only:
Nett: 16.8kg Gross: 18.8kg
Weight - Chassis only:
Nett: 39.96lbs Gross: 41.36 lbs
Weight - Loaded with Channels:
Nett: 31.0kg Gross: 33.0kg
Weight - Loaded with Channels:
Nett: 68.0 lbs Gross: 73.0 lbs
Weights are approximate and based on a mixer chassis loaded with channels
