S2-15
Chassis Design

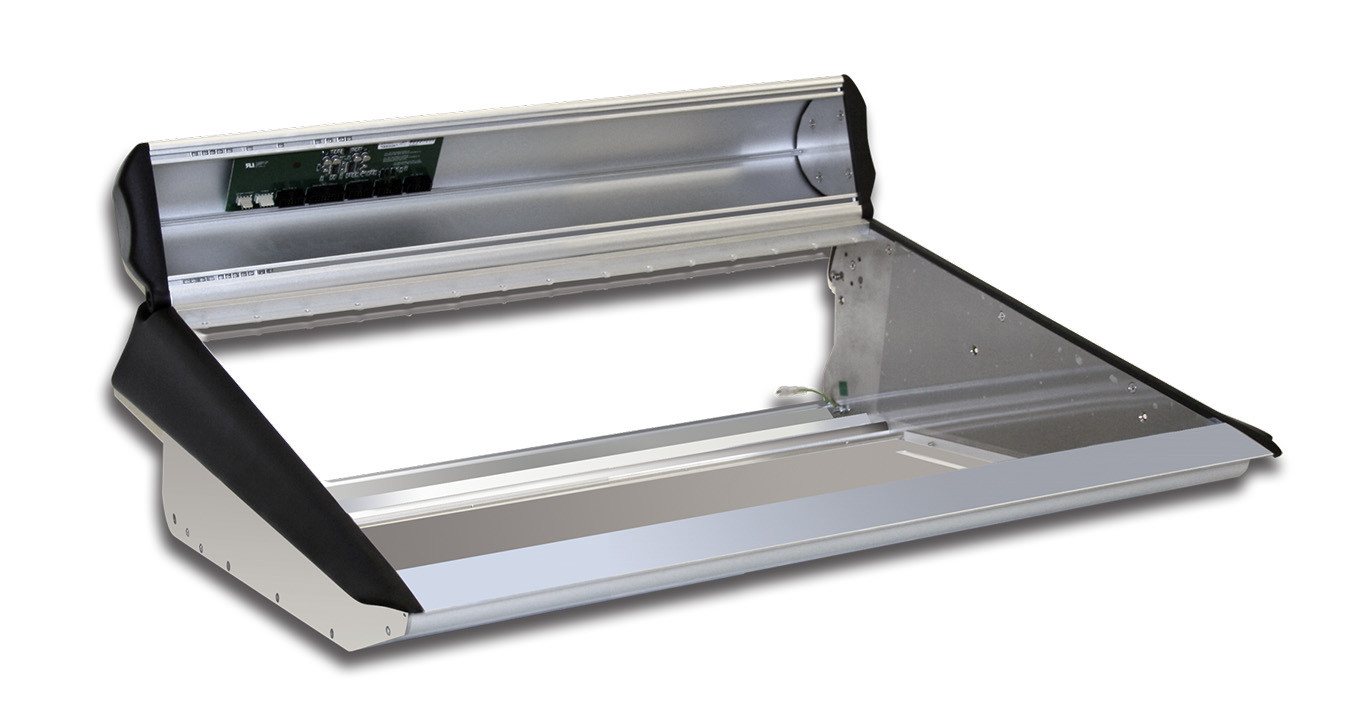

The S2-15 is a 15 channel width mixer desk or console.
About S2-15
The S2 chassis is available in 5, 10, 15, 20, 25 and 30 channel width mixers. This means S2 can be used for small newsrooms or large on-air situations. The S2-15 is a fifteen-channel width chassis.
Typical Applications
Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.Product Data
Technical Specifications
Physical Specification
Dimensions (Raw):
65.7cm (W) x 54.4cm (D) x 29.7cm (18cm above and 11.7cm below the desk) (H)
Dimensions (Raw):
25.87" (W) x 21.4" (D) x 11.69" (H)
Dimensions (Boxed):
100cm (W) x 70cm (D) x 45cm (H)
Dimensions (Boxed):
Dimensions (Boxed): 39.4" (W) 27.6" (D) x 17.7" (H)
Hole Size in Desktop to Accomodate Chassis:
57.7cm (W) x 50.6cm (H)
Weight - Chassis only:
Nett: 15.3kg Gross: 16.8kg
Weight - Chassis only:
Nett: 33.66 lbs Gross: 36.96 lbs
Weight - Loaded with Channels:
Nett: 25.5kg Gross: 27.0kg
Weight - Loaded with Channels:
Nett: 56.0 lbs Gross: 59.0 lbs
Weights are approximate and based on a mixer chassis loaded with channels
