S2-15-NM
S2 15 Channel Mixer Chassis With No Meterbridge
S2 15 channel mixer chassis with no meterbridge
S2-15-NM
S2 15 Channel Mixer Chassis With No Meterbridge

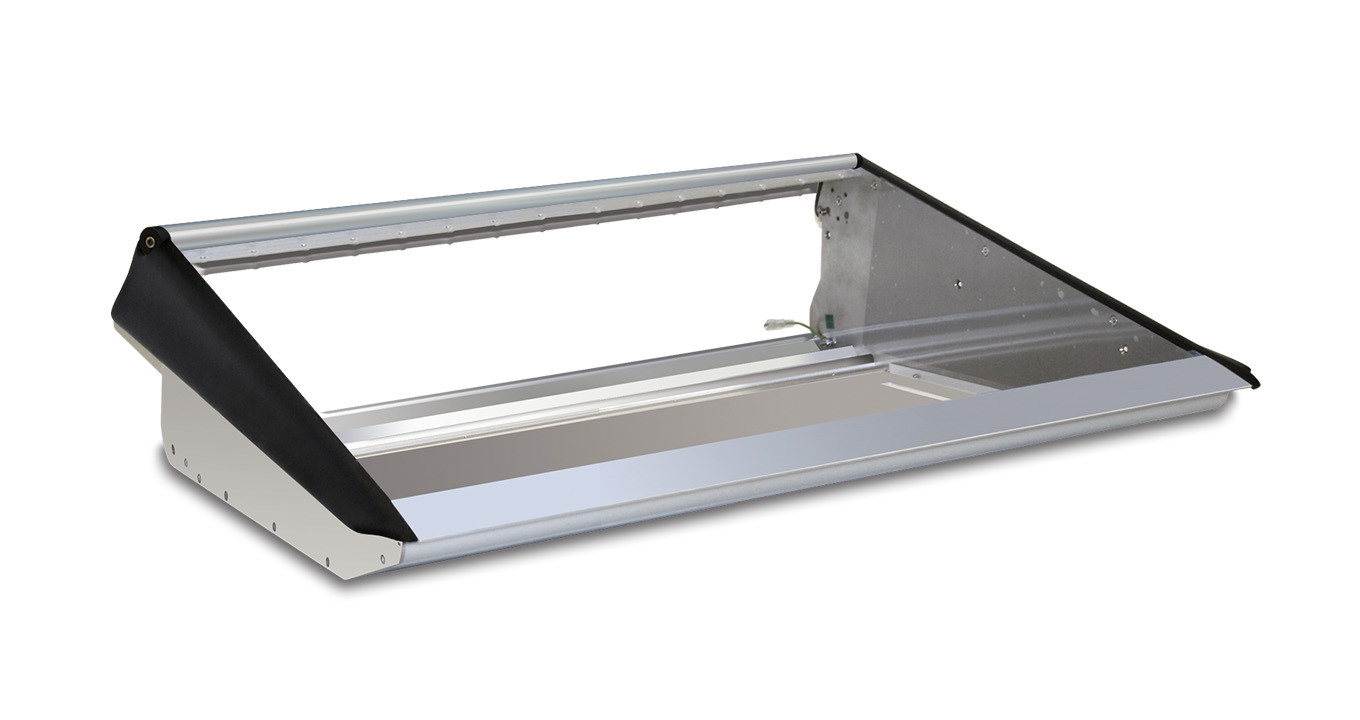

This is the S2, 15 Channel Mixer Chassis With No Meterbridge. The S2 chassis with no meterbridge is available in 5 channel width sections, allowing 5, 10, 15, 20, 25 and 30 channel width mixers. This means S2 can be used for small newsrooms or large on-air situations. The S2-15-NM is a 15-channel width chassis.
Chassis Sizes
S2-05-NM has 5 Channels
S2-10-NM has 10 Channels
S2-15-NM has 15 Channels
S2-20-NM has 20 Channels
S2-25-NM has 25 Channels
S2-30-NM has 30 Channels
Product Features
High quality stainless steel construction.
Fifteen-channel width
Typical Applications
Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.
Product Category
Mix ConsolesTECHNICAL SPECIFICATIONS
Physical Specification | |
|---|---|
| Dimensions (Raw): | 65.7cm (W) x 54.4cm (D) x 19.6cm (7.9cm above and 11.7cm below the desk) (H) |
| Dimensions (Raw): | 25.87" (W) x 21.4" (D) x 7.2" (H) |
| Dimensions (Boxed): | 100cm (W) x 70cm (D) x 45cm (H) |
| Dimensions (Boxed): | 39.4" (W) 27.6" (D) x 17.7" (H) |
| Hole Size in Desktop to Accomodate Chassis: | 57.7cm (W) x 50.6cm (H) |
| Weight - Chassis only: | Nett: 14.1kg Gross: 15.6kg |
| Weight - Chassis only: | Nett: 31 lbs Gross: 34.32 lbs |
| Weight - Loaded with Channels: | Nett: 24.3kg Gross: 25.8kg |
| Weight - Loaded with Channels: | Nett: 53.46 lbs Gross: 56.76 lbs |
| Weights are approximate and based on a mixer chassis loaded with channels | |
