S2-30
Chassis Design

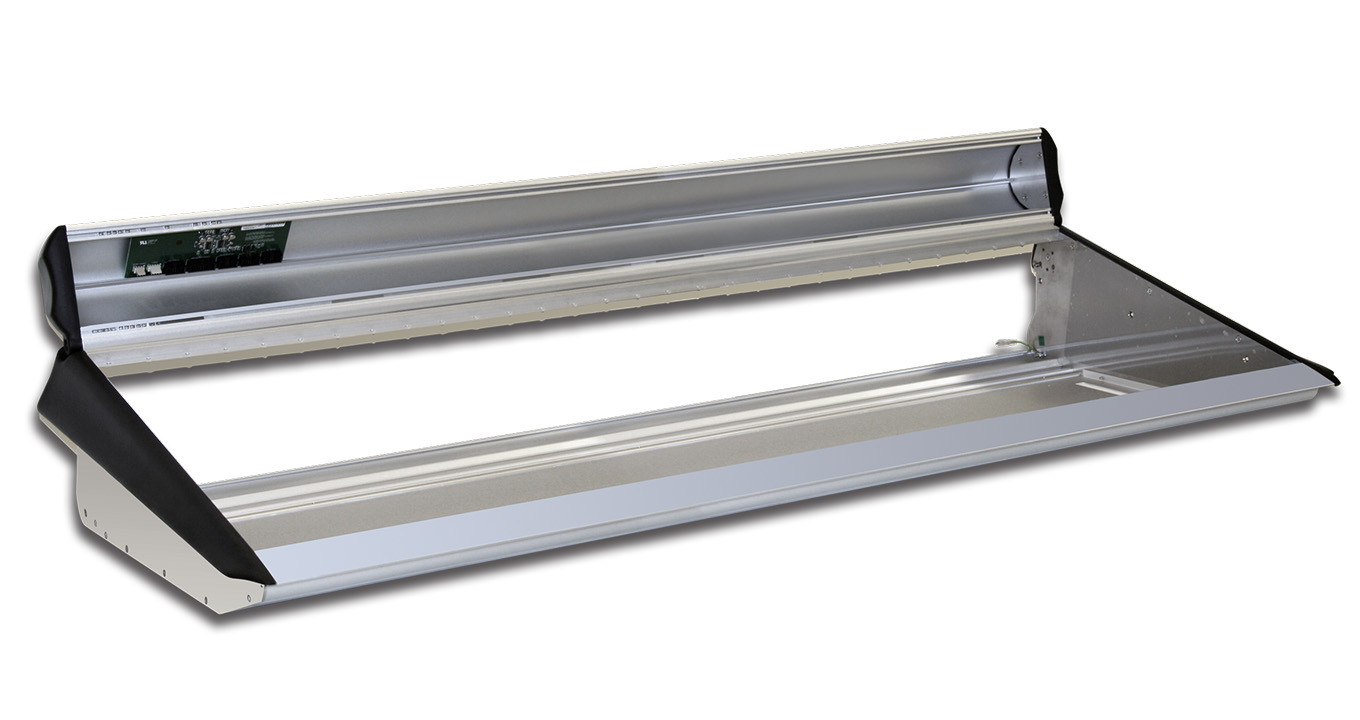

The S2-30, 30 channel width chassis.
S2-30
Chassis Design
The S2 chassis is available in 5 channel width sections, allowing 5, 10, 15, 20, 25 and 30 channel width mixers. This means S2 can be used for small newsrooms or large on-air situations. The S2-30 is a 30-channel width chassis.
Chassis Sizes
S2-05 has 5 Channels
S2-10 has 10 Channels
S2-15 has 15 Channels
S2-20 has 20 Channels
S2-25 has 25 Channels
S2-30 has 30 Channels
Product Features
High quality stainless steel construction.
Thirty-channel width
Typical Applications
Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.
Product Category
Mix ConsolesTECHNICAL SPECIFICATIONS
Physical Specification | |
|---|---|
| Dimensions (Raw): | 122.9cm (W) x 54.4cm (D) x 29.7cm (18cm above and 11.7cm below the desk) (H) |
| Dimensions (Raw): | 48.39" (W) x 21.4" (D) x 11.69" (H) |
| Dimensions (Boxed): | 137cm (W) x 70cm (D) x 45cm (H) |
| Dimensions (Boxed): | 53.9" (W) 27.6" (D) x 17.7" (H) |
| Hole Size in Desktop to Accomodate Chassis: | 114.9cm (W) x 50.6cm (H) |
| Weight - Chassis only: | Nett: 17.8kg Gross: 19.4kg |
| Weight - Chassis only: | Nett: 39.16 lbs Gross: 42.68 lbs |
| Weight - Loaded with Channels: | Nett: 34.0kg Gross: 36.0kg |
| Weight - Loaded with Channels: | Nett: 75.0 lbs Gross: 79.0lbs |
| Weights are approximate and based on a mixer chassis loaded with channels | |
