S2-20
Chassis Design

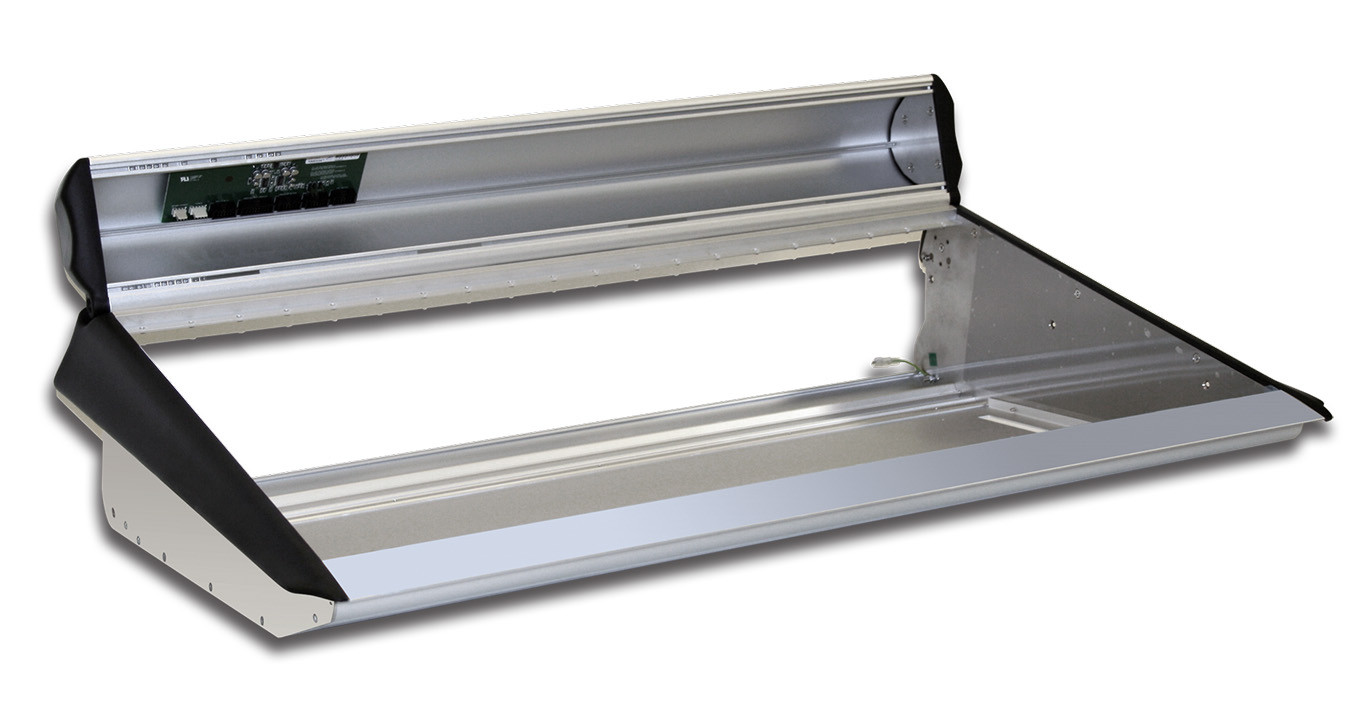

The S2-20 is a 20 channel width mixer desk or console.
About S2-20
The S2 chassis is available in 5, 10, 15, 20, 25 and 30 channel width mixers. This means S2 can be used for small newsrooms or large on-air situations. The S2-20 is a twenty-channel width chassis.
Typical Applications
Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.Product Data
Technical Specifications
Physical Specification
Dimensions (Raw):
84.8cm (W) x 54.4cm (D) x 29.7cm (18cm above and 11.7cm below the desk) (H)
Dimensions (Raw):
33.38" (W) x 21.4" (D) x 11.69" (H)
Dimensions (Boxed):
100cm (W) x 70cm (D) x 45cm (H)
Dimensions (Boxed):
39.4" (W) 27.6" (D) x 176.8cm (W) x 50.6cm (H)
Hole Size in Desktop to Accomodate Chassis:
76.8cm (W) x 50.6cm (H)
Weight - Chassis only:
Nett: 13.8kg Gross: 15.8kg
Weight - Chassis only:
Nett: 30.36 lbs Gross: 34.76 lbs
Weight - Loaded with Channels:
Nett: 28.0kg Gross: 30.0kg
Weight - Loaded with Channels:
Nett: 62.0 lbs Gross: 66.0 lbs
Weights are approximate and based on a mixer chassis loaded with channels
