S2-25-NM
S2 25 Channel Mixer Chassis With No Meterbridge
S2 25 channel mixer chassis with no meterbridge
S2-25-NM
S2 25 Channel Mixer Chassis With No Meterbridge

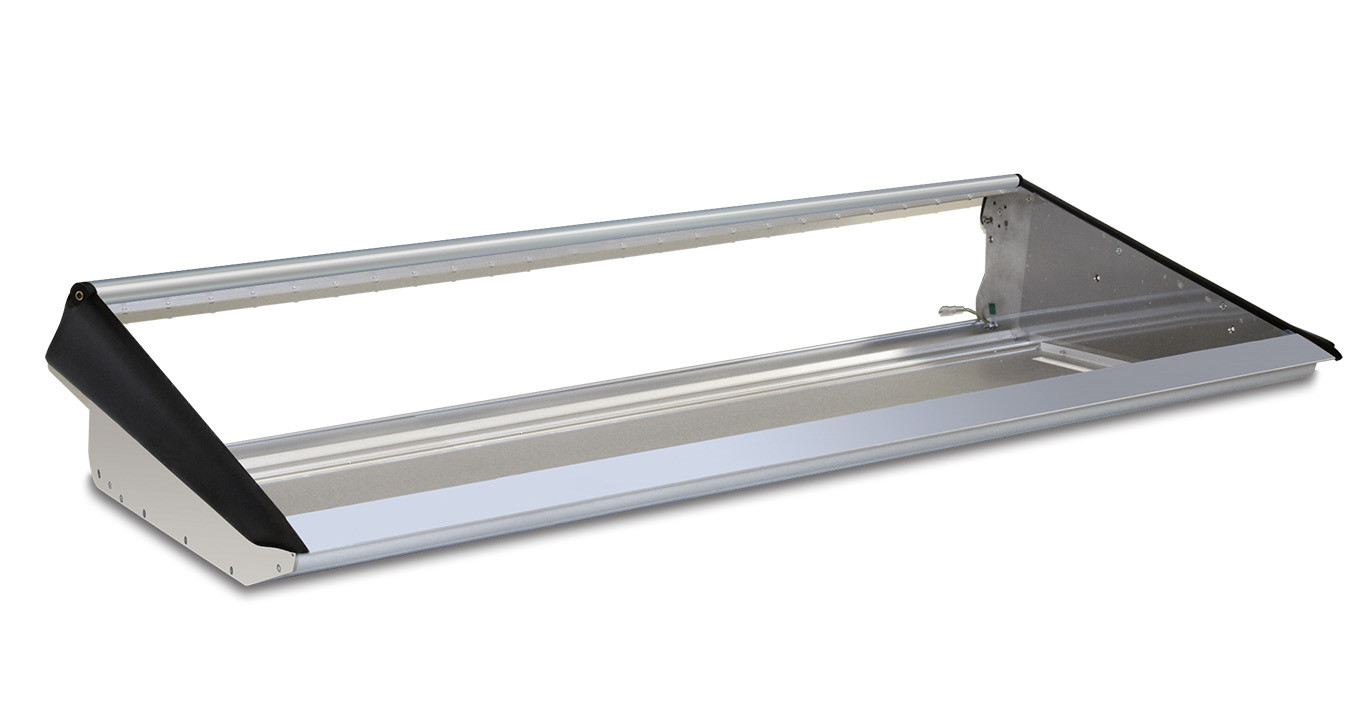

This is the S2, 25 Channel Mixer Chassis With No Meterbridge. The S2 chassis with no meterbridge is available in 5, 10, 15, 20, 25 and 30 channel width mixers. This means S2 can be used for small newsrooms or large on-air situations. The S2-25-NM is a 25-channel width chassis.
Chassis Sizes
S2-05-NM has 5 Channels
S2-10-NM has 10 Channels
S2-15-NM has 15 Channels
S2-20-NM has 20 Channels
S2-25-NM has 25 Channels
S2-30-NM has 30 Channels
Product Features
High quality stainless steel construction.
Twenty five-channel width
Typical Applications
Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.
Product Category
Mix ConsolesTECHNICAL SPECIFICATIONS
Physical Specification | |
|---|---|
| Dimensions (Raw): | 103.8cm (W) x 54.4cm (D) x 19.6cm (7.9cm above and 11.7cm below the desk) (H) |
| Dimensions (Raw): | 40.87" (W) x 21.4" (D) x 7.2" (H) |
| Dimensions (Boxed): | 100cm (W) x 70cm (D) x 45cm (H) |
| Dimensions (Boxed): | 39.4" (W) 27.6" (D) x 17.7" (H) |
| Hole Size in Desktop to Accomodate Chassis: | 95.8cm (W) x 50.6cm (H) |
| Weight - Chassis only: | Nett: 14.8kg Gross: 16.8kg |
| Weight - Chassis only: | Nett: 32.56lbs Gross: 36.96 lbs |
| Weight - Loaded with Channels: | Nett: 29.0kg Gross: 31.0kg |
| Weight - Loaded with Channels: | Nett: 63.8 lbs Gross: 68.2 lbs |
| Weights are approximate and based on a mixer chassis loaded with channels | |
