Signal Converters

RB-BL4

Dual Stereo Bi-Directional Matching Converter

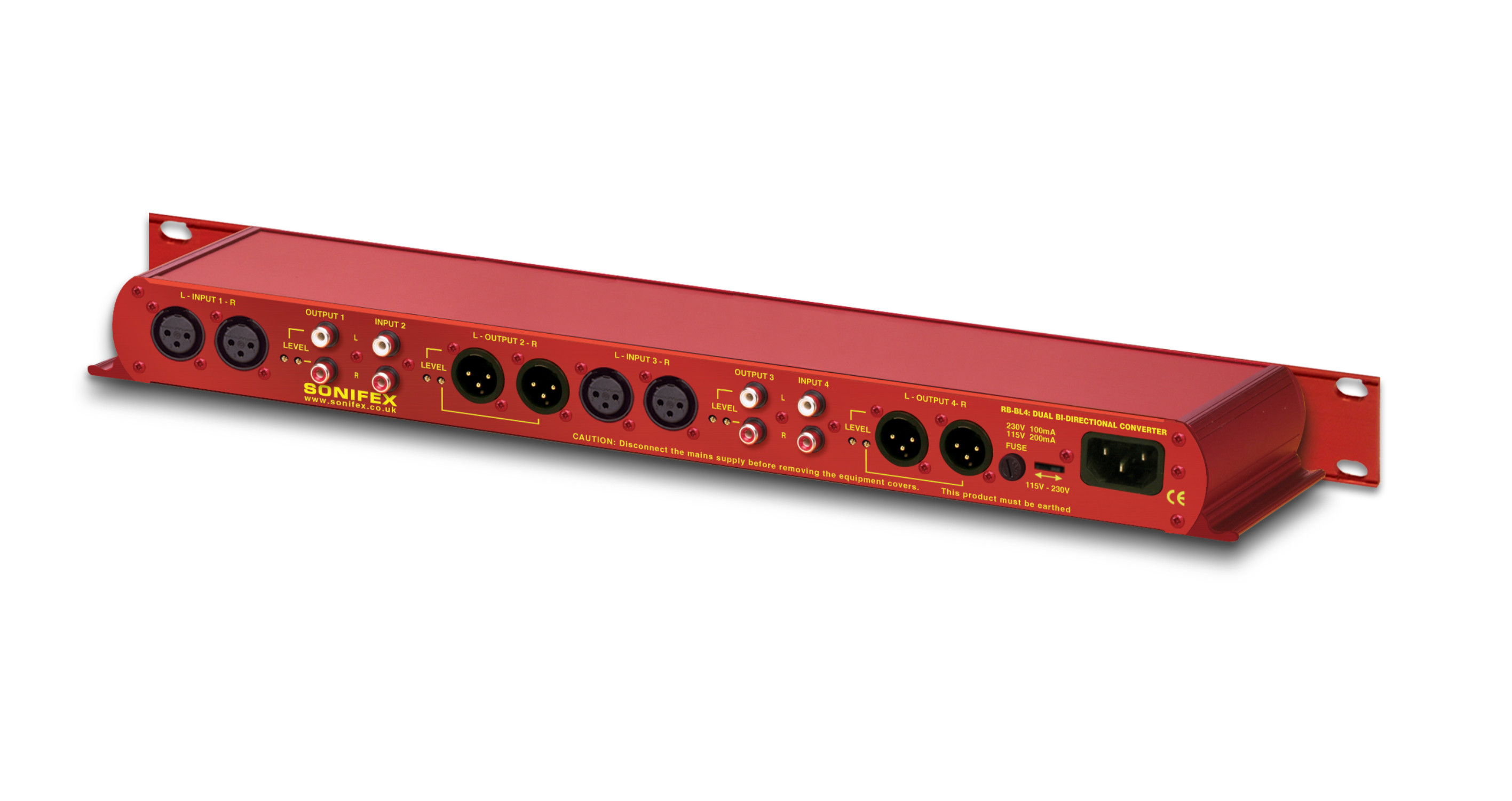

The RB-BL4 is a dual bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels, and vice versa.

RK3_logo-optimized FR1_logo-optimized

About RB-BL4

The RB-BL4 is a dual bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels, and vice versa.

The four XLR-3 electronically balanced inputs have an impedance of 20kΩ bridging and are routed to four unbalanced RCA (phono) outputs with an output impedance of <50Ω.

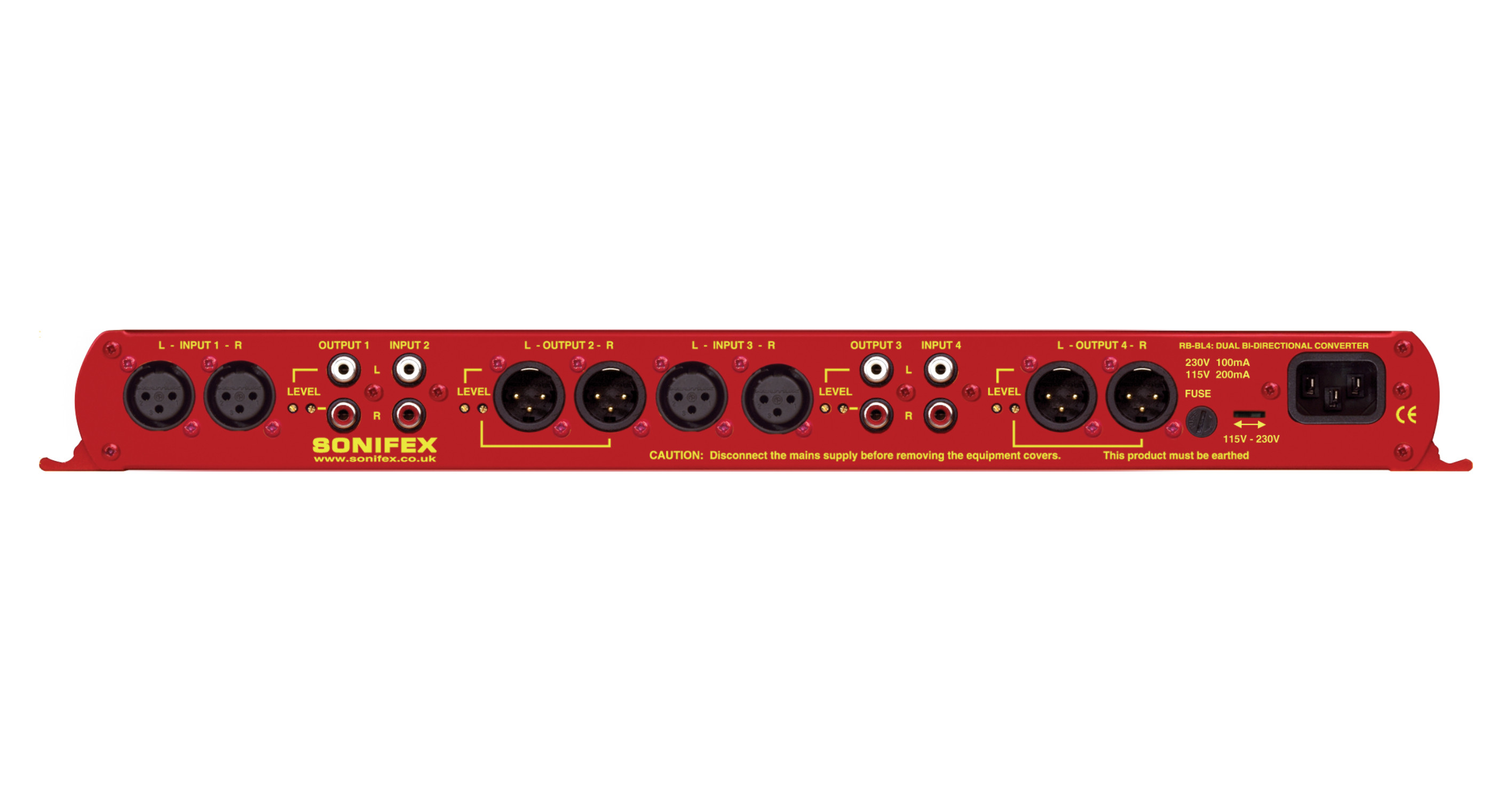

The four RCA unbalanced inputs have an impedance of 20kΩ and are routed to four balanced XLR-3 outputs with an output impedance of <50Ω. All connections are on the rear panel.

The output gain can be adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel.

Typical Applications

Providing bi-directional matching conversion between an unbalanced and balanced piece of equipment, typically between an unbalanced portable recorder & balanced USB or flashcard playback device.

Product Data

Technical Specifications

Audio Specification
Maximum Input Level:
+28dBu
Maximum Output Level:
+28dBu
Input Impedance (RCA):
>10kΩ unbalanced
Input Impedance (XLR):
>20kΩ balanced bridging
Output Impedance (RCA):
<50Ω
Output Impedance (XLR):
<50Ω
Distortion:
0.01% THD @ 1kHz, ref +8dBu output
Noise:
-100dB, unity gain, ref +8dBu output
Common Mode Rejection:
>66dB typically
Frequency Response:
20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Gain Range:
Unbalanced Output : -28dBu to 0dBu, ref 0dBu into balanced XLR input
Gain Range:
Balanced Output : -15dBu to +15dBu, ref -15dBu into unbalanced RCA input
Connections
Inputs:
4 x RCA phono (Unbal), 4 x XLR 3 pin female (Bal)
Outputs:
4 x XLR 3 pin male (Bal), 4 x RCA phono (Unbal)
Mains Input:
Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating:
Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating:
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-BL4:
Dual stereo bi-directional matching converter
Physical Specification
Dimensions (Raw):
48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
58.5cm (W) x 22.5cm (D) x 7cm (H)
Dimensions (Boxed):
23” (W) x 8.9” (D) x 2.8” (H)
Weight:
Nett: 1.3kg  Gross: 1.9kg
Weight:
Nett: 2.9lbs Gross: 4.2lbs
