RB-BL2
Unbalanced to Balanced Bi-Directional Converter
The RB-BL2 is a bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels, and vice-versa.
RB-BL2
Unbalanced to Balanced Bi-Directional Converter
The RB-BL2 is a bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels, and vice-versa.
The two XLR-3 electronically balanced inputs have an impedance of 20kΩ bridging and are routed to two unbalanced RCA (phono) outputs with an output impedance of <50Ω.

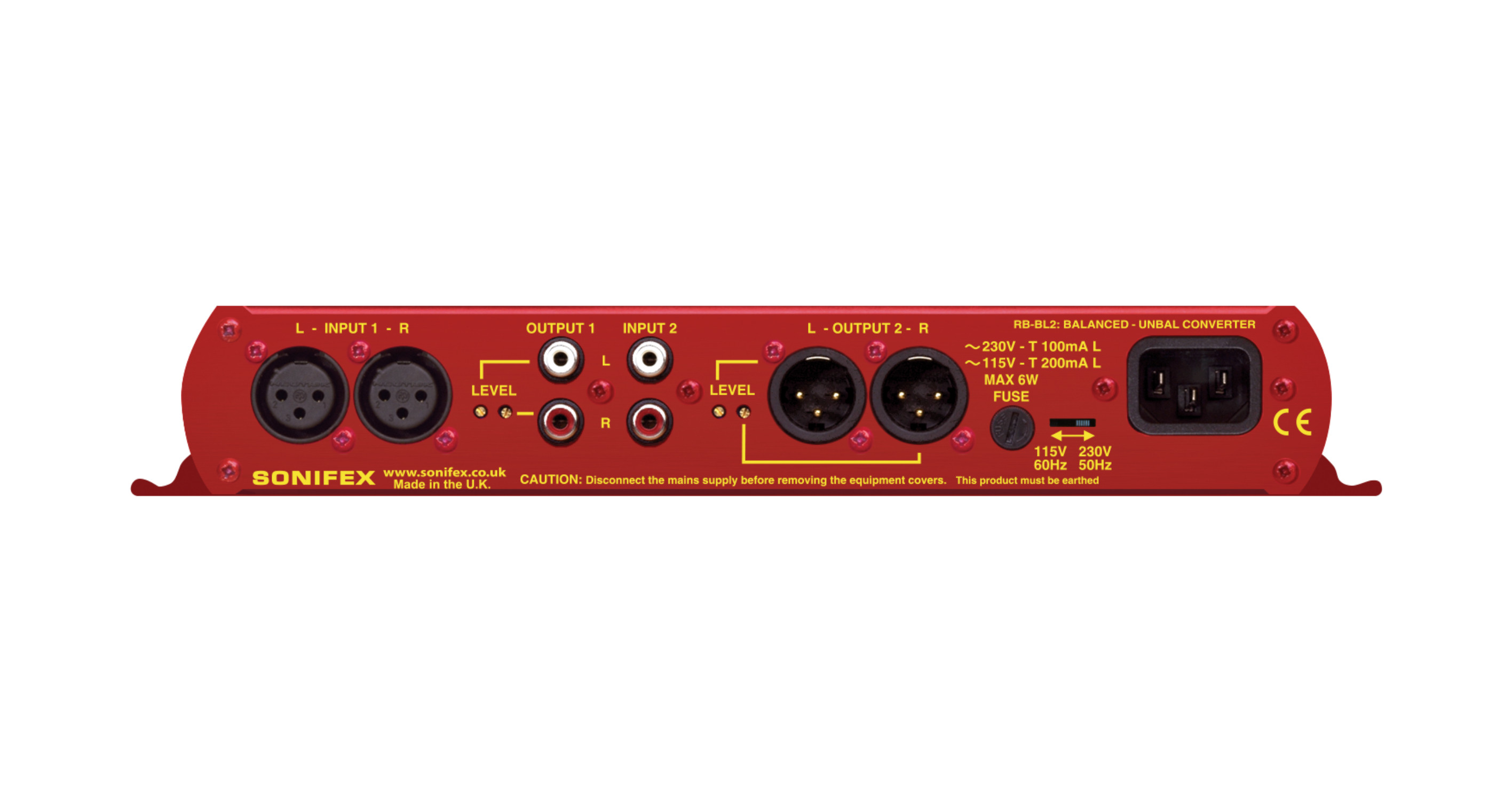

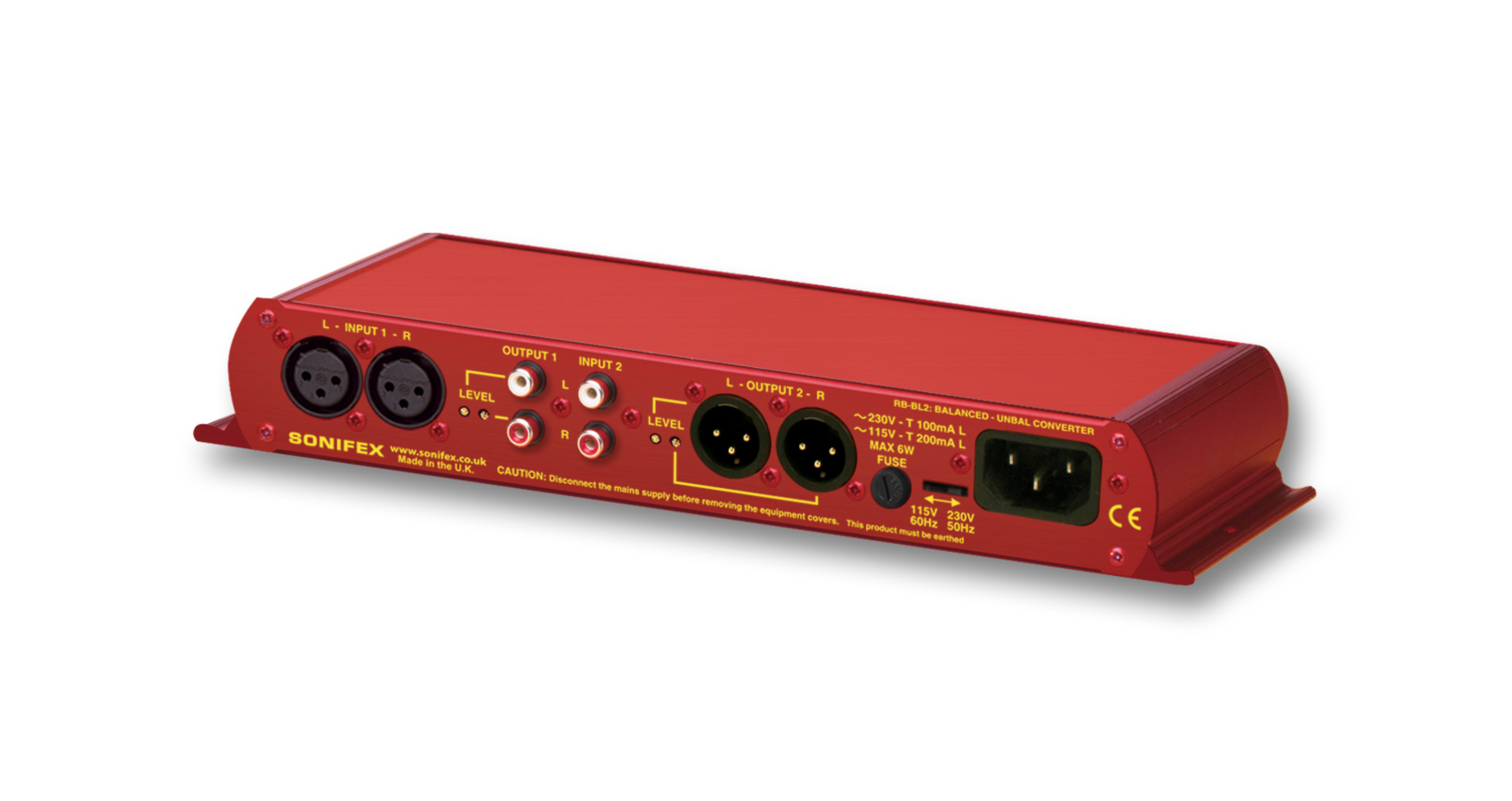

The two RCA unbalanced inputs have an impedance of 20kΩ and are routed to two balanced XLR-3 outputs with an output impedance of <50Ω. All connections are on the rear panel.
The output gain can be adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel.
Product Features
Pre-set left and right gain controls
Stereo phono (10kΩ) inputs.
Stereo phono <50Ω outputs.
Stereo balanced Neutrik XLR 20kΩ inputs.
Stereo balanced Neutrik XLR <50Ω outputs.
Typical Applications
Product Category
Signal ConvertersTECHNICAL SPECIFICATIONS
Audio Specification | |
|---|---|
| Maximum Input Level: | +28dBu |
| Maximum Output Level: | +28dBu |
| Input Impedance (RCA): | >10kΩ unbalanced |
| Input Impedance (XLR): | >20kΩ balanced bridging |
| Output Impedance (RCA): | <50Ω |
| Output Impedance (XLR): | <50Ω |
| Distortion: | 0.01% THD @ 1kHz, ref +8dBu output |
| Noise: | -100dB, unity gain, ref +8dBu output |
| Common Mode Rejection: | >66dB typically |
| Frequency Response: | 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz) |
| Gain Range: | Unbalanced Output : -28dBu to 0dBu, ref 0dBu into balanced XLR input |
| Gain Range: | Balanced Output : -15dBu to +15dBu, ref -15dBu into unbalanced RCA input |
Connections | |
| Inputs: | 2 x RCA phono (Unbal), 2 x XLR 3 pin female (Bal) |
| Outputs: | 2 x XLR 3 pin male (Bal), 2 x RCA phono (Unbal) |
| Mains Input: | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating: | Anti-surge fuse 100mA 20 x 5mm (230VAC) |
| Fuse Rating: | Anti-surge fuse 250mA 20 x 5mm (115VAC) |
Equipment Type | |
| RB-BL2: | Single stereo bi-directional matching converter |
Physical Specification | |
| Dimensions (Raw): | 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) |
| Dimensions (Raw): | 11” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 36cm (W) x 20.5cm (D) x 6cm (H) |
| Dimensions (Boxed): | 14.2” (W) x 8” (D) x 2.4” (H) |
| Weight: | Nett: 1.0kg Gross: 1.4kg |
| Weight: | Nett: 2.2lbs Gross: 3.1lbs |
