Signal Converters

RB-UL2

Dual Stereo Unbalanced to Balanced Converter

The RB-UL2 is a dual stereo unit for interfacing domestic or semi-professional unbalanced equipment to professional balanced line levels.

RK1_logo-optimized RK2_logo-optimized

About RB-UL2

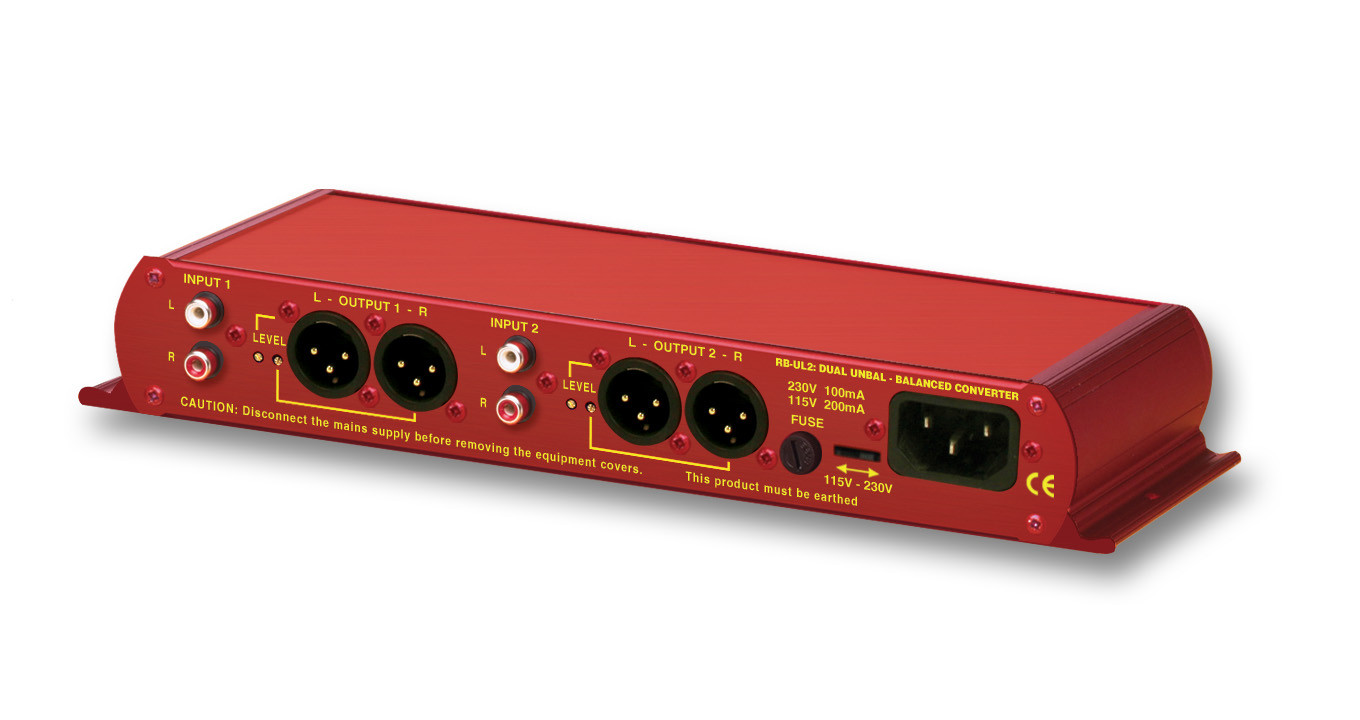

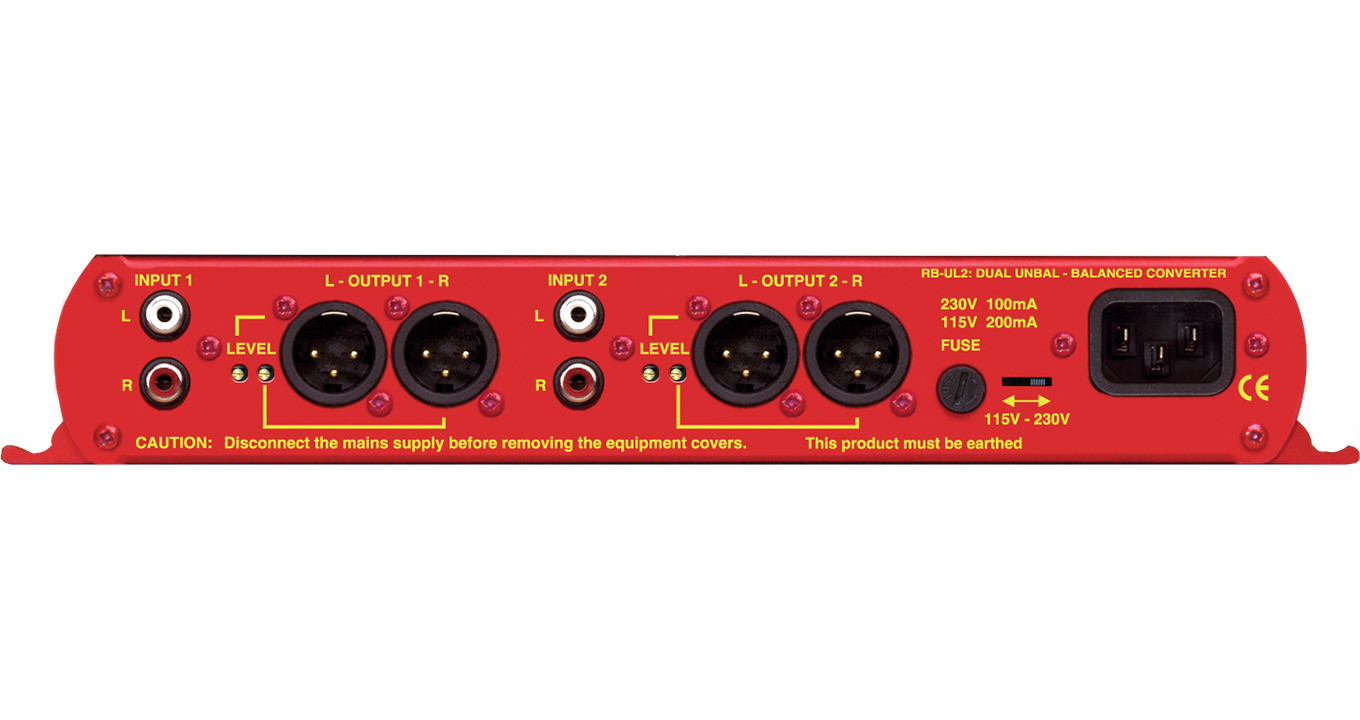

The RB-UL2 is a dual stereo unit for interfacing domestic or semi-professional unbalanced equipment to professional balanced line levels. All connections are on the rear panel. Four RCA unbalanced inputs have an impedance of 10kΩ and are routed to four balanced XLR-3 outputs with an output impedance of <50Ω.

The output gain can be individually adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel, allowing you to feed both balanced and unbalanced equipment.

Typical Applications

Interfacing domestic unbalanced audio devices e.g. a CD player or ipod to balanced audio equipment.

Product Data

Technical Specifications

Audio Specification
Maximum Input Level:
+28dBu
Input Impedance:
>10kΩ
Maximum Output Level:
+28dBu
Output Impedance:
<50Ω
Distortion:
0.01% THD @ 1kHz, ref +8dBu output
Noise:
-100dB, unity gain, ref +8dBu output
Frequency Response:
20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Gain Range:
Balanced output : -15dBu to +15dBu, ref -15dBu into unbalanced RCA input
Connections
Inputs:
4 x RCA phono (Unbalanced)
Outputs:
4 x XLR 3 pin male (Balanced)
Mains Input:
Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating:
Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating:
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-UL2:
Dual stereo unbalanced to balanced converter
Physical Specification
Dimensions (Raw):
28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
11” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
36cm (W) x 20.5cm (D) x 6cm (H)
Dimensions (Boxed):
14.2” (W) x 8” (D) x 2.4” (H)
Weight:
Nett: 1.05kg Gross: 1.5kg
Weight:
Nett: 2.3lbs  Gross: 3.3lbs
