Passive Splitters

RB-AES4X3

Quad 3 Way AES/EBU Splitter XLR Connectors

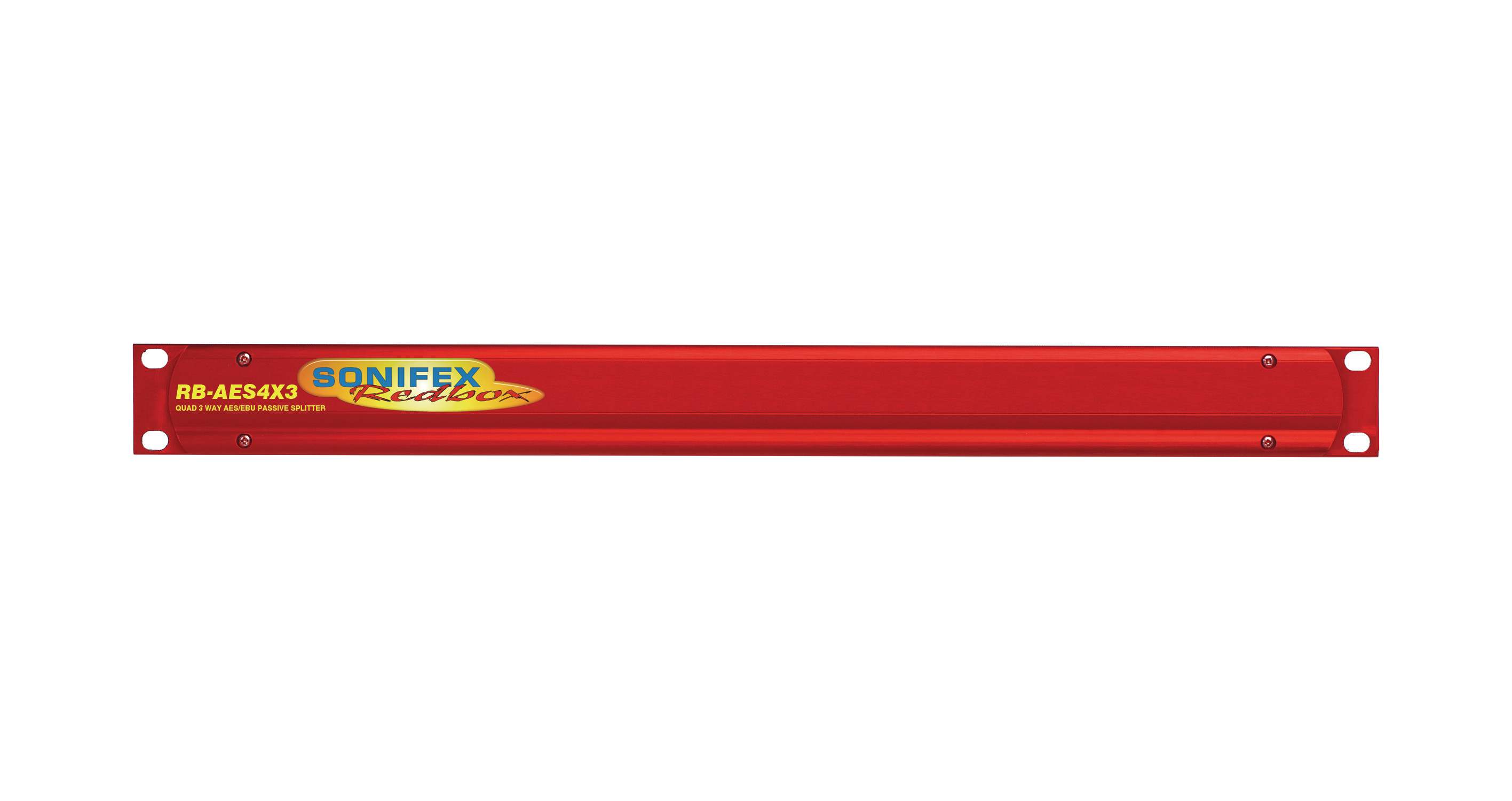

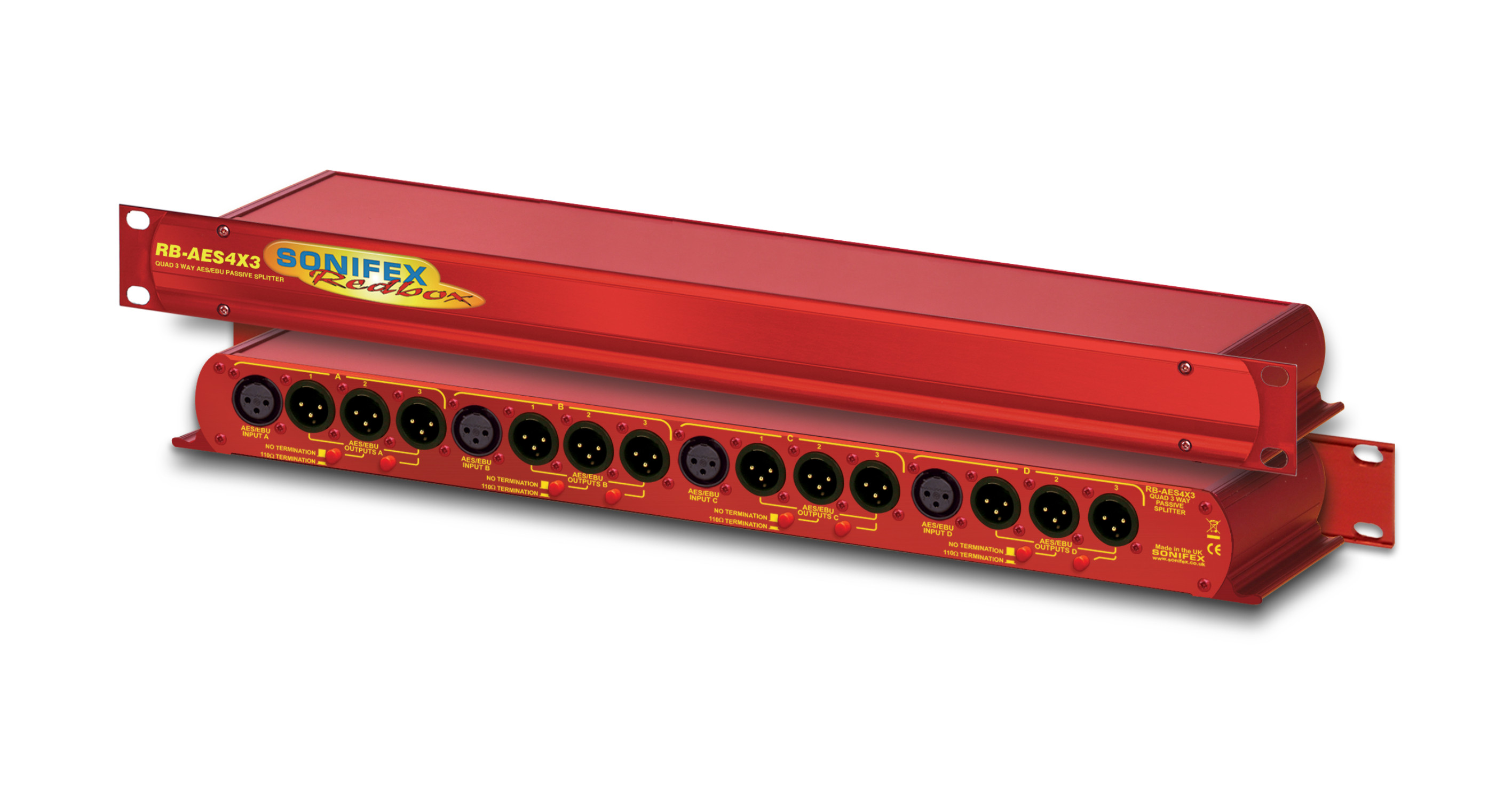

The RB-AES4X3 is a passive, quad “one-to-three” splitter housed in a 19” rack.

RK3_logo-optimized

About RB-AES4X3

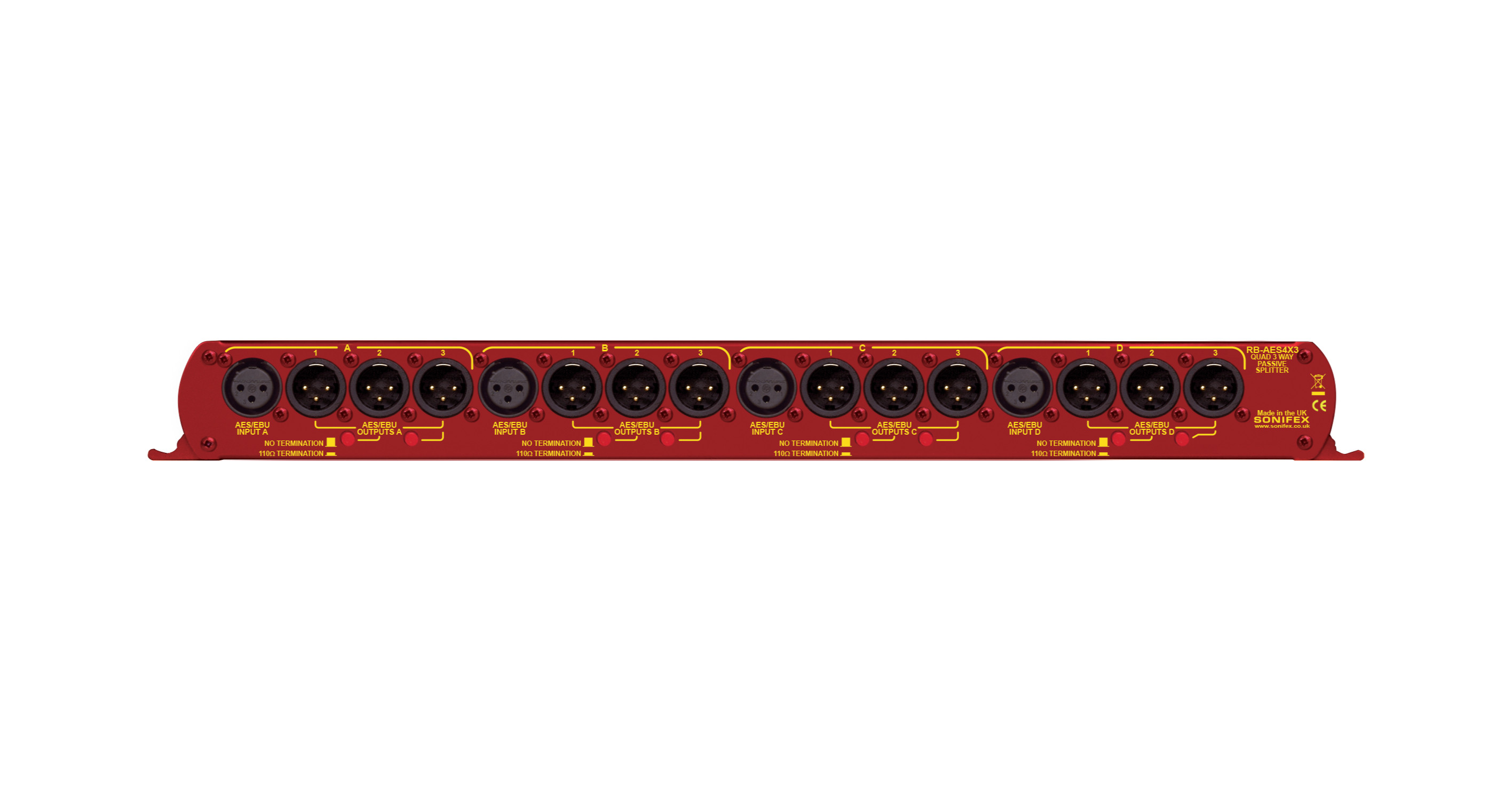

The RB-AES4X3 is a passive, quad “one-to-three” splitter housed in a 19” rack. Each bank is designed to split a single AES3 digital audio source to up to three destinations, using Neutrik XLR connectors.

The RB-AES4X3 provides solutions to a range of digital signal distribution problems, where correct termination is essential to maintain signal integrity. The input signal is split through high quality transformers, and 110Ω termination can be applied, if desired, to unconnected outputs.

The RB-AES4X3 requires no power to operate, ensuring your audio remains connected from source to destination(s) without interruption from power failures.

Typical Applications

Distribution of AES3 source to 3 mixing consoles.

Product Data

Technical Specifications

Cable drive capability
The table below sets out the minimum signal amplitude required to drive 100m (cumulative) of 110Ω twisted pair cable, based on the sample rate of the digital audio:
Sample Rate
32kHz
Minimum Signal Amplitude *2Vpk-pk
44.1kHz
Minimum Signal Amplitude *2Vpk-pk
48kHz
Minimum Signal Amplitude *2Vpk-pk
88.2kHz
Minimum Signal Amplitude 5Vpk-pk
96kHz
Minimum Signal Amplitude 5Vpk-pk
* Minimum of 2Vpk-pk is defined by the AES3 format specification.
The table below sets out the minimum signal amplitude required to drive 30m (cumulative) of 110Ω twisted pair cable, based on the sample rate of the digital audio:
176.4kHz
Minimum Signal Amplitude 3Vpk-pk
192kHz
Minimum Signal Amplitude 3Vpk-pk
Audio Specification
Input & Output Impedances:
110Ω
Insertion Loss:
0.17dB 1:1, 1.3dB 1:3
Impedance Match:
+/- 2%
Max Signal 10 V P-P:
Up to 96kHz
Attenuation Loss:
0.17dB 1:1, 6.2dB 1:3
Connections
Inputs:
4 x XLR 3 pin female
Outputs:
12 x XLR 3 pin male
Equipment Type
RB-AES4X3
Quad 3 way AES/EBU passive splitter XLR connectors
Physical Specification
Dimensions (Raw):
48cm (W) x 10.8cm (D) x 4.2cm (H)(1U)
Dimensions (Raw):
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
58.5cm (W) x 22.5cm (D) x 7cm (H)
Dimensions (Boxed):
23” (W) x 8.9” (D) x 2.8” (H)
Weight:
Nett: 1.0kg  Gross: 1.4kg
Weight:
Nett: 2.25lbs Gross: 3.0lbs
