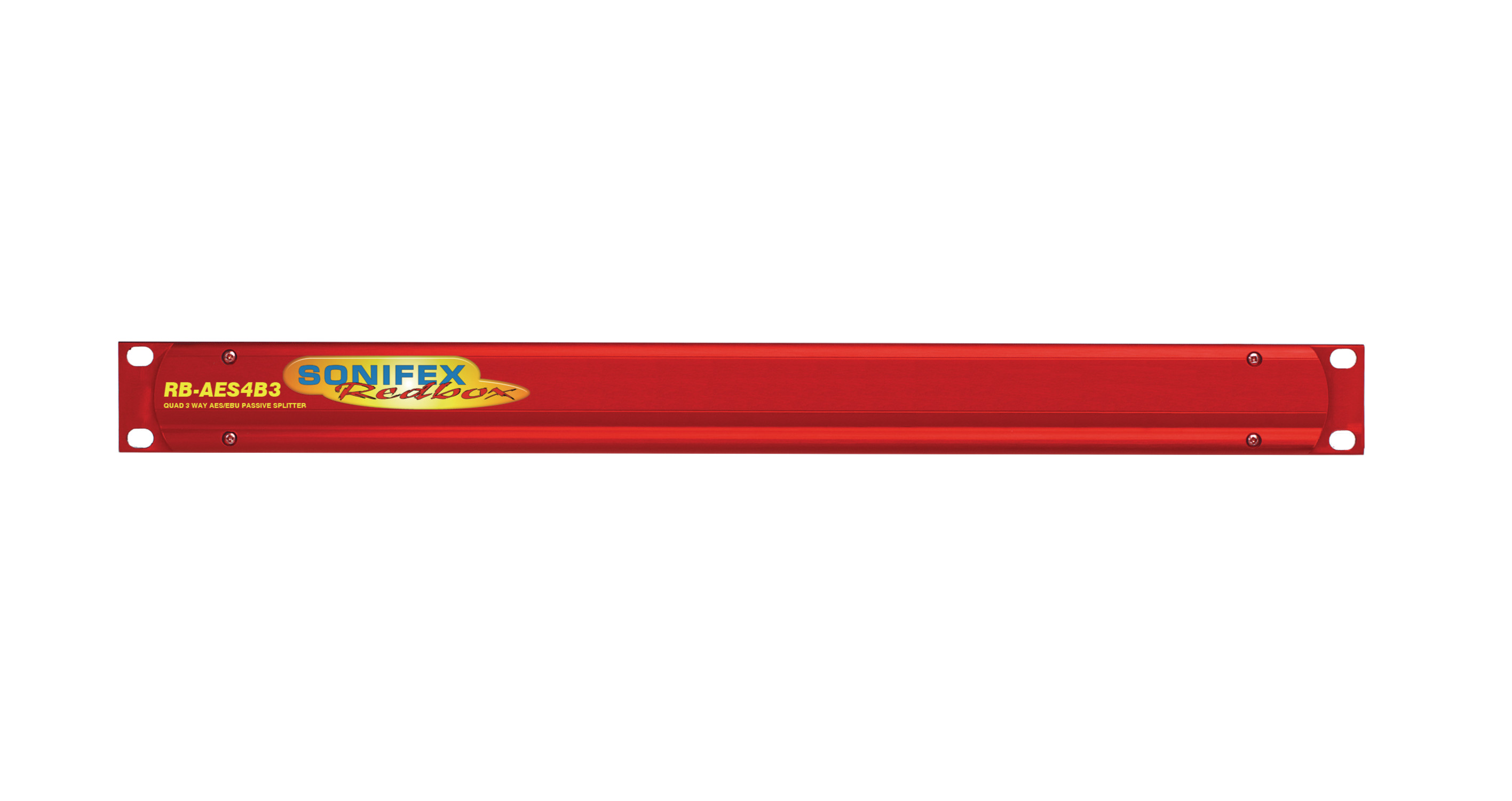

The RB-AES4B3 is a passive, quad “one-to-three” splitter housed in a 19” rack.
RB-AES4B3
Quad 3 Way Passive AES-3id Splitter BNC Connectors

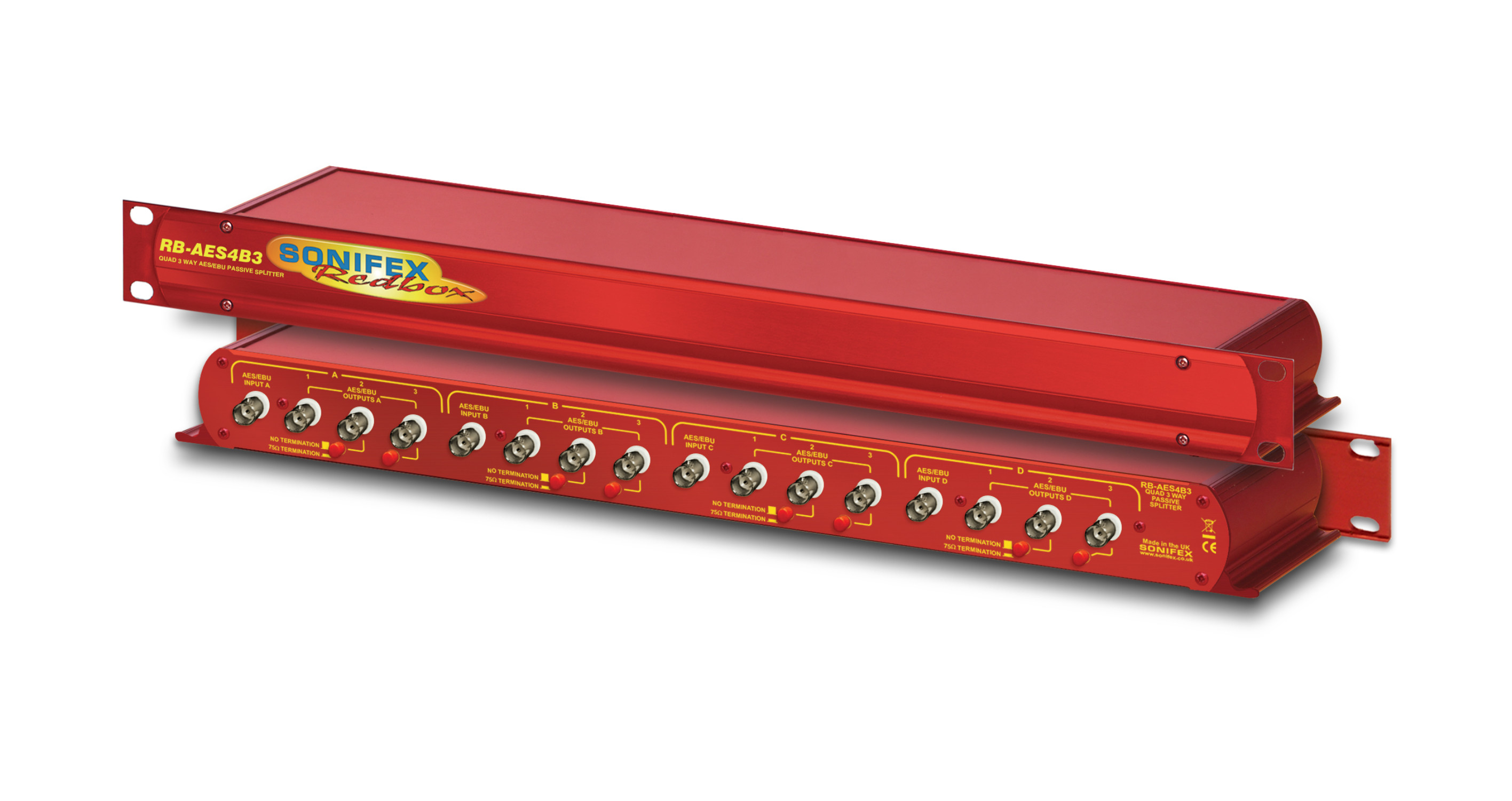

The RB-AES4B3 is a passive, quad “one-to-three” splitter housed in a 19” rack. Each bank is designed to split a single AES-3id digital audio source to up to three destinations, using female BNC connectors.
Particularly useful in a video production and broadcast environment, the RB-AES4B3 splits the input signal through high quality transformers. 75Ω termination can be applied, if desired, to unconnected outputs to maintain optimum carrier parameters.
The RB-AES4B3 requires no power to operate, ensuring your audio remains connected from source to destination(s) without interruption from power failures.
Product Features
4x 3-way AES-3id (BNC) splitter.
Switched 75Ω termination on all outputs.
Passive unit - no power supply.
Typical Applications
Product Category
Passive SplittersTECHNICAL SPECIFICATIONS
Cable drive capability | |
|---|---|
| Cumulative cable drive capability of 100m of 75Ω coaxial cable at sample rates up to and including 96kHz. | |
Connections | |

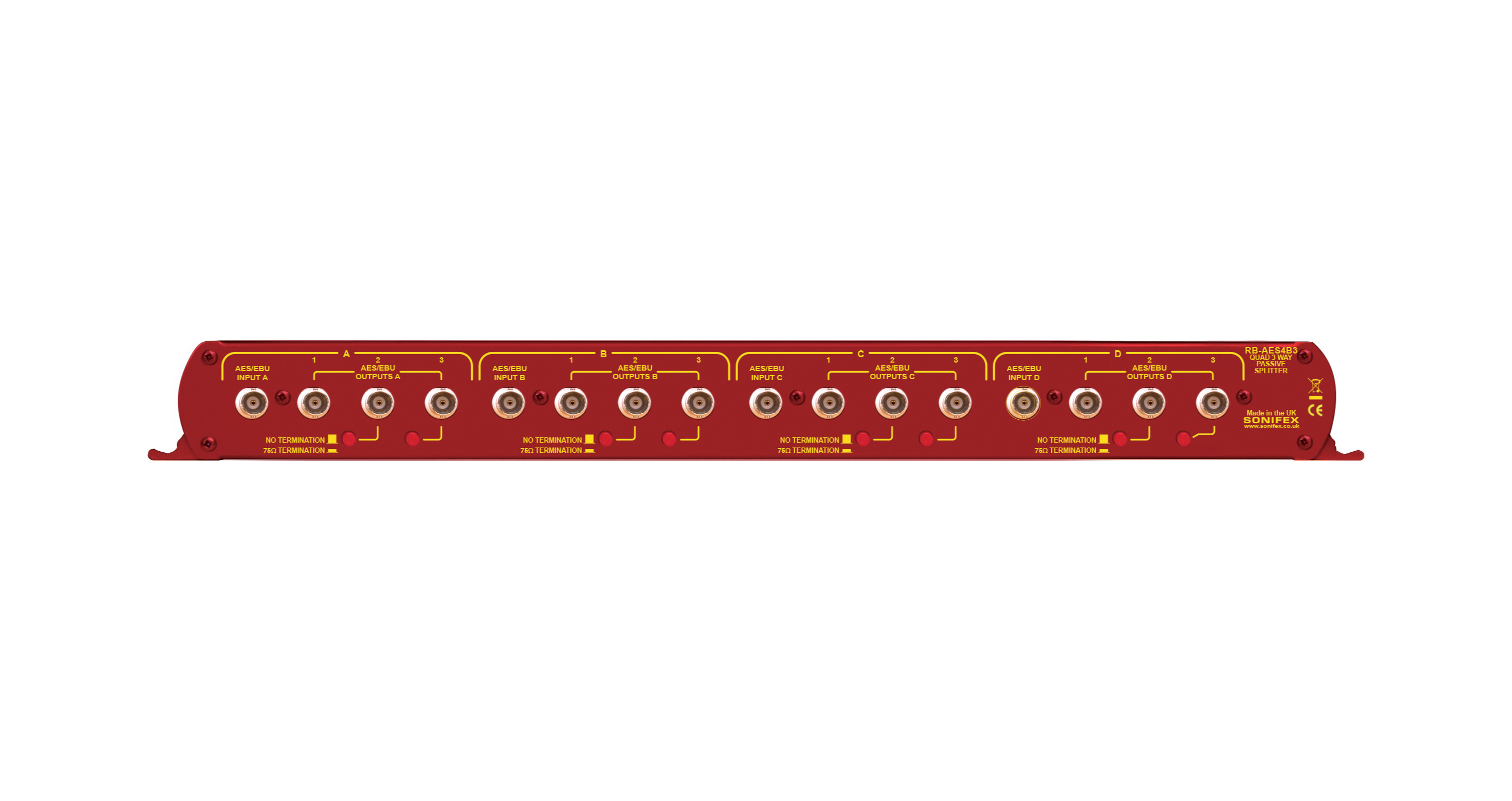

| Inputs: | 4 x BNC female |
| Outputs: | 12x BNC female |
Equipment Type | |
| RB-AES4B3 | Quad 3 way passive AES-3id splitter with BNC connectors. |
Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) |
| Dimensions (Raw): | 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) |
| Dimensions (Boxed): | 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.0kg Gross: 1.4kg |
| Weight: | Nett: 2.25lbs Gross: 3.0lbs |
