RB-MS4X3
Quad 3 Way Passive Microphone Splitter
The RB-MS4X3 is a passive, quad, “one-to-three” splitter housed in a 19” rack.
RB-MS4X3
Quad 3 Way Passive Microphone Splitter

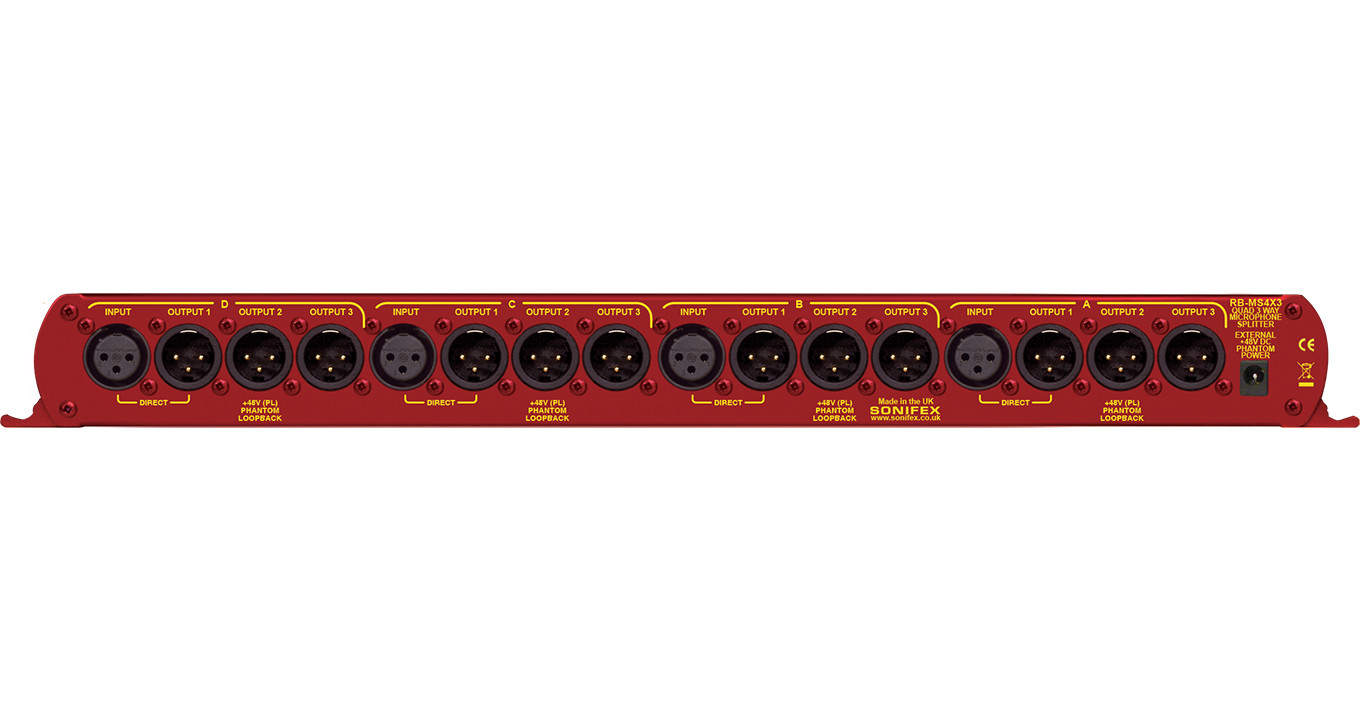

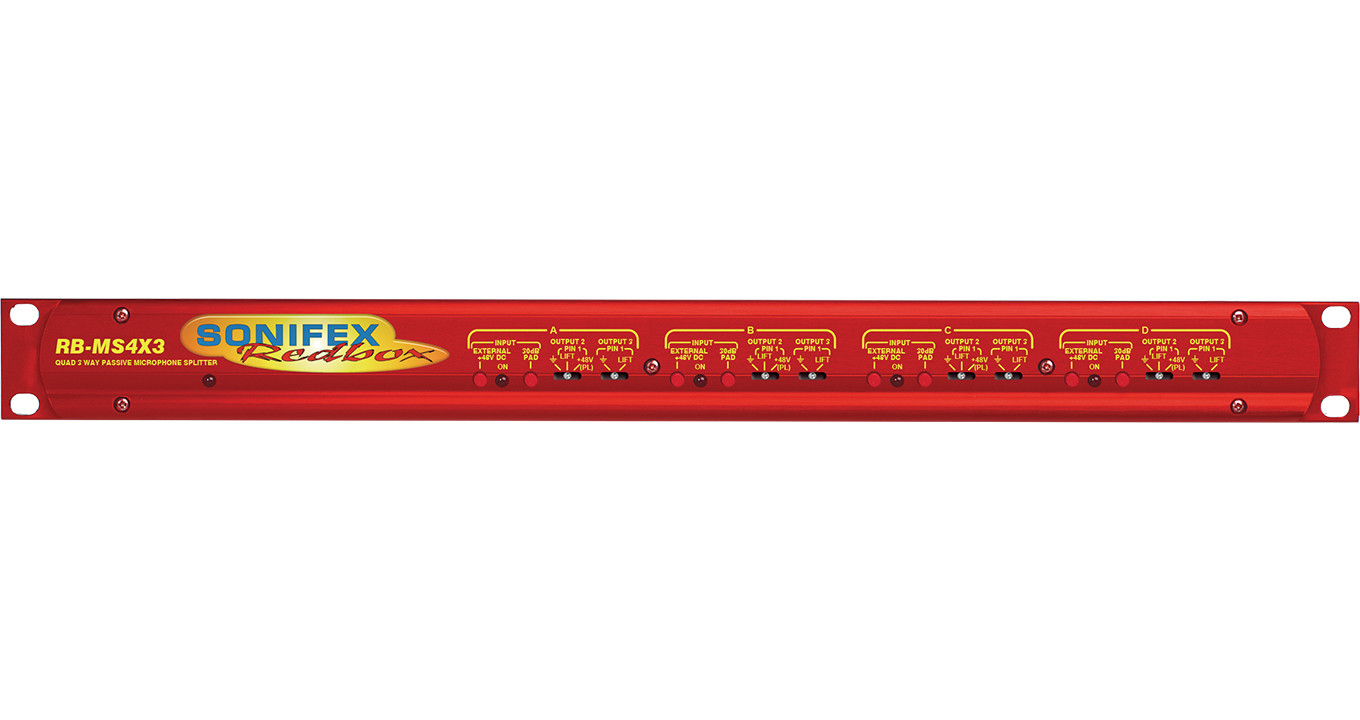

The RB-MS4X3 is a passive, quad, “one-to-three” splitter housed in a 19” rack. Each bank is designed to split a single microphone or line source to up to three destinations, using Neutrik XLR connectors. Cable connections are located on the rear panel, with recessed controls and indicators available to the user on the front panel, allowing quick and easy access to setup parameters.
Wide Signal Range Capability
The RB-MS4X3 uses high quality audio transformers that are capable of accepting input levels of up to +18dBu, making the splitter useful in both microphone and line level splitting applications. A 30dB pad can be applied to the input, allowing a line level signal to be interfaced into a microphone input with suitable levels and the correct termination.
Versatile Phantom Powering Options
The RB-MS4X3 offers three methods of providing phantom power to a microphone connected to its input:
- From the external +48VDC power connector.
- From a microphone amplifier connected to output 1 (direct).
- From a microphone amplifier connected to output 2 (phantom loopback).
Controlling which method is used to provide phantom power is easy with front panel switches and indicators. It is possible to concurrently power a microphone using any two of the above methods without degrading audio performance, thus providing power supply redundancy.
Ground Loop Hum Elimination
Ground loop hum problems can be quickly eliminated using the front panel toggle switches to lift pin 1 of the output connectors (output 2 and 3 only).
Product Features
4x 3-way mic splitter.
Balanced XLRs.
Passive transformer design.
Ground lift switches.
External or looped phantom power inputs.
Line level -30dB pad.
Typical Applications
Product Category
Passive SplittersTECHNICAL SPECIFICATIONS
Test | |
|---|---|
| Frequency Response | 10Hz - 30kHz ±0.5dB |
| Frequency Response (Conditions) | • Ref. -6dBu, 1kHz ±0.5dB |
| Frequency Response (Conditions) | • Source impedance = 150Ω |
| Frequency Response (Conditions) | • Load impedance = 10kΩ |
| Total Harmonic Distortion | 0.02% |
| Total Harmonic Distortion (Conditions) | • Ref. +3dBu, 50Hz |
| Total Harmonic Distortion (Conditions) | • Source impedance = 150Ω |
| Total Harmonic Distortion (Conditions) | • Load impedance = 10kΩ |
| Total Harmonic Distortion 0.1% | +13dBu |
| Total Harmonic Distortion 0.1% (Conditions) | • Ref. 0.1%THD+N, 50Hz |
| Total Harmonic Distortion 0.1% (Conditions) | • Source impedance = 150Ω |
| Total Harmonic Distortion 0.1% (Conditions) | • Load impedance = 10kΩ |
| Total Harmonic Distortion 1% | +18dBu |
| Total Harmonic Distortion 1% (Conditions) | • Ref. 1%THD+N, 50Hz |
| Total Harmonic Distortion 1% (Conditions) | • Source impedance = 150Ω |
| Total Harmonic Distortion 1% (Conditions) | • Load impedance = 10kΩ |
| Common Mode Rejection Ratio | >60dB |
| Common Mode Rejection Ratio (Conditions) | • Ref. 20kHz |
| Common Mode Rejection Ratio (Conditions) | • Source impedance = 600Ω |
| Common Mode Rejection Ratio (Conditions) | • Load impedance = 10kΩ |
Connections | |
| Inputs: | 4 x XLR 3 pin female |
| Outputs: | 12 x XLR 3 pin male |
| DC Phantom Power Input: | +48V DC, 2.5mm socket |
Equipment Type | |
| RB-MS4X3 | Quad 3 way microphone splitter. |
Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H)(1U) |
| Dimensions (Raw): | 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) |
| Dimensions (Boxed): | 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.5kg Gross: 1.9kg |
| Weight: | Nett: 3.3lbs Gross: 4.2lbs |
