AVN-AH8 8 Stereo Analogue Headphone Outputs Dante Interface, PoE

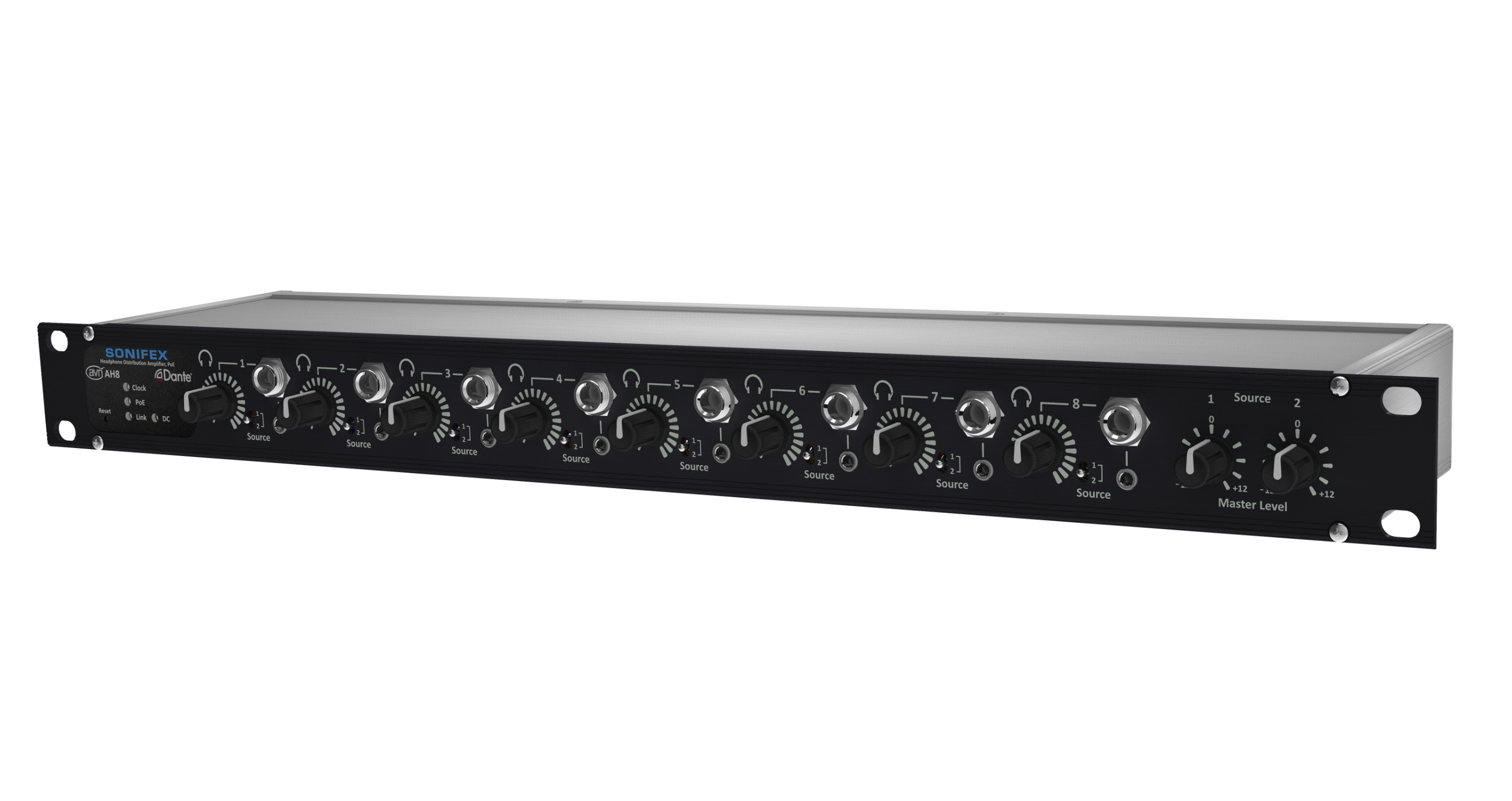

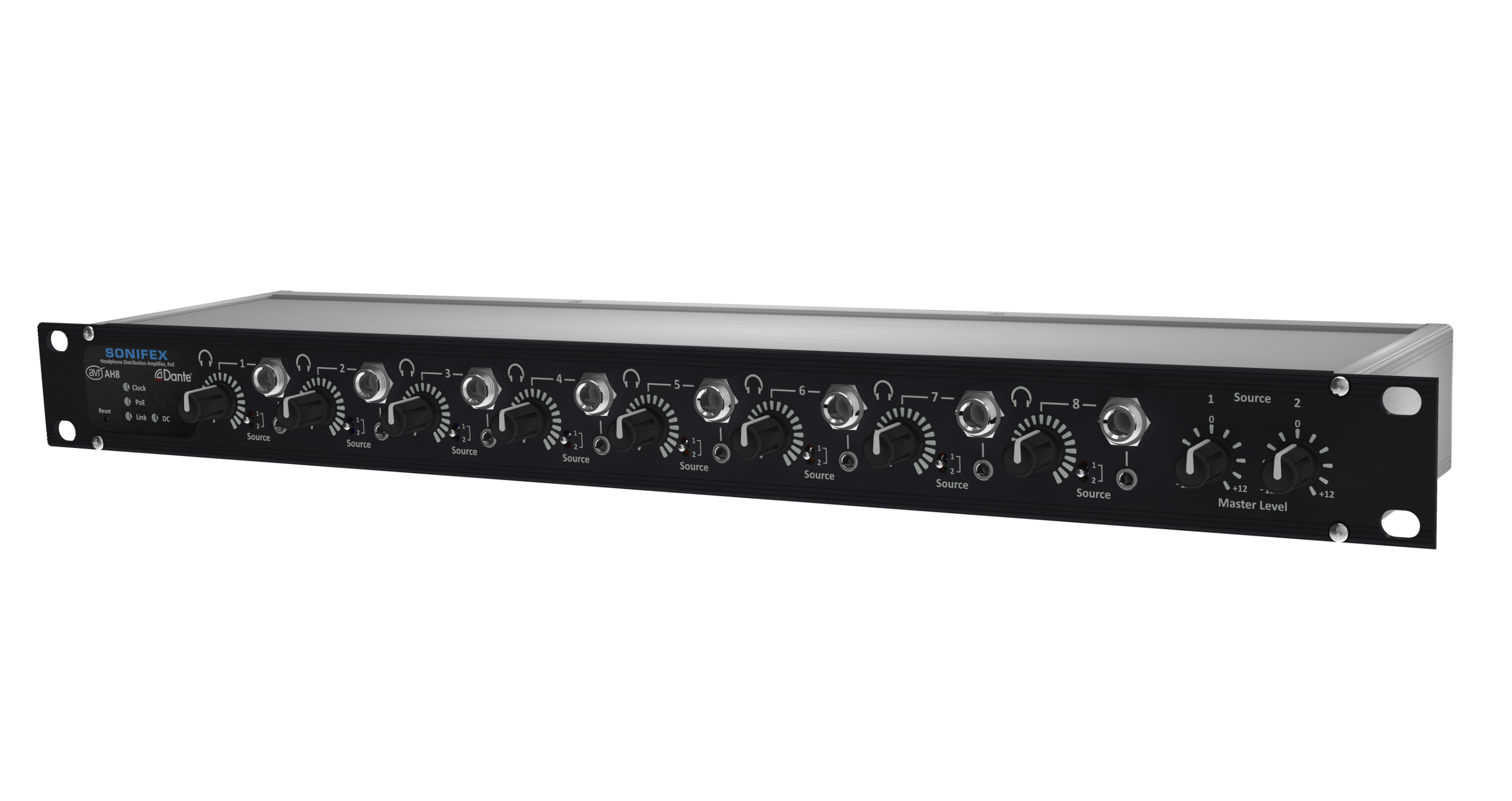

The AVN-AH8 multi-channel headphone amplifier is a 1U rack-mount which distributes 2 sets of stereo audio to up to 8 different sets of headphones, fed from the Dante AoIP network.
AVN-AH8
AVN-AH8 8 Stereo Analogue Headphone Outputs Dante Interface, PoE

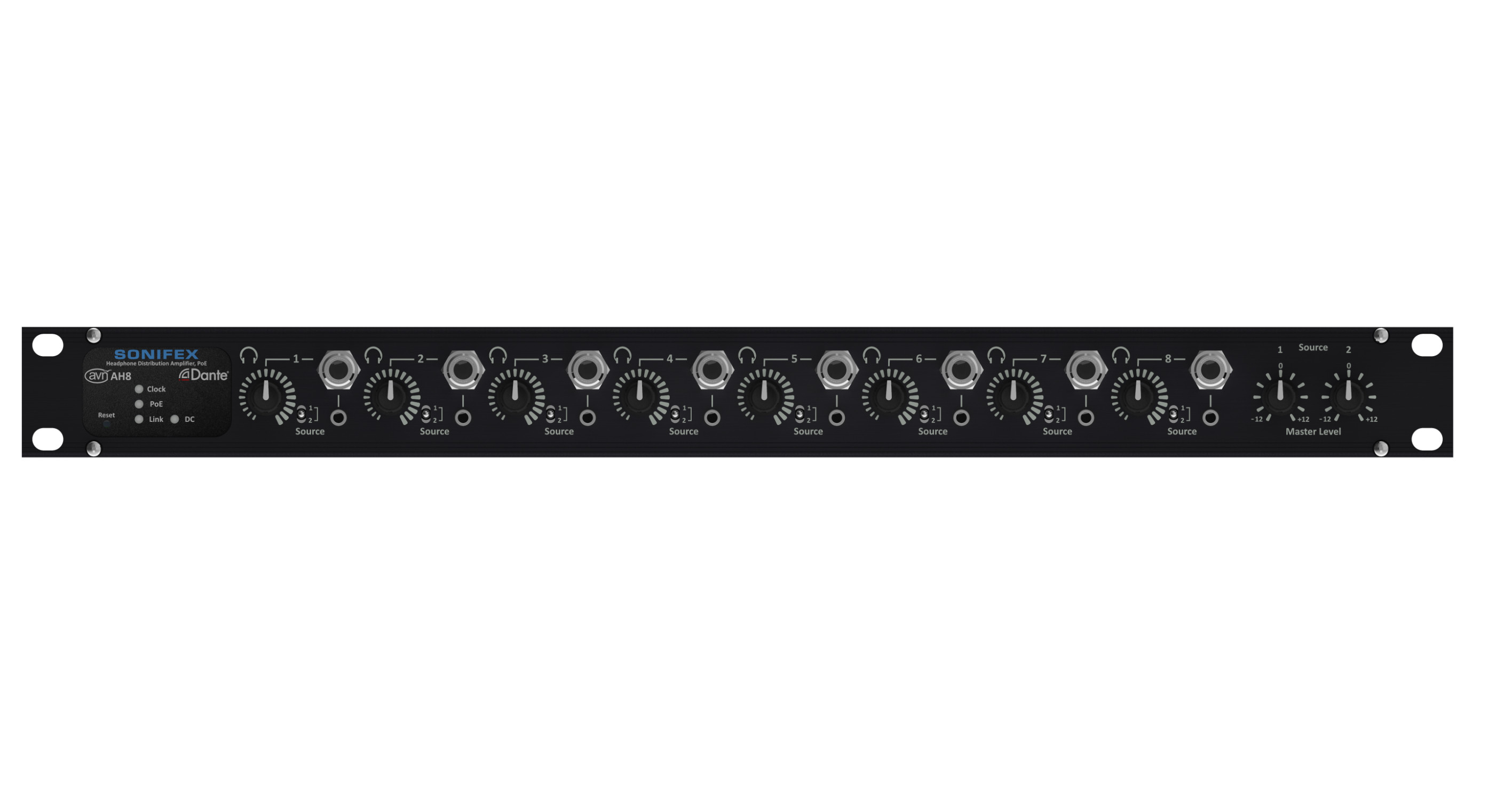

The AVN-AH8 is a 1U rack-mount multi-channel headphone amplifier that distributes two sets of stereo audio to up to eight headphones, sourced from the Dante AoIP network. Each output features front-panel unbalanced 1/4” and 3.5 mm jack sockets with a rotary level control. The front-panel potentiometers adjust headphone volume from mute (fully anticlockwise) to 0 dB of gain (fully clockwise), allowing compensation for low or high Dante stream levels.

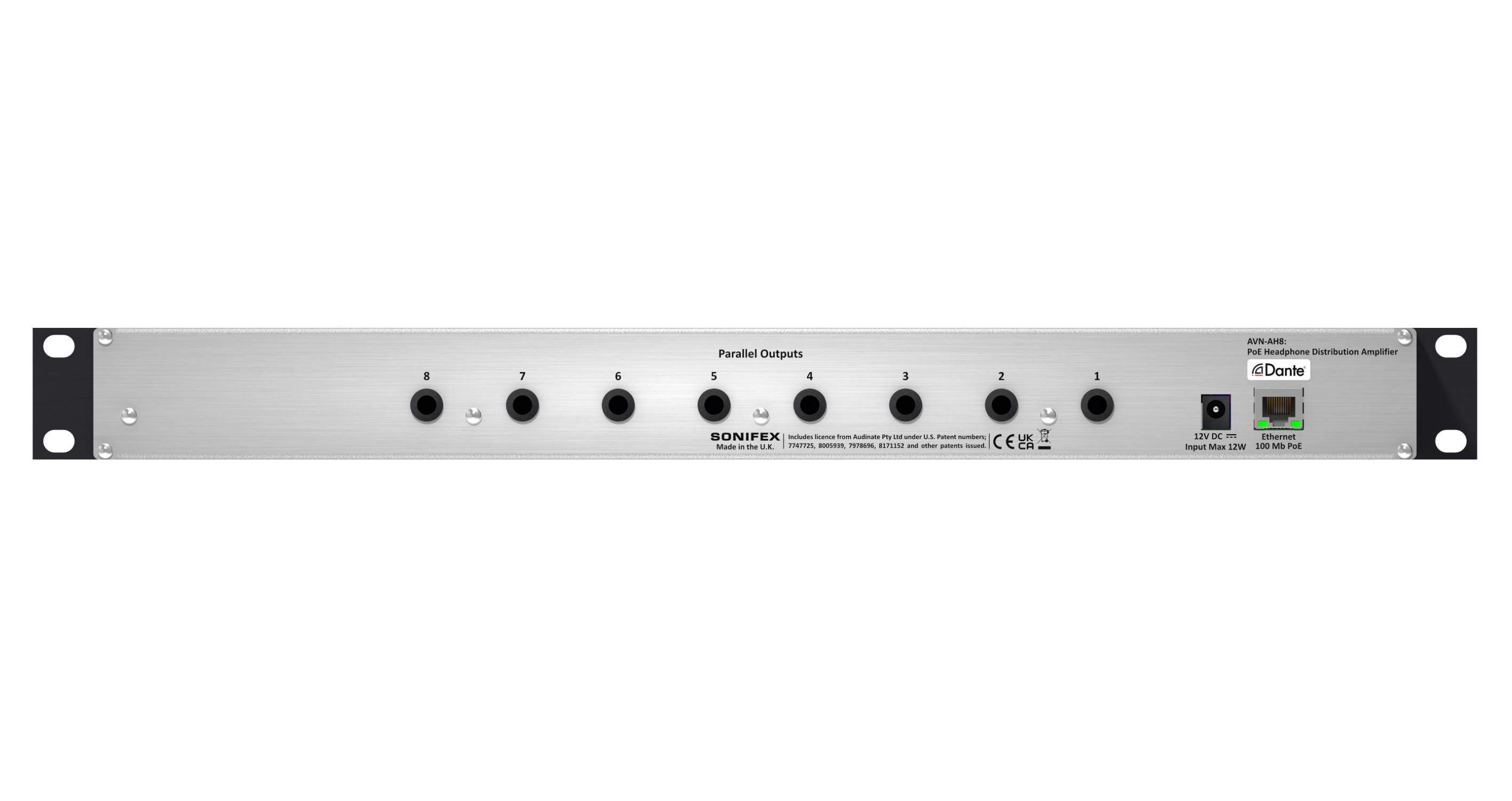

For ease of installation in enclosed racks, the rear panel also provides eight parallel 1/4” jacks.
Each of the eight professional headphone outputs can select between two stereo Dante sources, routed via Dante Controller. The level of each stereo stream/source can be adjusted ±12 dB using one of the two front-panel rotary controls. The unit supports AES67 operation and is Dante Domain Manager compliant.
The unit can be powered via PoE or a 12V DC input through a locking 2.5 mm DC connector with a minimum 2 A rating.
The front panel includes Power over Ethernet (PoE) and DC power LEDs, a network link status LED, and a clock LED. A recessed reset switch is also provided.
Product Features
8 x front panel 1/4” & 3.5mm jack sockets.
8 x parallel connections on rear panel
8 x volume control.
Switch selection for each headphone output between 2 dual-channel Dante sources.
2 x master level controls, one for each stereo Dante input.
1 x RJ45 Dante connector (100 Mb/s Ethernet Port).
PoE, Link, DC and Clock LED status indicators.
Configuration using Dante Controller.
AES67 operation & Dante Domain Manager compliant.
Powered by PoE.
1U 19" rack-mount form factor.
Aluminium construction
Typical Applications
Product Category
Headphone AmplifiersTECHNICAL SPECIFICATIONS
Network and AoIP | |
|---|---|
| AoIP Standard: | Dante |
| Number of Channels: | 4 Receive |
| Number of Streams: | 2 Receive |
| Sample Rates: | 44.1kHz, 48 kHz, 88.2kHz, 96kHz |
| Encoding Fornat: | Linear PCM, 16, 24 or 32 bit |
| AES67 Support: | Yes |
| Connectivity: | 1 x RJ45 |
| Speed: | 100mps |
PoE Power | |
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6 W |
Front Panel Connections & Controls | |
| LED Indicators | Clock LED – indicates valid clock on AoIP network PoE LED – indicates power presence Link LED – indicates network link status DC LED – indicates DC power applied |
| Reset: | Recessed system reset button |
| Headphone Outputs: | 8 x dual 1/4”/3.5mm jack sockets |
| Headphone Output Volume Controls: | 8 x dual log potentiometers |
| Headphone Input Source Selection: | 8 x toggle switches for individual source selection between two stereo inputs |
Rear Panel Connections | |
| Parameter | Description |
| Network | Ethernet port (100Mbps capable) for data and PoE connection |
| Headphone Parallel Outputs: | 8 x ¼” jack sockets for parallel headphone outputs 1-8 |
Dante Network to Headphone Input Specifications | |
| Master Level Adjustment | ±12dB |
Headphone Output Specifications | |
| Parameter | Description |
| Output Impedance: | Capable of driving 150mW into 32Ω to 600Ω headphones |
| Maximum Output Level: | +18dBu unclipped |
| D to A Line-Up: | 0dBFS = +18dBu (Volume = 100%, Master level = 50% = 0dB) |
| Volume Pot Range | -80dB (Volume = 0%) to 0dB (Volume =100%) |
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB (ref 1kHz) |
| THD+N: | <0.07%, -10dBFS input, volume = 100%, master level = 50% = 0dB, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range: | 108dB, volume = 100%, master level = 50% = 0dB, 20kHz BW |
Headphone Jack Output Pin-out | |
| Pin | Function |
| Tip | Left |
| Ring | Right |
| Screen | 0V Common |
Equipment Type | |
| AVN-AH8 | 8 Stereo Analogue Headphone Outputs Dante Interface, PoE |
Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 11cm (D) x 4.3cm (H)(1U) 19" (W) x 4.3" (D) x 1.7” (H) |
| Dimensions (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.4kg Gross: 2.0kg Nett: 3.1lbs Gross: 4.4lbs |
SUPPORT
| Sonifex AVN-AH8 Handbook | [Download] |
Brochures
| Click to visit the brochures page. |
Declarations
| Click to visit the declarations page. |
| AVN-AH8 | Version | Dante 4.2.9.10 | Date | 29/01/2025 | [Download] |
