Headphone Amplifiers

RB-HD1

Stereo Headphone Amplifier

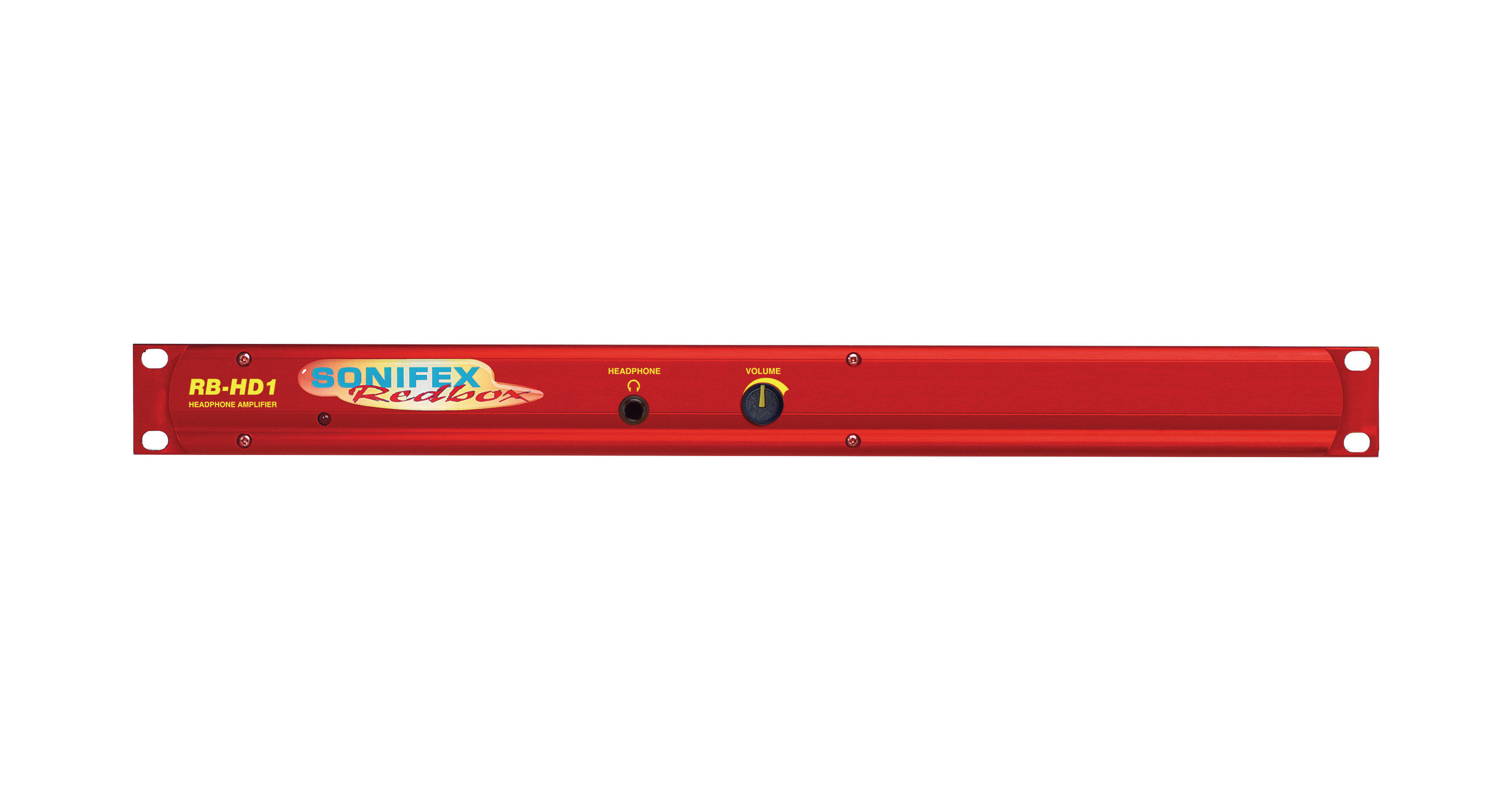

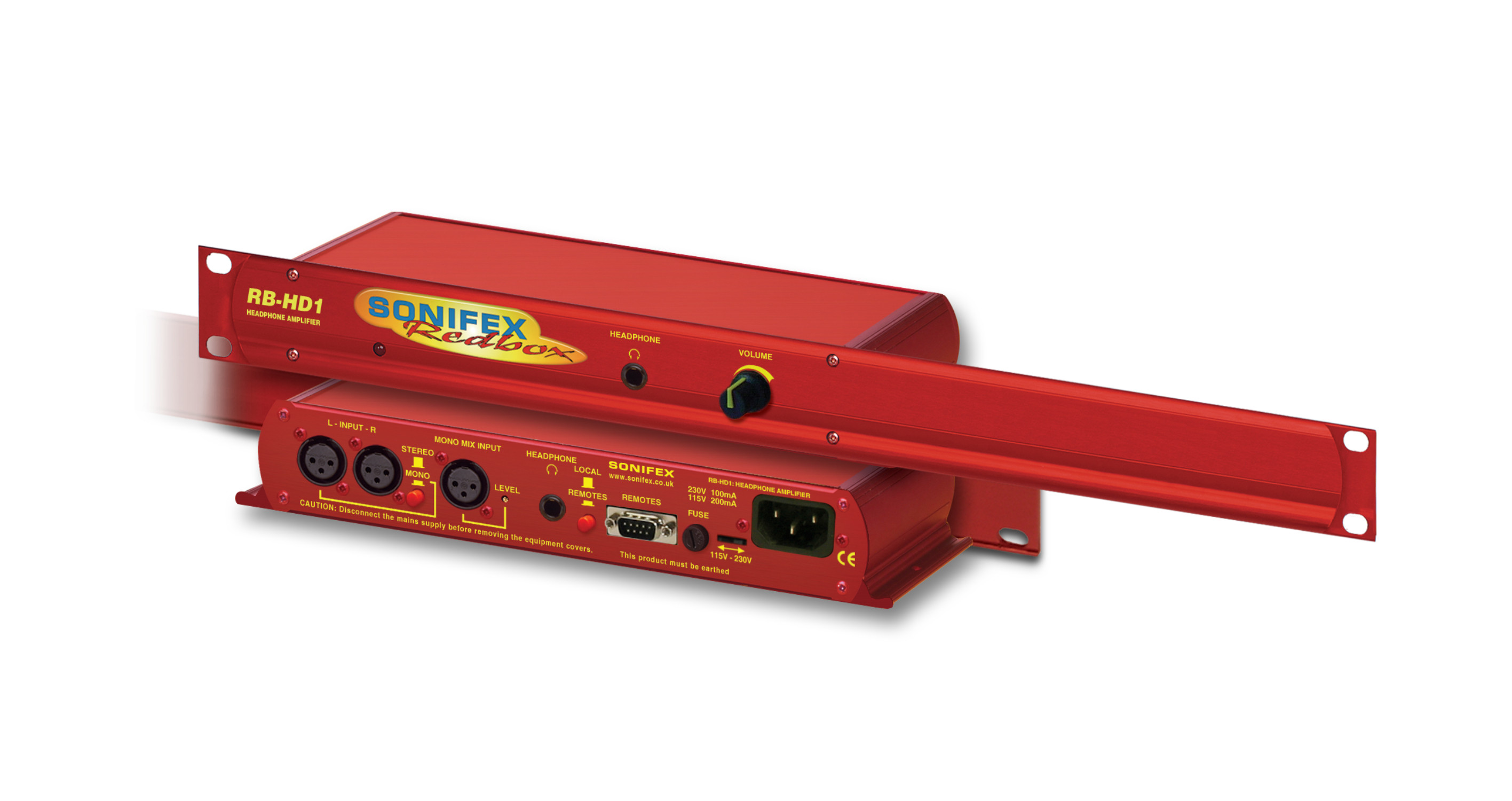

The RB-HD1 is a 1U rack-mount stereo headphone amplifier for driving up to two pairs of professional stereo headphones from a single stereo or mono input. One headphone socket is on the front panel with one on the rear.

RK2_logo-optimized FR2_logo-optimized

About RB-HD1

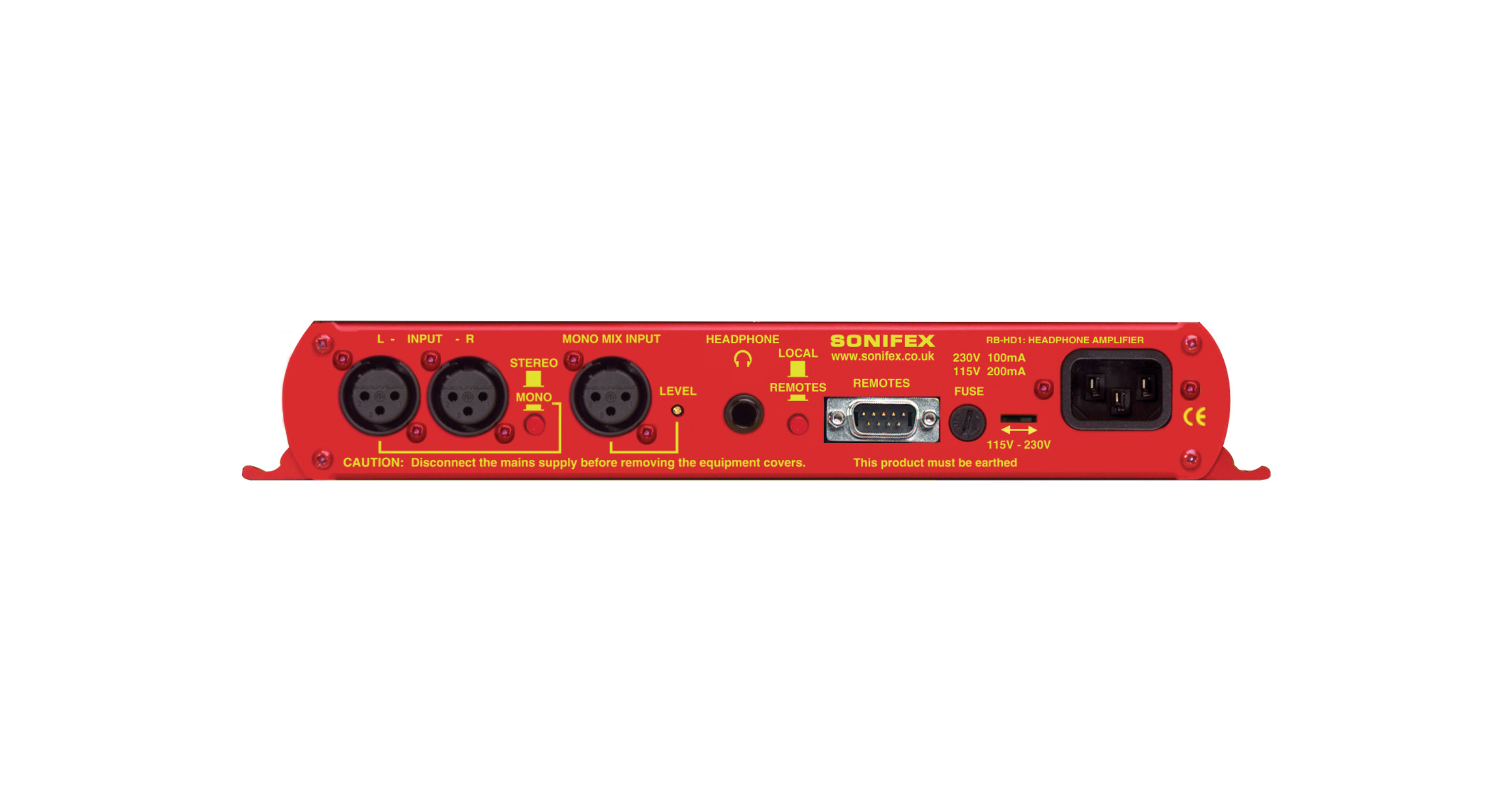

The RB-HD1 is a 1U rack-mount stereo headphone amplifier for driving up to two pairs of professional stereo headphones from a single stereo or mono input. One headphone socket is on the front panel with one on the rear. The main stereo input uses electronically balanced XLR-3 connectors on the rear panel, which can be wired un-balanced. The output volume for the headphones can be controlled either by a pot situated on the front panel or a VCA signal supplied externally via the remote connector. A mono input can be mixed into the main headphone feed, for example, for mixing in talkback to the headphones. This has an input level control via a recessed adjustable potentiometer. The mono mix input can also be controlled remotely. A stereo/mono switch is recessed on the rear panel to prevent accidental knocking. With mono selected, audio is sent to both left and right ear pieces. A LED power indicator on the front panel displays the power supply connection.

Typical Applications

Headphone monitoring for voice over booths, adding headphone output to mixer programme output.

Product Data

Technical Specifications

Audio Specification
Input impedance:
>20kΩ balanced bridging (main)
Output Level:
Drives 150mW into 32Ω to 600Ω headphones
Mono Mix Input Gain Range:
22dBu
Max Input Level:
+28dBu
Volume Control:
-80dB to +11dB gain
Connections
Main Stereo Inputs:
2 x XLR 3 pin female (balanced, can be unbalanced)
Mono Mix Input:
1 x XLR 3 pin female (balanced, can be unbalanced)
Outputs:
2 x ¼” (6.35mm) A-gauge 3-pole stereo jack sockets
Remote Control:
9-pin D-type socket
Mains Input:
Filtered IEC, switchable 110-120V, or 220-240V, fused, 9W max
Fuse Rating:
Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating:
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-HD1
Stereo headphone amplifier
Physical Specification
Dimensions (Raw):
48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
53cm (W) x 20.5cm (D) x 6cm
Dimensions (Boxed):
21” (W) x 8” (D) x 2.4”
Weight:
Nett: 1.35kg Gross: 2.0kg
Weight:
Nett: 3.0lbs     Gross: 4.4lbs
