Headphone Amplifiers

AVN-DIO03

Dante to Headphone Outputs (1/4” & 3.5mm Jacks) with Volume Control & Limiter

Dante AoIP network-to-headphones convertor. It features a single stereo headphone output available on two jacks (1/4″ and 3.5mm) with volume control.

AES67_logo-optimized Dante_Logotype_Black-optimized DDMready_logo-optimized

About AVN-DIO03

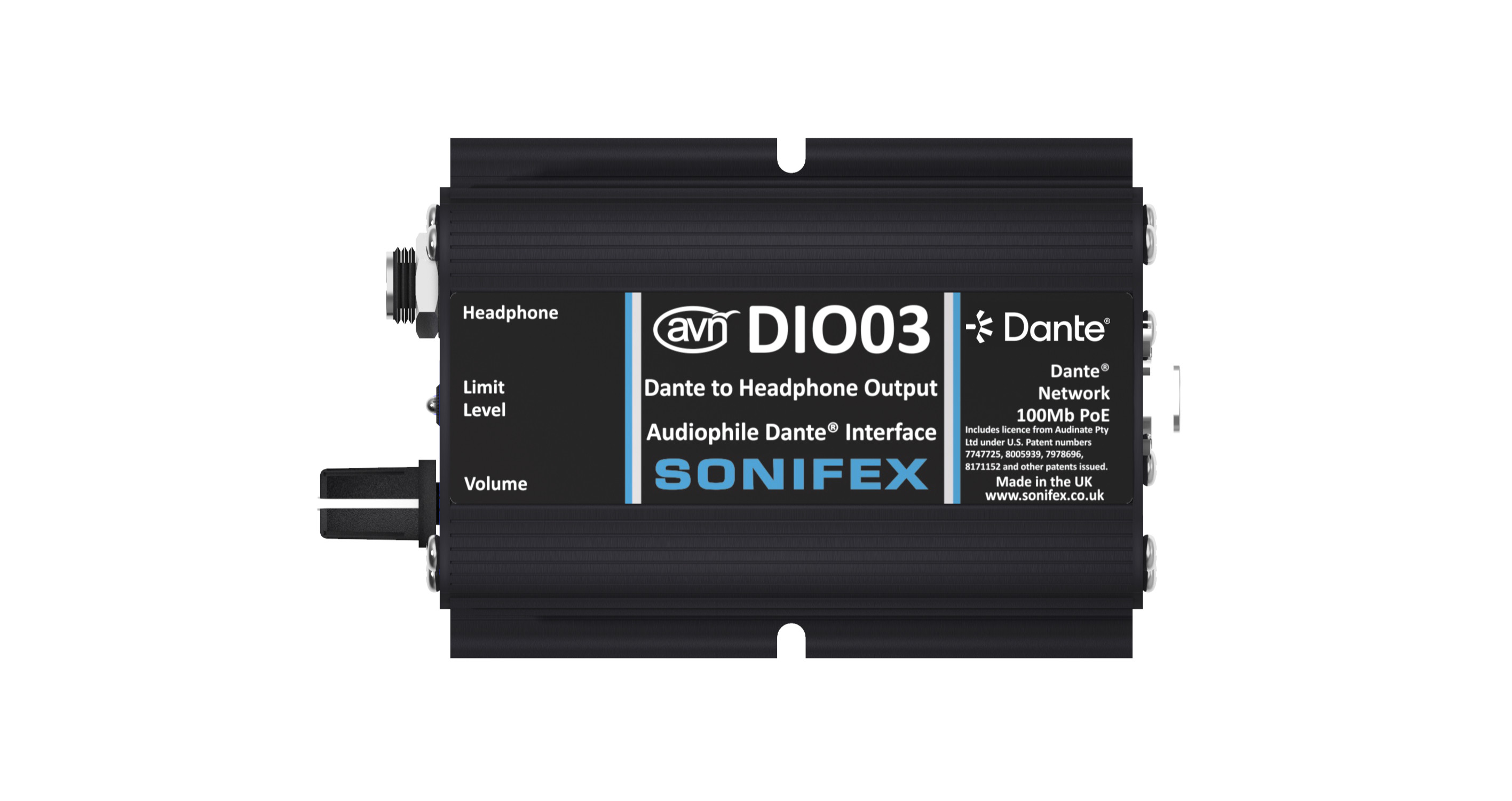

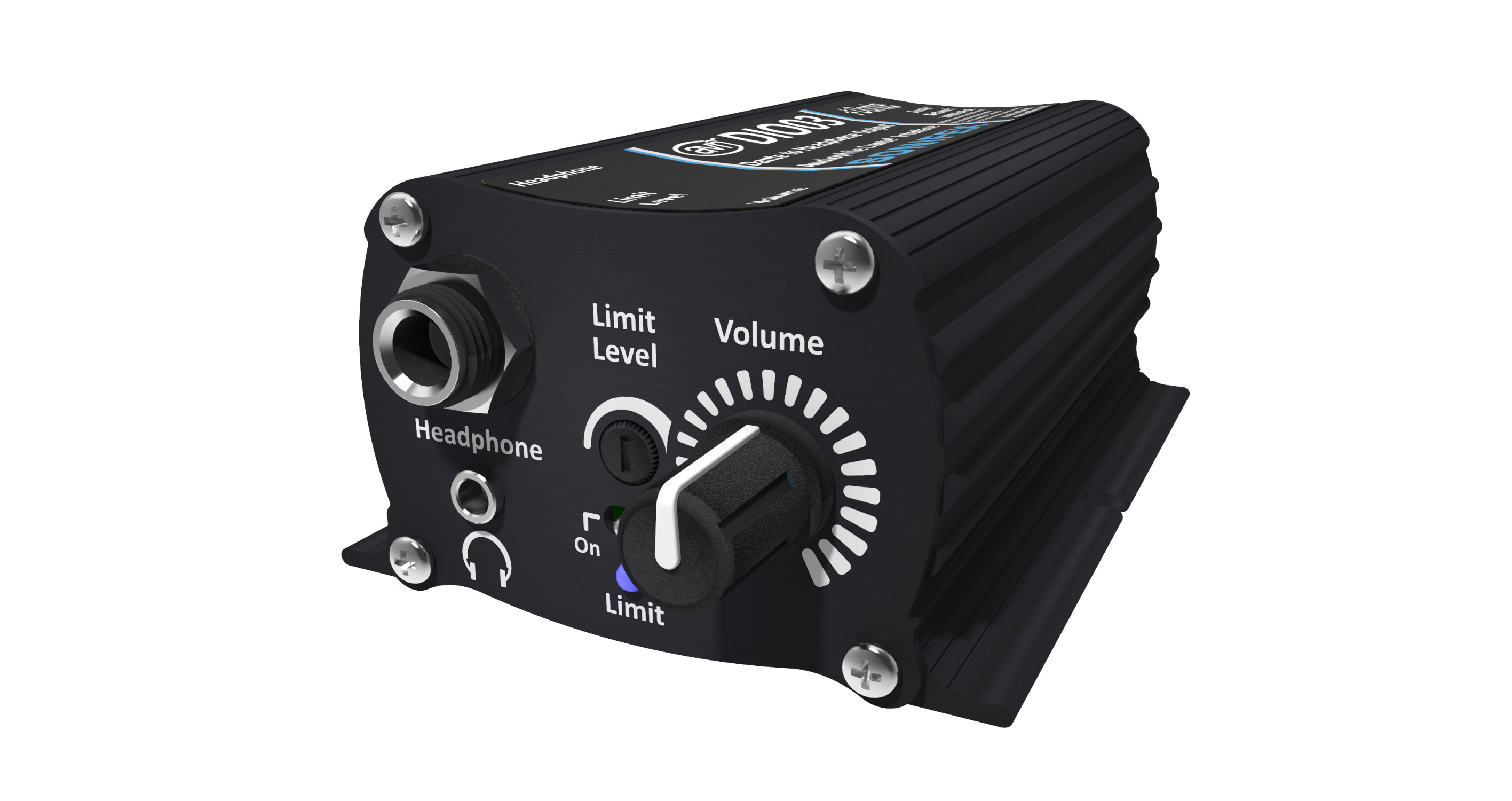

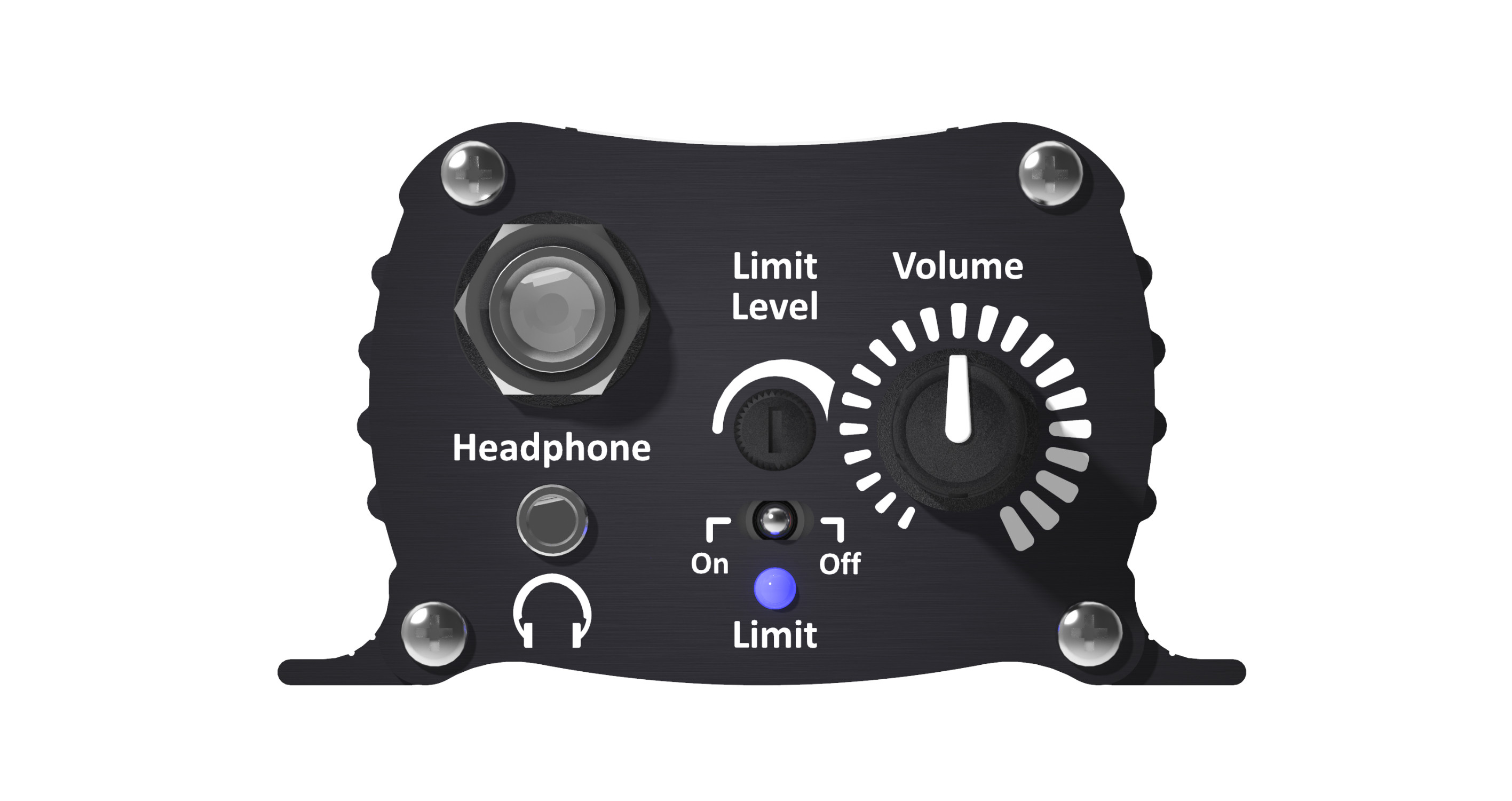

The AVN-DIO03 is a Dante AoIP network-to-headphones convertor from the Sonifex DIO range. The unit features a single stereo headphone output, accessible via both 1/4” and 3.5 mm jacks, with a front-panel potentiometer to adjust volume from mute (fully anticlockwise) to +6 dB gain (fully clockwise), useful for boosting low Dante stream levels.

A built-in limiter with adjustable threshold and LED indication protects hearing by preventing over-levels. The limit can be set between approximately -12dBu and +6dBu using a small adjustment tool. When limiting is active, the blue limit LED illuminates, prompting the user to reduce headphone volume.

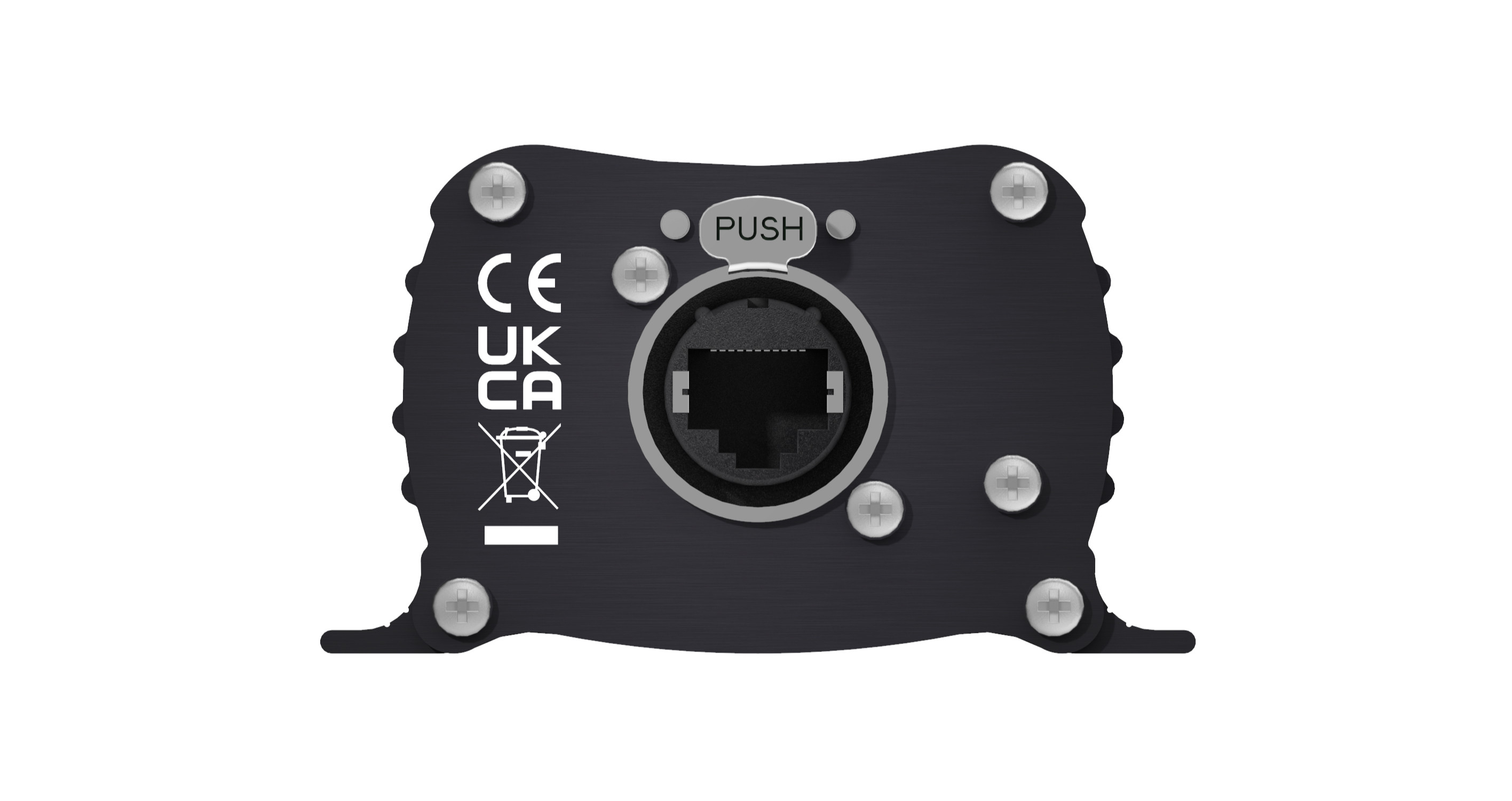

Audio and power (PoE) are delivered via a Neutrik EtherCON® connector, allowing direct connection to a Dante network. The unit incorporates Audinate Dante chipsets and is compliant with AES67.

Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, is available to install multiple units on a 19″ rack-mount shelf.

Note: The headphone output of this device is unbalanced, resulting in 6 dB lower performance compared with balanced AVN-DIO products.

Typical Applications

Provides a stereo, or two mono, headphone feeds directly from the Dante AoIP network. Ideal for musicians in a studio or recording environment, or for engineers requiring physical monitoring of two Dante channels.

Product Data

Technical Specifications

Headphone Jack Output Pin-out
Pin
Function
Tip
Left
Ring
Right
Screen
0V Common
Headphone Output - Jack
Parameter
Description
Output Impedance:
Capable of driving 150mW into 32Ω to 600Ω headphones
Maximum Output Level:
+16dBu
D to A Line-Up:
-6dBFS = +16dBu (max volume)
Gain:
Mute (min Volume) to +6dB (max volume)
Frequency Response:
20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
THD+N:
<0.005%, -14dBFS input, max volume, 20Hz to 20kHz, 20kHz BW
Dynamic Range:
114dBu, 20kHz BW, 0dB gain
Crosstalk:
<100dB
Audio Limiter Range:
-12dBu to +6dBu
Dante
Parameter
Description
Sample Rates:
4.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding:
PCM 16, PCM 24, PCM 32
PoE Power
Standard
802.3af
Class
0
PD Power Range
0.44 W to 12.94 W
Typical PSE Power Usage
4 W
Max PSE Power Usage
15.4 W
Equipment Type
AVN-DIO03:
Dante® to Headphone Output
Physical Specification
Dimensions: (Raw)
10.6cm (W) x 7.3cm (D) x 4.3cm (H)
Dimensions: (Raw)
4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed):
17.4cm (W) x 9.5cm (D) x 5.6cm (H)
Dimensions (Boxed):
6.9” (W) x 3.7” (D) x 2.2” (H)
Weight:
Nett: 0.2kg Gross: 0.3kg
Weight:
Nett: 0.44lbs Gross: 0.66lbs
