Discontinued AVN
AVN-AESIO8R (Superseded)
Replaced by the following: AVN-AESIO8-DNT & AVN-AESIO8-RAV
The AVN-AESIO8R converts up to 8 channels of AES3 in and 8 channels of AES3 out to and from the Dante network, with full power and data redundancy.
About AVN-AESIO8R

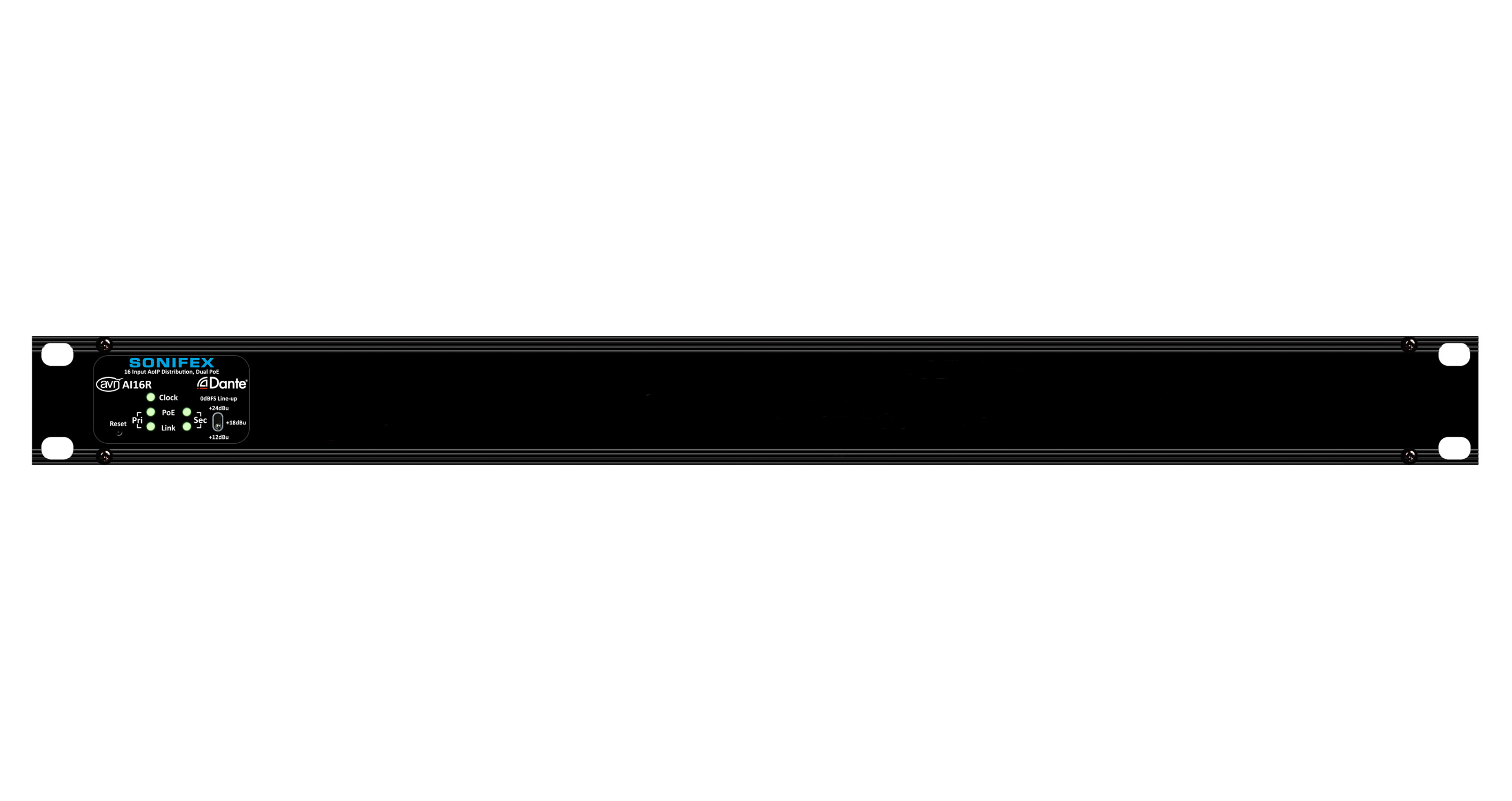

The AVN-AESIO8R audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. A valid input signal is confirmed by front panel AES3 lock LEDs for each input. All outputs follow the Dante system sample rate. Dual Ethernet ports allow the unit to operate in redundant mode, ensuring audio routing is maintained in the event of loss of link on either of the network connections. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up done via the standard Dante Controller software and power via PoE (Power Over Ethernet). All digital AES3 inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link and Clock. (The AVN-AESIO8 is available with a single Ethernet port).
Typical Applications
The AVN-AESI08R is suited to a wide range of professional audio environments where reliable, low-latency transport between digital and networked systems is required. It is ideal for broadcast studios, live production and events, OB trucks, and fixed AV installations such as corporate, education, and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional digital equipment and Dante-based audio networks.Product Data
Technical Specifications
Network and AoIP
AES3 Input Specifications
AES3 Output Specifications
Balanced Line Input XLR Pinout
Balanced Line Output XLR Pinout
PoE Power
Equipment Type
Physical Specification
Downloads & Resources
Support
Firmware
Download ↗
Firmware Notes
Full release notes for all firmware versions will appear here when available.
