Digital Dante Converters
AVN-DIO08
Dante® to AES3 Terminal Block Stereo Input & Output

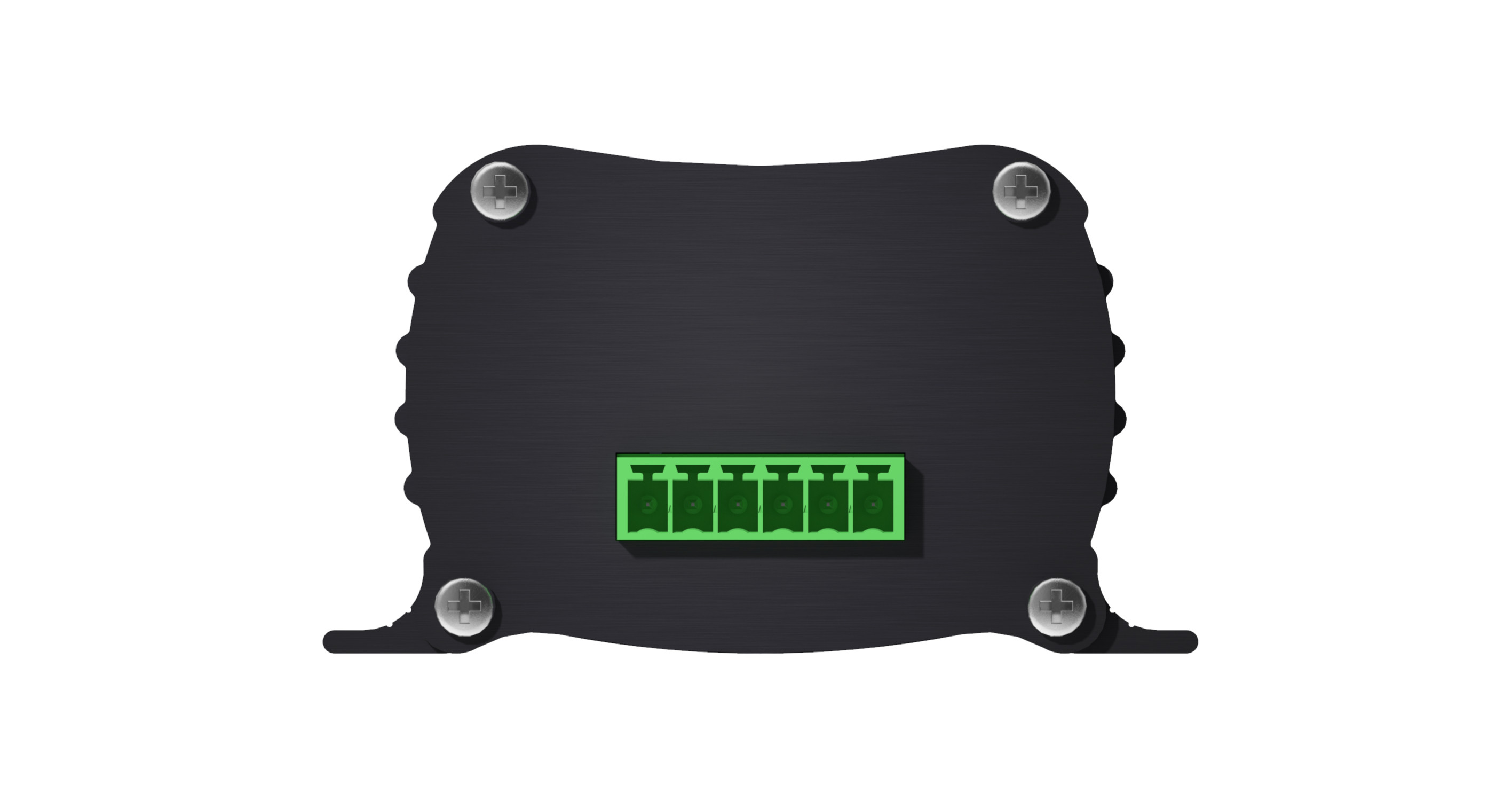

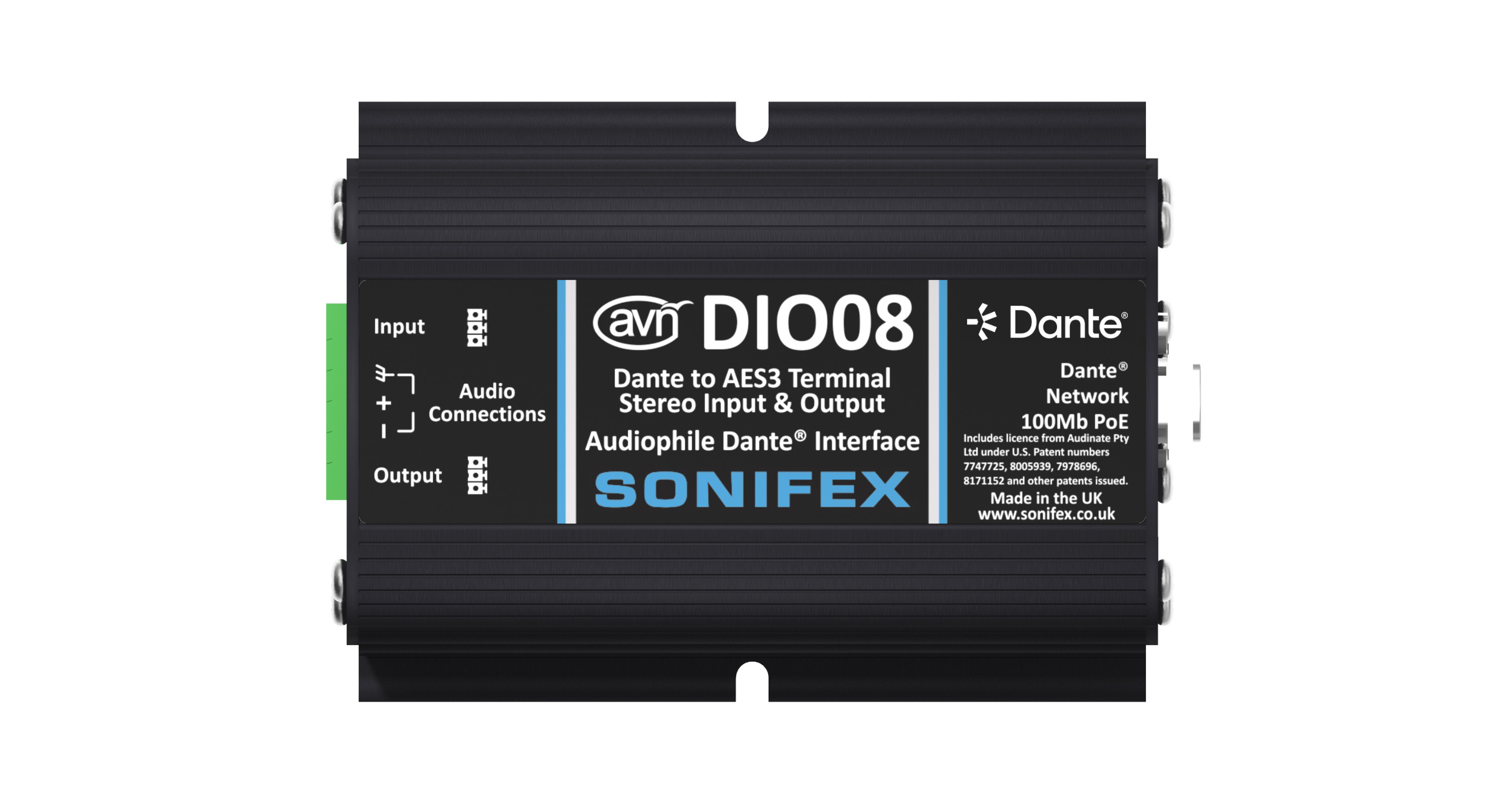

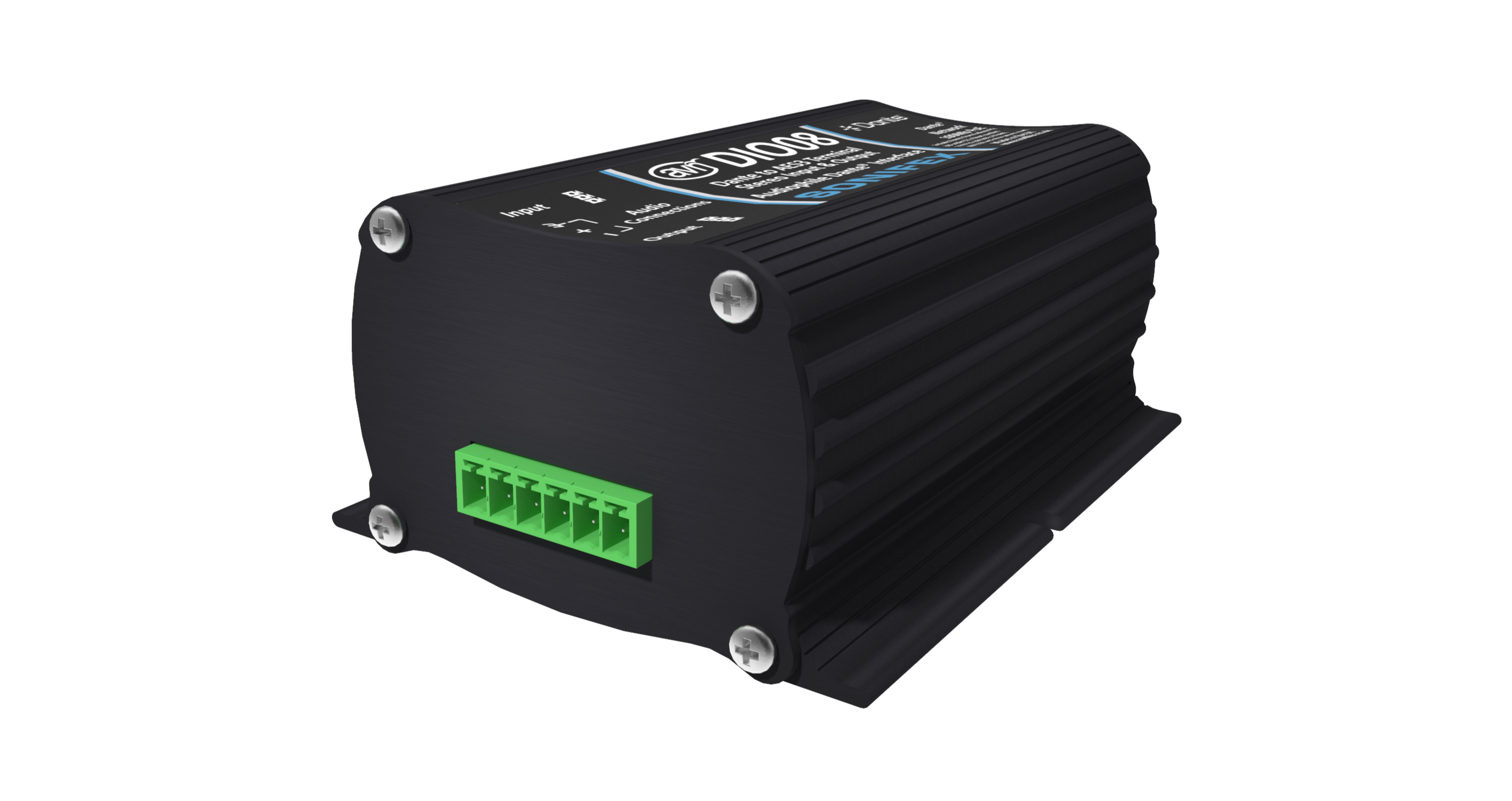

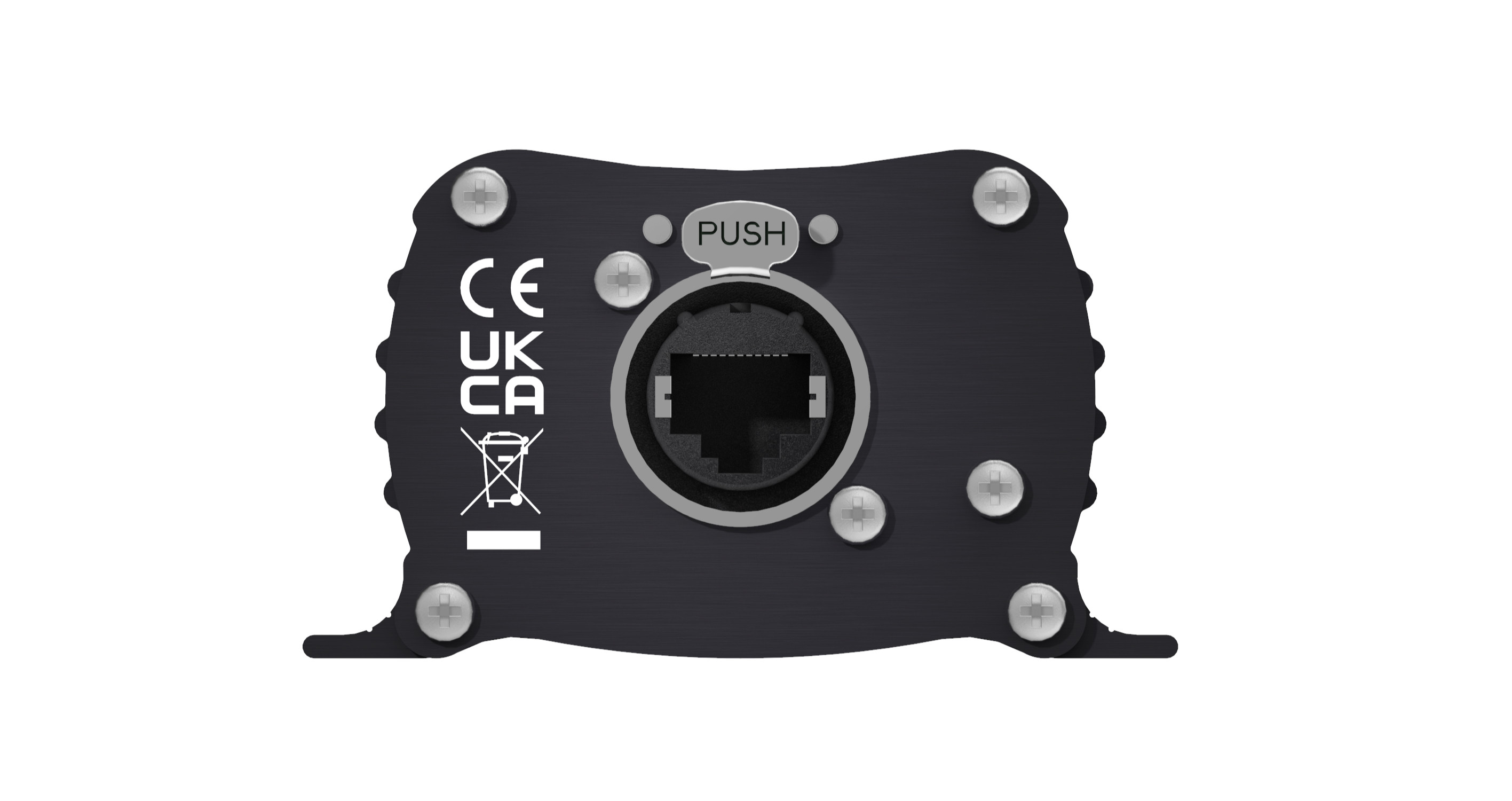

The AVN-DIO08 is a Dante to AES3 digital input and output audio converter. It features stereo AES3 digital audio inputs and outputs on terminal block connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
About AVN-DIO08
The AVN-DIO08 is a Dante to AES3 digital input and output audio converter from the Sonifex DIO range. It features stereo AES3 digital audio inputs and outputs on terminal block connectors, and a Neutrik EtherCon® connector for direct connection to a Dante AoIP network. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager.
Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.
Typical Applications
The AVN-DIO08 is suited to a wide range of professional audio environments where reliable, low channel count, low-latency transport between digital and networked systems is required. It is ideal for broadcast studios, live production, events, and small fixed AV installations such as corporate, education, residential and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional digital equipment and Dante-based audio networks.Product Data
Technical Specifications
AES3 Terminal Block Stereo Input & Output Pin-out
AES3 Input – Terminal Block
AES3 Output - Terminal Block
Dante
PoE Power
Equipment Type
Physical Specification
Downloads & Resources
Support
Firmware
Version Dante V4.2.9.10 · 08/12/2025Download ↗
Firmware Notes
Full release notes for all firmware versions will appear here when available.
