AVN-DIO06

Dante® to AES3 XLR Stereo Input & Output

Dante to AES3 digital input and output audio convertor. It features stereo AES3 digital audio inputs and outputs on Neutrik XLR connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

AVN-DIO06

AVN-DIO06

Dante® to AES3 XLR Stereo Input & Output

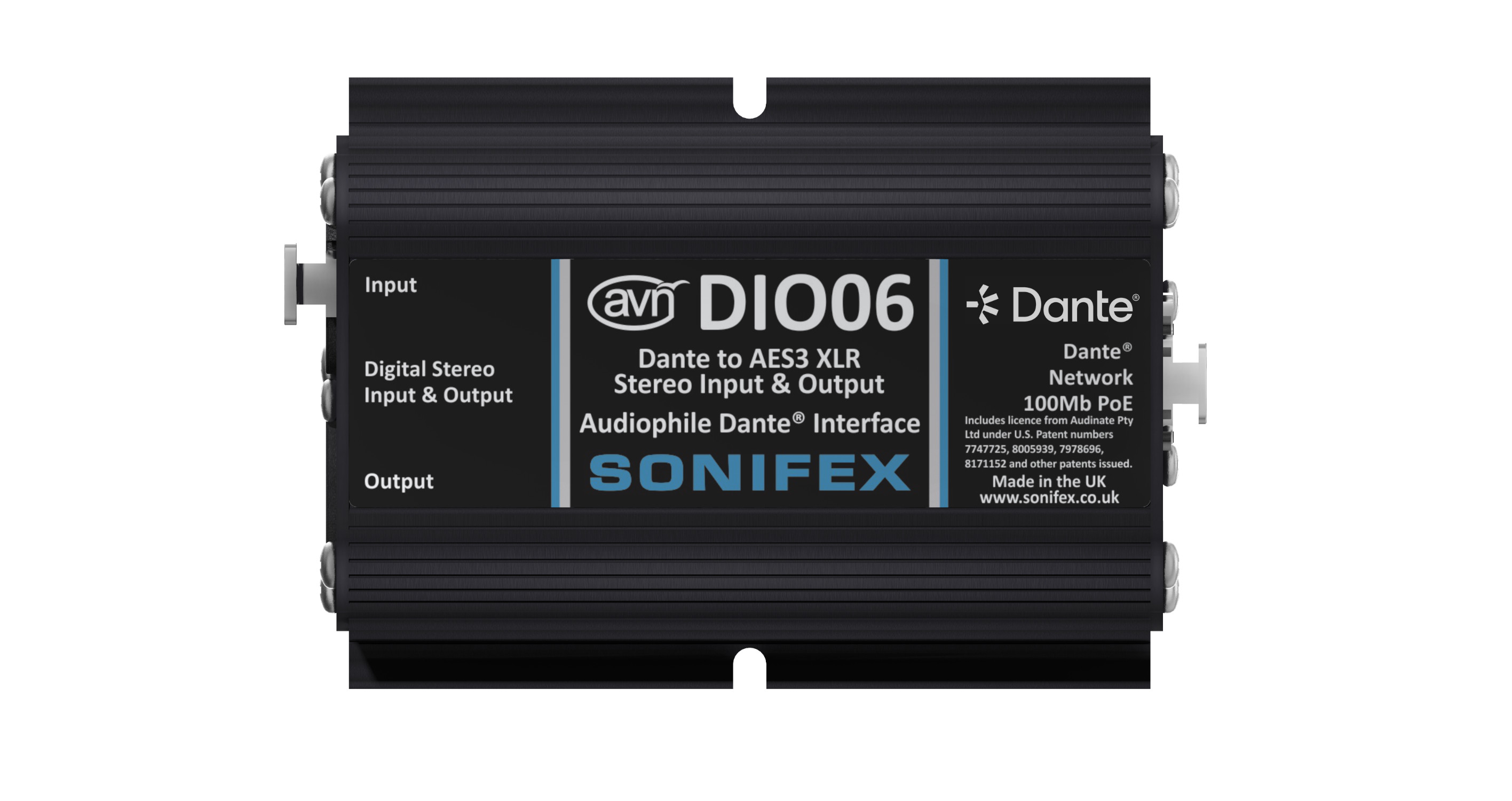

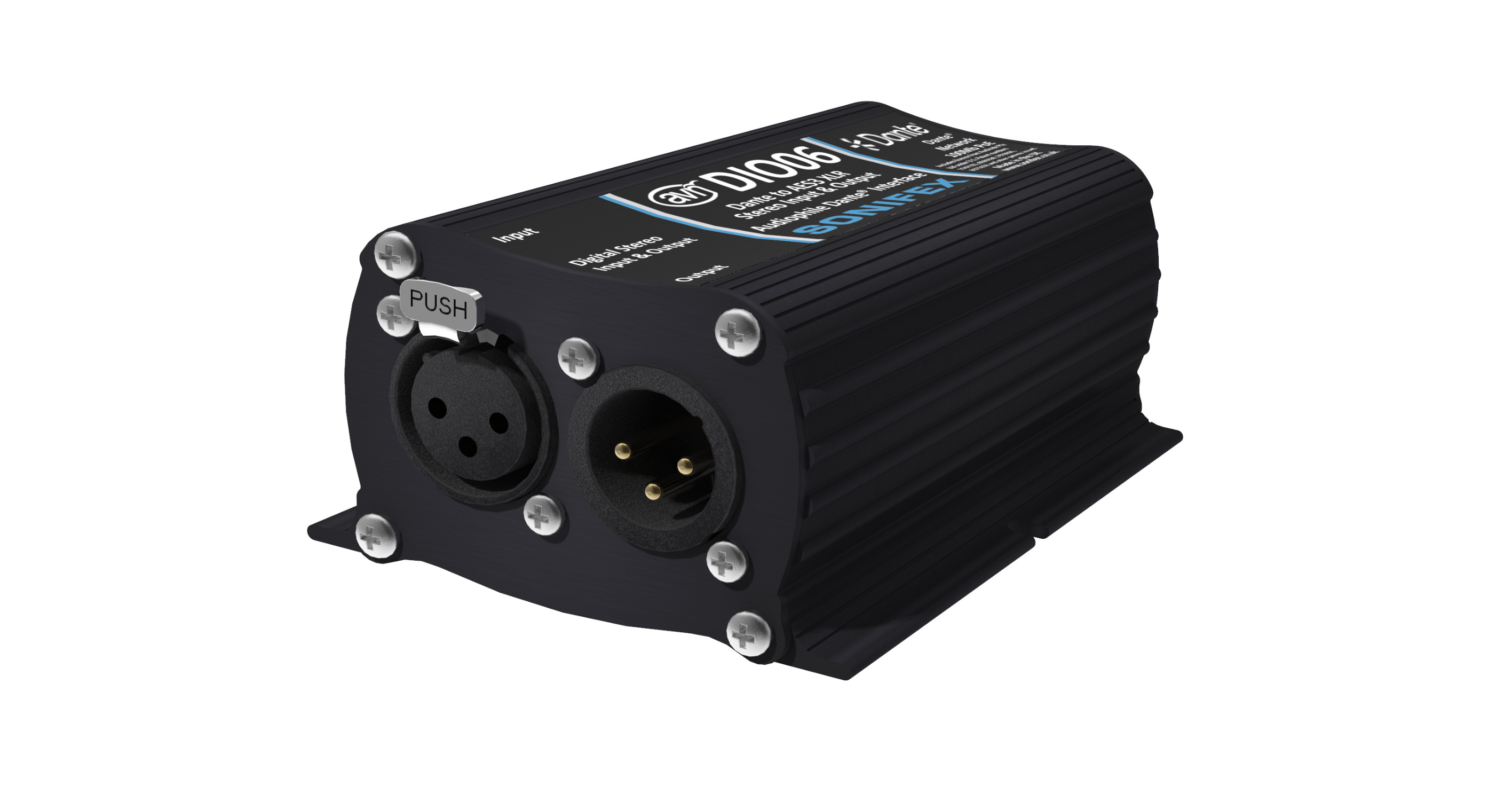

The AVN-DIO06 is a Dante to AES3 digital input and output audio convertor from the Sonifex DIO range. It features stereo AES3 digital audio inputs and outputs on Neutrik XLR connectors, and a Neutrik EtherCon® connector for direct connection to a Dante AoIP network. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager.

Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.

Product Features

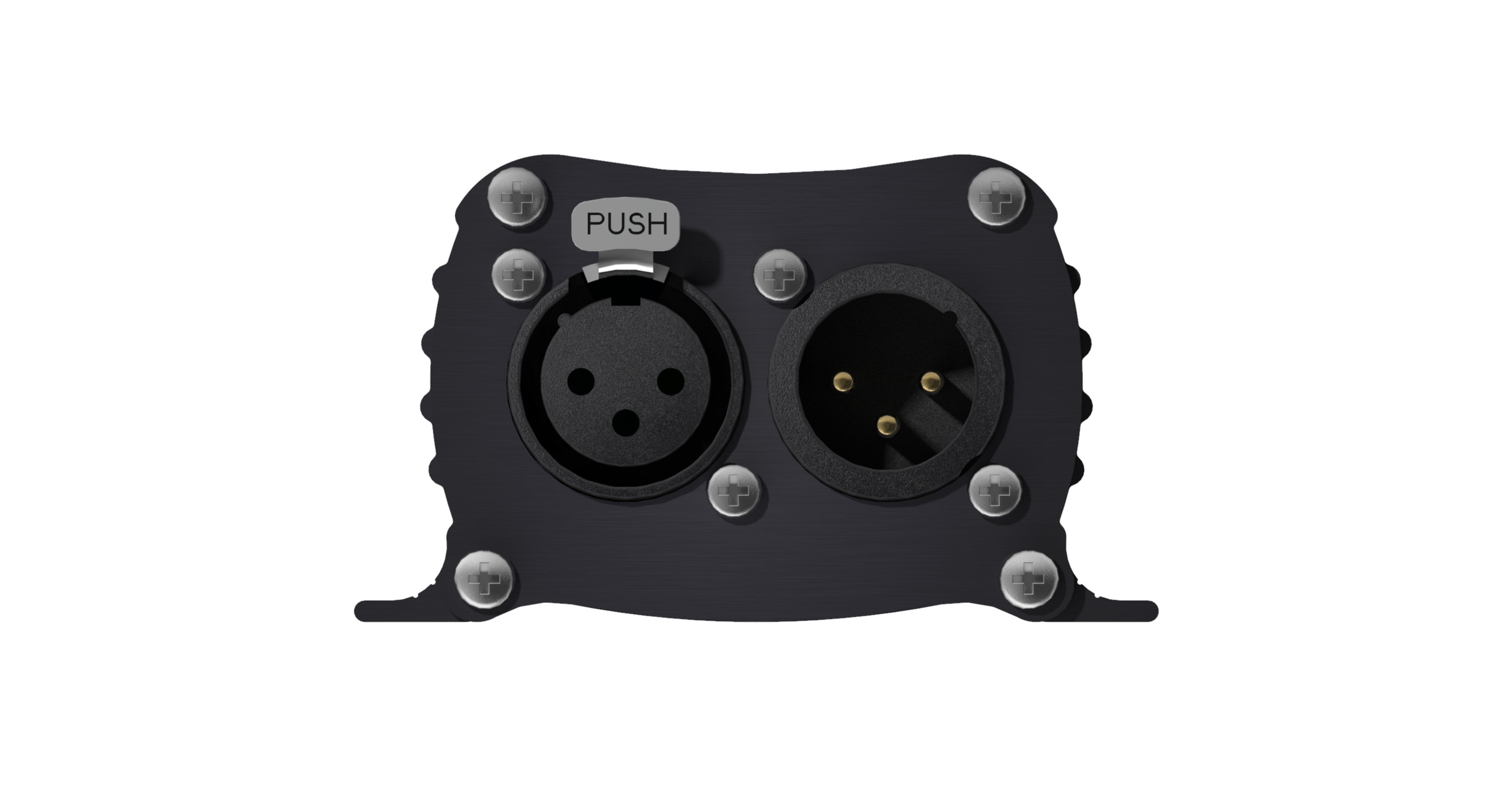

  • 1 x stereo AES3 XLR input.

  • 1 x stereo AES3 XLR output.

  • Neutrik EtherCon® Ethernet connection.

  • Fully Dante compliant device.

  • AES67 compatible.

  • Dante Domain Manager compliant.

  • Powered via PoE (Power over Ethernet).

  • 1U rack-mount option with the AVN-DIORK.

  • Aluminium construction.

Typical Applications

The AVN-DIO06 is suited to a wide range of professional audio environments where reliable, low channel count, low-latency transport between digital and networked systems is required. It is ideal for broadcast studios, live production, events, and small fixed AV installations such as corporate, education, residential and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional digital equipment and Dante-based audio networks.

Product Category

Digital Dante Converters

TECHNICAL SPECIFICATIONS

AES3 XLR Stereo Input Pin-out

PinFunction
1Chassis Ground
2Input Phase
3Input Non Phase


AES3 XLR Stereo Output Pin-out

PinFunction
1Chassis Ground
2Output Phase
3Output Non Phase


AES3 Input - XLR

ParameterDescription
Output Impedance110Ω balanced
Output FormatAES3
Supported Sample Rates44.1kHz, 48kHz, 88.2kHz, 96kHz


Dante

ParameterDescription
Sample Rates:4.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding:PCM 16, PCM 24, PCM 32


PoE Power

Standard802.3af
Class0
PD Power Range0.44 W to 12.94 W
Typical PSE Power Usage2 W
Max PSE Power Usage15.4 W


Equipment Type

AVN-DIO06:Dante® to AES3 XLR Stereo Input & Output


Physical Specification

Dimensions: (Raw)10.6cm (W) x 7.3cm (D) x 4.3cm (H)
Dimensions: (Raw)4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed):17.4cm (W) x 9.5cm (D) x 5.6cm (H)
Dimensions (Boxed):6.9” (W) x 3.7” (D) x 2.2” (H)
Weight:Nett: 0.2kg Gross: 0.3kg
Weight:Nett: 0.44lbs Gross: 0.66lbs


SUPPORT

Handbooks & Guides

The AVN Guide[Download]
A3 AVN-DIO06,07,08 Handbook V1.05[Download]

Brochures

Click to visit the brochures page.

Declarations

Click to visit the declarations page.

Firmware

VersionDante V4.2.9.10Date08/12/2025[Download]
