AVN-AESIO8 (Superseded)
Replaced by the following: AVN-AESIO8-DNT & AVN-AESIO8-RAV
The AVN-AESIO8 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard.
AVN-AESIO8 (Superseded)
Replaced by the following: AVN-AESIO8-DNT & AVN-AESIO8-RAV

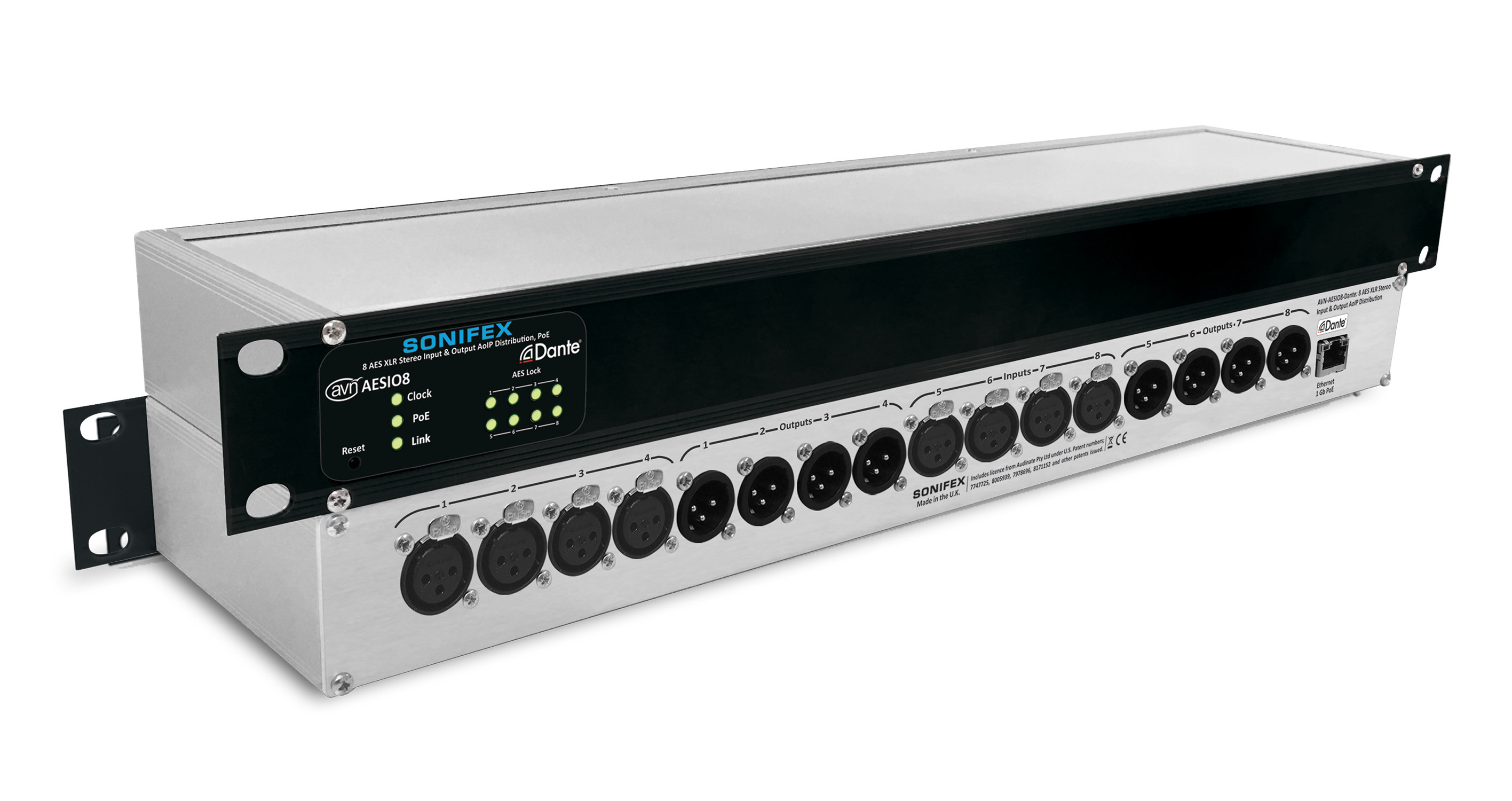

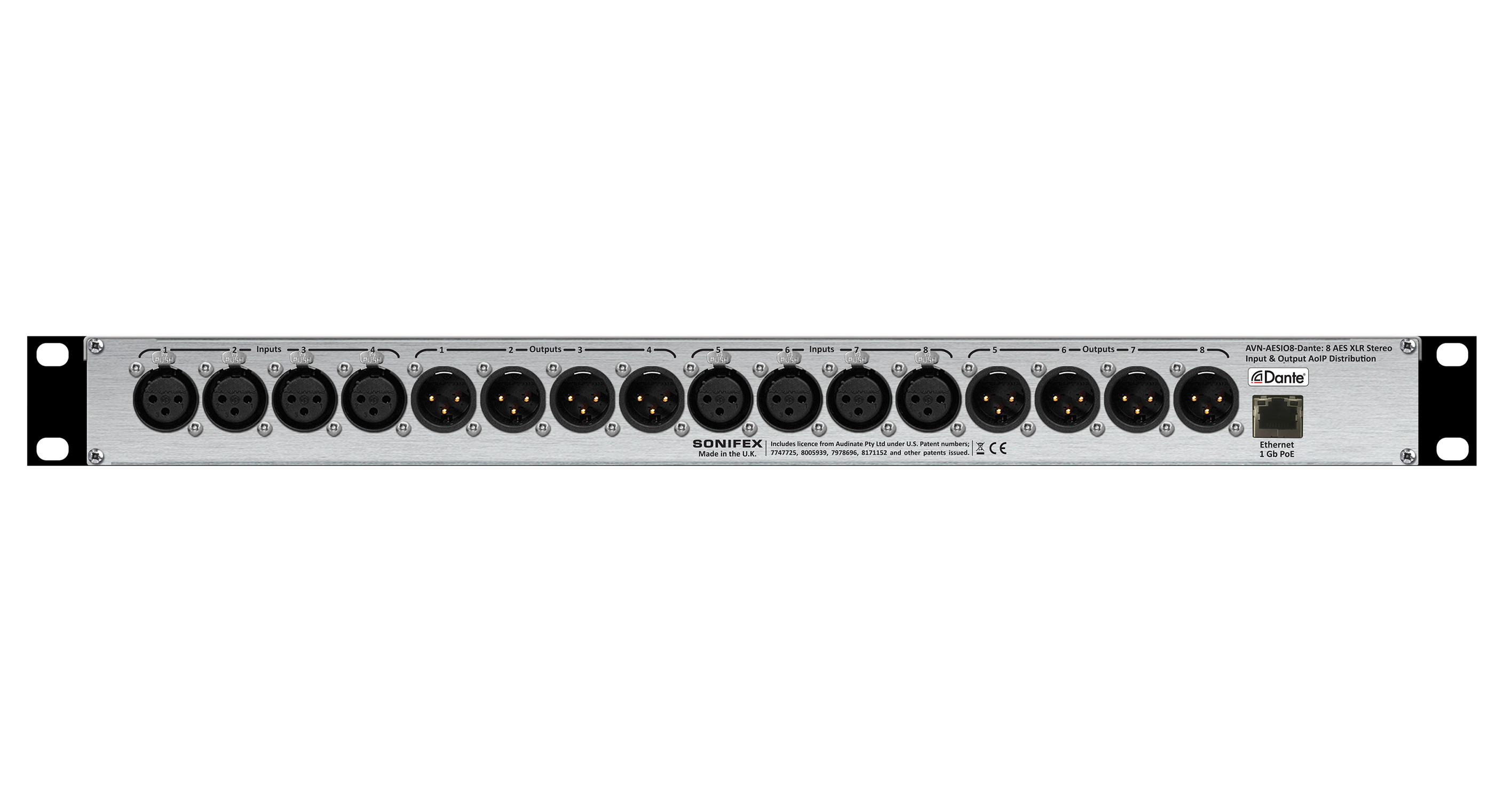

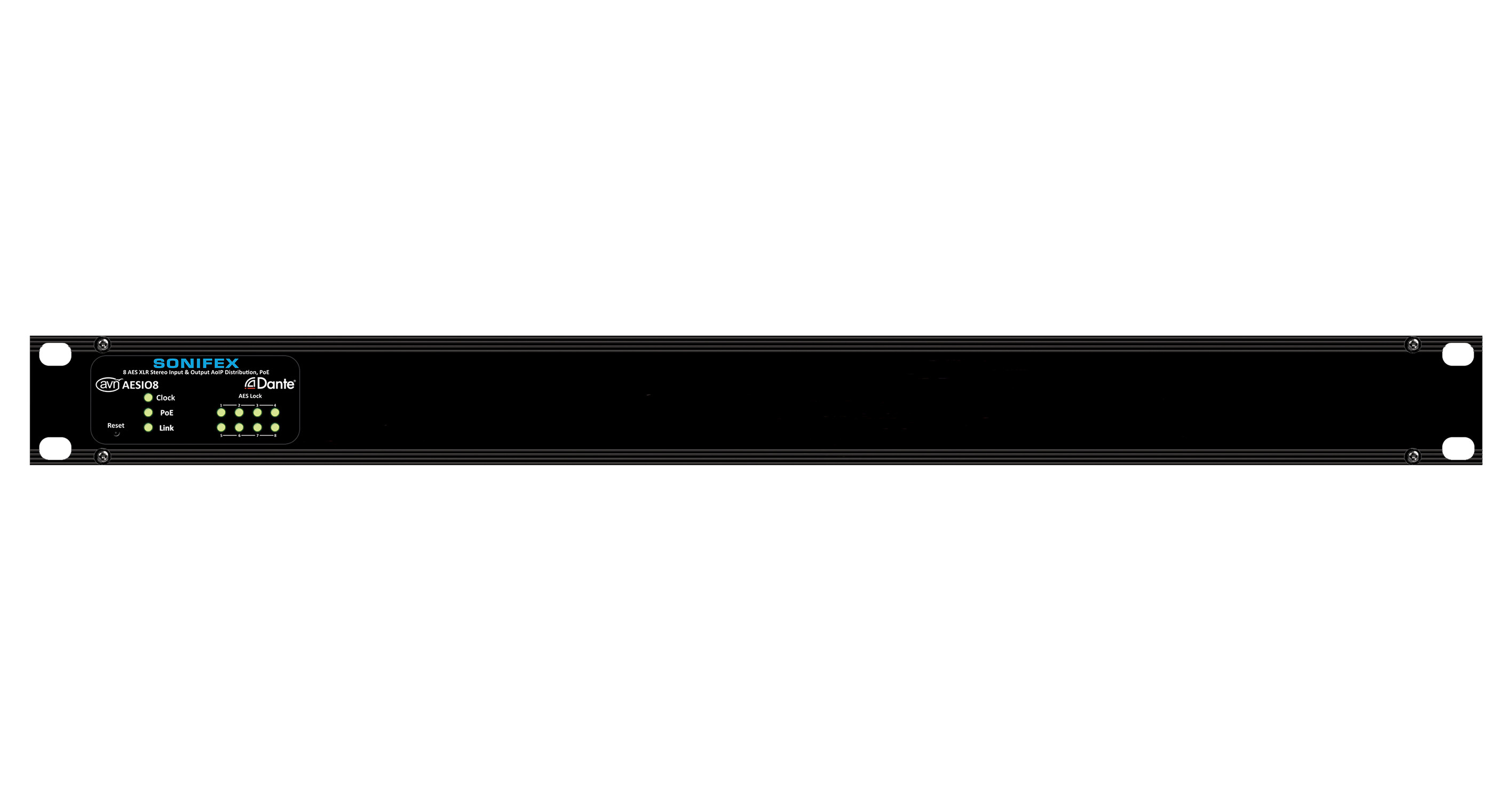

The AVN-AESIO8 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. A valid input signal is confirmed by front panel AES3 lock LEDs for each input. All outputs follow the Dante system sample rate. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up done via the standard Dante Controller software and power via PoE (Power Over Ethernet). All digital AES3 inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link and Clock. (The AVN-AESIO8R is available with dual redundant Ethernet ports).
Product Features
8 x balanced digital stereo AES3 inputs on XLR, supporting input rates of 32kHz – 192kHz.
Sample rate conversion on physical inputs to Dante system sample rate.
8 x balanced digital stereo AES3 outputs on XLR, output rate matches Dante system sample rate.
1 x RJ45 Dante connector (1Gb/s Ethernet Port).
PoE, Link, and Clock LED status indicators.
AES3 Lock LED status indicators for each input.
Configuration using Dante Controller.
AES67 operation & Dante Domain Manager compliant.
Powered by PoE.
1U 19” rack-mount form factor.
The AVN-AESIO8R is available with dual redundant network ports
Typical Applications
Product Category
Discontinued AVNTECHNICAL SPECIFICATIONS
Network and AoIP | |
|---|---|
| AoIP Standard: | Dante |
| Number of Channels: | 16 receive, 16 transmit |
| Number of Streams: | 16 receive, 16 transmit |
| Sample Rates: | 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz |
| Format: | Linear PCM, 16, 24 or 32 bit |
| Connectivity: | 1 x RJ45 |
| Speed: | 1Gbps or 100Mbps |
| Dante Domain Manager Ready: | Yes |
AES3 Input Specifications | |
| Input Impedance: | 110Ω balanced |
| Support Input Rates: | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (sample rate converted to Dante system sample rate). |
| Signal Level: | AES3-2009 compliant |
| Bit Depth: | Up to 24bits |
AES3 Output Specifications | |
| Output Impedance: | 110Ω balanced |
| Support Output Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (set as per Dante system sample rate). |
| Signal Level: | AES3-2009 compliant |
| Bit Depth: | 24 bits |
Balanced Line Input XLR Pinout | |
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Input Positive |
| 3 | Input Negative |
Balanced Line Output XLR Pinout | |
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Output Positive |
| 3 | Output Negative |
PoE Power | |
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6W |
| Max PSE Power Usage | 15.4 W |
Equipment Type | |
| AVN-AESIO8: | 8 AES3 Input, 8 AES3 Output Dante® Interface, PoE |
Physical Specification | |
| Dimensions (Raw): | 48cm (W) x 11cm (D) x 4.3cm (H)(1U) |
| Dimensions (Raw): | 19” (W) x 4.3” (D) x 1.7” (H) |
| Weight: | Nett: 1.0kg Gross: 1.5kg |
| Weight: | Nett: 2.2lbs Gross: 3.3lbs |
