SignalLED Range of RGB LED Signs For Studios
The SignalLED range of illuminated RGB LED signs are a new range of signs designed for outside recording, on-air & production studios, meeting rooms, conference rooms and for fixed installations. The sign itself contains the control electronics, and RGB LEDs are used, so the signs can be simply configured onsite for your particular requirements.
- Low power consumption, only 4W.
- Maintenance free, LED lighting.
- Multi-coloured RGB LEDs offering 9 different colours.
- Sign can be made to flash, pulse, fade and be on or off.
- Flush-mounting as standard or end/ceiling-mounting with kits.
- 20cm (8”) or 40cm (16”) widths or 2 x 20cm (2 x 8”).
- Standard wording includes: MIC LIVE, ON AIR, RECORD, PHONE, TRAFFIC FLAG ON, AD BREAK, TX, REH, REHEARSAL, DOOR, OBIT, NO ENTRY, EXIT, SILENCE PLEASE, MEETING IN PROGRESS, INTERVIEW IN PROGRESS.
- Custom signs can be etched with company logos, different wording or graphics.
- 2 x GPIs for control from a light switch, or fader GPO (pull down to 0V).
- Supplied as standard as red/green switching.
- Use separate remote control (LD-RPC) to program the colour, switching mode or brightness.
- Supplied complete with fixings & DC power supply.
Single Flush Mounting Signs (20cm) |
|||
| LD-20F1REC | Single Flush Mounting 20cm ‘RECORD’ Sign | more >> |  |
| LD-20F1ONA | Single Flush Mounting 20cm ‘ON AIR’ Sign | more >> |  |
| LD-20F1MCL | Single Flush Mounting 20cm ‘MIC LIVE’ Sign | more >> |  |
Single Flush Mounting Signs (40cm) |
|||
| LD-40F1REC | Single Flush Mounting 40cm ‘RECORD’ Sign | more >> |  |
| LD-40F1ONA | Single Flush Mounting 40cm ‘ON AIR’ Sign | more >> |  |
| LD-40F1MCL | Single Flush Mounting 40cm ‘MIC LIVE’ Sign | more >> |  |
| LD-40F1PHN | Single Flush Mounting 40cm ‘PHONE’ Sign | more >> |  |
| LD-40F1TRF | Single Flush Mounting 40cm ‘TRAFFIC FLAG ON’ Sign |
more >> |  |
| LD-40F1ADB | Single Flush Mounting 40cm ‘AD BREAK’ Sign | more >> |  |
| LD-40F1REH | Single Flush Mounting 40cm ‘REHEARSAL’ Sign | more >> |  |
| LD-40F1DOR | Single Flush Mounting 40cm ‘DOOR’ Sign | more >> |  |
| LD-40F1OBT | Single Flush Mounting 40cm ‘OBIT’ Sign | more >> |  |
| LD-40F1NOE | Single Flush Mounting 40cm ‘NO ENTRY’ Sign | more >> |  |
| LD-40F1EXIT | Single Flush Mounting 40cm ‘EXIT’ Sign | more >> |  |
| LD-40F1SIL | Single Flush Mounting 40cm ‘SILENCE PLEASE’ Sign | more >> |  |
| LD-40F1MET | Single Flush Mounting 40cm ‘MEETING IN PROGRESS’ Sign | more >> |  |
| LD-40F1INT | Single Flush Mounting 40cm ‘INTERVIEW IN PROGRESS’ Sign | more >> |  |
Twin Flush Mounting Signs (2x20cm) |
|||
| LD-40F2TX-REH | Twin ‘TX’ & ‘ REH’ sign | more >> |  |
| LD-40F2ONA-MCL | Twin ‘ON AIR’ & ‘MIC LIVE’ sign | more >> |  |
| LD-40F2ONA-SIL | Twin 'ON AIR & 'SILENCE' | more >> |  |
| LD-40F2MCL-PHN | Twin ‘MIC LIVE’ & ‘PHONE’ sign | more >> |  |
Mounting Kits |
|||
| LD-KE1 | End Mounting Kit For 40cm Or 20cm Flush Mounting Signs | more >> |  |
| LD-KC1 | Ceiling Mounting For 40cm Or 20cm Flush Mounting Signs |
more >> |  |
| LD-IT | LED Sign End Mounting Installation Tool | more >> |  |
Programming Control |
|||
| LD-RPC | Remote Programming Controller | more >> |  |
Withdrawn Signs |
|||
| No Longer Available |
Double-Sided End Mounting Signs (40cm): LD-40E1REC 40cm RECORD Sign; LD-40E1ONA 40cm ON AIR Sign; LD-40E1MCL 40cm MIC LIVE Sign; Twin Double Sided End Mounting Sign (40cm): LD-40E2TX-REH 2 x 20cm TX & REH Sign; |
||
Samples of Standard Stocked & Customer Signs
RGB LEDs - Any Colours Possible
The illuminating LEDs in the unit are RGB meaning that the colour of the sign can be selected on installation. As standard, the sign will illuminate in defined colours when control inputs 1 and 2 are used, but you can configure the sign to display one of 9 colours using the LD-RPC remote controller: white, green, red, orange, blue, yellow, light orange, cyan and magenta. The images on the following pages show the default colour of each sign.
Dual Control Inputs
The sign can be controlled by either, or both, of 2 pull-low inputs, e.g. a single input can be used to control a single ‘MIC LIVE’ sign, or 2 inputs can be used to control a twin ‘TX’ and ‘REH’ sign with independent control of each side of the sign.
7V-36V DC Input Option
For a small additional cost, the SignalLED main circuit board can be modified to accept a DC input in the range 7V-36V, for example, if you have a 12V or 24V distributed DC power network.
Please note that for 7V – 36V ‘LDD’ orders, a DC power supply is not included as standard.
When placing your order, or requesting a quotation, please either:
Change the ‘LD’ of the order code to ‘LDD’, so for example, ‘LD-F1ONA’ becomes ‘LDD-F1ONA’, or:
Add the item LD-DC to your order.
Different Display Modes
Five modes of illumination are available:
- Constant illumination.
- Flashing, regularly on/off.
- Pulsing - flashing, then off, repeated
- Fading
- Off
|
|
Single or Twin Signs
Each sign is 40cm or 20cm long. The 40cm signs can be split into two 20cm sides which can be separately, or jointly controlled, e.g. you can have a 40cm ‘ON AIR’ sign, or twin 2 x 20cm signs, such as ‘ON AIR’ and ‘MIC LIVE’.
Flush or End Mounting
|
 |

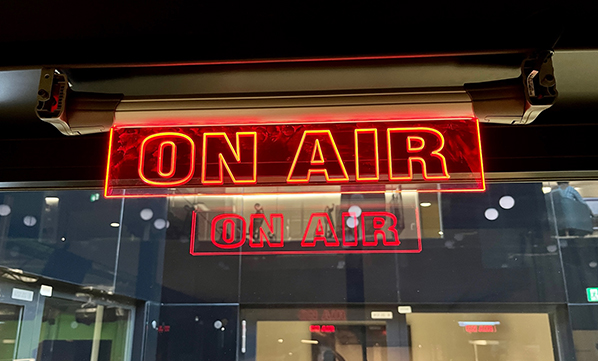

The sign is supplied as standard so that it can be mounted flush to a wall, e.g. for the ‘TX’ & ‘REH’ sign shown. However, a mounting kit is available, LD-KE1, to mount the sign perpendicular to a wall, e.g. above a door, such as the ON AIR sign shown.
Single 20cm Flush Mounting Sign
 |
These are the available choices for the smaller 20cm flush-mounting signs. Custom signs can be made to order, if required.
Custom Signs
Although a range of standard signs is supported, custom signs, for example with your company name or logo, can be produced for a nominal setup fee. Contact Sonifex with your requirements.
If wish to supply your own artwork for the custom sign, please read the Customer Supplied Sign Artwork Specification > .
Simple Installation
The signs are supplied with a 6V wall-wart power supply with international adapters for the UK, Europe, USA and Australasia & a 5m lead. Simply wire up your control signal(s) and DC input to the ‘screw terminal block’ inside the sign, route the cables through the integral cable clamp and mount the unit on the wall.
LD-IT An installation tool, the LD-IT can be used to hold the sign in place on the wall mount whilst you wire it up.
How to Order
Just select the name of the sign from the list above.
Technical Specification For SignalLED Range |
|
Physical Specification |
|
| Power Input: 40cm Sign: |
5-7V DC 500mA max |
| Input Connector: | 4 way screw terminal block |
| Control Inputs: | 2 x pull-down to 0V |
| Perspex Sign Dimensions: | Single: 40cm (W) x 8cm (H) |
