Studio Illuminated Signs
LD-40F1OBT Obit Studio Sign.
Related Links:
SignalLED Configuration Chart >
SignalLED Sign Types (Variations) >
SignalLED Sign Mounting Requirements >
Power Supply Approval Documents >
DC PSU Modification to Allow Use of 7V-36V DC Input >

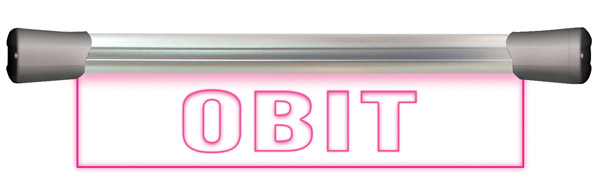

SignalLED LD-40F1OBT Sign
The SignalLED range of illuminated RGB LED signs are a new range of signs designed for outside recording, on-air & production studios, meeting rooms, conference rooms and for fixed installations. The sign itself contains the control electronics, and RGB LEDs are used, so the signs can be simply configured onsite for your particular requirements.
Technical Specification For SignalLED Range |
|
Physical Specification |
|
| Power Input: 40cm Sign: |
5-7V DC 500mA max |
| Input Connector: | 4 way screw terminal block |
| Control Inputs: | 2 x pull-down to 0V |
| Perspex Sign Dimensions: | Single: 40cm (W) x 8cm (H) |
