Microphone Amplifiers
AVN-DIO09
Microphone Input to Dante®
Microphone input to Dante audio converter. It features a single, full-featured, high-quality mic preamp, plus a Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
About AVN-DIO09
At a Glance

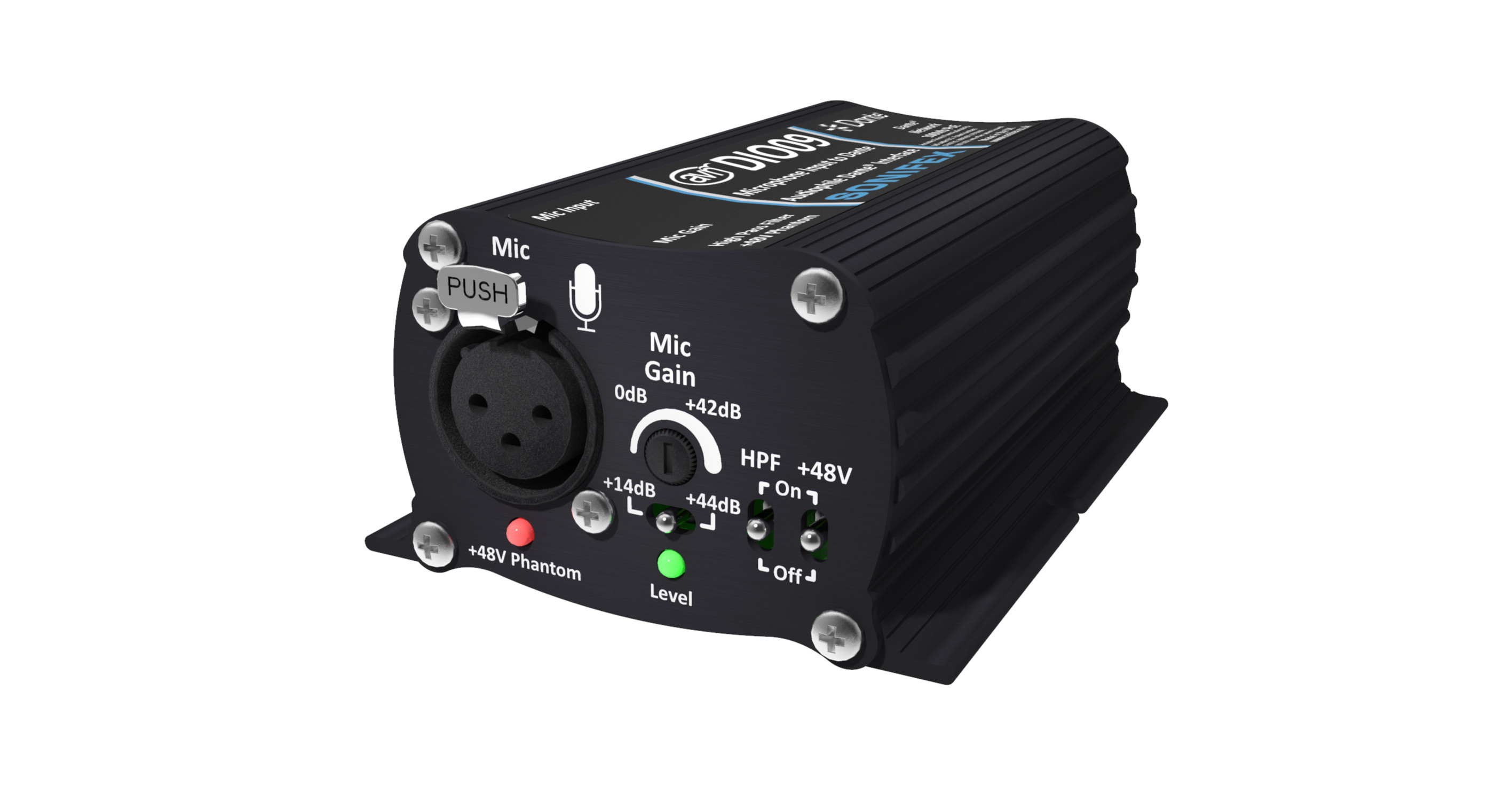

The AVN-DIO09 is an ultra-high quality single microphone to Dante® interface from the Sonifex DIO range, featuring a balanced analogue XLR input with a high-performance mic preamp for seamless integration with Dante Audio-over-IP networks. It delivers A/D conversion with a world-class equivalent input noise (EIN) of -129dB.
Mic Gain, Filtering & Phantom Power

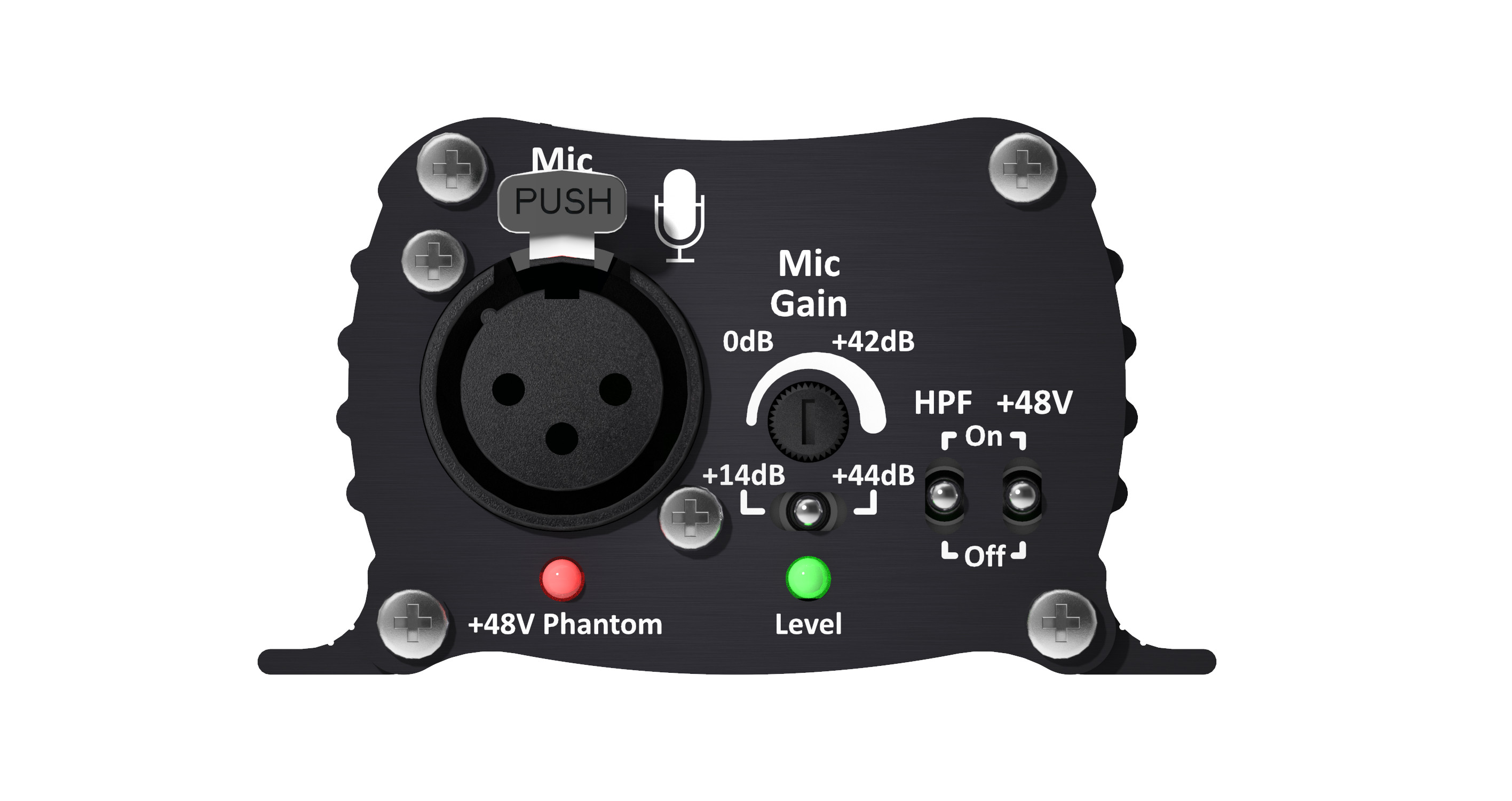

The microphone input includes coarse and fine gain adjustment, a switchable high-pass filter, phantom power, and a tri-colour level LED for accurate signal monitoring. Coarse gain is selectable between 14dB and 44dB via a front panel switch, while fine gain provides an additional 0dB to 42dB of adjustment.
The high-pass filter can be enabled to attenuate frequencies below 125Hz at 6dB per octave, and phantom power supplies 48V DC for compatible microphones, with a front panel LED indicating when it is active.
Networked Audio & Power

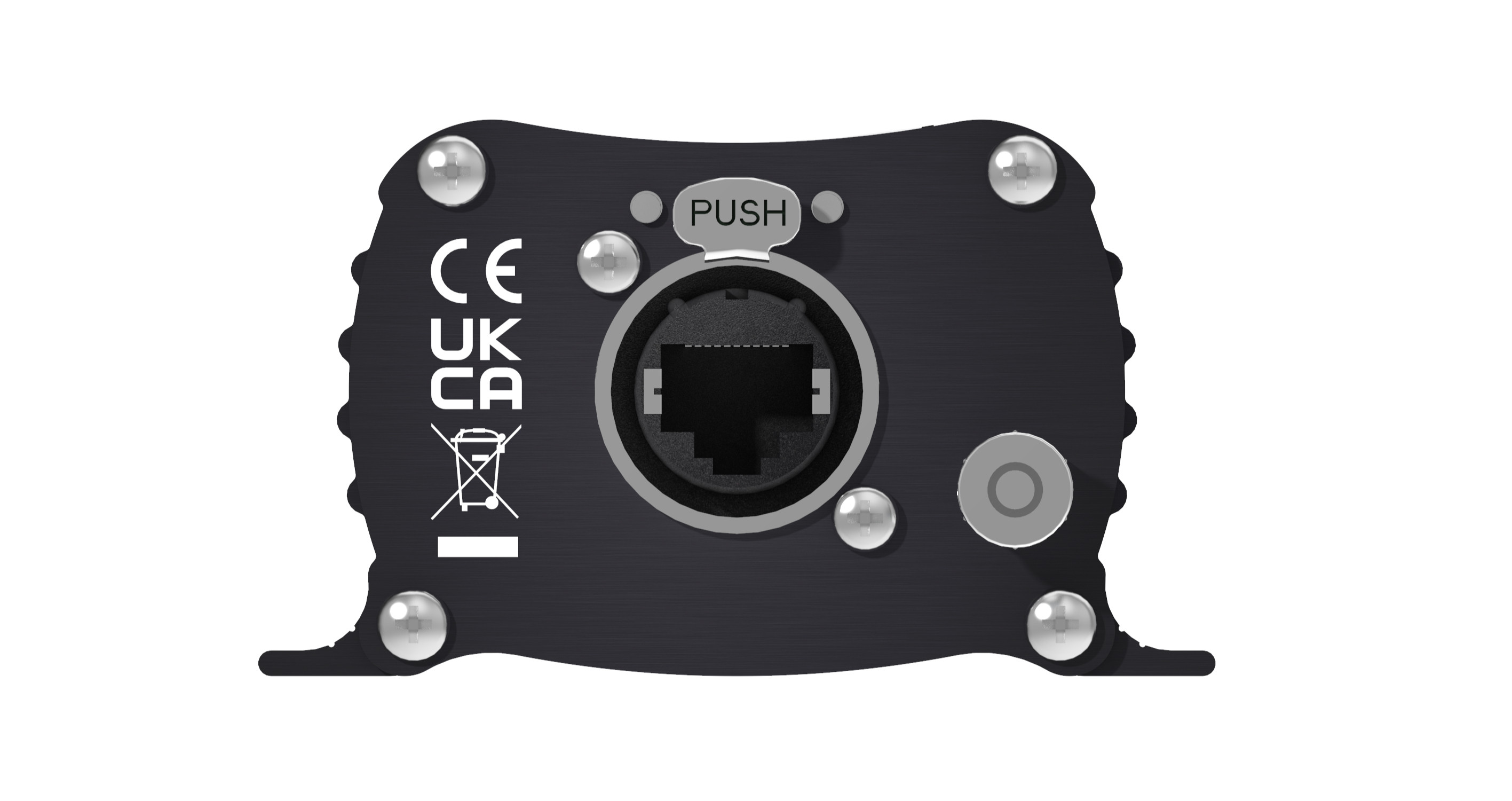

Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager.
Simple Installation & Mounting

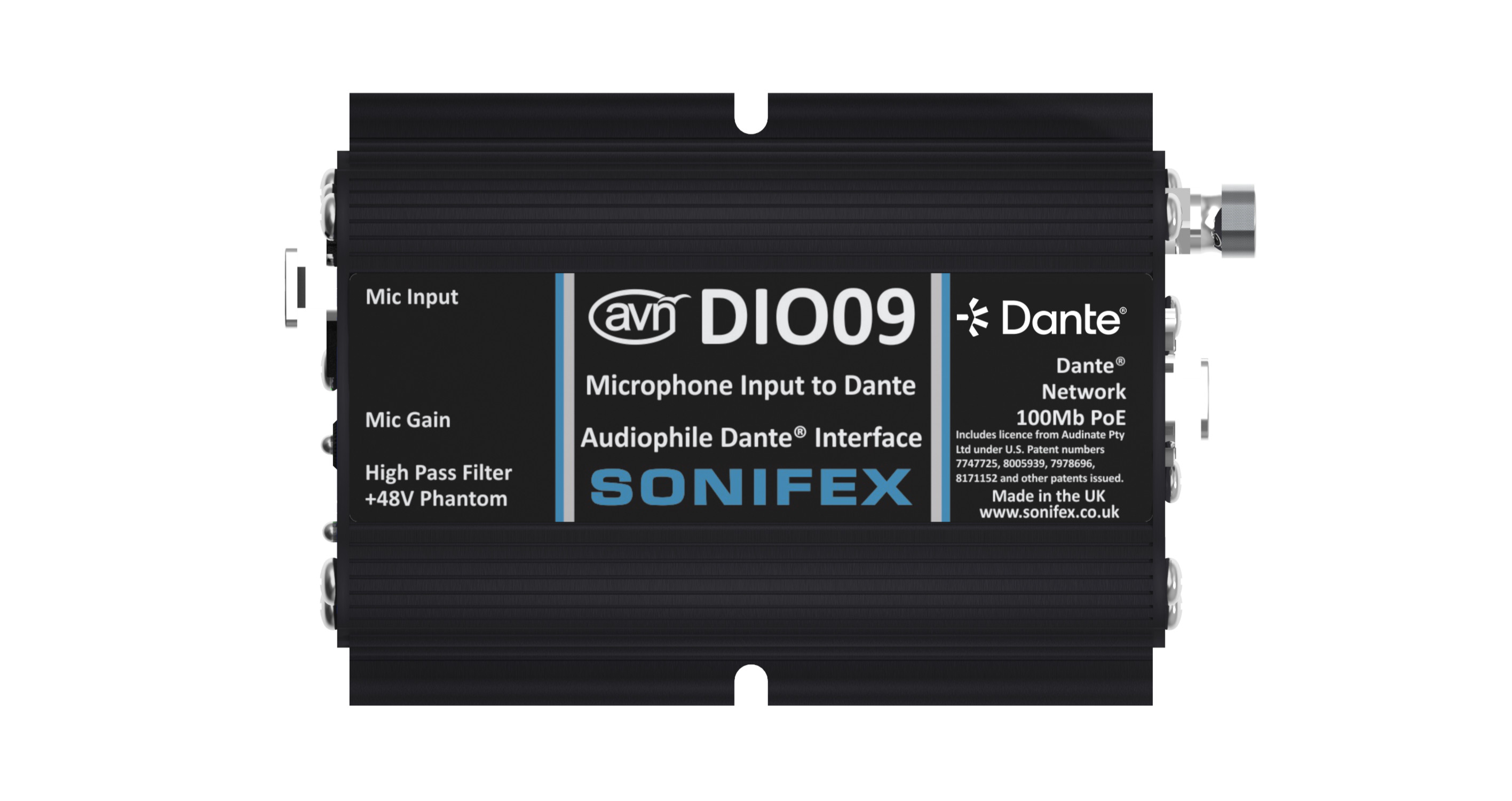

Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.
Typical Applications
To send any microphone signal to the Dante network, to amplify microphones in a studio talks area, court room microphone amplification, converting mic signal where mic and amp are a long distance apart.Product Data
Technical Specifications
Microphone XLR Input Pin-out
Earthing Point
Level LED Thresholds
Microphone Input - XLR
Dante
PoE Power
Equipment Type
Physical Specification
