AVN-DIO12
Dual Microphone Input to Dante® with Mic Gain
The AVN-DIO12 is a dual microphone input to Dante® interface with adjustable mic gain. It provides the same functionality as two AVN-DIO09 (single mic-to-Dante) units within a single chassis, while delivering high-performance A/D conversion with a world-class equivalent input noise (EIN) of -129dB.
About AVN-DIO12
At a Glance

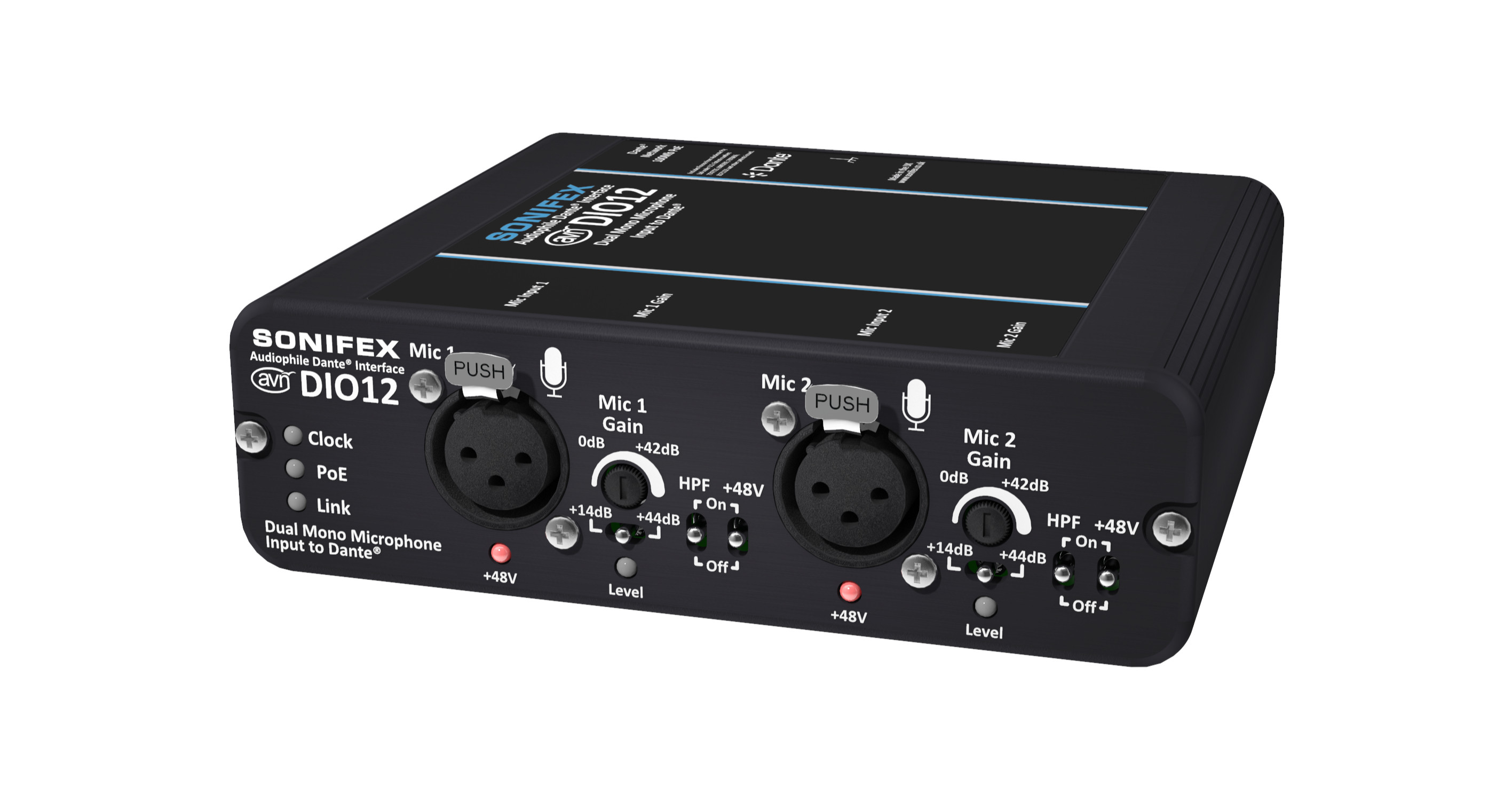

The AVN-DIO12 is an ultra-high quality dual microphone to Dante® interface from the Sonifex DIO range, featuring two balanced analogue XLR inputs with high-performance mic preamps for seamless integration with Dante Audio-over-IP networks. It delivers A/D conversion with a world-class equivalent input noise (EIN) of -129dB.
Mic Gain, Filtering & Phantom Power

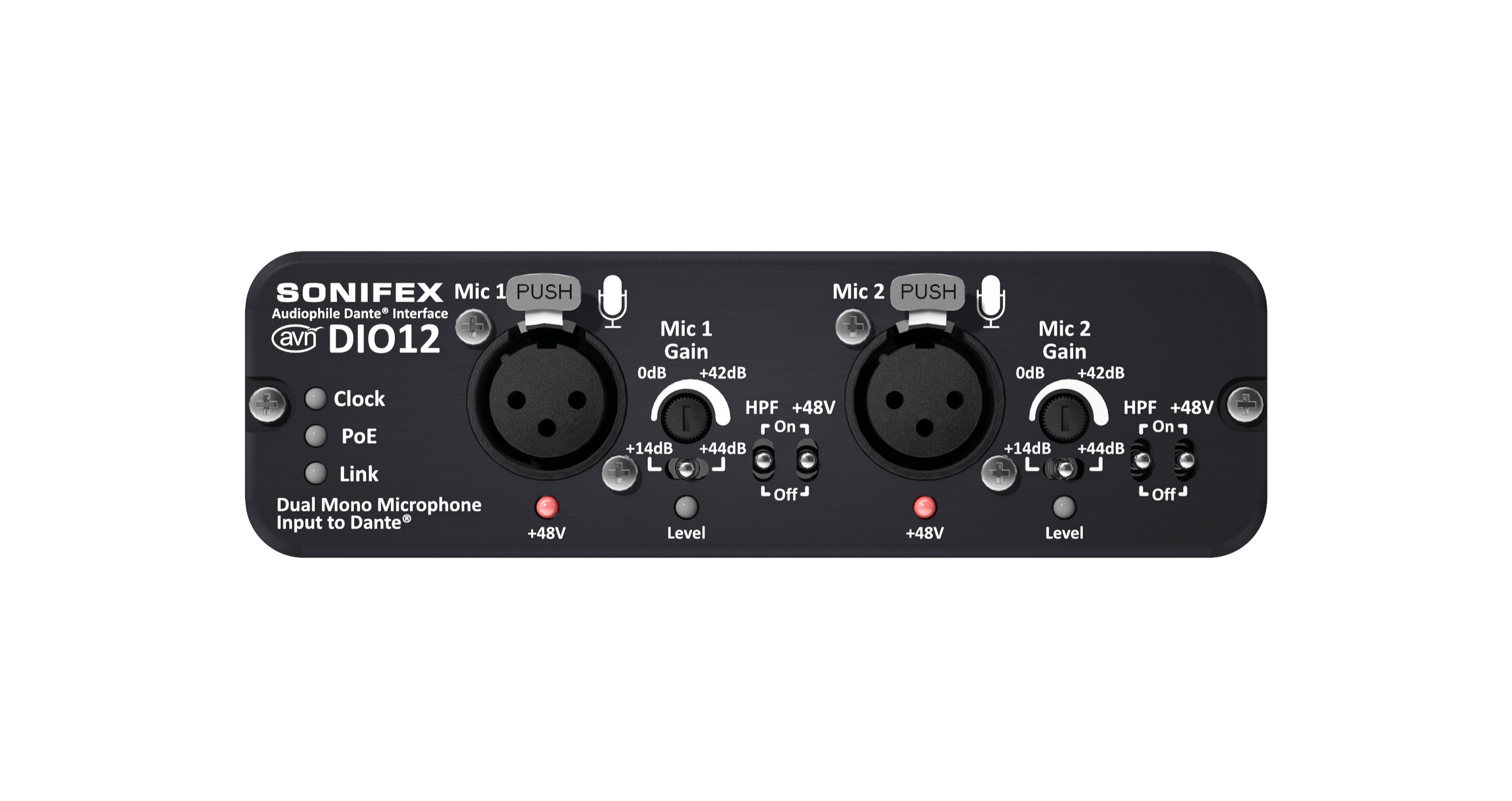

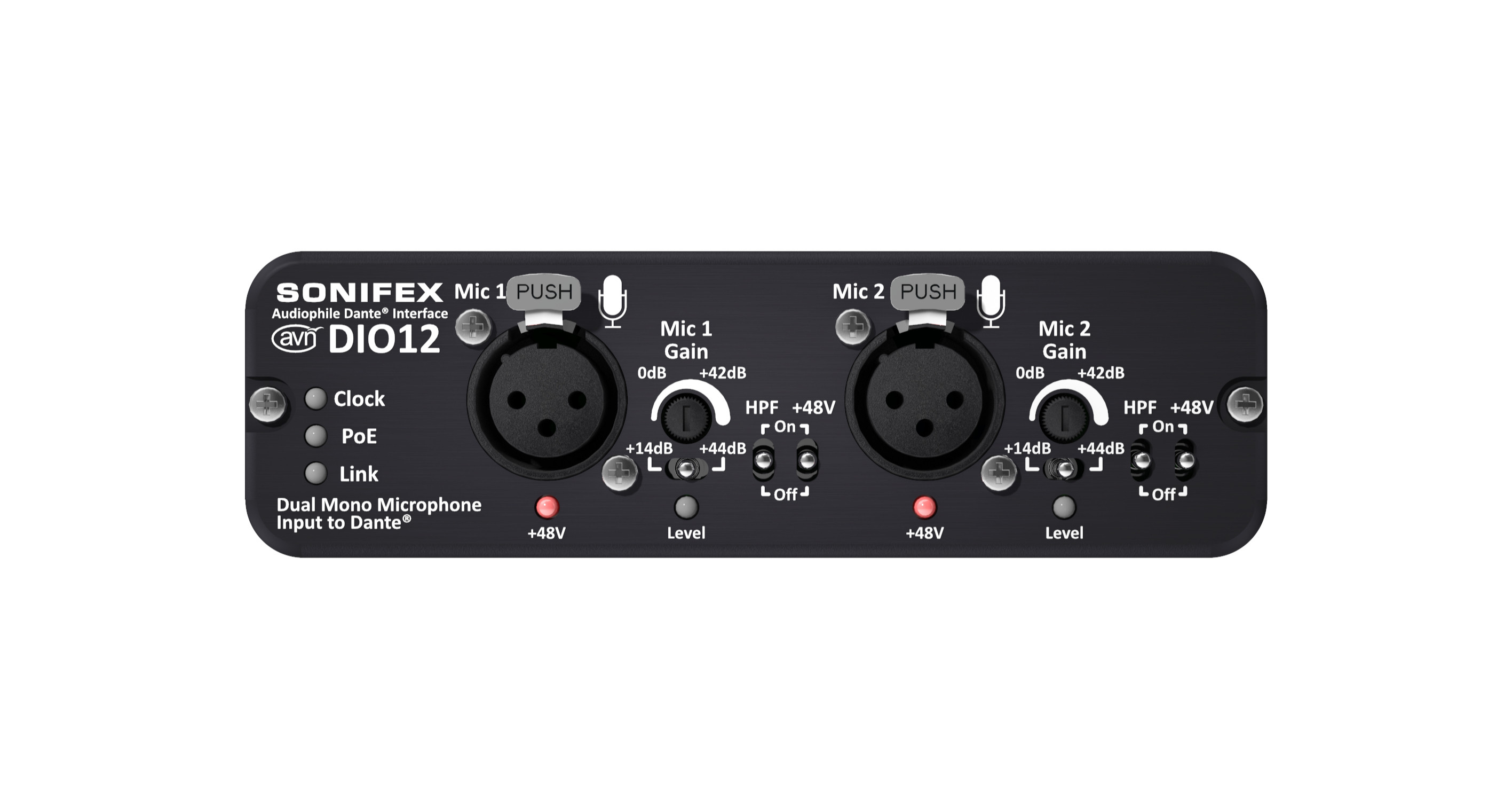

Each microphone input includes independent coarse and fine gain adjustment, a switchable high-pass filter, phantom power, and a tri-colour level LED for accurate signal monitoring. Coarse gain is selectable between 14dB and 44dB via front panel switches, while fine gain provides an additional 0dB to 42dB of adjustment per channel.
The high-pass filter can be enabled to attenuate frequencies below 125Hz at 6dB per octave, and phantom power supplies 48V DC for compatible microphones, with front panel LEDs indicating when phantom is active on each channel.
Networked Audio & Power

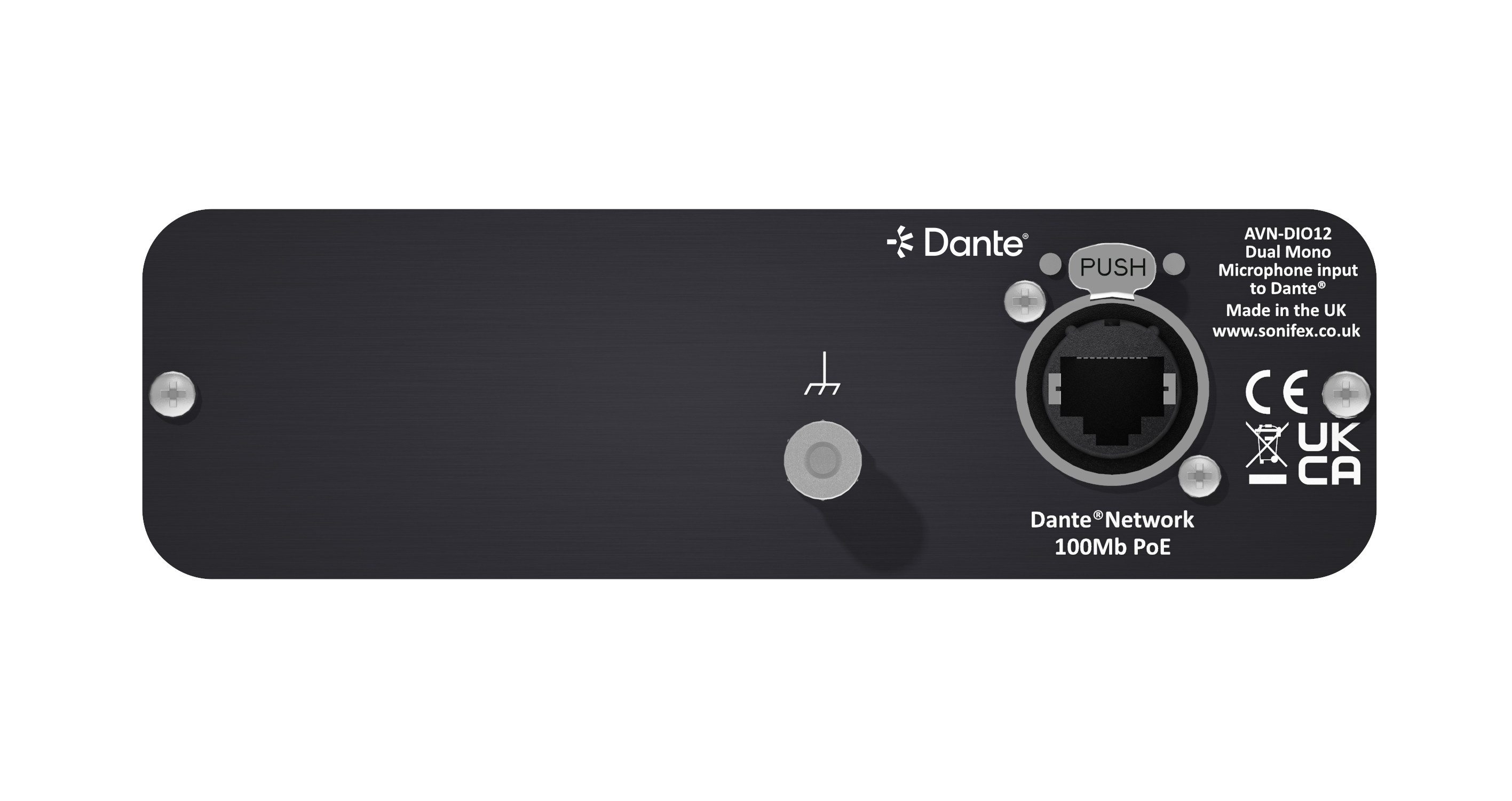

Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager.
Simple Installation & Mounting

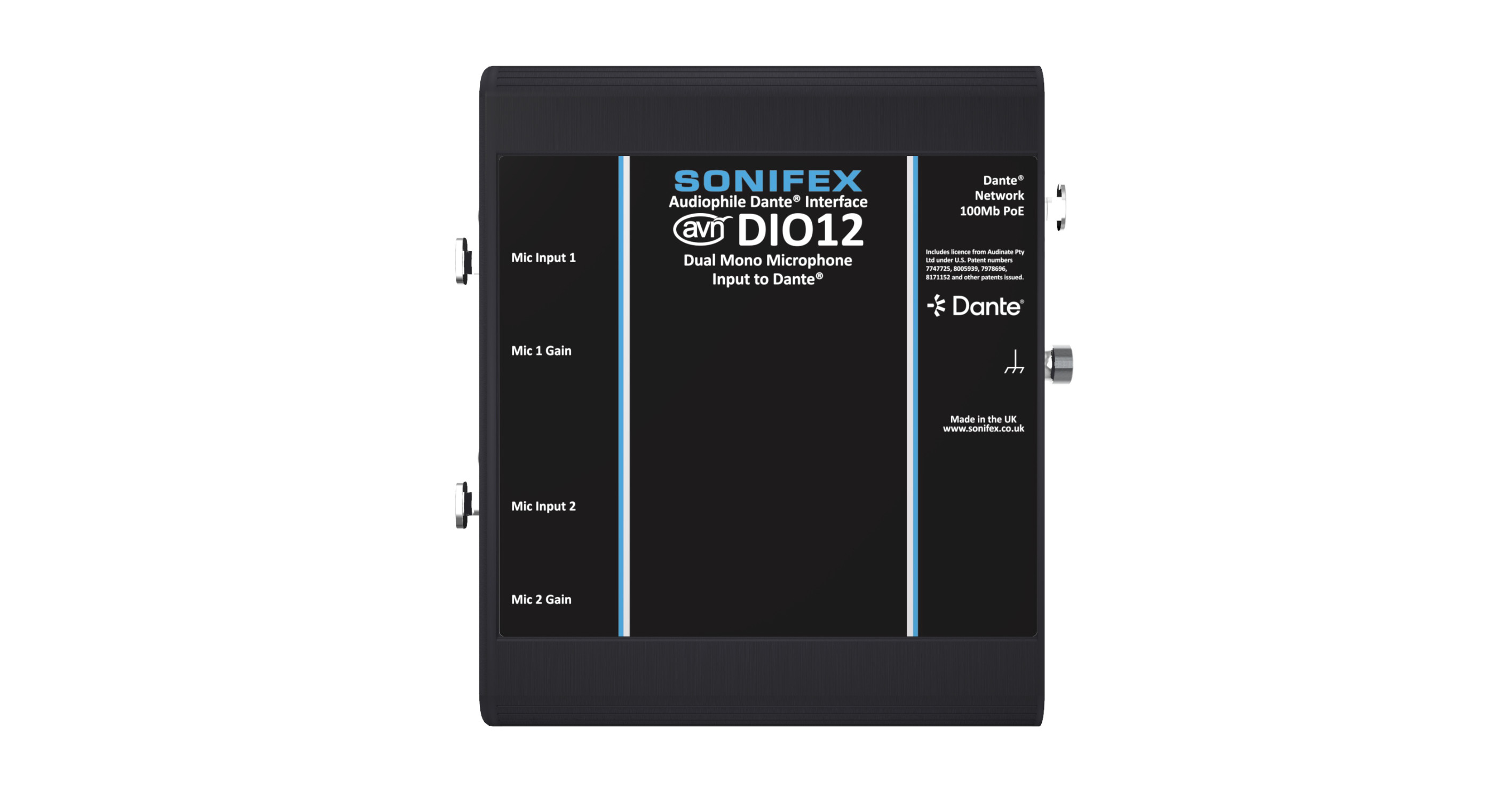

Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, is available to install multiple units on a 19″ rack-mount shelf.
Typical Applications
To send microphone signals to the Dante network and to route a mic signal over a long distance. Small and compact for easy placement. Distribute mic feeds over CAT5/6, at events, stadiums, court room or studio talks area.Product Data
Technical Specifications
Microphone XLR Input Pin-out
Microphone Input - XLR
Network and AoIP
PoE Power
Equipment Type
Physical Specification
Downloads & Resources
Support
Firmware
Version Dante V4.2.9.10 · 08/12/2025Download ↗
