Dante Commentary

AVN-CU1

Dante® Commentary Unit for 1 Commentator

The AVN-CU1 adds to the Sonifex range of Dante commentary units with a simple to use, single microphone/headphone combination with a full feature set and a low price point.

About AVN-CU1

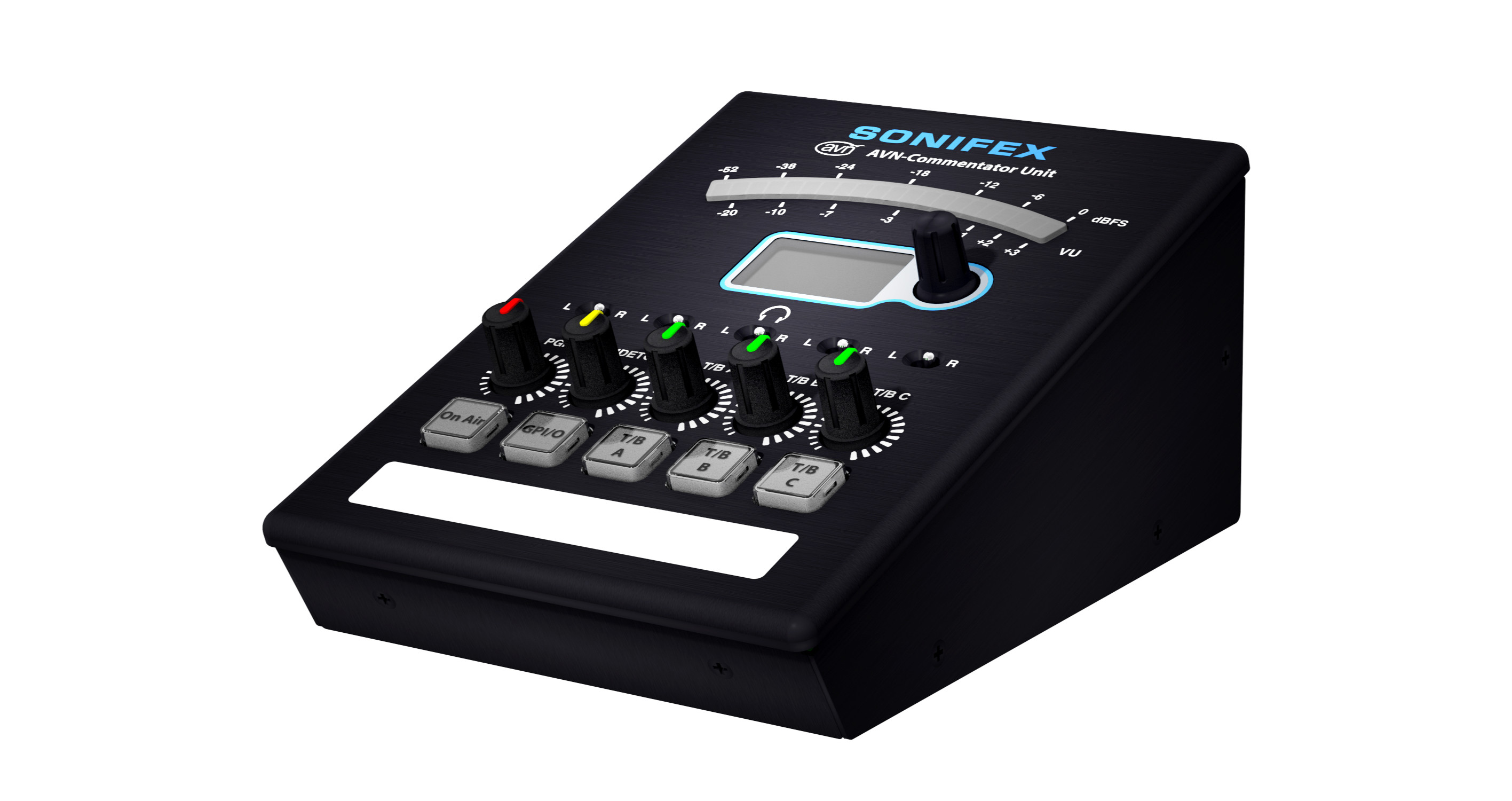

The AVN-CU1 is a Dante® commentary unit designed for a single commentator, combining professional broadcast functionality with an intuitive, compact interface. Expanding the Sonifex range of Dante commentary solutions, it offers an easy to use, straightforward microphone and headphone setup while maintaining a comprehensive feature set at a cost-effective price point.

Designed for ease of use in live sports and studio environments, the AVN-CU1 provides clear control over monitoring and routing. The integrated headphone amplifier features five inputs; three Dante talkback channels, Dante programme audio, and sidetone, each with its own dedicated level control via individual potentiometers. Audio output routing is managed using illuminated pushbuttons, providing clear visual feedback of signal paths.

An OLED display enables simple setup and configuration, while a high-impact LED bar graph ensures clear daylight metering. Additional visual indicators include per-source headphone routing status and subtle downlighting to show operational states at a glance.

It has redundant Primary and Secondary Dante network ports on EtherCON RJ45s as well as two SFP transceiver ports and is powered by dual PoE or a 12V DC input. The audio compressor/limiter has been specifically optimised for speech applications. A high-pass filter is positioned ahead of the compressor stage to prevent unwanted low-frequency transients, such as handling noise or microphone thumps, from triggering unnecessary gain reduction. The compressor threshold is adjustable from 0dB to –40dBFS, providing flexibility to accommodate a wide range of incoming signal levels.

Typical Applications

Used in sports grounds, arenas and events by a single commentator to produce commentary & hear talkback. Simple to configure and use, ideal for Dante setups that require broadcast level commentary or announcements.

Product Data

Technical Specifications

Network & AoIP
AoIP Standard
Dante
Number of Channels
4 receive, 4 transmit
Number of Streams
2 receive, 2 transmit
Sample Rate
48 kHz
Format
Linear PCM, 16, 24 or 32 bit
AES67 Support
Yes
Connectivity
2 x RJ45 and 2 x SFP
Speed
1Gbps or 100Mbps
Network Modes
Switched or redundant
Dante Domain Manager Ready
Yes
Mic/Line Inputs
Input Impedance (Mic Mode)
2.5kΩ electronically balanced
Input Impedance (Line Mode)
>10kΩ electronically balanced
Preamp Gain (Mic Mode)
User selectable 16dB to 76dB in 3dB steps (Ref. +18dBu = 0dBFS)
0dBFS Line-up (Mic Mode)
-58dBu @ Max preamp gain, +2dBu @ Min preamp gain
0dBFS Line-up (Line Mode)
User selectable +15dBu / +18dBu / +20dBu / +22dBu / +24dBu = 0dBFS
Frequency Response (Mic Mode)
+0/-0.2dB 20Hz to 20kHz Ref 40dB gain @ 1kHz
Frequency Response (Line Mode)
+0/-0.2dB 20Hz to 20kHz Ref 0dBu @ 1kHz
THD+N (Mic Mode)
<-90dBFS, -64dBFS, 20Hz – 20kHz, 40dB gain, 20kHz BW
THD+N (Line Mode)
<-98dBFS, -30dBFS, 20Hz – 20kHz, 20kHz BW
Equivalent Input Noise (Mic Mode):
125dB Ref. 76dB preamp gain, Rs = 200Ω
Noise (Line Mode):
<-100dBFS, 20kHz BW, Rs = 200Ω
C.M.R.R
>60dB @ 1kHz
Phantom Power (Mic Mode)
+48V
High Pass Filter
12dB/octave, user selectable frequency
Compressor
Threshold: -40dBFS to 0dBFS
Ratio: 4:1
Attack Time: ~50ms
Release Time: ~400ms
Limiter
Threshold: -40dBFS to 0dBFS
Ratio : ∞:1
Headphone Output
Drive Capability
Drives 150mW into 32Ω to 600Ω headphones
0dBFS Line-up
-20dBFS = +18dBu Ref. Single Dante source, volume pot = maximum, master HP level = 0dB
Frequency Response
+0/-0.2dB 20Hz to 20kHz Ref 0dBu @ 1kHz
THD+N
<-107dBFS, -30dBFS, 20Hz – 20kHz, 20kHz BW
Noise
<-110dBFS, 20kHz BW

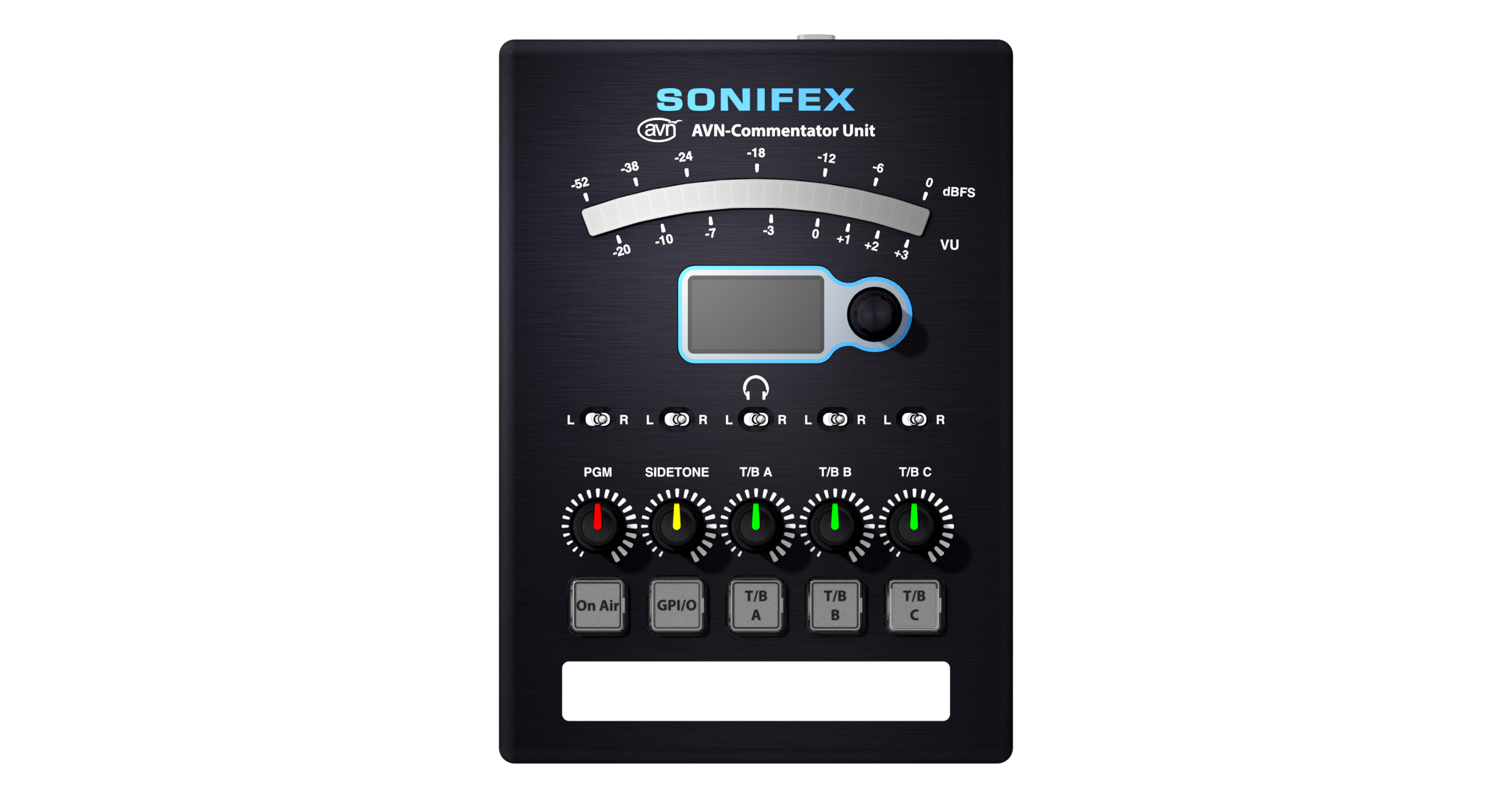

Main Panel Operational Controls & Indicators
Meter
21 segment display showing output level. Scale selectable (PPM or VU). Brightness selectable. Monitoring point selectable (Pre or Post DSP).
Pushbuttons
5 x Illuminated buttons that can be configured to momentary, latching or auto action and selectable colours. Brightness is selectable. 1 x GPIO button 1 x On-Air button 3 x T/B buttons (T/B A, B & C)
Display
128 x 64 pixel white OLED display showing status, signal presence, HP level and configuration menu.
Headphone Monitor Controls
Input source level adjustment potentiometers Headphone channel selection switches
Rotary Encoders
1 x robust soft touch rotary encoder for master HP level control, display page and menu navigation

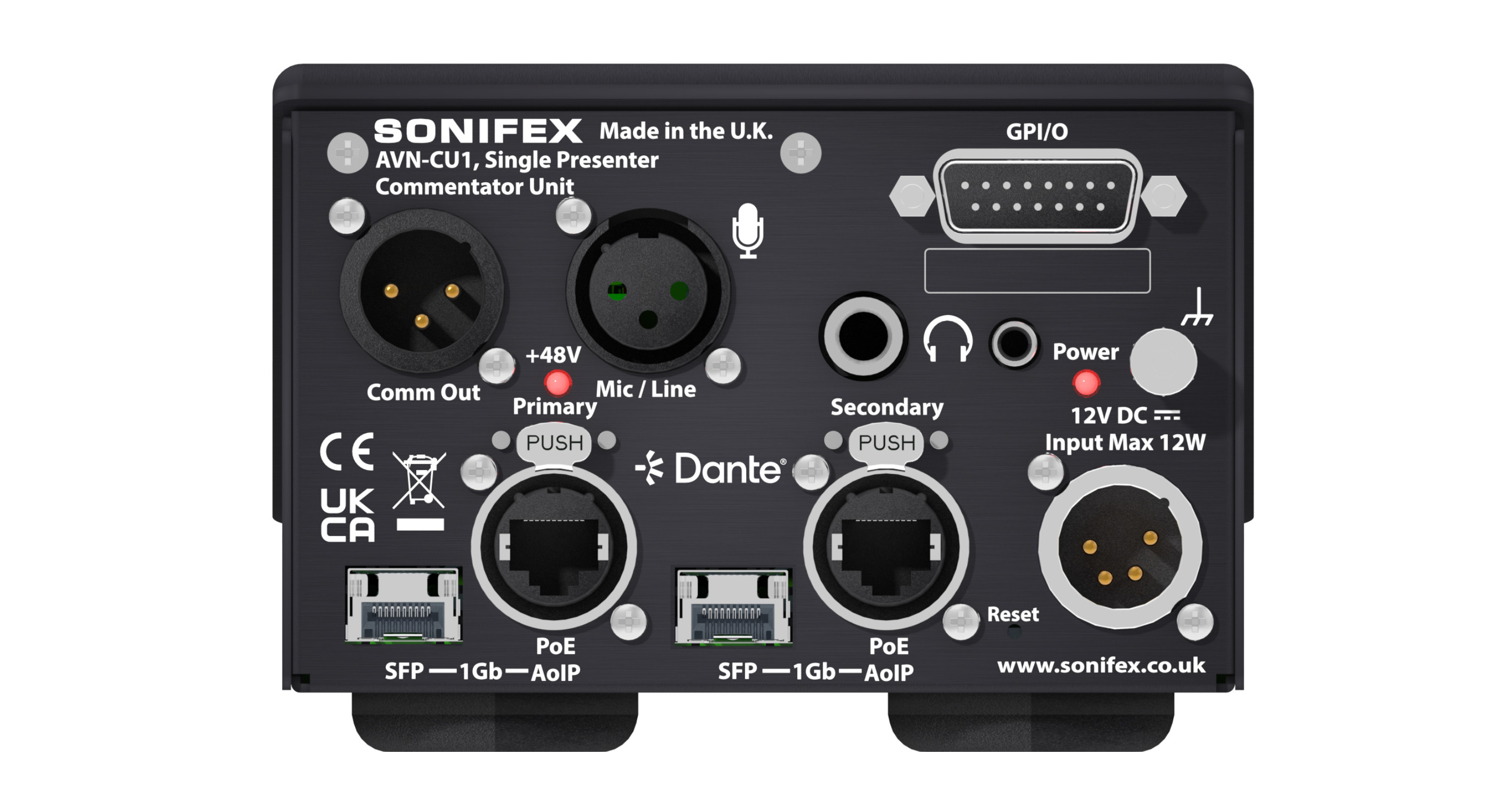

Rear Panel Connections
Power LED
Illuminates red when power is present
Headphone Outputs:
1 x ¼” (6.35mm) stereo jack socket 1 x 3.5mm stereo jack socket Outputs are paralleled
Microphone/Line Input
1 x Neutrik 3 pin latching XLR socket
Phantom Power LED
Illuminates red when phantom power is enabled
Microphone Output
Direct output of the mic/line input post pre-amp. 1 x Neutrik 3 pin XLR plug
GPIO Port
15-way ‘D’-type socket
DC Input
Neutrik 4 pin XLR plug, 12VDC, Maximum 12W
PoE Power
Standard
802.3af
Class
0
PD Power Range
0.44 W to 12.94 W
Typical PSE Power Usage
TBC
Max PSE Power Usage
15.4 W
Equipment Type
AVN-CU1
Dante Commentary Unit for 1 Commentator
Physical Specification
Dimensions (Raw)
13cm (W) x 18.5cm (D) x 9cm (H)
Dimensions (Boxed)
18.1cm (W) x 24.5cm (D) x 15.2cm (H)
Weights
Nett: 0.9kg Gross: 1.1kg
Accessories
AVN-DCX60
DC Power Supply for AVN Range, 4 pin XLR socket, 60W
CM-TC1 (Case Only)
Commentary Transport Case
CM-GM2
Professional Gooseneck Condenser Microphone
