Analogue Commentary
CM-CU21
Commentator Unit 2 Commentators & 1 Guest
The CM-CU21 is a high quality, portable Commentator Unit. Its sturdy construction and flexibility of features make it suitable for use in a wide variety of environments.
About CM-CU21

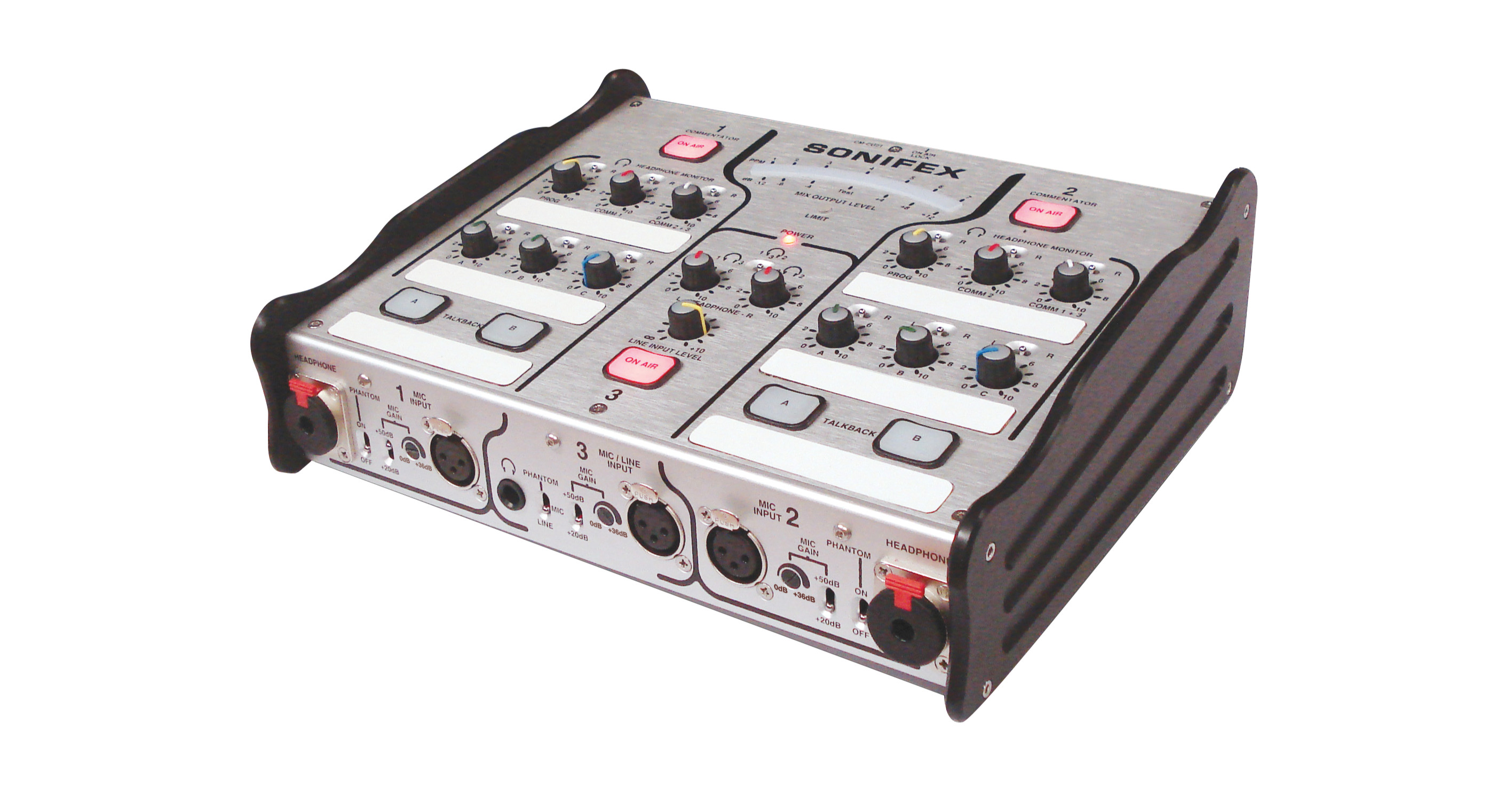

The CM-CU21 is a high quality, portable Commentator Unit. Its sturdy construction and features make it suitable for use in a wide variety of environments. Sonifex has a solution for those situations where a separate commentary unit is required, or where ISDN/pots communications, or a complex digital solution aren’t needed.
The CM-CU21 stand alone commentator unit is a rugged, reliable solution which includes all the features needed to ensure 2 commentators can provide their expertise, together with a guest position or co-commentator. The guest position can alternatively be used as a line-level input for international sound or special effects such as the sounds of the action and spectators. Each of the 3 announcer positions has an individual output, with two additional outputs providing a mix of all active commentary channels.
A limit indicator on the main panel shows when the adjustable limiter on the mix outputs is active, and a bright 21 segment LED PPM meter, which can be disabled, shows the main output level. Two talkback output channels, with a built in limiter and adjustable gain, are available to each of the two main commentators and they can be linked to provide simultaneous operation.

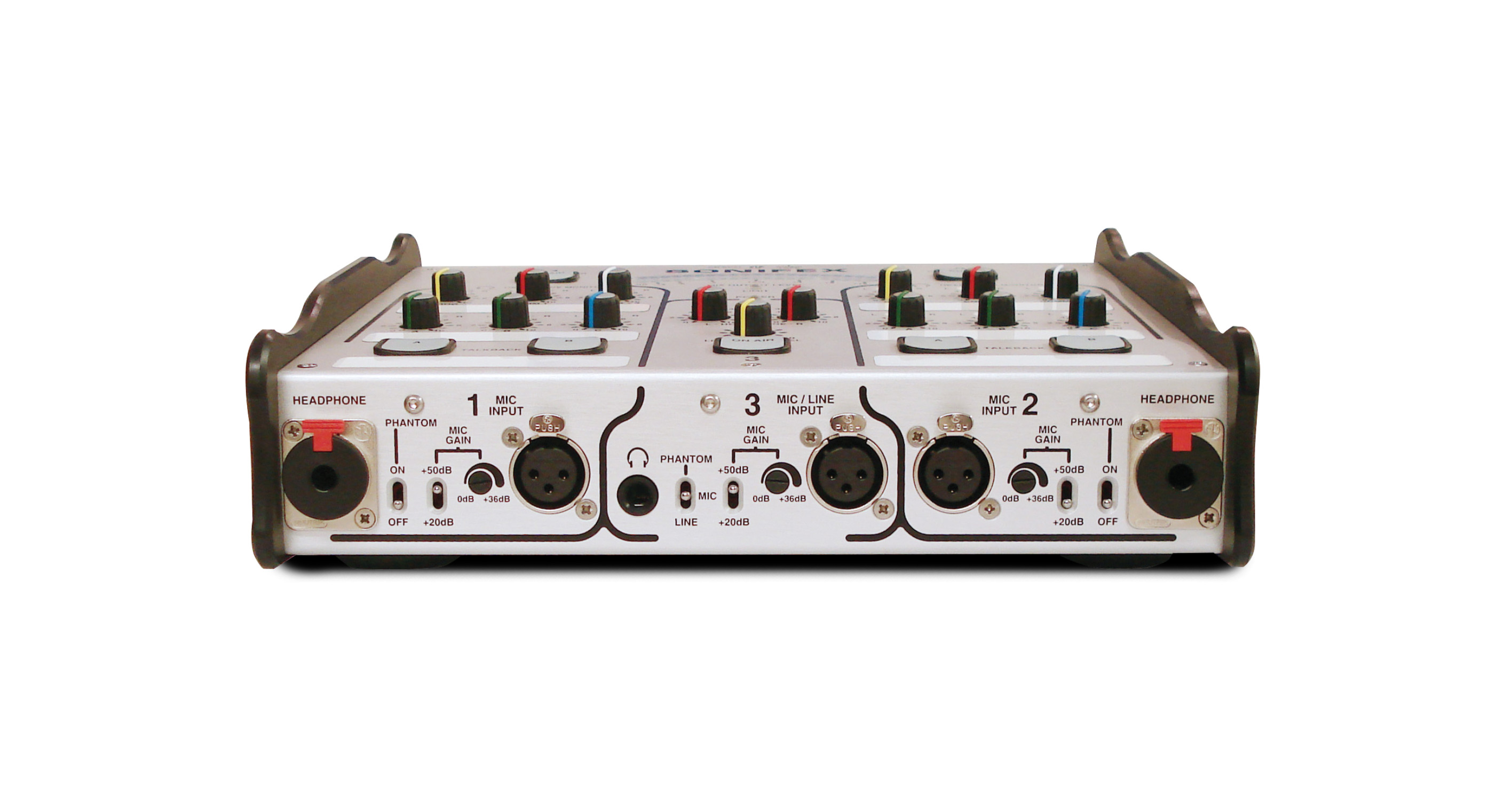

A wide input gain range and switchable phantom power on each commentary position allows support of a variety of microphone types including low output ribbon mics, headsets and high output phantom powered microphones. The microphone level controls are accessible on the front panel but can be protected from adjustment by an optional cover plate if required (CM-CU21CP).
There are 4 transformer balanced return audio inputs which, along with the commentator inputs, are routed to the headphone monitor controls. These could be used to pass referee remarks to the sportscasters, as well as comments from guests in the studio. The headphone input controls are very comprehensive allowing either of the two main announcers total control so that any monitor input can be adjusted in volume and sent to either the left, right or both ears. The switches are slightly recessed so that they can’t easily be knocked and the volume knobs are fitted so that the bottom skirt of the knob is below the level of the panel for added security. Fitted Formica ‘Sharpie’ designation strips are used under each of the level controls so that different input and source types can be dynamically annotated.
A GPIO port gives an independent open-collector driven output indication for any of the three active On-Air or four talkback channels. Four remote inputs provide an external call/alert to each of the talkback controls which flashes the selected T/B button amber when used, to indicate active talkback. The unit has a built in line-up tone generator for easy channel identification and cabling checks. When enabled, the test-tone is routed to the required output simply by pressing the corresponding on air or talkback button
An On-Air lock switch prevents the On-Air buttons from being accidentally deactivated and this can be over-ridden with a single push button on the rear panel for individual circumstances where an announcer needs to go off air. A talkback (T/B) gang switch links the operation of talkbacks A & B to make the talkback buttons easier to use by the announcers. A flexible range of options allow the Commentator Unit to be customised to better suit the operational and user’s personal requirements. These include options for momentary or latching operation of the talkback buttons, permanently enabling or disabling any of the commentator inputs, default headphone signal routing and main panel indicator illumination levels. The CM-CU21 Commentator Unit can be powered from a universal mains input between 85-264V AC at 47-63Hz, or from a 12-24V DC input, both on the rear panel. A transport case, CM-TC1 – with unit cut-outs, and the CM-TC2 – without cut-outs, is also available to protect the unit.
Typical Applications
Used in sports grounds and arenas by commentators to produce commentary & hear talkback.Product Data
Technical Specifications
Microphone Input
Electronically Balanced Line Input
Transformer Balanced Monitor Inputs
Transformer Balanced Main Outputs
Transformer Balanced Talkback Outputs
Electronically Balanced Comm Outputs
Headphone Outputs
Main Panel Operational Controls & Indicators
Front Panel Operational Controls
Rear Panel Operational Controls
Configuration Options – Accessible via Setup Mode
Front Panel Connections

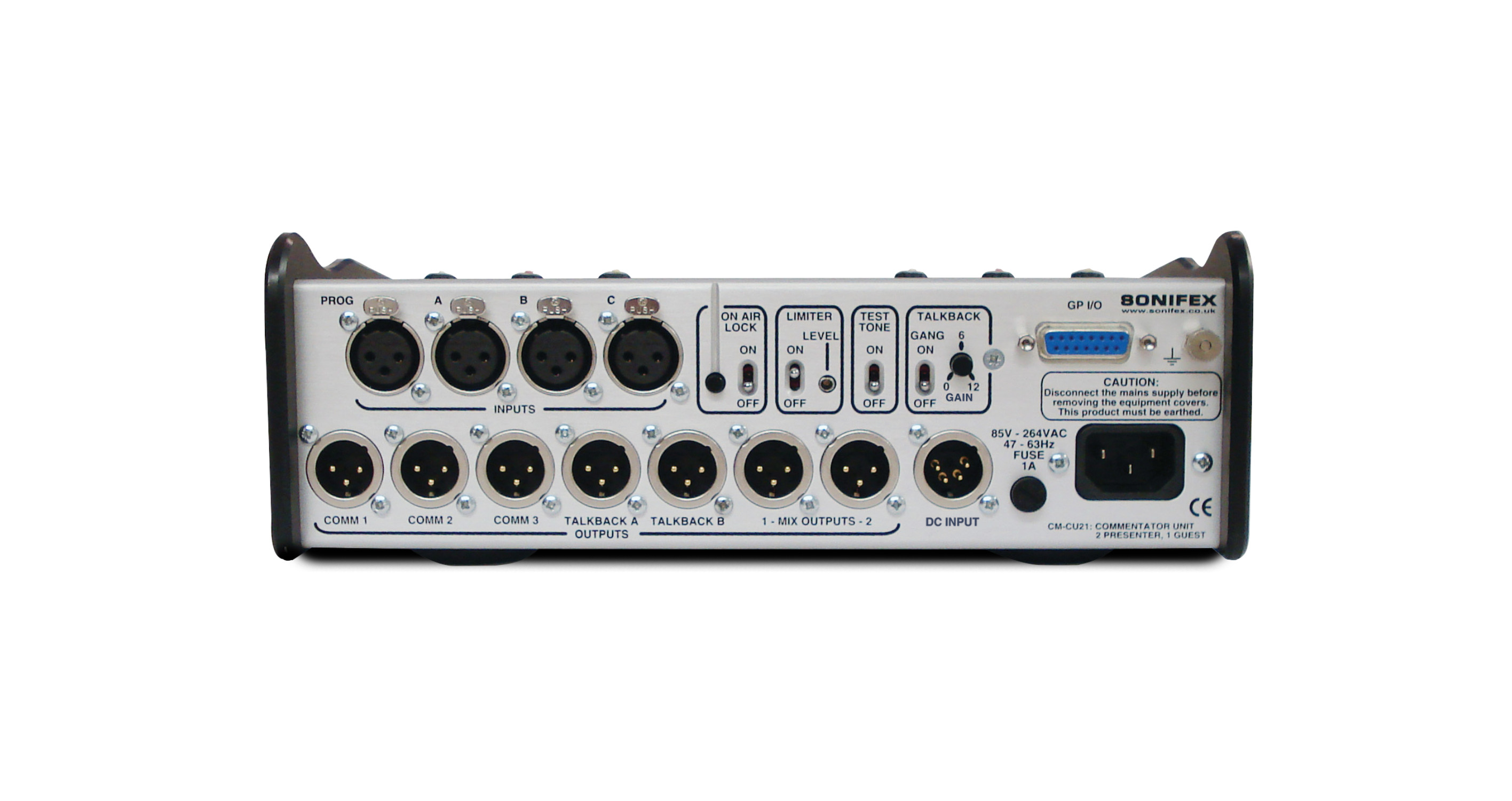

Rear Panel Connections
