AVN-AIO8R (Superseded)

Replaced by the following: AVN-AIO8-DNT & AVN-AIO8-RAV

The AVN-AIO8R converts up to 8 channels of analogue in and 8 channels of analogue out to and from the Dante network, with full power and data redundancy.

AVN-AIO8R (Superseded)

AVN-AIO8R (Superseded)

Replaced by the following: AVN-AIO8-DNT & AVN-AIO8-RAV

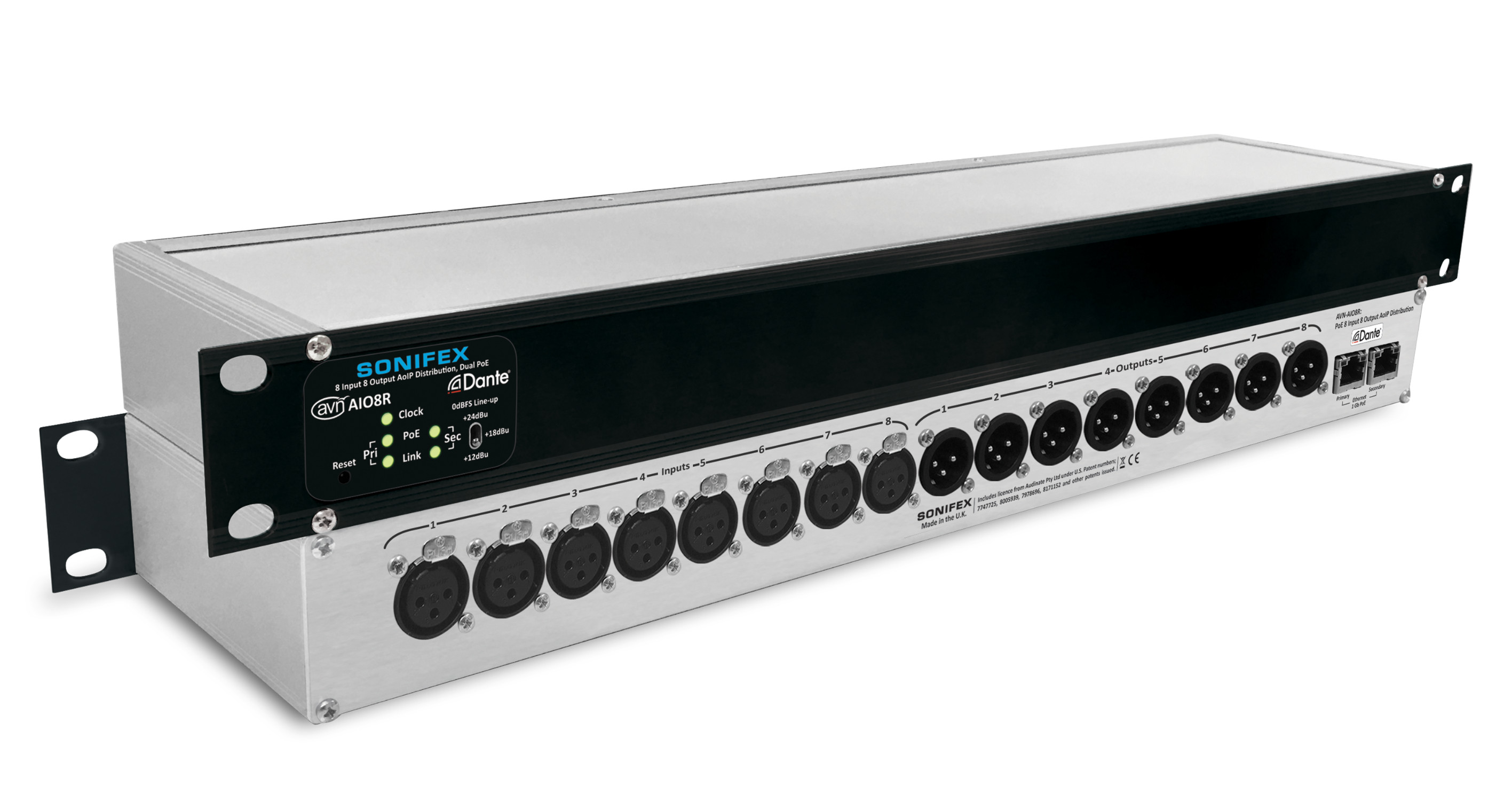

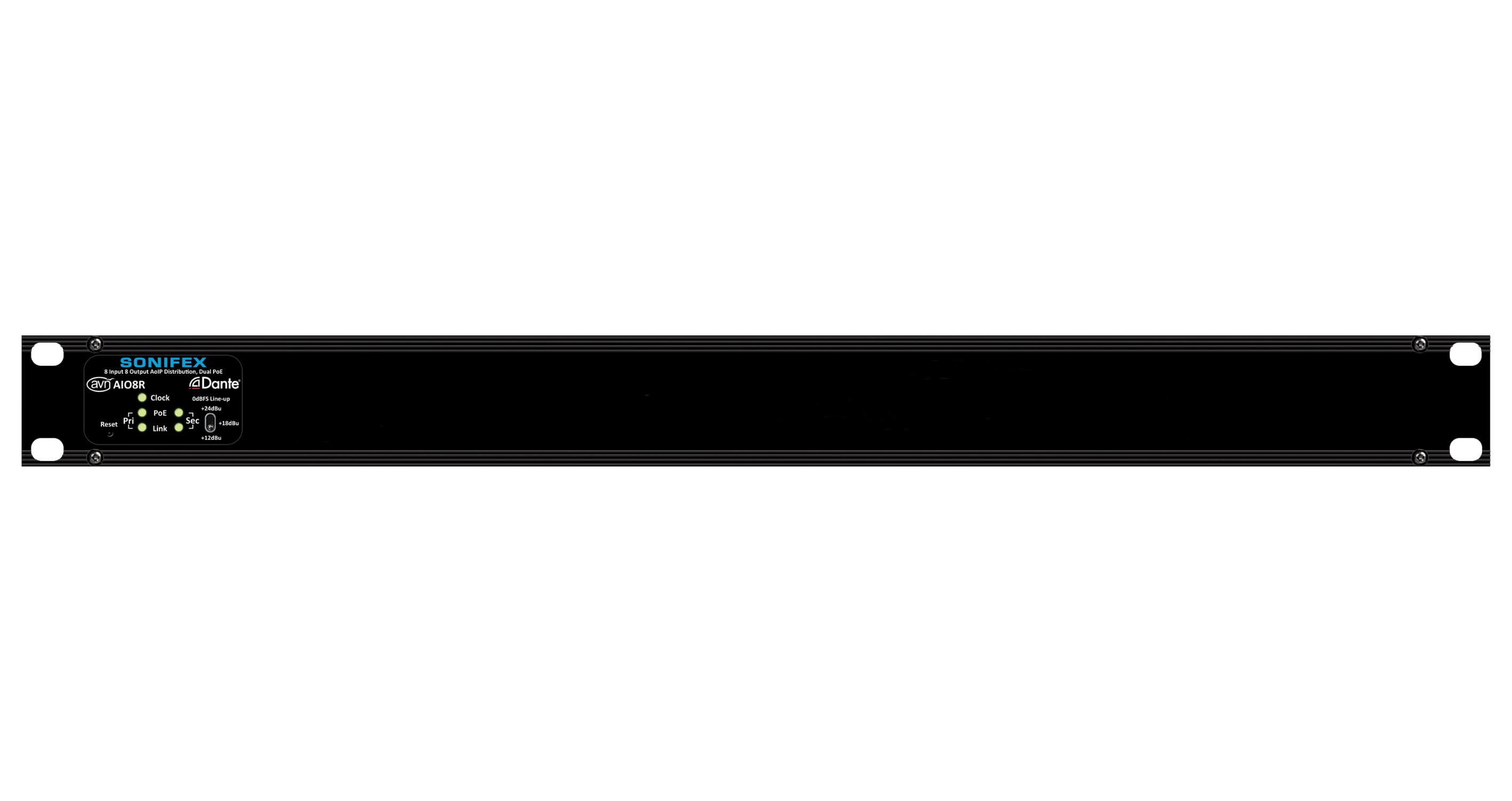

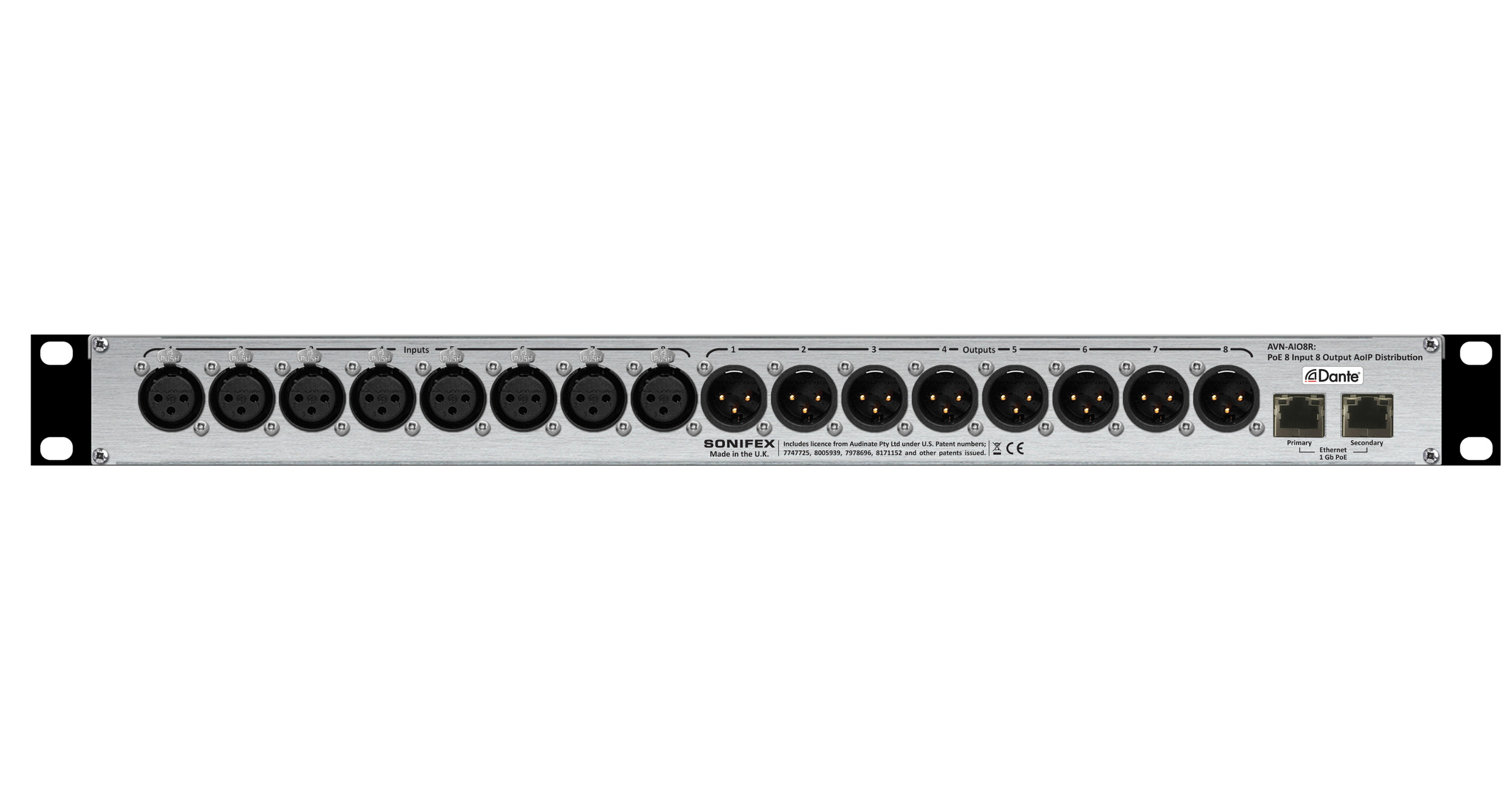

The AVN-AIO8R audio converter and interface converts up to eight analogue inputs and eight analogue outputs to and from the Dante Audio-over-IP networking standard. Dual Ethernet ports allow the unit to operate in redundant mode, ensuring audio routing is maintained in the event of loss of link on either of the network connections. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet). All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. (The AVN-AIO8 is available with a single Ethernet port).

Product Features

  • 8 x balanced analogue inputs on XLR.

  • 8 x balanced analogue outputs on XLR.

  • Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).

  • 2 x RJ45 Dante Primary & Secondary connectors (1Gb/s Ethernet Port) allowing the unit to operate in redundant or switched modes.

  • PoE and Link LED status indicators for each Ethernet port.

  • Clock LED status indicator.

  • Configuration using Dante Controller.

  • AES67 operation & Dante Domain Manager compliant.

  • Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy.

  • 1U 19” rack-mount form factor.

Typical Applications

The AVN-AIO8R is suited to a wide range of professional audio environments where reliable, low-latency transport between analogue and networked systems is required. It is ideal for broadcast studios, live production and events, OB trucks, and fixed AV installations such as corporate, education, and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional analogue equipment and Dante-based audio networks.

Product Category

Discontinued AVN

TECHNICAL SPECIFICATIONS

Network and AoIP

AoIP Standard:Dante
Number of Channels:8 receive, 8 transmit
Number of Streams:8 receive, 8 transmit
Sample Rate:44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
Format:Linear PCM, 16, 24 or 32 bit
AES67 Support:Yes
Connectivity:2 x RJ45
Speed:1Gbps or 100Mbps
Network Modes:Switched or redundant
Dante Domain Manager Ready:Yes


Audio Input Performance Specifications

ParameterLine Input
Input Impedance:>20kΩ balanced
0dBFS line-up:User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response:20Hz to 20kHz, +0/-0.2dB
THD+N:<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise:-110dBFS, 20kHz BW, Rs=200Ω
Crosstalk:<-100 dB
Common Mode Rejection:>60dB @ 1kHz


Audio Output Performance Specifications

ParameterLine Output
Output Impedance:<50Ω balanced
0dBFS line-up:User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response:20Hz to 20kHz, +0/-0.5dB
THD+N:<-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise:-107dBFS, 20kHz BW
Crosstalk:<100dB


Balanced Line Input XLR Pinout

PinFunction
1Chassis Ground/Screen
2Input Phase/Positive
3Input Non-Phase/Negative


Balanced Line Output XLR Pinout

PinFunction
1Chassis Ground/Screen
2Output Phase/Positive
3Output Non-Phase/Negative


PoE Power

Standard802.3af
Class0
PD Power Range0.44 W to 12.94 W
Typical PSE Power Usage7.5 W
Max PSE Power Usage15.4 W


Equipment Type

AVN-AIO8R:8 Input, 8 Output, Dual Dante® Interface, PoE


Physical Specification

Dimensions (Raw):48cm (W) x 11cm (D) x 4.3cm (H)(1U)
Dimensions (Raw):19” (W) x 4.3” (D) x 1.7” (H)
Weight:Nett: 1.1kg Gross: 1.6kg
Weight:Nett: 2.4lbs Gross: 3.5lbs


SUPPORT

Handbooks & Guides

AVN-AIO8R Handbook[Download]
The AVN Guide[Download]

Brochures

Click to visit the brochures page.

Declarations

Click to visit the declarations page.

Firmware

VersionBroadway V4.2.4.2 Brookyln 3 V4.2.4.8Date15/08/2023[Download]
