AVN-DIO04
Dante® to Analogue Phono Stereo Input & Output
Dante to analogue phono stereo input & output convertor. It features stereo analogue input and output phono connections and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
AVN-DIO04
Dante® to Analogue Phono Stereo Input & Output

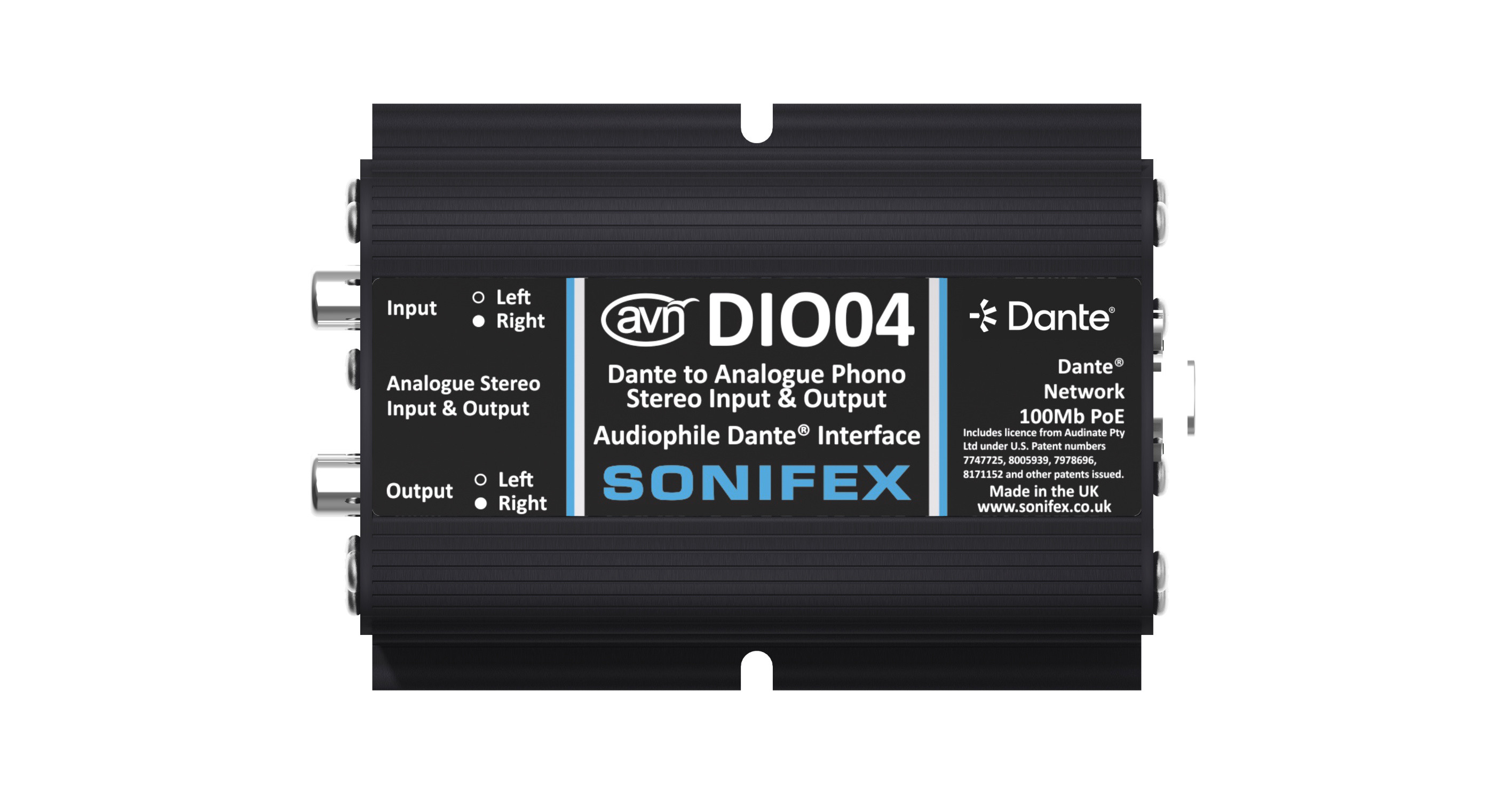

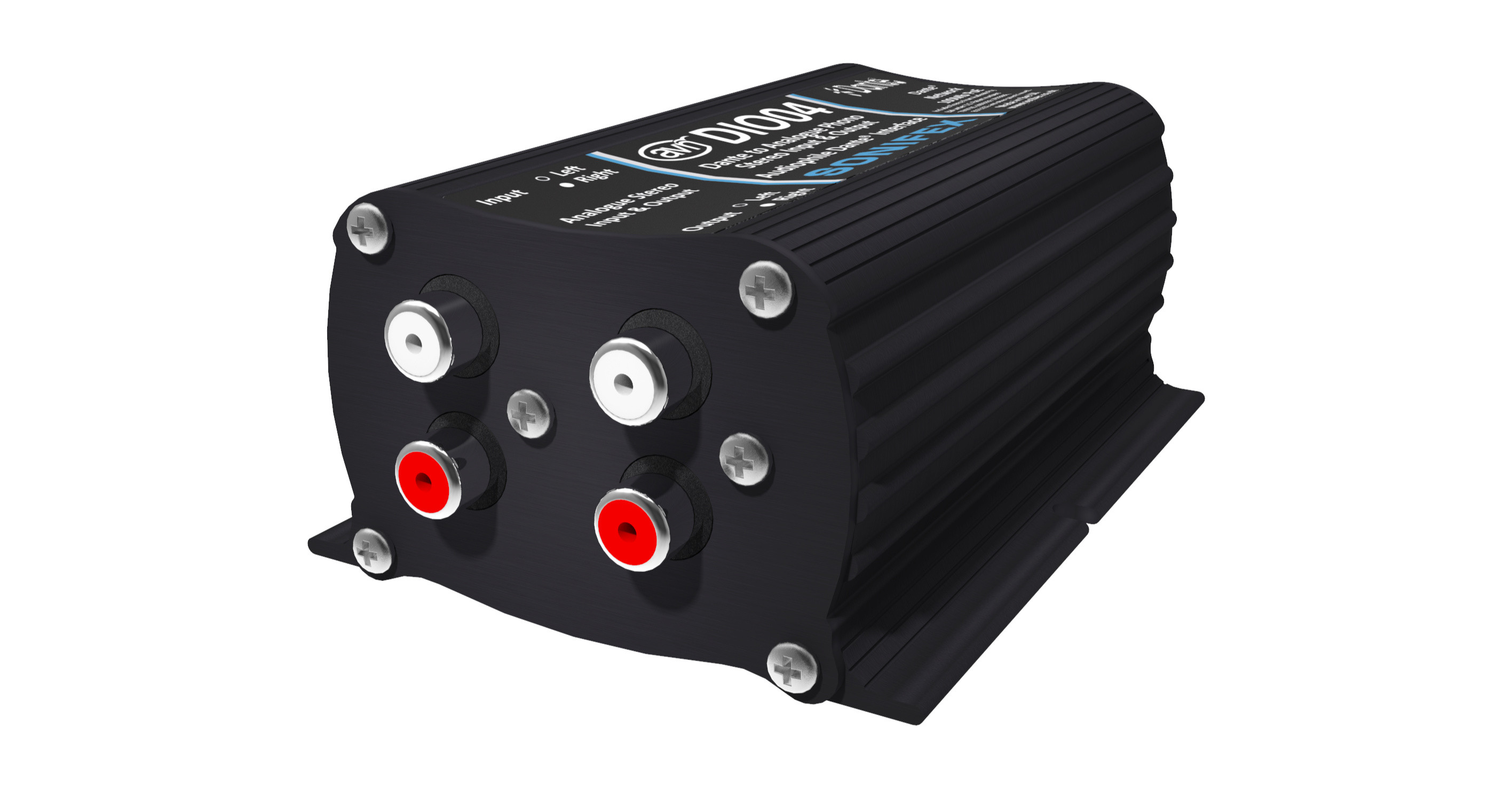

The AVN-DIO04 is a Dante to analogue phono stereo input & output convertor from the Sonifex DIO range. It features stereo analogue input and output phono connections and one Neutrik EtherCon® connector for direct connection to a Dante network. The superior A/D and D/A circuitry used is designed for optimal audio performance, offering >114dB* of dynamic range – ten times better than comparable products. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager.
Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.
* Note: Because the inputs & outputs of this device are unbalanced, performance is 6dB lower than for balanced AVN-DIO products.
Product Features

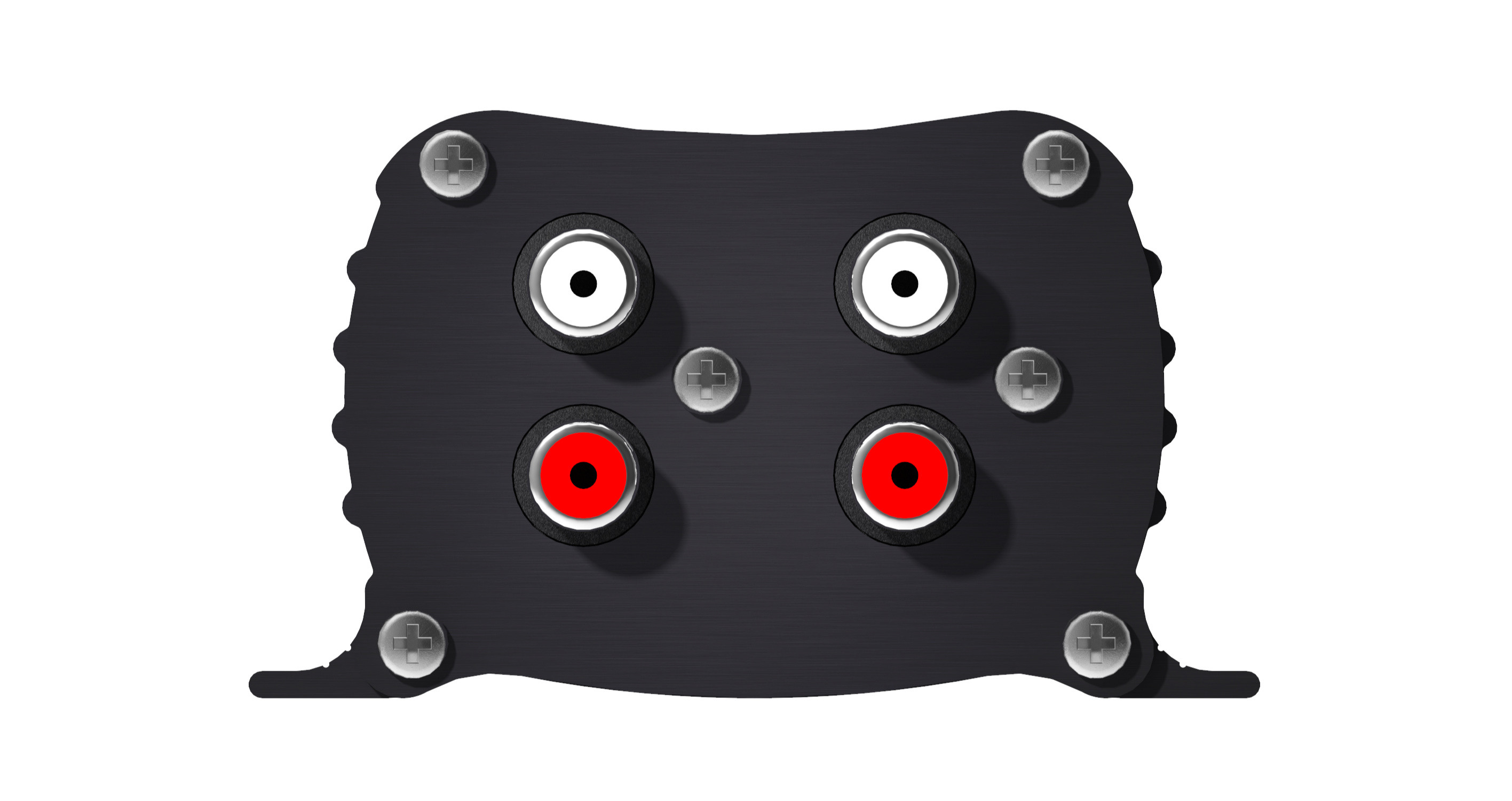

2 x analogue phono-type inputs.
2 x analogue phono-type outputs.
Neutrik EtherCon® Ethernet connection.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Ultra-high quality, wide dynamic range D/A conversion, >114dB.
Powered via PoE (Power over Ethernet).
1U rack-mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
Product Category
Analogue Dante ConvertersTECHNICAL SPECIFICATIONS
Analogue Phono Input & Output Pin-out | |
|---|---|
| Pin | Function |
| Inner | Signal (White - Left, Red - Right) |
| Outer | Chassis Ground |
Line Input - RCA Phono | |
| Parameter | Description |
| Input Impedance | >5kΩ unbalanced |
| 0dBFS Line-Up | +12dBu |
| Frequency Response | 20Hz to 20kHz, +0/-0.5dB (ref 1kHz) |
| THD+N | <-114dBFS, -18dBu, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range | >114dB A-weighted, 20kHz BW, Rs=200Ω |
| Crosstalk | <-100dB |
Line Output - RCA Phono | |
| Output Impedance | <200Ω balanced |
| 0dBFS Line-Up | +12dBu |
| Frequency Response | 20Hz to 20kHz, +0/-0.5dB (ref 1kHz) |
| THD+N | <-114dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range | >114dB A-weighted, 20kHz BW |
| Crosstalk | <-100dB |
Dante | |
| Parameter | Description |
| Sample Rates: | 4.1kHz, 48kHz, 88.2kHz, 96kHz |
| Encoding: | PCM 16, PCM 24, PCM 32 |
PoE Power | |
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 5 W |
| Max PSE Power Usage | 15.4 W |
Equipment Type | |
| AVN-DIO04: | Dante® to Analogue Phono Stereo Input & Output |
Physical Specification | |
| Dimensions: (Raw) | 11.1cm (W) x 7.3cm (D) x 4.3cm (H) |
| Dimensions: (Raw) | 4.4” (W) x 2.9” (D) x 1.7” (H) |
| Dimensions (Boxed): | 17.4cm (W) x 9.5cm (D) x 5.6cm (H) |
| Dimensions (Boxed): | 6.9” (W) x 3.7” (D) x 2.2” (H) |
| Weight: | Nett: 0.2kg Gross: 0.3kg |
| Weight: | Nett: 0.44lbs Gross: 0.66lbs |
SUPPORT
| The AVN Guide | [Download] | |
| A3 AVN-DIO01,02,04,05 Handbook V1.08 | [Download] |
Brochures
| Click to visit the brochures page. |
Declarations
| Click to visit the declarations page. |
| Version | Dante V4.2.2.3 | Date | 12/03/2021 | [Download] |
