AVN-DIO01

Dante® to Analogue XLR Stereo Output

Dante to analogue XLR stereo output converter. It features 2 balanced analogue XLR outputs and a Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

AVN-DIO01

AVN-DIO01

Dante® to Analogue XLR Stereo Output

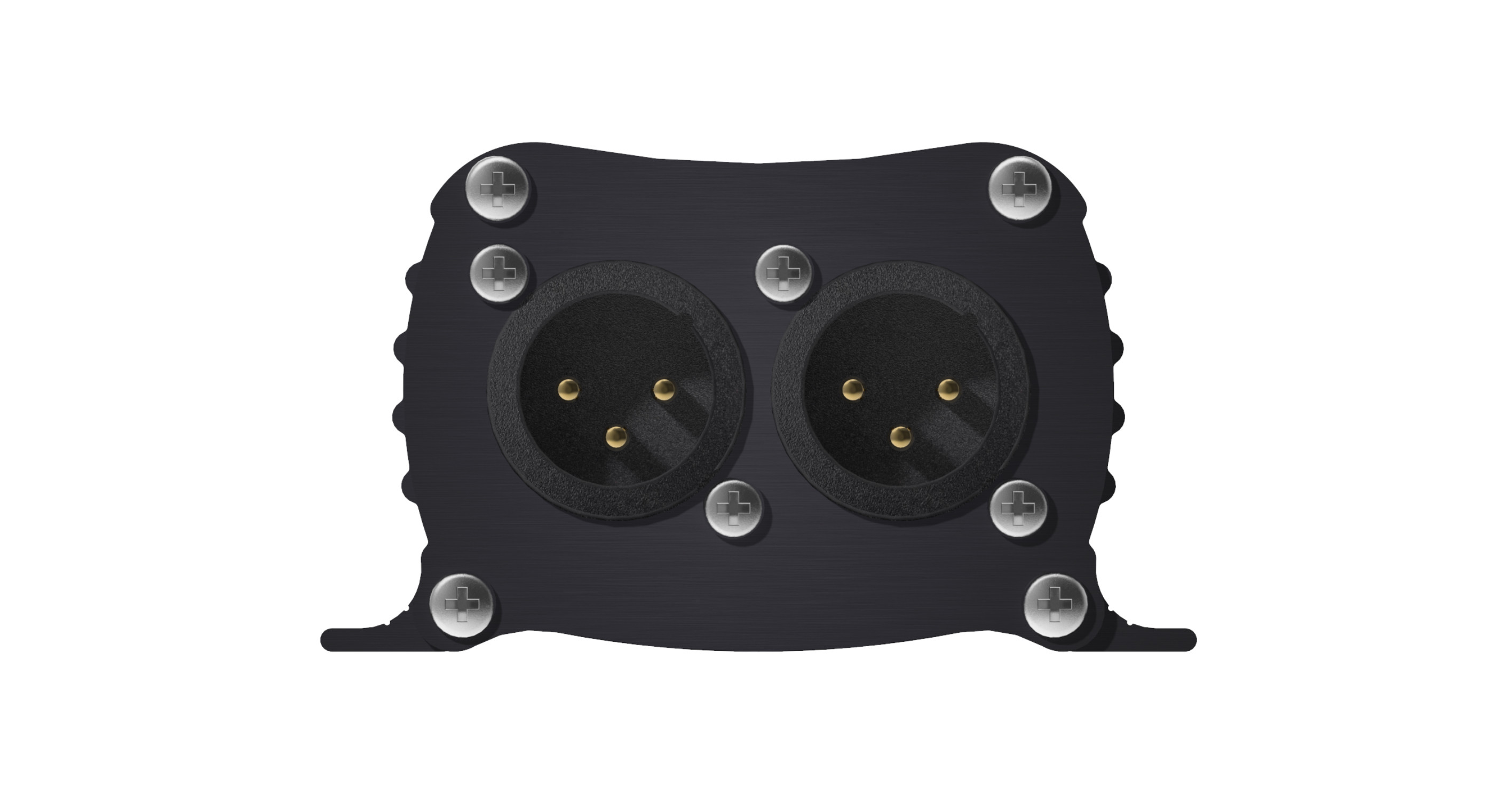

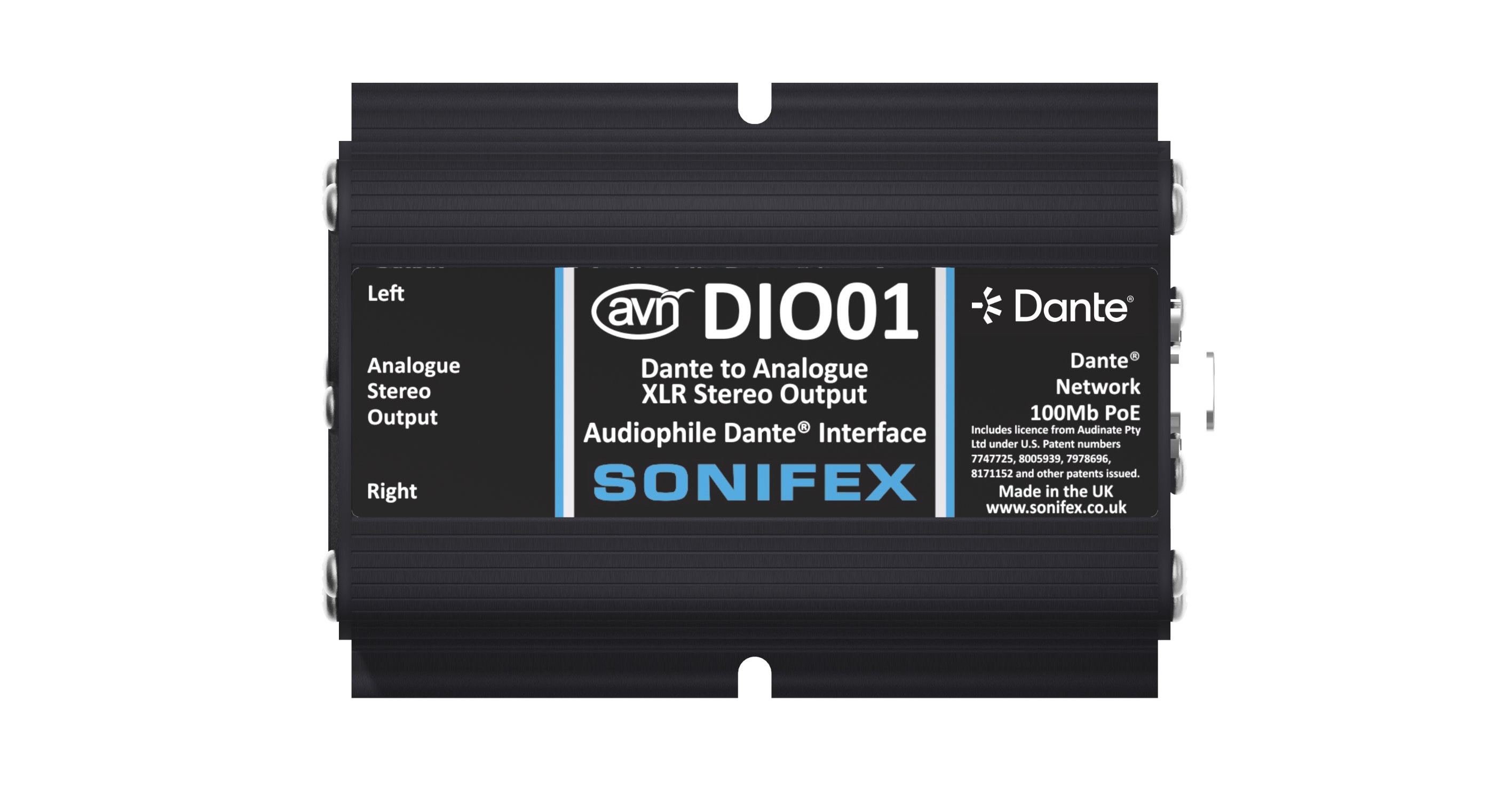

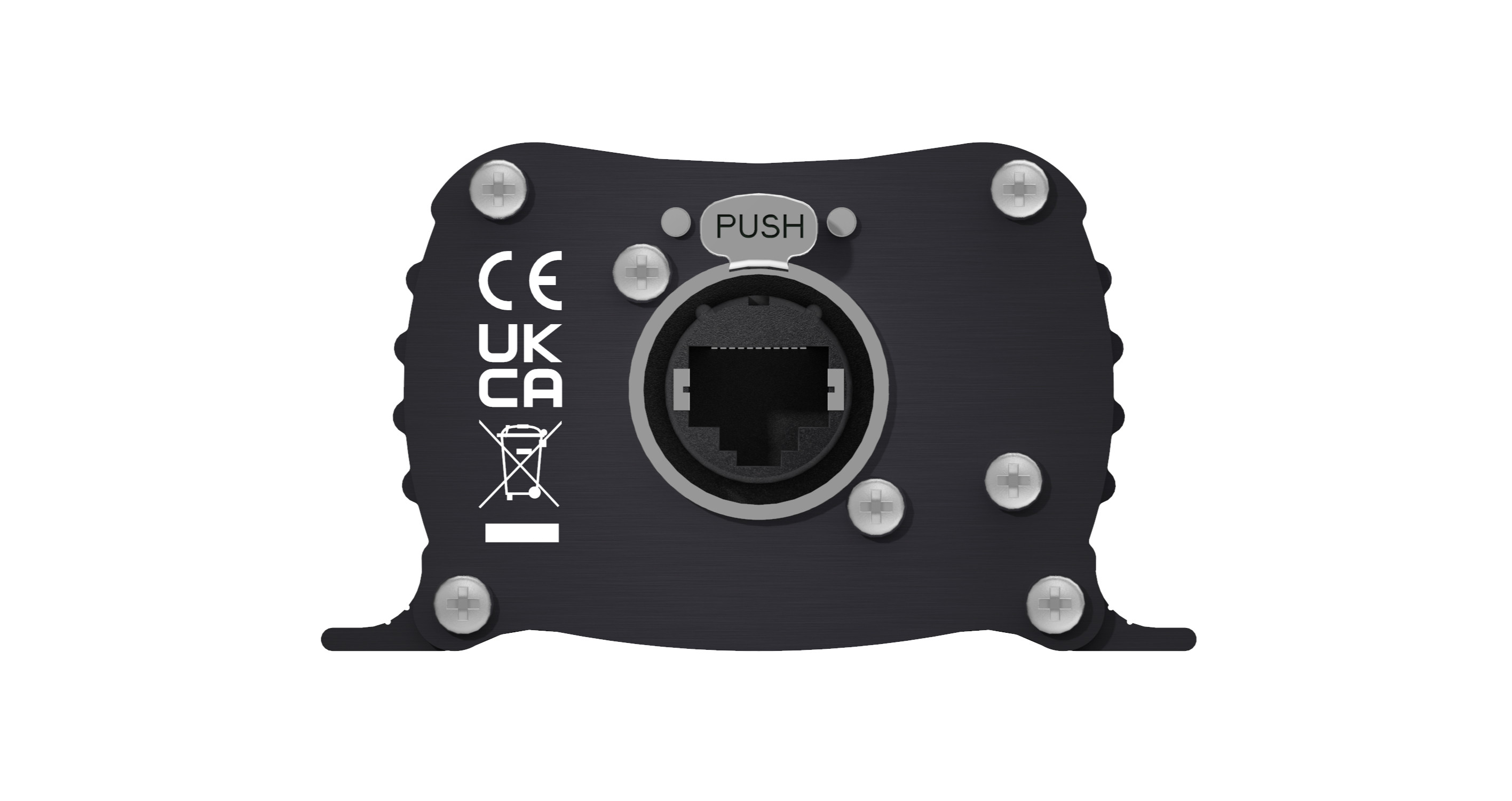

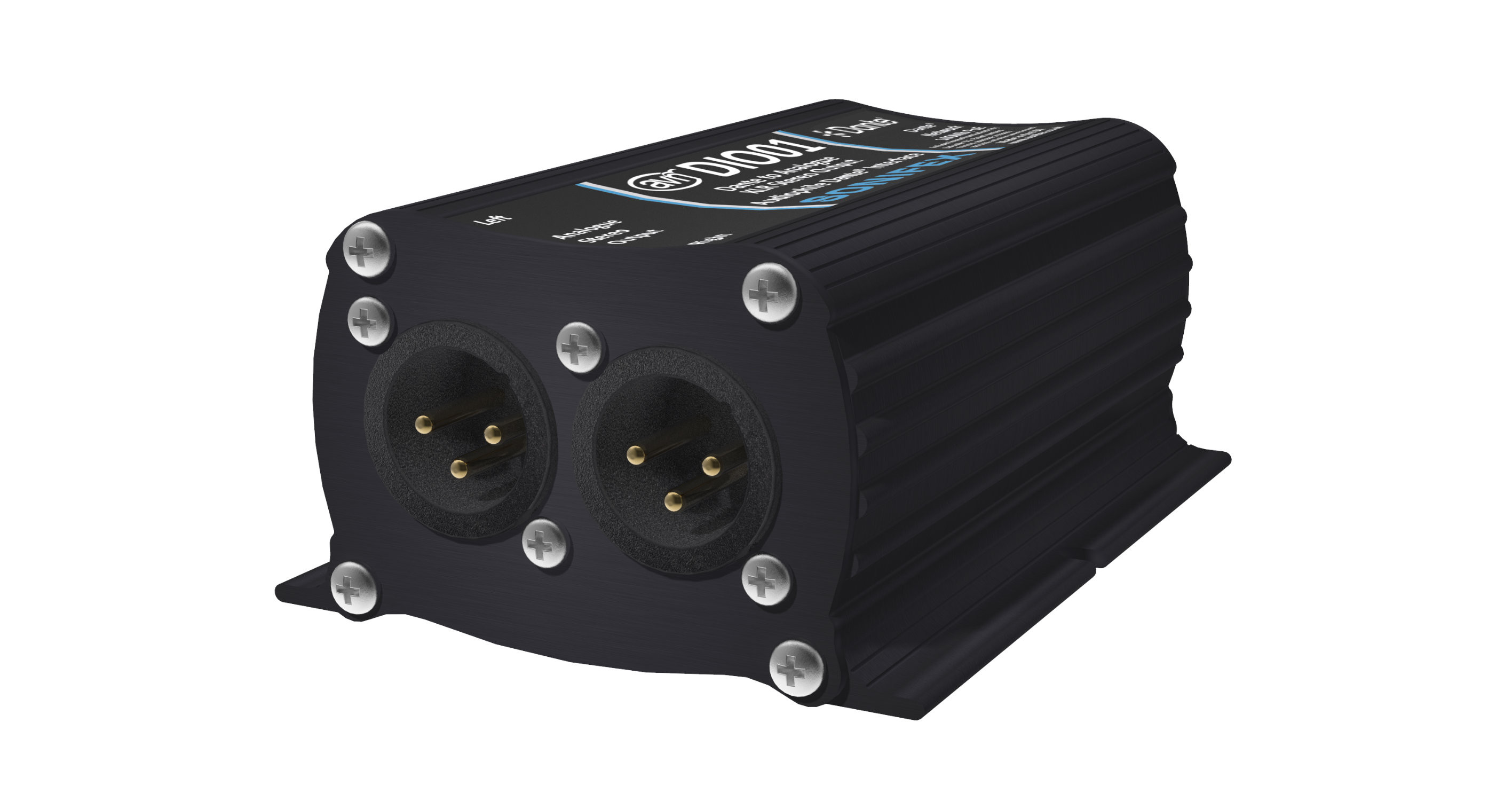

The AVN-DIO01 is a Dante AoIP to analogue XLR stereo output converter from the Sonifex DIO range. It features two balanced analogue XLR outputs and a Neutrik EtherCON® connector for direct connection to a Dante network. The superior D/A circuitry used is designed for optimal audio performance, offering >120dB of dynamic range – ten times better than comparable products. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager.

Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.

Product Features

  • 2 x balanced XLR analogue outputs.

  • Neutrik EtherCon® Ethernet connection.

  • Fully Dante compliant device.

  • AES67 compatible.

  • Dante Domain Manager compliant.

  • Ultra-high quality, wide dynamic range D/A conversion, >120dB.

  • Powered via PoE (Power over Ethernet).

  • 1U rack-mount option with the AVN-DIORK.

  • Aluminium construction.

Typical Applications

The AVN-DIO01 is suited to a wide range of professional audio environments where reliable, low channel count, low-latency transport between analogue and networked systems is required. It is ideal for broadcast studios, live production, events, and small fixed AV installations such as corporate, education, residential and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional analogue equipment and Dante-based audio networks.

Product Category

Analogue Dante Converters

TECHNICAL SPECIFICATIONS

Analogue XLR Output Pin-out

PinFunction
1Chassis Ground
2Output Phase
3Output Non Phase


Line Output - XLR/Terminal

Parameter:Description
Output Impedance:<200Ω balanced
0dBFS Line-Up:+18dBu
Frequency Response:20Hz to 20kHz, +0/-0.5dB (600Ω load, ref 1kHz)
THD+N:<-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
Dynamic Range:120dB, 20kHz BW
Crosstalk:<-110dB


Dante

ParameterDescription
Sample Rates:4.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding:PCM 16, PCM 24, PCM 32


PoE Power

Standard802.3af
Class0
PD Power Range0.44 W to 12.94 W
Typical PSE Power Usage6 W
Max PSE Power Usage15.4 W


Equipment Type

AVN-DIO01:Dante® to Analogue XLR Stereo Output


Physical Specification

Dimensions: (Raw)10.6cm (W) x 7.3cm (D) x 4.3cm (H)
Dimensions: (Raw)4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed):17.4cm (W) x 9.5cm (D) x 5.6cm (H)
Dimensions (Boxed):6.9” (W) x 3.7” (D) x 2.2” (H)
Weight:Nett: 0.2kg Gross: 0.3kg
Weight:Nett: 0.44lbs Gross: 0.66lbs


SUPPORT

Handbooks & Guides

The AVN Guide[Download]
A3 AVN-DIO01,02,04,05 Handbook V1.08[Download]

Brochures

Click to visit the brochures page.

Declarations

Click to visit the declarations page.

Firmware

AVN-DIO01VersionDante 4.2.9.10Date08/12/2025[Download]

Firmware Notes
