S2-CDS

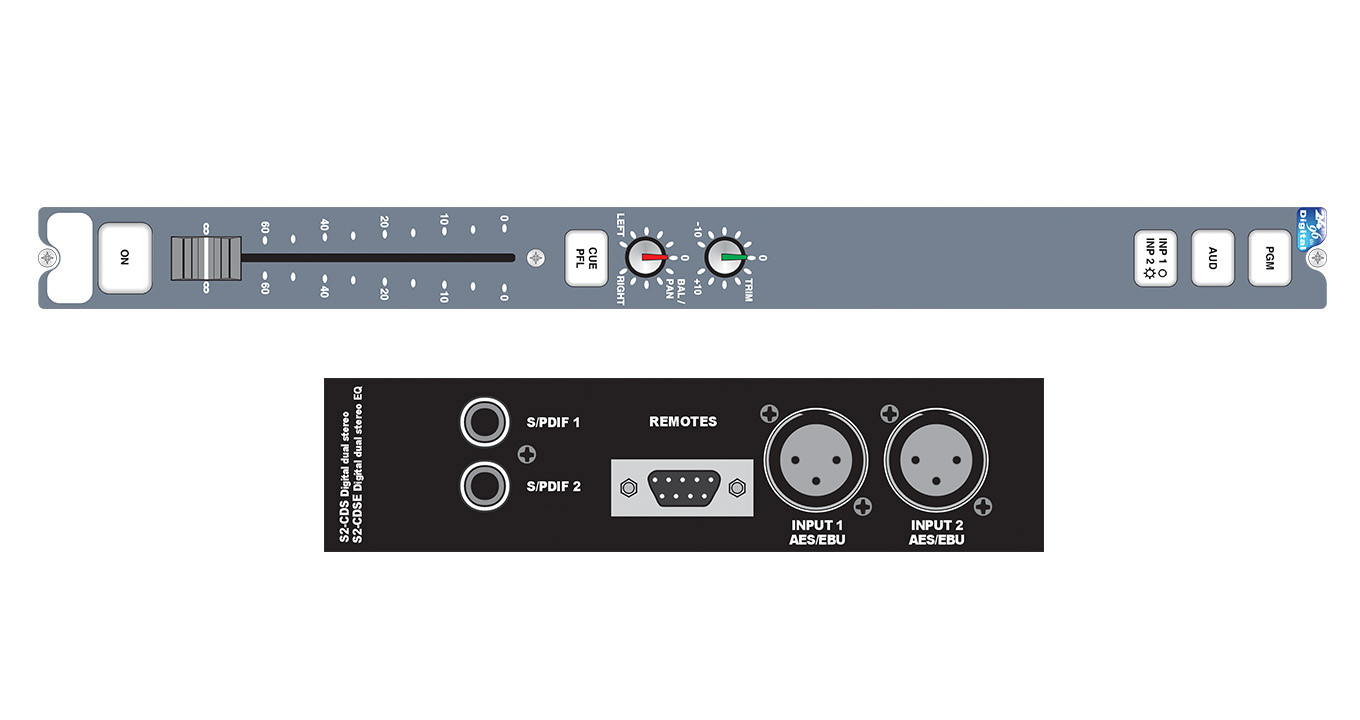

S2-CDS Digital Dual Stereo Channel
The digital dual stereo channel has two 24-bit 96kHz digital inputs with an INP 1/INP 2 button switch to select between them. The button is illuminated in red to indicate when Input 2 is selected. The operation of the button is inhibited when the channel is “live”.
Either input can be configured to be balanced AES/EBU on standard XLR, or S/PDIF on phono sockets, selected by internal jumpers. An additional jumper option can be used to decode emphasis when indicated by certain status bits in the incoming data stream. The digital signals are converted to analogue, and from this point the channel functions are the same as the S2-CS Dual Stereo Line channel with the addition that when the ON button flashes green, it means that there is no valid digital input.
Both S2-CDS and S2-CDSE channels can be used to control either one of two separate timer displays.
Product Features
Two switchable 24-bit 96kHz digital inputs.
Emphasis decode option.
Separate remote output controls for both inputs providing start/stop functions by fader, or ON button.
Start function configurable as momentary (500mS) or latched for each input.
Continuous momentary start option.
Two additional remote I/O pins configurable for general use.
Control of either of two separate timer displays.
PAN/BAL control.
100mm VCA fader.
Gold plated Neutrik XLR connectors .
Typical Applications
Product Category
Mix ConsolesTECHNICAL SPECIFICATIONS
Input/Output Impedances | |
|---|---|
| Mic Input: | > 1k5Ω electronically balanced |
| Mono Line Input: | > 20kΩ electronically balanced |
| Stereo Line Input: | > 20kΩ electronically balanced |
| PGM & AUD Output: | < 75Ω electronically balanced |
| Mono Output: | < 75Ω electronically balanced |
| Monitor Outputs: | < 75Ω unbalanced |
| AES Input/Output: | 110Ω |
| S/PDIF Input/Output: | 75Ω |
| BNC Wordclock input: | 50Ω |
Input/Output Gain Range | |
| Mic Input: | Preset pot +13dB to +66dB ref -50dBu, TRIM pot ±12dB |
| Mono Line Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Stereo Line Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Telco Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Telco Output: | Preset pot -6dB to +4dB ref 0dBu |
| Mix Minus Input: | Preset pot -6dB to +10dB ref 0dBu, TRIM pot ±12dB |
| Mix Minus Output: | Preset pot -3dB to +3dB ref 0dBu |
| Digital Input: | 0dBFS = +12dBu on input; TRIM pot ±12dB allowing 0dBu to +24dBu |
| Digital Output: | 0dBFS = +18dBu |
Frequency Response | |
| Mic Input: | 40Hz to 20kHz, -1dB,+0dB (-3dB at 130Hz with HPF in) |
| Line Inputs: | 20Hz to 20kHz, - 0.5dB,+0dB |
| RIAA Input: | 30Hz to 16kHz ±1.5dB RIAA equalised |
Noise (20Hz to 20kHz) | |
| Mic Input E.I.N.: | -129dB with 150Ω source |
| Stereo Inputs (fader down, no routing): | -89dB ref 0dB |
| Stereo Inputs (fader down, one channel routed): | -89dB |
| Stereo Inputs (unity gain, no routing): | -89dB |
| Stereo Inputs (unity gain, one channel routed): | -86dB |
| Stereo Inputs (unity gain, two channels routed): | -83dB |
Distortion | |
| Total Harmonic Distortion: | 0.015% at 1kHz, 0dB |
| Total Harmonic Distortion: | 0.025% at 10kHz, 0dB |
Crosstalk | |
| Inter-channel: | < -90dBu |
| Stereo: | -90dBu at 1kHz |
Equalisation | |
| LF Shelving at 100Hz: | ±7dB |
| HF Shelving at 6.5kHz: | ±7dB |
Range | |
| Pan Range: | off/-3dB centre/off |
| Balance Range: | ±6dB |
Common Mode Rejection Ratio | |
| Mic Input: | > 100dB at 70dB gain |
Digital I/O | |
| Sync Input Sample Rate: | 30kHz - 100kHz |
| Output Sample Rates (Using Onboard Clock): | 32kHz, 44.1kHz, 48kHz, & 96kHz |
| Output Sample Width: | 16, 20, 24 bit (24 bit on V2 ODA/ODP) |
Output | |
| Headphone Output Load: | >45Ω, 400Ω recommended |
| Maximum Output (Analogue): | +26dBu balanced into 2kΩ or greater |
Power | |
| Power (S2-PSU): | Filtered IEC, switchable 115V, 230V, fused, 210W max. |
| Dimensions (S2-PSU): | 48cm (W) x 24.3cm (D) x 8.8cm (H) |
| (Raw): | 19” (W) x 10” (D) x 3.5” (H) |
| Dimensions (S2-PSU): | 51cm (W) x 41.5cm (D) x 17cm (H) |
| (Boxed): | 20” (W) x 16.3” (D) x 6.7” (H) |
| Weight (S2-PSU): | Nett: 6kg Gross: 7.8kg |
| Weight (S2-PSU): | Nett: 13.2lbs Gross: 17lbs |
| Dimensions (S2-PSUS): | 48cm (W) x 23cm (D) x 4.4cm (H) |
| (Raw): | 19” (W) x 9” (D) x 1.7” (H) |
| Dimensions (S2-PSUS): | 55cm (W) x 39.3cm (D) x 8.5cm (H) |
| (Boxed): | 21.6” (W) x 15.5” (D) x 3.4” (H) |
| Weight (S2-PSUS): | Nett: 1.58kg Gross: 2kg |
| Weight (S2-PSUS): | Nett: 3.5lbs Gross: 4.4lbs |
