Redbox Accessories
RB-SYW
Digital Video Sync Add-On Boards

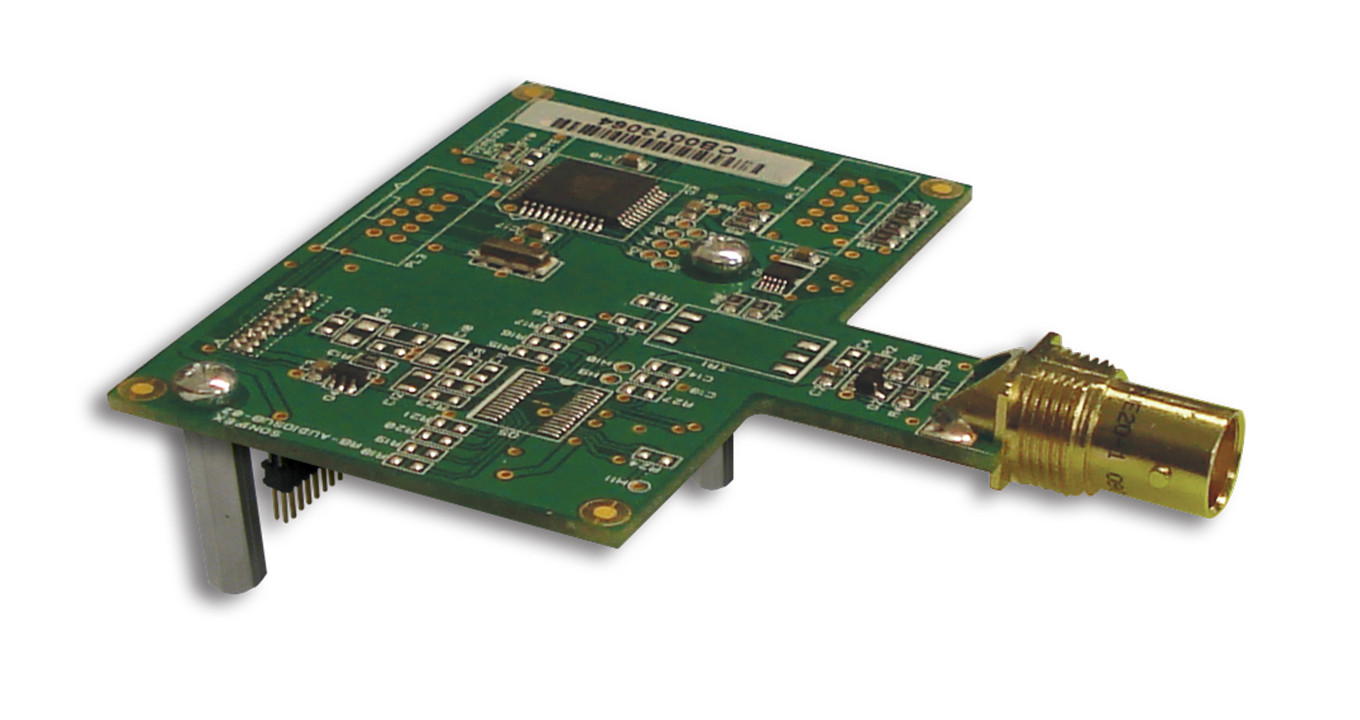

RB-SYW Sync Board
About RB-SYW
This is an optional sync board for the RB-TGHD Multi-Channel HD Tone Generator. It will accept a distributed clock running at the desired sample frequency between 32 kHz and 192 kHz. The signal can be differential or single-ended TTL level. The RB-SYA Analogue Video Sync Board and the RB-SYD Digital Video Sync Board are also available for both the RB-TGHD Multi-Channel HD Tone Generator and the RB-SC2 Dual Sample Rate Converter. The RB-SYE Digital Audio Sync Board is also available for the RB-TGHD.
Typical Applications
To sync the products to an analogue video sync input, or AES/EBU, or Word Clock.Product Data
Technical Specifications
Downloads & Resources
Support
Handbooks & Guides
RB-SYW HandbookDownload โ
Firmware
No firmware currently listed.
Firmware Notes
Full release notes for all firmware versions will appear here when available.
Brochures
Brochures, guides and supporting literature are available from the Sonifex brochures library.Visit brochures page โ
Declarations
Access CE and UKCA declarations and other product compliance documentation.Visit declarations page โ
