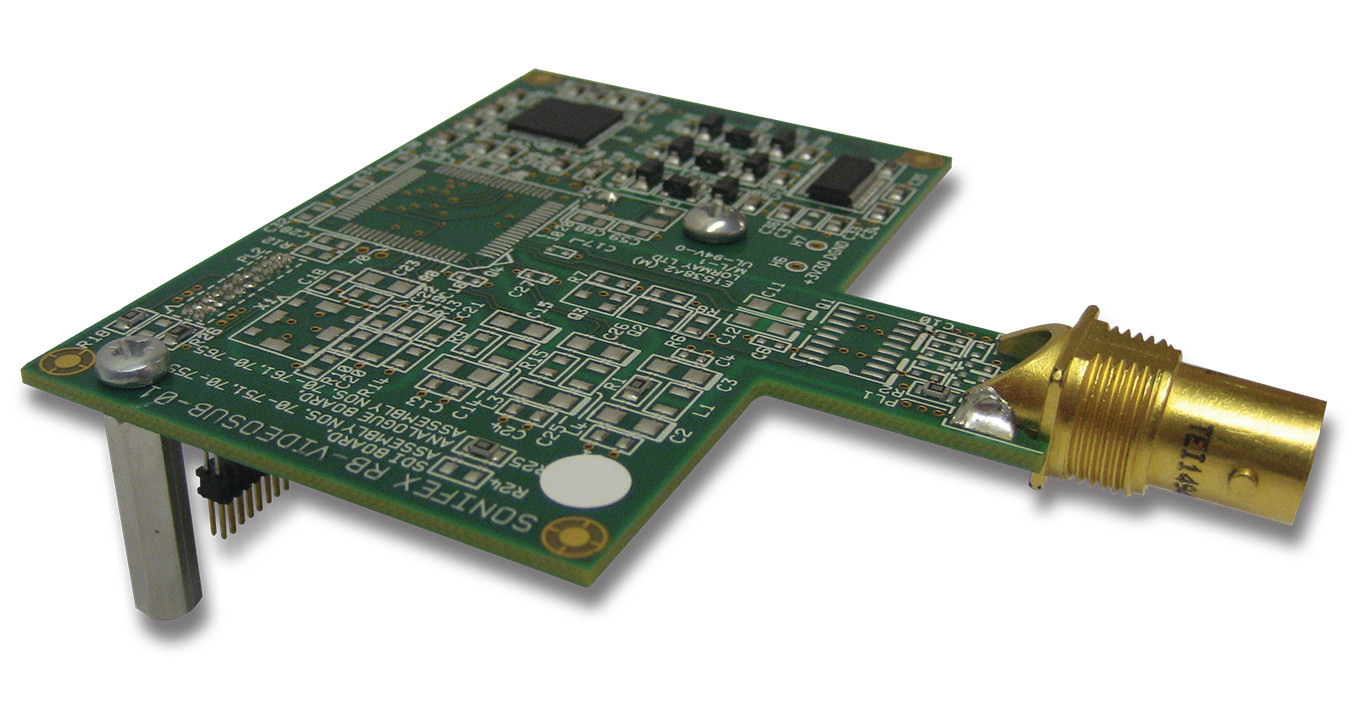

RB-SYA Analogue Video Sync Board
About RB-SYA
This is an optional analogue video sync board for the RB-TGHD Multi-Channel HD Tone Generator or the RB-SC2 Dual Sample Rate Converter. It will accept a composite signal of NTSC (525), PAL (625) & SECAM (625) signals covered by SMPTE-170-M (NTSC) and ITU-R BT.470-6 (PAL & SECAM). The RB-SYD Digital Video Sync Board is also available for both units, while the RB-SYE (digital audio input sync) and RB-SYW (distributed word clock sync) are also available for the RB-TGHD.
Typical Applications
To sync the products to an analogue video sync input, or AES/EBU, or Word Clock.Product Data
