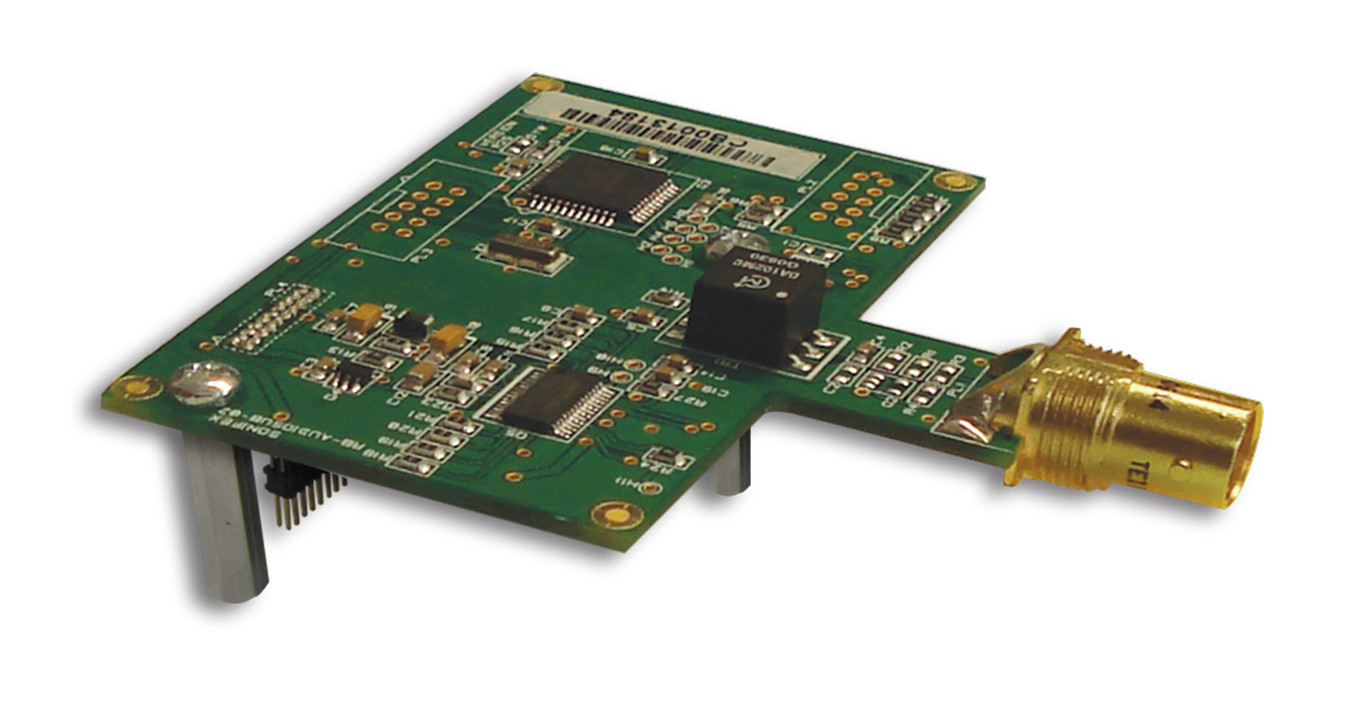

RB-SYE Sync Board

About RB-SYE

This is an optional sync board for the RB-TGHD Multi-Channel HD Tone Generator. It will accept a digital audio input running at the desired sample frequency between 32 kHz and 192kHz. When using the RB-SYE sync board, the Channel Status information that is encoded in the input data signal is copied to all digital output channels on the RB-TGHD. The RB-SYA Analogue Video Sync Board and the RB-SYD Digital Video Sync Board are also available for both the RB-TGHD Multi-Channel HD Tone Generator and the RB-SC2 Dual Sample Rate Converter. The RB-SYW (distributed word clock sync) is also available for the RB-TGHD.

Typical Applications

To sync the products to an analogue video sync input, or AES/EBU, or Word Clock.

Product Data

Technical Specifications

Downloads & Resources

Support

Handbooks & Guides

RB-SYE HandbookDownload โ†—

Firmware

No firmware currently listed.

Firmware Notes

Full release notes for all firmware versions will appear here when available.
