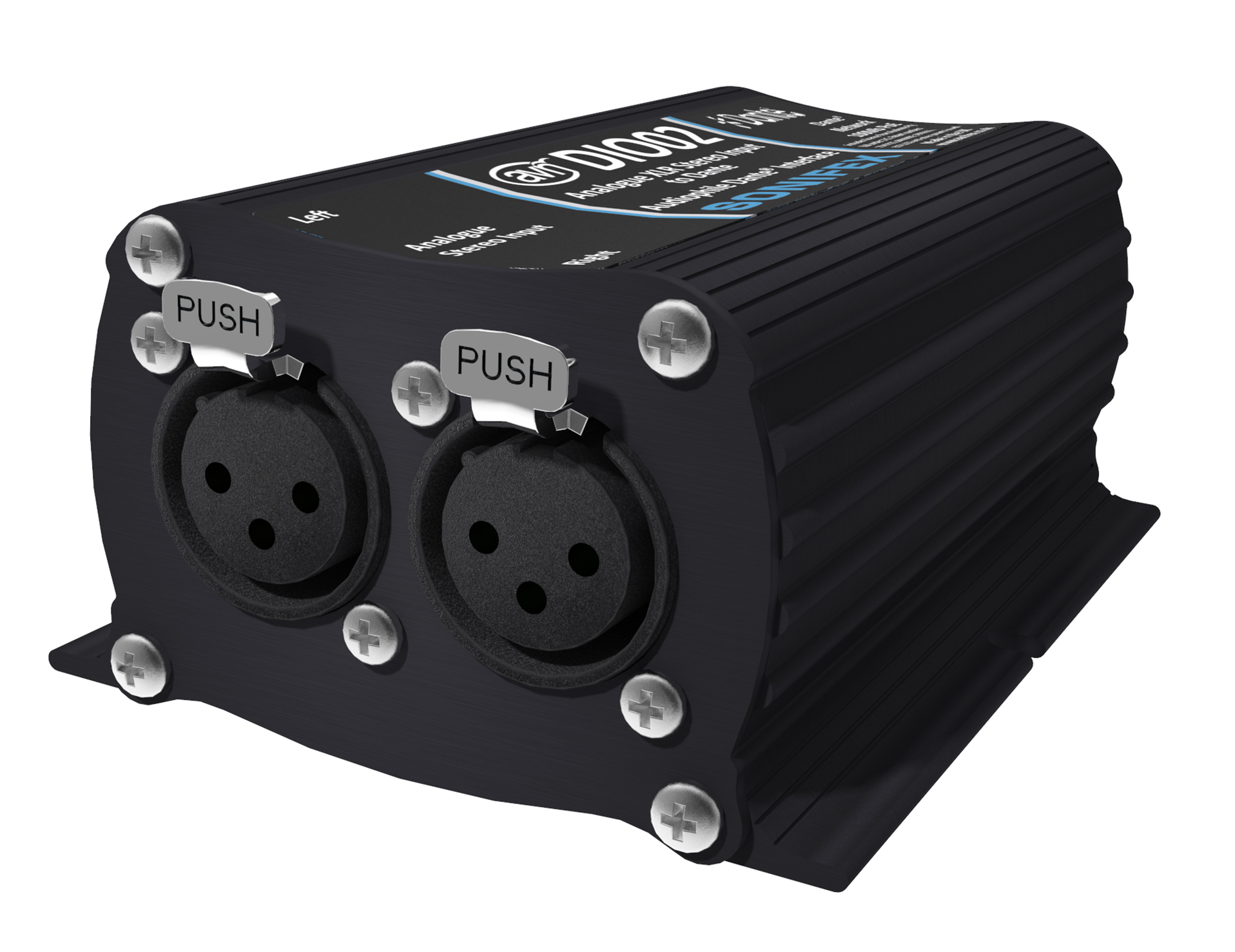

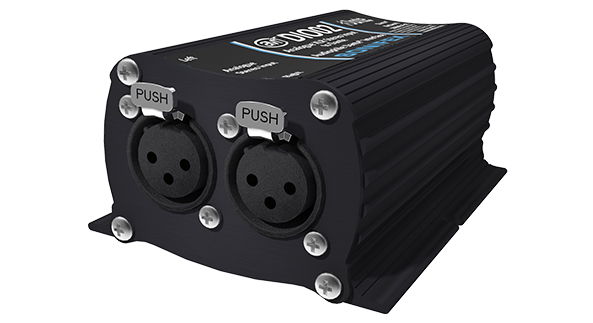

Iso View |

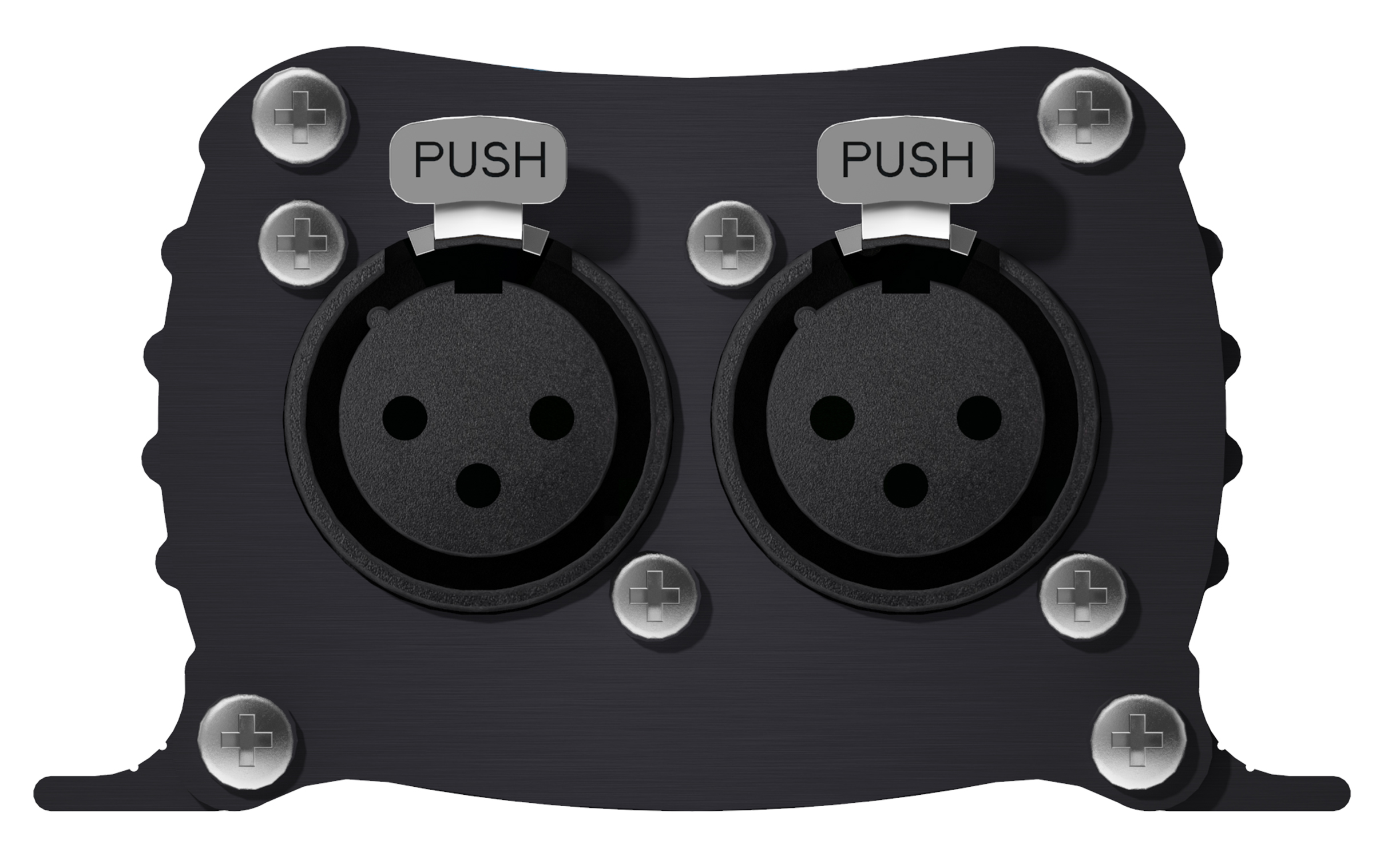

Front View |

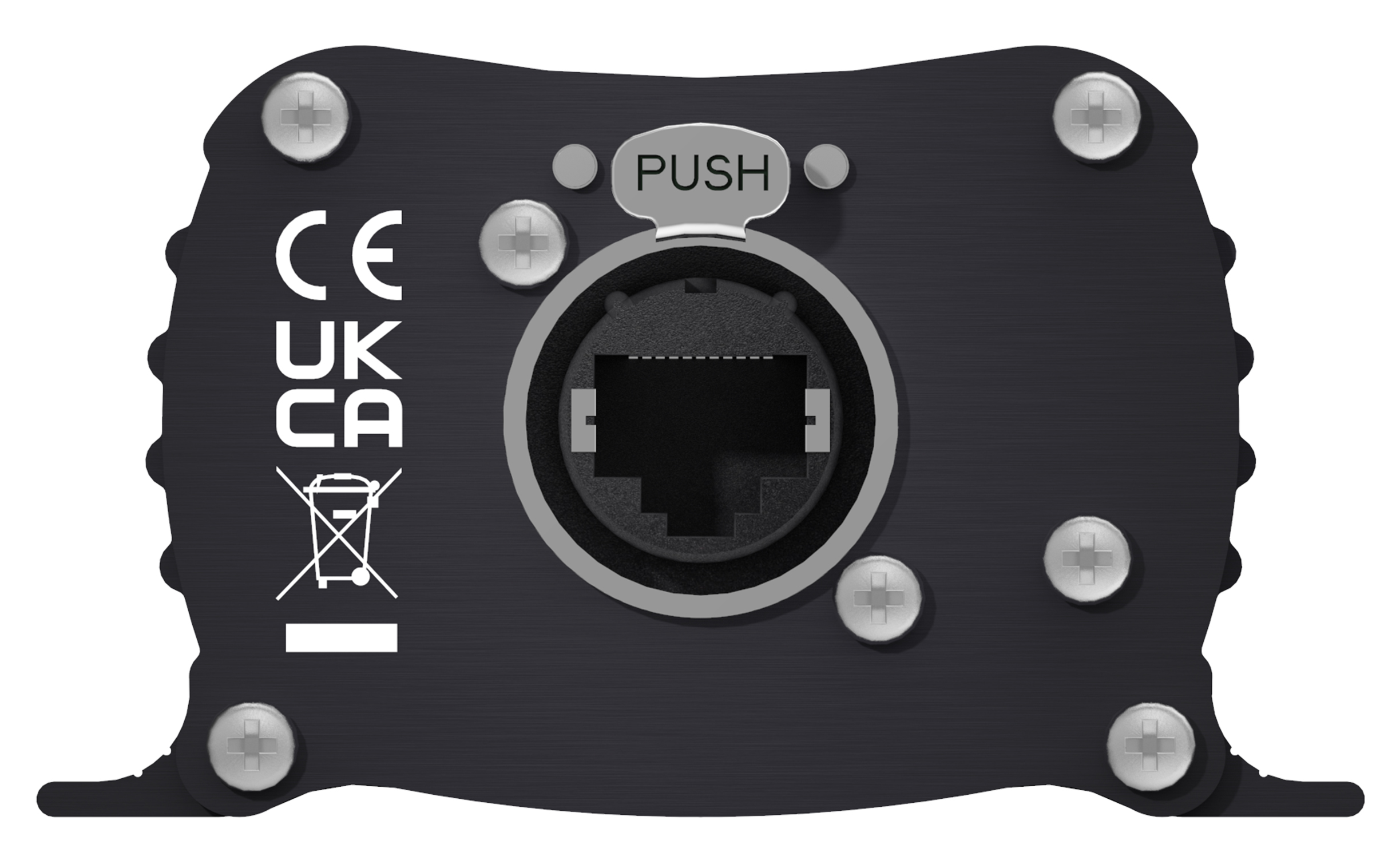

Rear View |
AVN-DIO02 Analogue XLR Stereo Input to Dante®
The AVN-DIO02 is an analogue XLR stereo input to Dante AoIP network converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analogue XLR inputs and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
The A/D and D/A circuitry offers 120dB of dynamic range - ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
- 2 x balanced XLR analogue inputs.
- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range A/D conversion.
- Powered via PoE (Power over Ethernet).
Technical Specification For AVN-DIO02 |
|
Analogue XLR Input Pin-out |
|
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Input Phase |
| 3 | Input Non Phase |
Line Input - XLR/Terminal |
|
| Parameter | Description |
| Input Impedance: | >10kΩ balanced |
| 0dBFS Line-Up: | +18dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.2dB (600Ω load, ref 1kHz) |
| THD+N: | <-118dBFS, -12dBu, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range: | 120dB, 20kHz BW, Rs=200Ω |
| Crosstalk: | <-110dB |
| Common Mode Rejection: | >60dB @ 1kHz |
Dante |
|
| Parameter | Description |
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Encoding: | PCM 16, PCM 24, PCM 32 |
PoE Power |
|
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 3 W |
| Max PSE Power Usage | 15.4 W |
Equipment Type |
|
| AVN-DIO02: | Analogue XLR Stereo Input to Dante® |
Physical Specification |
|
| Dimensions (Raw): | 10.9cm (W) x 7.3cm (D) x 4.3cm (H) 4.3” (W) x 2.9” (D) x 1.7” (H) |
| Dimensions (Boxed): | 17.4cm (W) x 9.5cm (D) x 5.6cm (H) 6.9” (W) x 3.7” (D) x 2.2” (H) |
| Weight: | Nett: 0.2kg Gross: 0.3kg Nett: 0.44lbs Gross: 0.66lbs |
