AVN Accessories

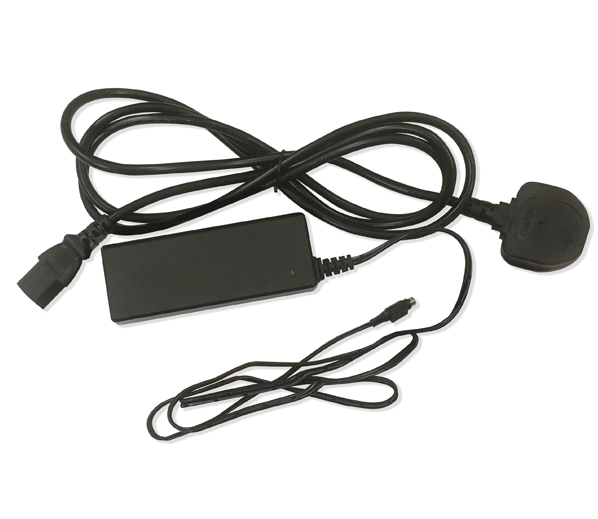

AVN-DC060 DC Power Supply for AVN Range, KPJX-4S plug, 60W
A 60W DC power supply for AVN range with KPJX-4S plug. Suitable for AVN Talkback products.

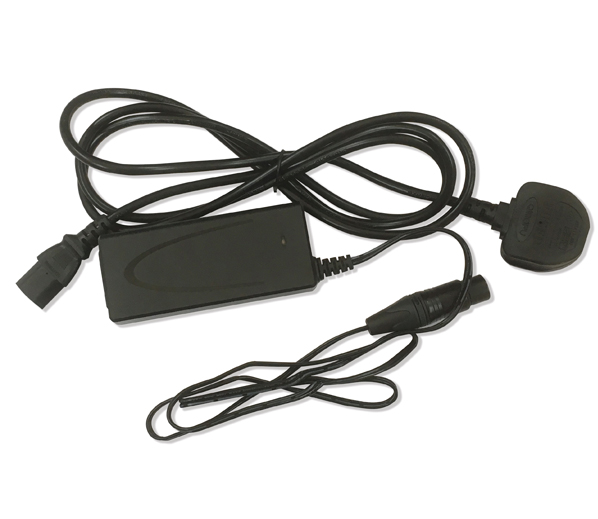

AVN-DCX60 DC Power Supply for AVN Range, 4 pin XLR socket, 60W
A DC Power Supply for AVN Range, 4 pin XLR socket, 60W for use with AVN-CU2-DANTE and AVN-CU4-DANTE Commentator Units.
AVN-DIORK 19” AVN-DIO Mounting Rack
 |
 |
|
Empty Rack View |
Filled Rack View |
|
AVN-DIORK 19” AVN-DIO Mounting Rack
The AVN-DIORK is a 1U rackmount kit that can accept up to 5 of the smaller AVN-DIO01-9 boxes, or 3 of the AVN-DIO10 boxes. It is supplied complete with AVN-DIO box fixings.

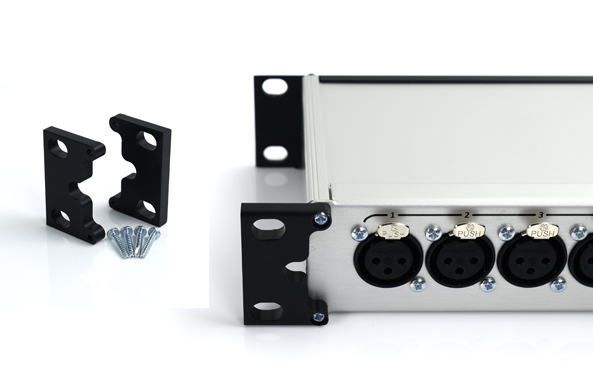

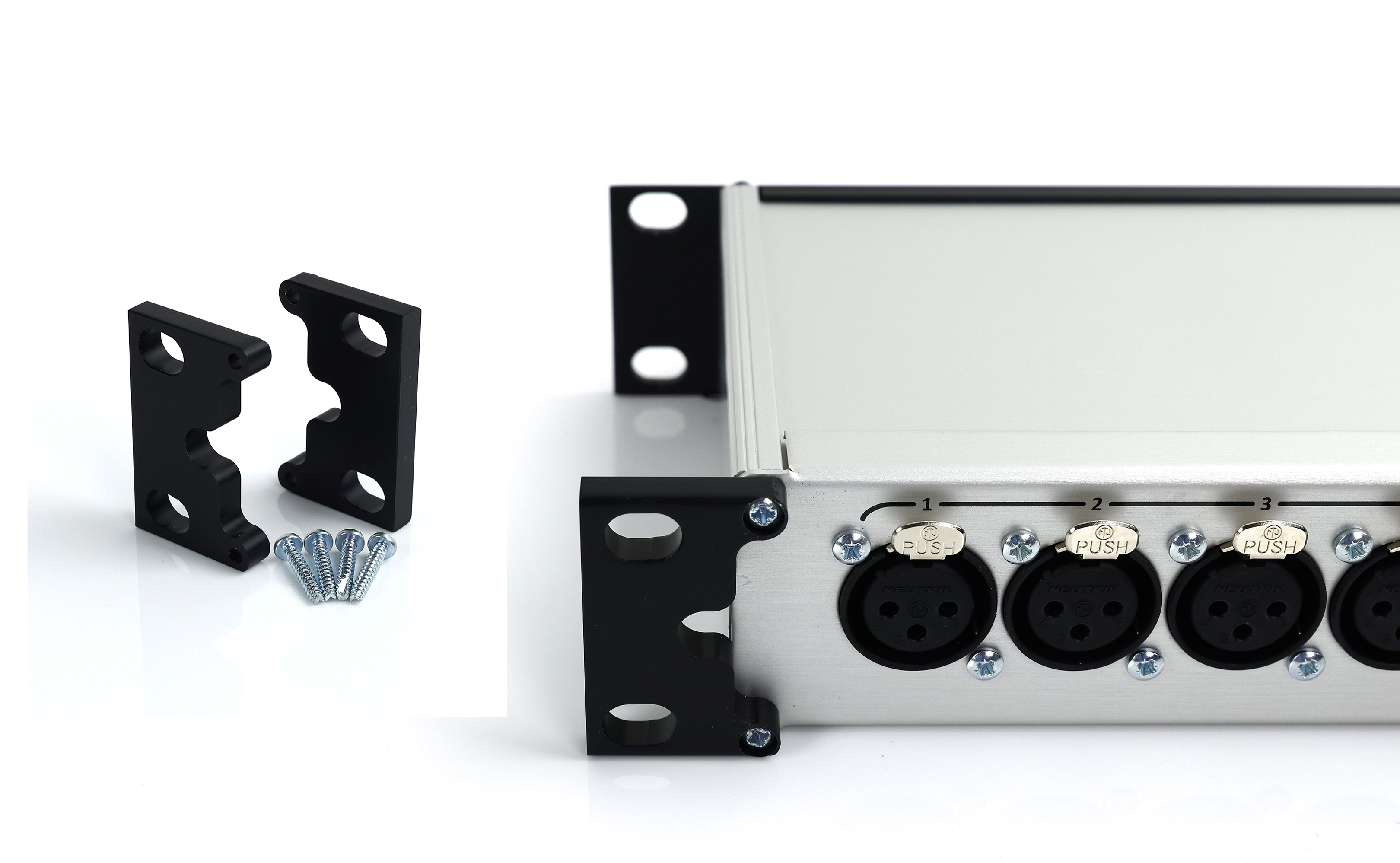

AVN-AIORK 1U Rear Rack Kit For AVN-AIO Range
 |
AVN-AIORK 1U Rear Rack Kit For AVN-AIO Range
The AVN-AIORK is a 1U rear rackmounting bracket for AVN-AIO Range of products.

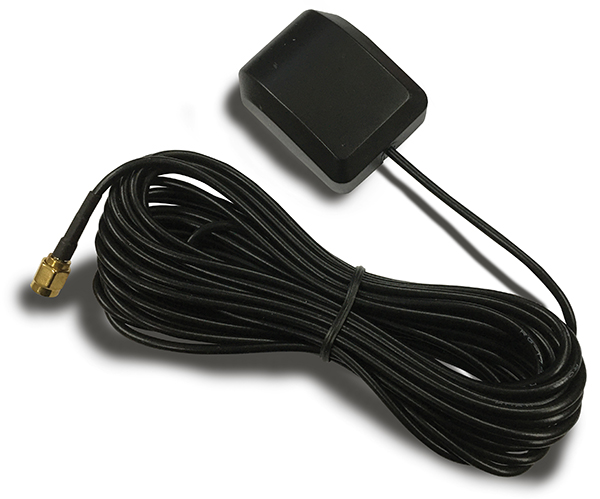

AVN-GPS5 GPS Receiver Antenna and Lead
AVN-GPS5 GPS Receiver Antenna & Lead
The AVN-GPS5 is a GPS receiver antenna with a 5m lead and is supplied with an adhesive pad. It is ideal for use with the Sonifex AVN-GMCS.
It is embedded with the latest generation, two stage, pre-amplifier circuit offering 28dB LNA gain. Capable at operating within 3-5V. Its low current draw of just 10mA at 3V helps to keep the operating voltage to a minimum making it suitable for applications where power saving is important.
CM-TC1 Commentary Transport Case
The CM-TC1 is a Commentator Unit Transport Case which can be used with the AVN-CU2, AVN-CU4, with the following: handbook, mains leads and adapter (AVN-DCX60). It can also be used with the CM-CU1 and CM-CU21 commentator units.
The CM-TC1 Transport Case is sold empty.
 |
||
 |
 |
|
Open Case |
Closed Case |
|
Technical Specification For CM-TC1 Transport Case |
|
| Dimensions(Raw): | 46.5cm (W) x 36cm (D) x 17.6cm (H) 18.3” (W) x 14.2” (D) x 6.9” (H) |
| Dimensions (Boxed): | 52cm (W) x 21.5cm (D) x 43cm (H) 20.5” (W) x 8.5” (D) x 16.9” (H) |
| Weight: | Net: 3.0kg Gross: 3.5kg Net:6.6lbs Gross: 7.7lbs |

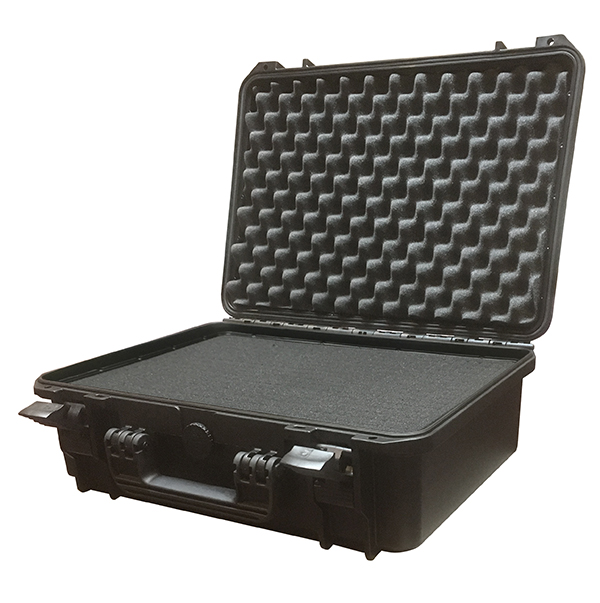

CM-TC2 Commentary Transport Case
The CM-TC2 is a Transport Case which can be used with anything you wish. The foam has push out blocks to make the cut out shape you require.
The CM-TC2 Transport Case is sold empty.
 |
||
 |
|
|
Open Case |
Closed Case |
|
Technical Specification For CM-TC2 Transport Case |
|
| Dimensions(Raw): | 46.5cm (W) x 36cm (D) x 17.6cm (H) 18.3” (W) x 14.2” (D) x 6.9” (H) |
| Dimensions (Boxed): | 52cm (W) x 21.5cm (D) x 43cm (H) 20.5” (W) x 8.5” (D) x 16.9” (H) |
| Weight: | Net: 3.0kg Gross: 3.5kg Net:6.6lbs Gross: 7.7lbs |
