AVN-DIO01 Dante® to Analogue XLR Stereo Output
 |
||
 |
 |
 |

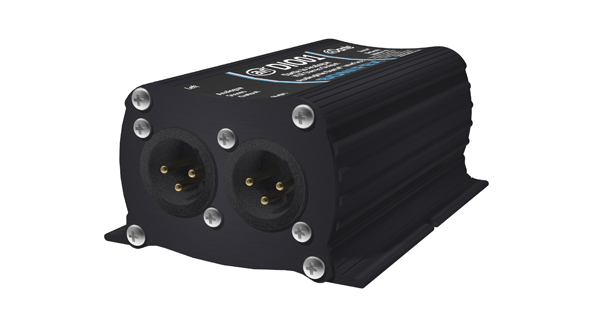

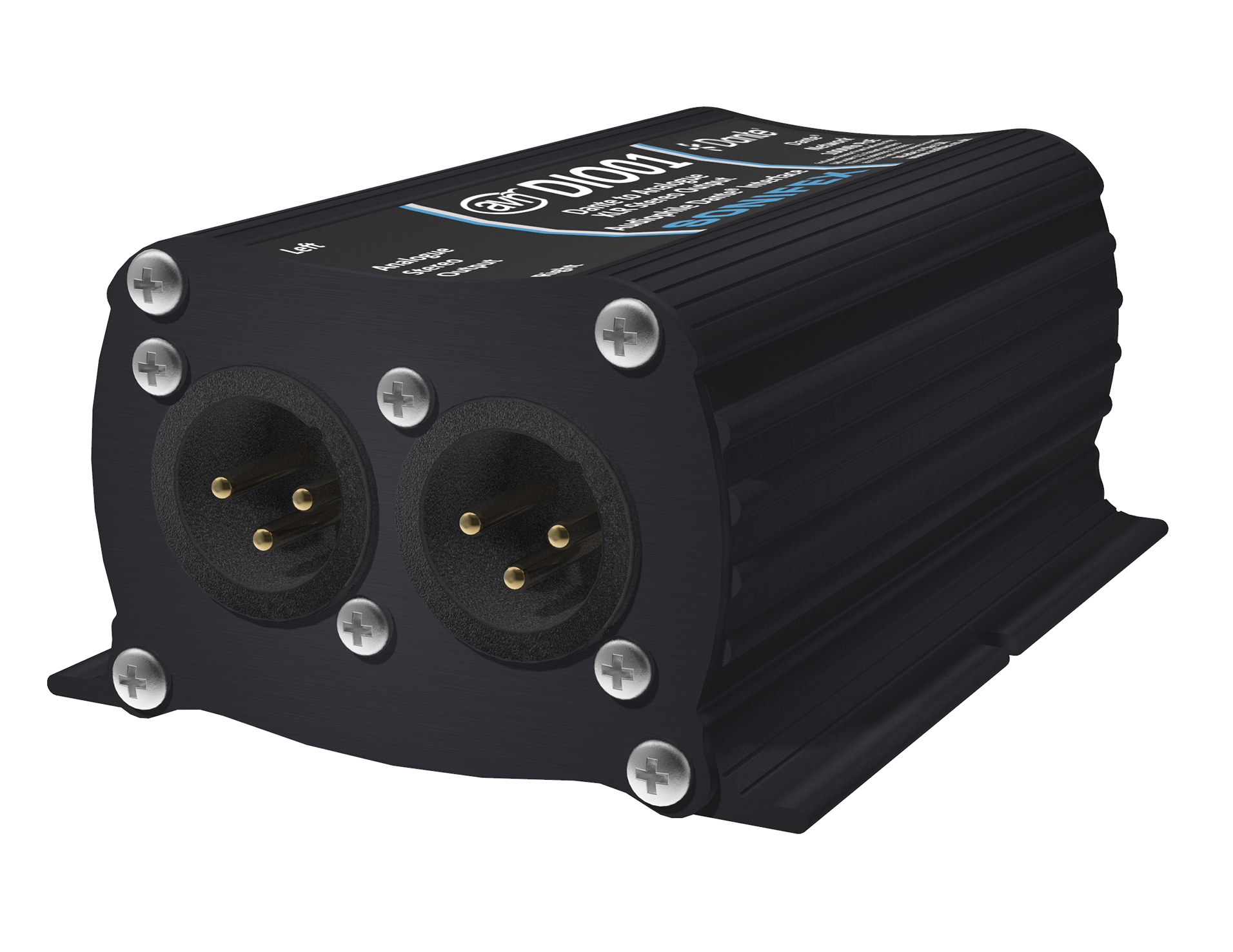

Iso View |

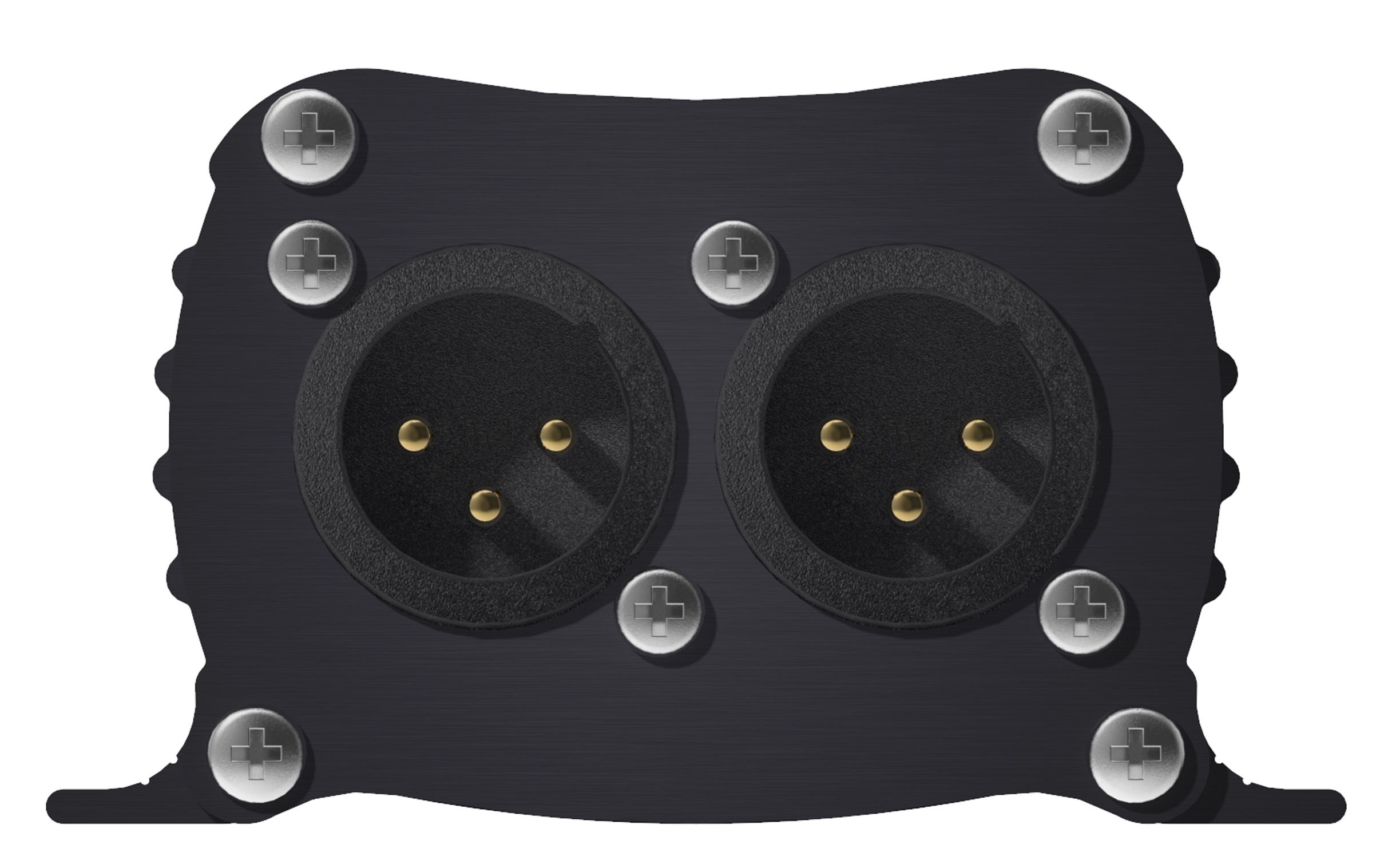

Front View |

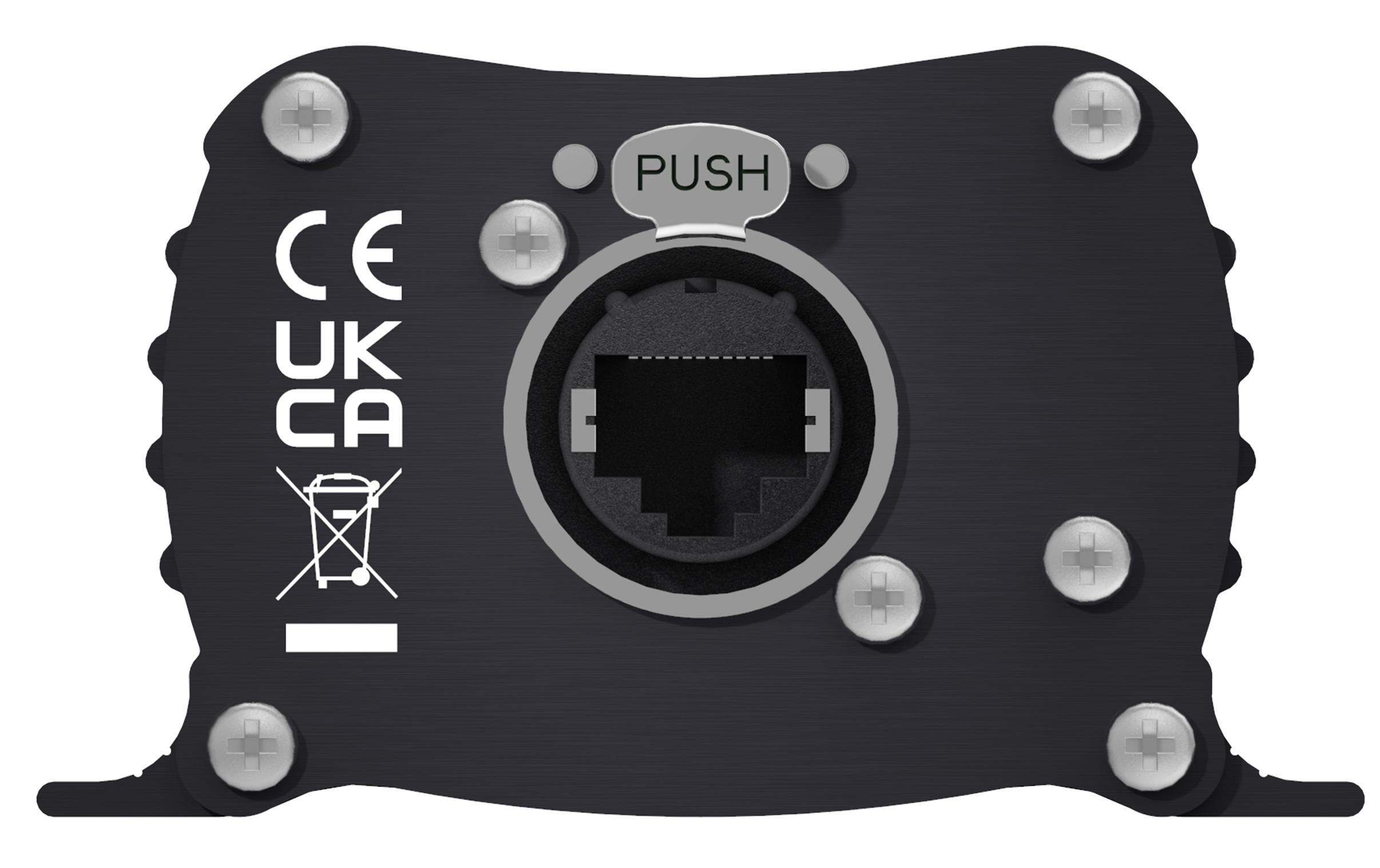

Rear View |
AVN-DIO01 Dante to Analogue XLR Stereo Output
The AVN-DIO01 is a Dante AoIP network to analogue XLR stereo output converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analogue XLR outputs and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
The A/D and D/A circuitry offers 120dB of dynamic range - ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
- 2 x balanced XLR analogue outputs.
- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range D/A conversion.
- Powered via PoE (Power over Ethernet).
Technical Specification For AVN-DIO01 |
|
Analogue XLR Output Pin-out |
|
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Output Phase |
| 3 | Output Non Phase |
Line Output - XLR/Terminal |
|
| Parameter | Description |
| Output Impedance: | <200Ω balanced |
| 0dBFS Line-Up: | +18dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB (600Ω load, ref 1kHz) |
| THD+N: | <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range: | 120dB, 20kHz BW |
| Crosstalk: | <-110dB |
Dante |
|
| Parameter | Description |
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Encoding: | PCM 16, PCM 24, PCM 32 |
PoE Power |
|
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6 W |
| Max PSE Power Usage | 15.4 W |
Equipment Type |
|
| AVN-DIO01: | Dante® to Analogue XLR Stereo Output |
Physical Specification |
|
| Dimensions (Raw): | 10.6cm (W) x 7.3cm (D) x 4.3cm (H) 4.2” (W) x 2.9” (D) x 1.7” (H) |
| Dimensions (Boxed): | 17.4cm (W) x 9.5cm (D) x 5.6cm (H) 6.9” (W) x 3.7” (D) x 2.2” (H) |
| Weight: | Nett: 0.2kg Gross: 0.3kg Nett: 0.44lbs Gross: 0.66lbs |
