Mixing Consoles - S2-Power Supply
Please Note: This version has been discontinued and replaced with the new version...more >
S2-PSU Power Supply

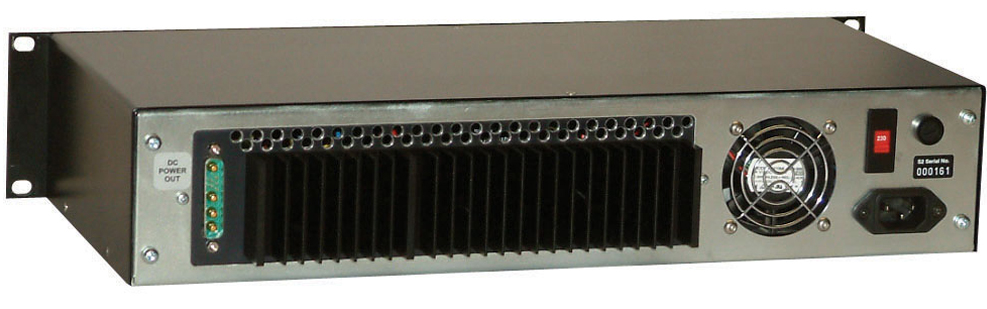

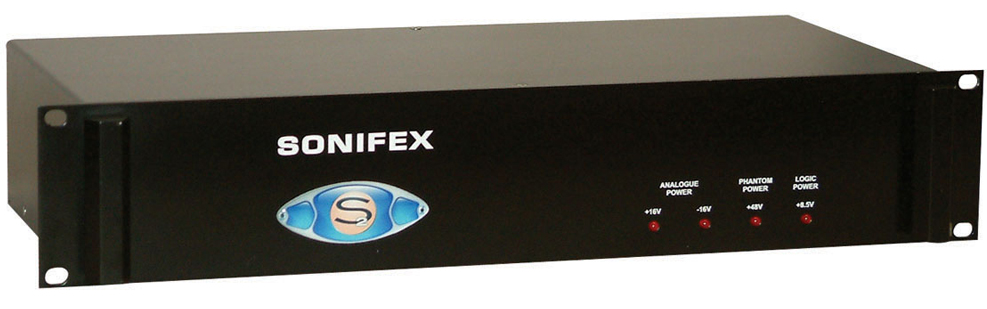

The S2-PSU is a 2U high rack-mount unit, which supplies power to the entire range of S2 mixers. A lead with a special 9 pin D-Type socket on each end is used to connect the power supply to the S2-ODP PGM output channel on the mixer. Four LED’s on the front of the unit indicate whether the power to the four voltage rails is being supplied correctly.
Dimensions (S2-PSU) | |
(Raw): | 48cm (W) x 24.3cm (D) x 8.8cm (H) 19” (W) x 10” (D) x 3.5” (H) |
(Boxed): | 51cm (W) x 41.5cm (D) x 17cm (H) 20” (W) x 16.3” (D) x 6.7” (H) |
Weight (S2-PSU) | |
Nett: 6kg Gross: 7.8kg Nett: 13.2lbs Gross: 17lbs |
