S2-CDS Digital Dual Stereo Channel
S2-CDSE Digital Dual Stereo Channel with EQ
The digital dual stereo channel has two
24-bit 96kHz digital inputs with an INP 1/INP 2 button switch to select between them. The button is illuminated in red to indicate when Input 2 is selected. The operation of the button is inhibited when the channel is “live”.
Either input can be configured to be balanced AES/EBU on standard XLR, or S/PDIF on phono sockets, selected by internal jumpers. An additional jumper option can be used to decode emphasis when indicated by certain status bits in the incoming data stream. The digital signals are converted to analogue and from this point the channel functions are the same as the S2-CS Dual Stereo Line channel with the addition that when the ON button flashes green, it means that there is no valid digital input.
S2-CDSE Digital Dual Stereo Channel with EQ
This channel is the digital dual stereo channel as above but fitted with equalisation. The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by 10dB at 6.5kHz. The LF control boosts and cuts the signal by 10dB at 100Hz. The EQ button places the equalisation in and out of the signal path and is illuminated yellow when the EQ is active. Both S2-CDS and S2-CDSE channels can be used to control either one of two separate timer displays.

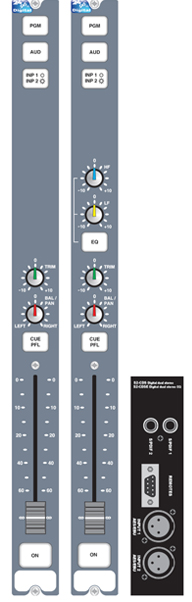

S2-CDS Digital Dual Stereo Channel,
S2-CDSE Digital Dual Stereo Channel with EQ and Rear.
