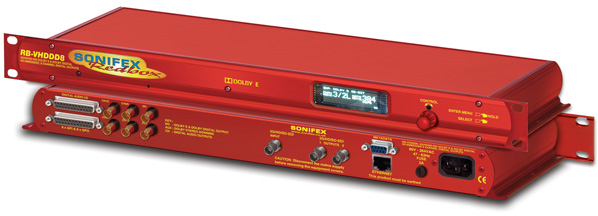

Iso View |
Front View |
Rear View |
RB-VHDDD8 3G/HD/SD-SDI De-Embedder Dolby® E & Dolby Digital Decoder & Re-Embedder.
What The Press Said:
TV-Bay, March 2012 >
Audio Media, May 2012 >
RB-VHDDD8 3G/HD/SD-SDI De-Embedder Dolby® E & Dolby Digital Decoder & Re-Embedder
The RB-VHDDD8 is an SDI audio de-embedder and re-embedder with Dolby E & Dolby Digital Decoding capabilities. It de-embeds and decodes a selected Dolby E or Dolby Digital bitstream embedded in the video input. The outputs from the decoder and the de-embedder can then be re-embedded onto either of the two SDI outputs and also transmitted on a BNC or D-type situated on the rear panel. The encoded Dolby bitstream is also available via a dedicated output on the rear panel.
It has a triple rate SDI receiver with automatic input rate detection and equalisation along with two re-clocked and individually buffered SDI outputs. It supports the full range of single link 3G, HD and SD standards from NTSC and PAL up to 1080p 60Hz.
The digital audio output connections are transformer-coupled balanced line interfaces and can be configured to be either 75ohm (AES 3ID) or 110ohm (AES 3) output impedance through either a BNC or via the D-type connector. These output connections are paralleled, allowing one type to be used per output.
The metadata output from the decoder is transmitted using RS-485 via the external 9-pin D-type on the rear panel and can also be embedded into the vertical blanking space (SMPTE-2020) oof the two SDI outputs.
There is also remote I/O available from the rear panel through a 25 way female D-type connector. These are fully configurable.
The unit is controlled locally through the front panel display but can also be remote controlled via an Ethernet connection using the Sonifex SCi software.
There is independent level control for every channel, which can be adjusted from -24dB through to +24dB in 0.5dB steps.
Embedding and De-Embedding Overview
Audio embedding is the process of taking one or more audio signals, formatting them into packets and then placing them into the ancillary or blanking space of a video signal. Audio de-embedding is the process of retrieving this audio data from the video signal but not necessarily removing it. These two processes are standardised by two SMPTE documents, SMPTE-272M for SD-SDI and SMPTE-299M for HD-SDI and 3G-SDI.
Both of these standards allow for the embedding of 16 channels of 24-bit, 48kHz audio. Which are divided down into 4 groups of 4 channels.
Each standard consists of a control packet and an audio data packet. The control packets hold certain control information about the audio to aid in the de-embedding process or any other receiving equipment. There is one control packet per group, these packets are optional for SD. The control packet is normally placed in the horizontal blanking period once per field or frame. The audio data packets contain the actual audio sample data. There are considerable differences between SD and HD, the main ones being that SD data packets contain only 20-bit data and are of variable length while the HD data packets contain 24-bit data and are of fixed length. The HD packets also provide an error correction and detection method. The SD standard consists of a further packet, the extended data packet. These packets contain the 4 least significant bits of the audio samples to provide full 24-bit audio.

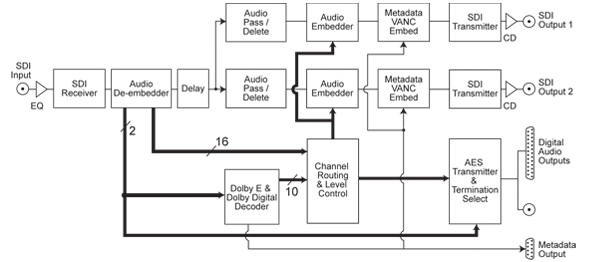

RB-VHDDD8 Block Diagram.
This product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software. To download a copy of the SCi software, please use this link >
Dolby® and the double-D symbol are registered trademarks of Dolby Laboratories
SCi Screens

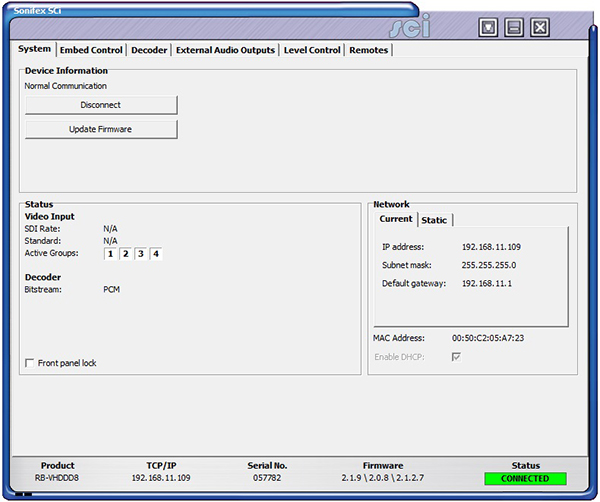

System Screen.

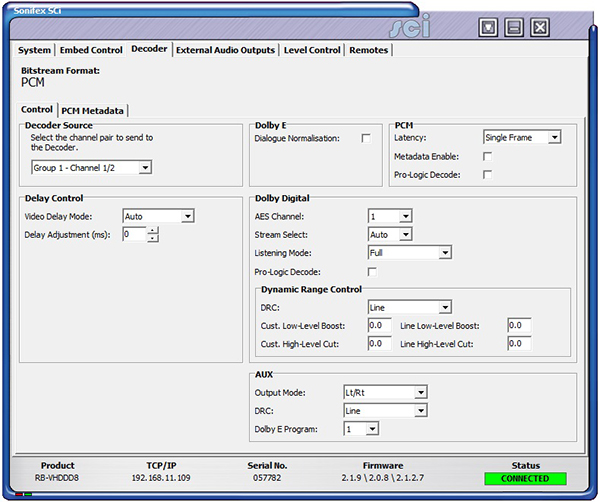

Decoder Screen.
Embed Control/SDI1 Screen.

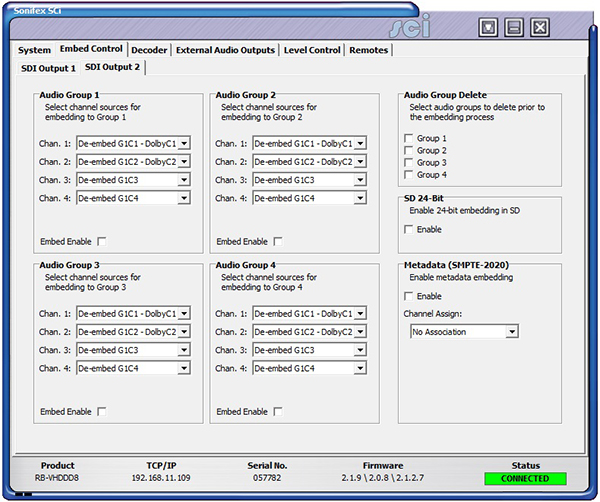

Embed Control/SDI2.

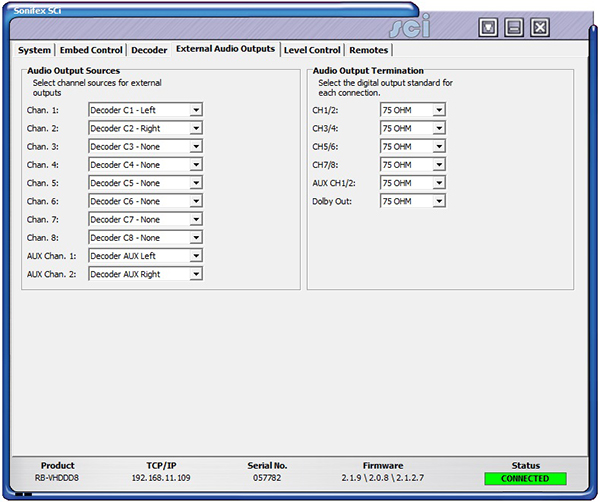

External Audio Outputs Screen.

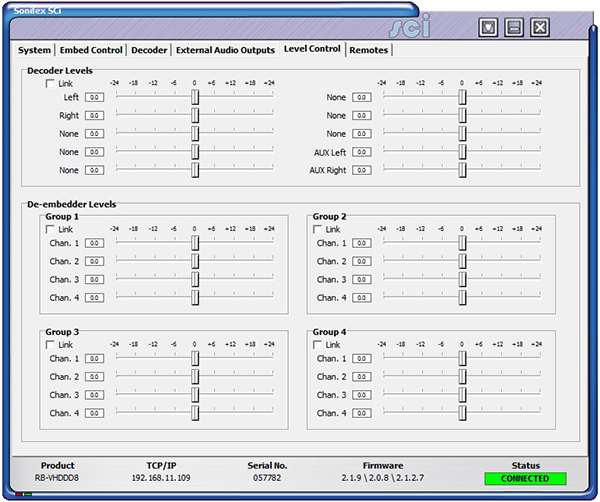

Level Control Screen.

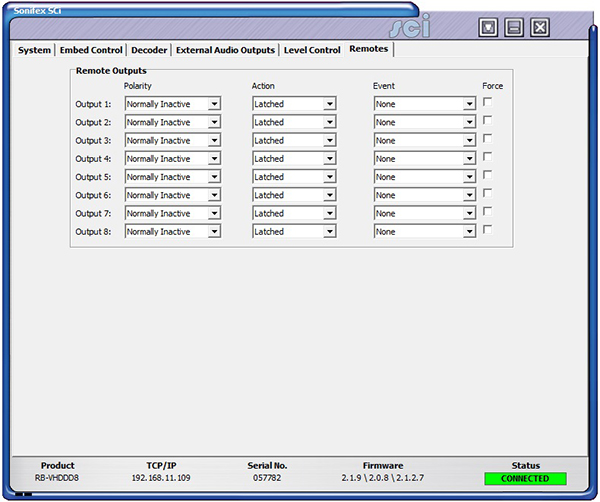

Remotes Screen.

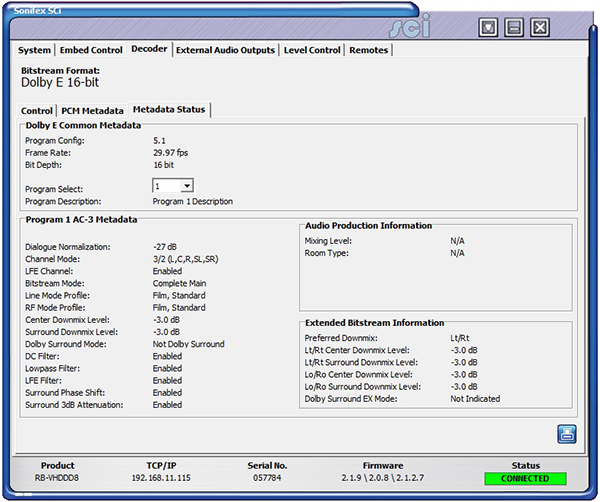

Decoder Metadata Status Screen.

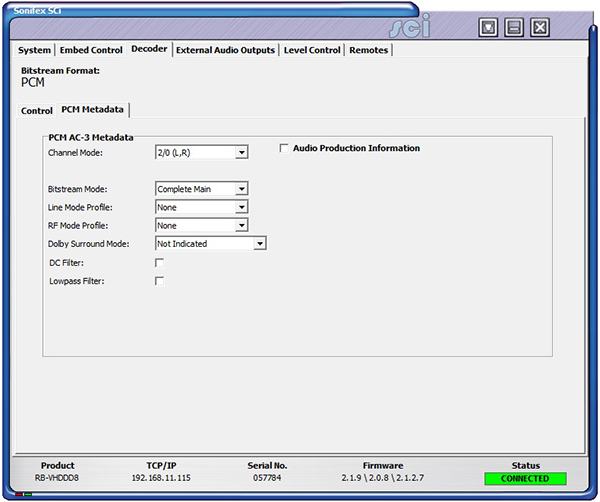

Decoder PCM Metadata Screen.
Technical Specification For RB-VHDDD8 |
|
SDI Specification |
|
| SDI Input: | 1 x BNC, 3G/HD/SD-SDI |
| SDI Outputs: | 2 x BNC, 3G/HD/SD-SDI, re-clocked |
| Impedance: | 75Ω |
| Output Alignment Jitter: | <0.2UI (3G <0.3UI) |
| Output Level: | 800mV ±10% |
| Return Loss: | <15dB at 1500MHz |
| SDI Supported Standards: | 270Mbps, SMPTE-259M-C (SD) 1.485 or 1.4835Gbps, SMPTE-292M (HD) 2.97 or 2.967Gbps, SMPTE-424M (3G), SMPTE-425M-A |
| Supported Video Formats: | 525/59.94 (SMPTE-125M) 625/50 (ITU-R BT.656) 720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M) 1035i/59.94, 60 (SMPTE-260M) 1080i/50, 59.94, 60 (SMPTE-274M) 1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M) 1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M) 1080p/50 (SMPTE-295M) |
| Embedded Audio: | 24-bit, 48kHz synchronous SMPTE-272M-C SMPTE-299M |
| Metadata: | SMPTE-2020M SMPTE-RDD06, 9-Pin D-type |
Delay Specification |
|
| Video Delay: | 1 frame when frame rate <= 30 fps, 2 frames when frame rate > 30 fps. |
| Adjustment: | +/- 10 ms. |
Audio Specifications |
|
| Output Sample Rate: | 48kHz |
| Output Impedance: | 75Ω/110Ω selectable |
| Signal Level (un-terminated): | Unbalanced: 1Vp-p +/- 20% Balanced: 6.4Vp-p +/- 20% |
| Digital Audio Outputs: | 12 output channels via 6 x BNC or 25 way D-type socket (AES3) |
| Digital Audio Connectors: | 6 x BNC 1x 25-way D-type socket |
Operational Control |
|
| Display: | Vacuum fluorescent display |
| System Navigation: | Rotary selector with integral push-switch |
Additional Connections |
|
| Ethernet Port: | 10/100Mbps, RJ-45 |
| Remote Input/Output Port: | 25-way ‘D’-type socket |
| Power Supply: | Universal filtered IEC, continuously rated 85-264VAC @47-63Hz, fused |
| Fuse Rating: | Anti-surge fuse 2A 20 x 5mm |
Physical Specifications |
|
| Dimensions (Raw): | 48cm (W) x 15.8cm (D*)x 4.2cm (H) 19” (W) x 6.2” (D*) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 59cm (W) x 27.5cm (D) x 11cm (H) 23.2” (W) x 10.8” (D) x 4.3” (H) |
| Weight: | Nett: 1.8kg Gross: 2.3kg Nett: 4.0lb Gross: 5.1lb |
| * Note that this product is deeper than standard Redboxes | |
Equipment Type |
|
| RB-VHDDD8 | 3G/HD/SD-SDI Dolby® E & Dolby Digital decoder |
Accessories |
|
| RB-RK3 | 1U Rear panel rack kit for large Redboxes |
