RB-DEED8 Dolby® E Encoder 8 Channel, Digital Inputs

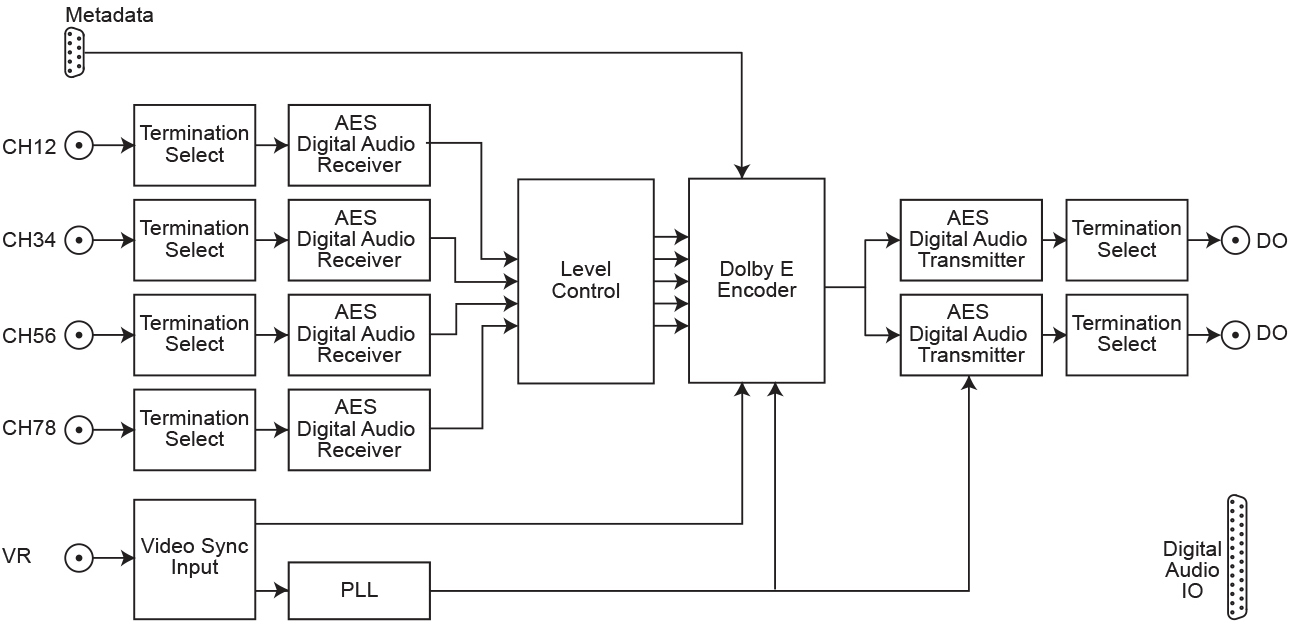

The RB-DEED8 is a Dolby® E Encoder. It encodes up to 8 digital audio channels into a single Dolby bitstream output. There is also an extra Dolby output for connection to monitoring equipment.

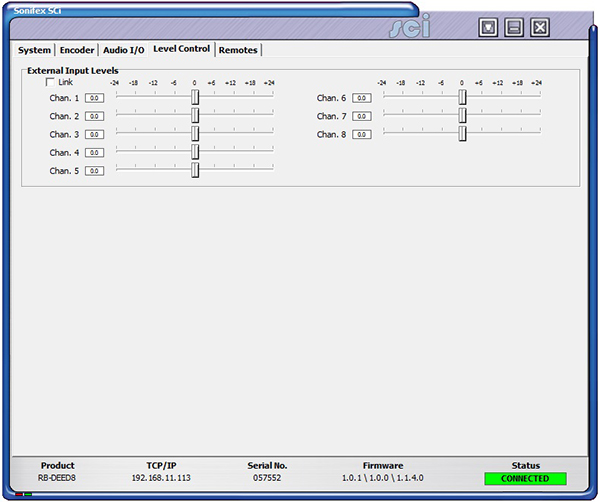

Each digital input channel has independent level control, which can be adjusted from -24dB through to +24dB in 0.5dB steps. The digital inputs and outputs can be selected to be either balanced or unbalanced AES/EBU specification, and can be connected through either BNC or D-type connectors. These I/O connections are paralleled, allowing one type to be used per input or output.

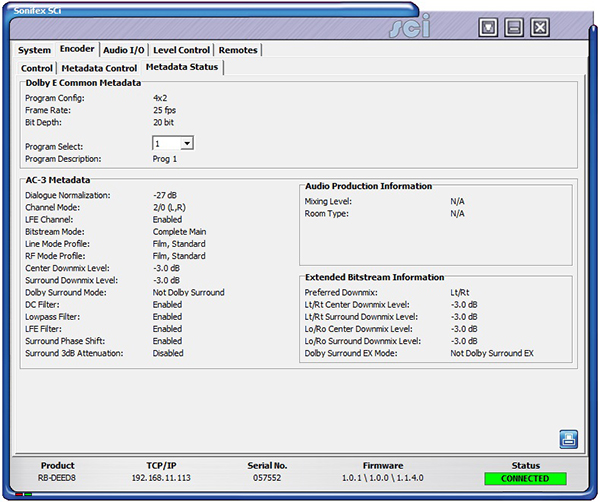

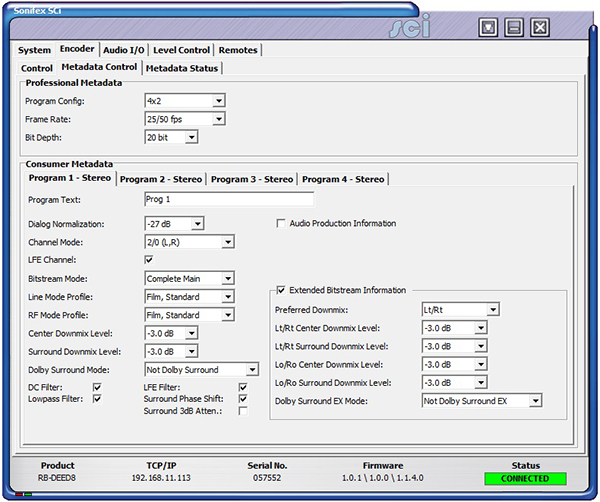

Metadata can be input to the encoder using RS-485 via the external 9-pin D-type socket on the rear panel and can also be viewed using the SCi software.
A video input is used to genlock the audio output and Dolby® E encoding to a known video reference. This input autodetects between NTSC, PAL or Tri-level sync.

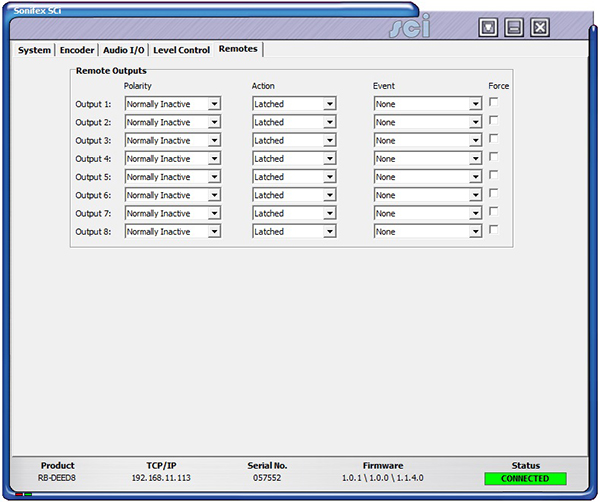

8 general purposes inputs and 8 outputs are available on a rear panel 25 way D-type socket whose function can be programmed using the menu, e.g. alarm outputs for loss of input or encoder errors.

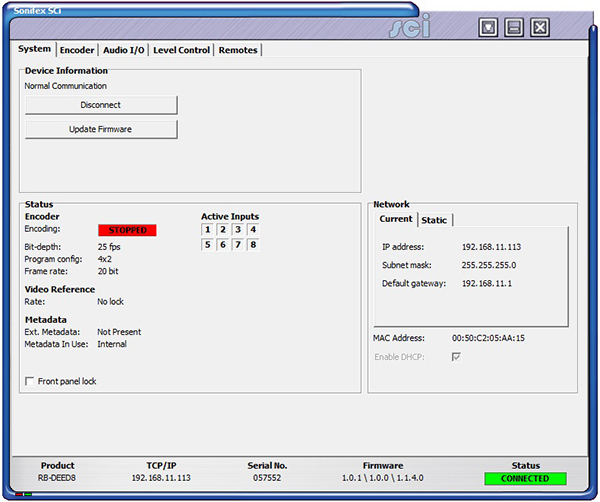

The unit is controlled locally using the front panel display and control knob but can be remote controlled via an ethernet connection using the Sonifex SCi software.
Dolby Embedder, Unbalanced Input Grounding

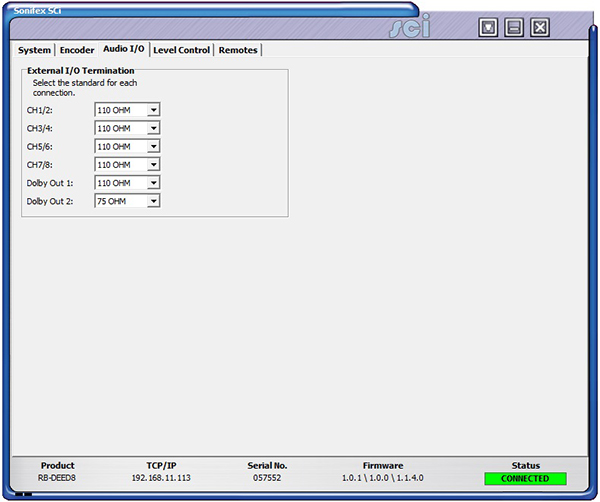

The Redbox Dolby® Encoder products use differential inputs that can be terminated with either 75Ω or 110Ω for unbalanced or balanced inputs, respectively.
For unbalanced inputs, all that should be required is to set the inputs to 75Ω. However it has been found in rare circumstances that in this case there are issues with grounding when the input is connected from other manufacturers’ products.
Should problems of this nature occur, internal ground link jumpers have been provided on the RB-AIM-DE sub-board PCB to correct the problem. These short to ground one of the differential inputs, effectively providing a ‘true’ unbalanced connection.
It's also possible to do the same for the digital output using link J6.
The jumpers are labelled as follows:
|I/O Type||Ground Link Reference|
|Inputs 1 and 2||J2|
|Inputs 3 and 4||J3|
|Inputs 5 and 6||J4|
|Inputs 7 and 8||J5|

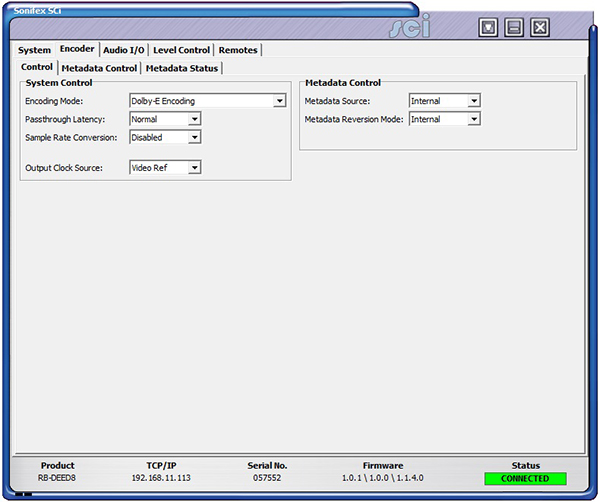

This product has settings that can be adjusted using the Sonifex SCi (Serial Control Interface) software. To download a copy of the SCi software, please use this link >
Dolby® and the double-D symbol are registered trademarks of Dolby Laboratories
Technical Specification For RB-DEED8
|Output Sample Rate:||48kHz|
|Input Sample Rates:||CH1/2 & CH3/4: 32-192kHz
CH5/6 & CH7/8: 32-48kHz
|Input & Output Impedance:||75Ω/110Ω selectable|
|Signal Level(un-terminated):||Unbalanced: 1Vp-p +/- 20%
Balanced: 6.6Vp-p +/- 20%
|Digital Audio I/O:
|8 input channels via 4 x BNCs or
25 way D-type socket (AES3)
|Dolby Output 1:||1 x Dolby bitstream output via BNC|
|Dolby Output 2:||1 x Dolby bitstream output via BNC or 25 way D-type socket (AES3)|
|Digital Audio Connectors:||6 x BNC
1 x 25-way D-type socket
|Metadata:||SMPTE-RDD06, 9 way D-type socket|
|Reference Type:||Autodetect NTSC, PAL or Tri-level sync|
|Connector:||1 x BNC|
|LTC Input:||1 x BNC (not used)|
|Display:||Vacuum fluorescent display|
|System Navigation:||Rotary selector with integral push-switch|
|Ethernet Port:||10/100Mbps, RJ-45|
|Remote||25-way ‘D’-type socket|
|Input/Output Port:Serial Port:||RS232, 9 way D-type|
|Power Supply:||Universal filtered IEC, continuously rated 85-264VAC @47-63Hz, fused|
|Fuse Rating:||Anti-surge fuse 1A 20 x 5mm|
|48cm (W) x 15.8cm (D*)x 4.2cm (H)
19” (W) x 6.2” (D*) x 1.7” (H) (1U)
|59cm (W) x 27.5cm (D) x 11cm (H)
23.2” (W) x 10.8” (D) x 4.3” (H)
|Weight:||Nett: 1.8kg Gross: 2.3kg
Nett: 4.0lb Gross: 5.1lb
|* Note that this product is deeper than standard Redboxes|
|RB-DEED8||Dolby® E encoder 8 channel, digital inputs|
|RB-RK3:||1U Rear panel rack kit for large Redboxes|
