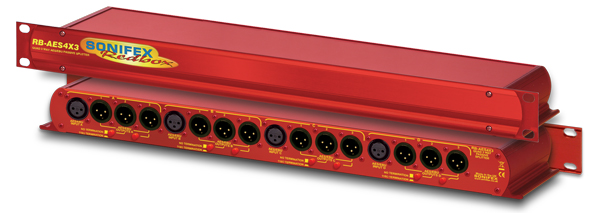

RB-AES4X3 Quad 3 Way AES/EBU Splitter XLR Connectors.
What The Press Said:
4RFV.com, October 2013 >
Prosoundnetwork.com, October 2013 >
RB-AES4X3 Quad 3 Way AES/EBU Splitter XLR Connectors
The RB-AES4X3 is a passive, quad “one-to-three” splitter housed in a 19” rack. Each bank is designed to split a single AES3 digital audio source to up to three destinations, using Neutrik XLR connectors.

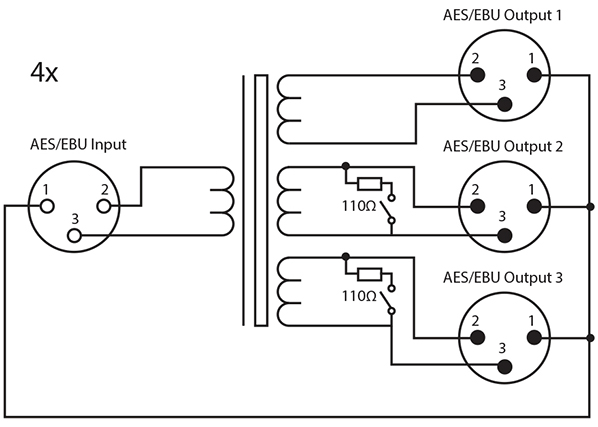

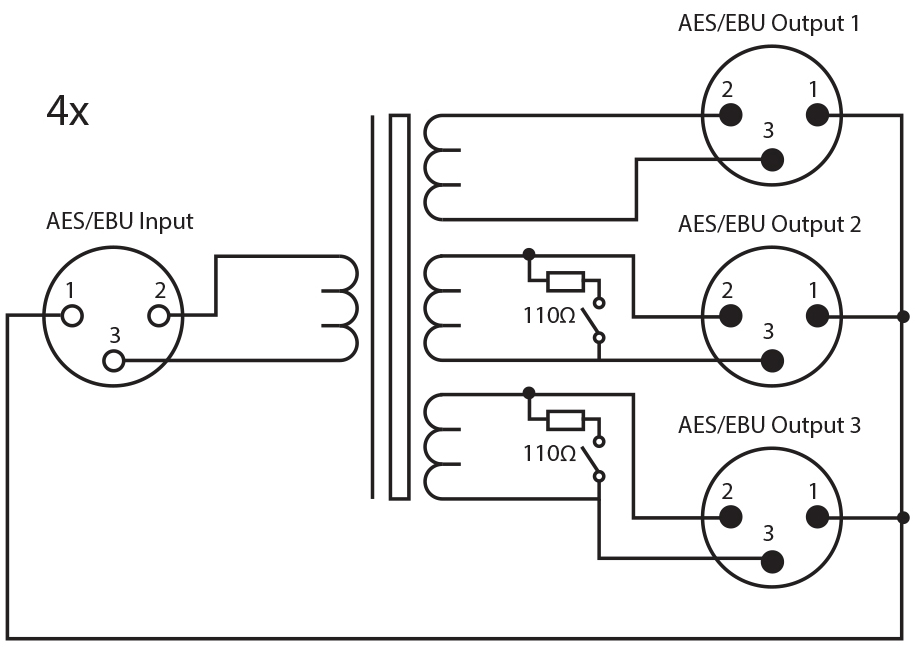

The RB-AES4X3 provides solutions to a range of digital signal distribution problems, where correct termination is essential to maintain signal integrity. The input signal is split through high quality transformers, and 110Ω termination can be applied, if desired, to unconnected outputs.
The RB-AES4X3 requires no power to operate, ensuring your audio remains connected from source to destination(s) without interruption from power failures.
Technical Specification For RB-AES4X3 |
|
Cable Drive Capability |
|
| The table below sets out the minimum signal amplitude required to drive 100m (cumulative) of 110Ω twisted pair cable, based on the sample rate of the digital audio: | |
Sample Rate |
Minimum Signal Amplitude |
| 32kHz | *2Vpk-pk |
| 44.1kHz | *2Vpk-pk |
| 48kHz | *2Vpk-pk |
| 88.2kHz | 5Vpk-pk |
| 96kHz | 5Vpk-pk |
| * Minimum of 2Vpk-pk is defined by the AES3 format specification. The table below sets out the minimum signal amplitude required to drive 30m (cumulative) of 110Ω twisted pair cable, based on the sample rate of the digital audio: |
|
Sample Rate |
Minimum Signal Amplitude |
| 176.4kHz | 3Vpk-pk |
| 192kHz | 3Vpk-pk |
Audio Specification |
|
| Input & Output Impedances: | 110Ω |
| Insertion Loss: | 0.17dB 1:1, 1.3dB 1:3 |
| Impedance Match: | +/- 2% |
| Max Signal 10 V P-P: | Up to 96kHz |
| Attenuation Loss: | 0.17dB 1:1, 6.2dB 1:3 |
Connections |
|
| Inputs: | 4 x XLR 3 pin female |
| Outputs: | 12 x XLR 3 pin male |
Equipment Type |
|
| RB-AES4X3 | Quad 3 way AES/EBU passive splitter XLR connectors |
Physical Specification |
|
| Dimensions (Raw): | 48cm (W) x 10.8cm (D) x 4.2cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| (Boxed): | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.0kg Gross: 1.4kg Nett: 2.25lbs Gross: 3.0lbs |
