PC-AM6-32 AM Radcap PCle Card (6 to 32 Channels).
PC-AM6-32 AM Radio Capture PCle Card (6 to 32 Channels)
Approved for use by: |
|||||||
 |
 |
 |
 |
||||
 |
 |
 |
 |
||||
 |
 |
||||||
Related Links:
FAQs >

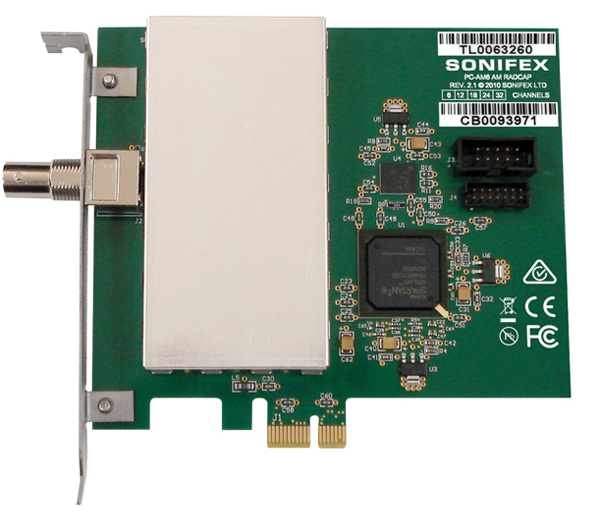

The AM Radcap PCIe card is a radio capture card designed for simultaneous recording of up to 32 radio stations. The frequency of each individual station may be set in software and its audio appears as a standard Windows audio input device.
The AM Radcap uses a high speed analogue-to-digital converter to digitise the entire AM band, with advanced digital signal processing on a Spartan 6 FPGA used to tune and extract the audio for each individual station. It can be configured to either create a separate audio stream for each station or to pair stations together as 2-channel streams.
A WDM driver for Windows XP, Windows 7/8/10 and other versions is supplied as well software for setting the tuner frequencies and monitoring the received audio.
A recording level control, mute control and peak meter are provided for each station (or pair of stations) through the devices’ mixer ports. The default level setting is 50%, and at this setting 100% modulation will produce a peak audio level 6dB below clipping.
A utility called AmSpectrum is supplied. This displays the RF spectrum from 500kHz to 1700kHz and may be useful in selecting the best location for the antenna or resolving interference problems. The receiver bandwidth can be set to wide (default) or narrow. The narrow setting restricts the audio response to about 3kHz, which may be useful in noisy environments.
A utility program called Tuner is also supplied which can be used to set the frequency of each station and to monitor each station through the PC’s standard sound card or motherboard sound port. The Tuner program also provides relative signal strength indicator bars which may be useful in adjusting antenna placement.
The card is factory-configured for 6 (PC-AM6), 12, 18, 24 or 32 (PC-AM32) stations, but may be expanded in the field for an additional charge.
Technical Specification For PC-AM6-32 |
|
Operating Systems Supported |
|
| Platform: | Windows XP, Server 2003, Vista, Server 2008, Windows 7, Server 2008 R2, Windows 8, Server 2012, Windows 10 & Server 2016 (32-bit and 64-bit versions), Windows Server 2019 |
| Processor: | 1GHz Pentium II or better |
| Memory: | 256 MB minimum (1GB for Vista Windows 7/Server 2008, 2GB for Windows 8, Server 2012, Windows 10, Server 2016) |
| Bus: | Single lane PCI Express v1.1 |
| Other: | Sound card or motherboard sound port for monitoring |
Specification |
|
| Tuning Range: | 500kHz to 1710kHz in 1kHz steps |
| Sensitivity: | 50uV for 40dB S/N |
| RF Input Impedance: | 50Ω |
| Filter Attenuation: | 82dB at 15kHz or more from centre frequency |
| Audio Bandwidth: | 5kHz |
| Audio Distortion: | <0.1% |
| Audio Sampling Rate: | 22.05kHz (other rates supported via Windows SRC) |
| Number of Stations: | 6, 12, 18, 24 or 32 |
Equipment Type |
|
| PC-AM | 6 Channel AM PCIe Radio Capture Card |
| PC-AM12 | 12 Channel AM PCIe Radio Capture Card |
| PC-AM18 | 18 Channel AM PCIe Radio Capture Card |
| PC-AM24 | 24 Channel AM PCIe Radio Capture Card |
| PC-AM32 | 32 Channel AM PCIe Radio Capture Card |
| PC-AMUP6 | Radcap AM 6 Channel Upgrade |
| PC-AMUP8 | Radcap AM 8 Channel Upgrade |
Physical Specification |
|
| Dimensions (Raw): | 14cm (L) x 12.5cm (H) x 2cm (D) 5.5” (L) x 4.9” (H) x 0.8” (D) |
| Dimensions (Boxed): | 27cm (L) x 22.5cm (H) x 6cm (D) 10.6” (L) x 8.9” (H) x 2.4” (D) |
| Weight: | Nett: 0.10kg Gross: 0.20kg Nett: 0.2lbs Gross: 0.4lbs |
