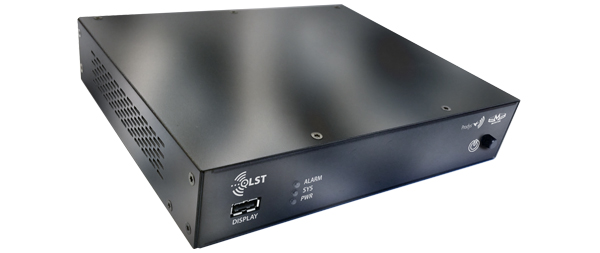

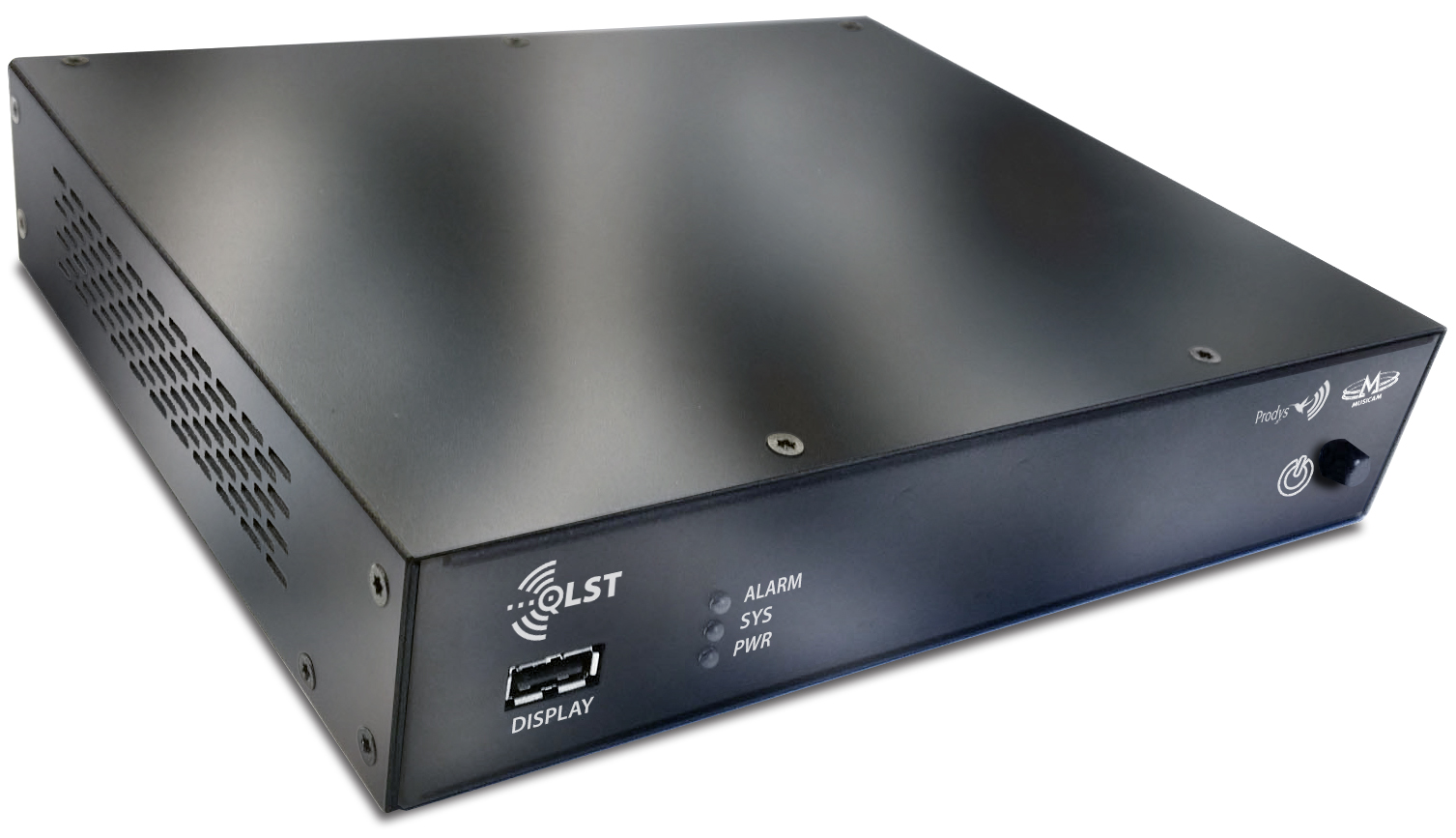

Iso View |

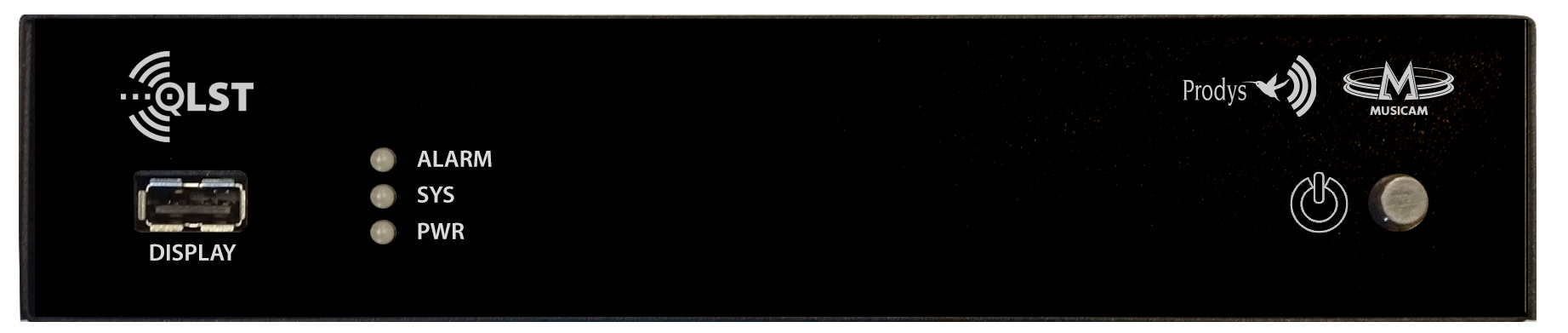

Front View |

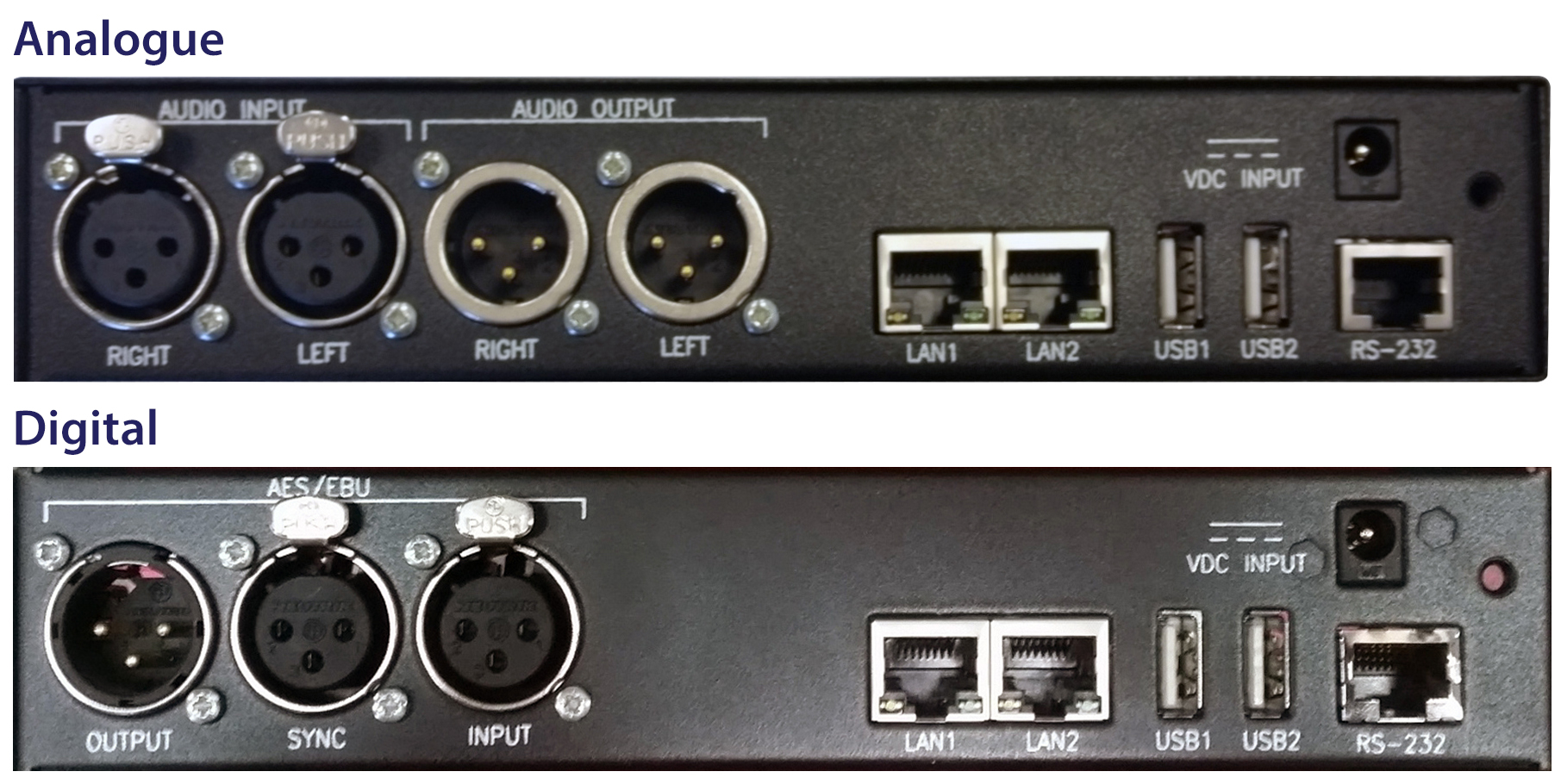

Rear View |
QLST .
QLST
Prodys QLST Overview
QLST is the ideal studio mate for the handheld Quantum Lite product. QLST is a half-size rackmount unit that complements the operation of the portable Quantum Lite, allowing the reconstruction and decoding of the transmitted audio signal.
Alternatively any member of the Quantum family might interoperate with Quantum Lite.
This unit can be controlled from its built-in web graphical interface, its front panel display menu, or from the ProdysControlPlus application.
Category: Prodys Products.
Product Function: Studio mate for the handheld Quantum Lite product.technical resources necessary for a successful audio contribution.
Typical Applications: Using in tandem with Quantum Lite.
- Features:
- Low delay audio encoding with OPUS y APT-x (G722 and MPEG Layer II optional).
- XLR connectors in inputs and outputs. Analog or digital (options).
Audio:
- Communications:
- Inherits world-class IP technology from the Prodys Audio/Video codec family (BRAVE protocol) with full error correction method and Bonding or Diversity.
- SIP and SIP Diversity according to N/ACIP EBU Tech 3326 and 3368 (Optional).
- 2 x Ethernet interfaces.
- Operation:
- User friendly interface via web page. Optional Touch panel.
- LED status indication.
Technical Specification For QLST |
|
Audio Inputs /Outputs |
|
| Audio Inputs /Outputs: | 1 x stereo input /output (L & R) with XLR connectors Analogue or digital optional |
Communication |
|
| Communication: | 2 x Ethernet ports (10/100/1000 BaseTx, RJ45 connectors) allowing splitting audio and control traffic. BRAVE protocol with bonding or diversity. SIP and SIP Diversity protocols according to N/ACIP EBU Tech 3326 and 3368 (optional). OPUS & APTX audio compression. (G722 and MPEG Layer II optional) |
Other Features |
|
| Other Features: | Embedded web browser control 2 x USB for external memory (audio file management) Front power on/off Optional removable touch panel control. LED status indication for alarms and power-on |
Power Supply & Battery |
|
| Input: | VDC input 90V to 264V |
| Connector: | Connector plug 5.5 x 2.5 x 11mm |
Equipment Type |
|
| QLST: | Studio mate for the handheld Quantum Lite |
Physical Specification |
|
| Dimensions (Raw): | 21cm (W) x 17.3cm (D) x 4.2cm (H) 8.26” (W) x 6.8” (D) x 1.65” (H) |
| Weight: | Nett: 0.5kg Nett: 1.1lbs |
