SCi 2 (RS-232 or TCP/IP)

SCi 2

Software Control Interface

SCi Software Control Interface is used to remotely configure and control devices via RS-232 or TCP/IP.

About SCi

This control software enables seamless remote configuration and management of compatible devices via RS-232 or TCP/IP.

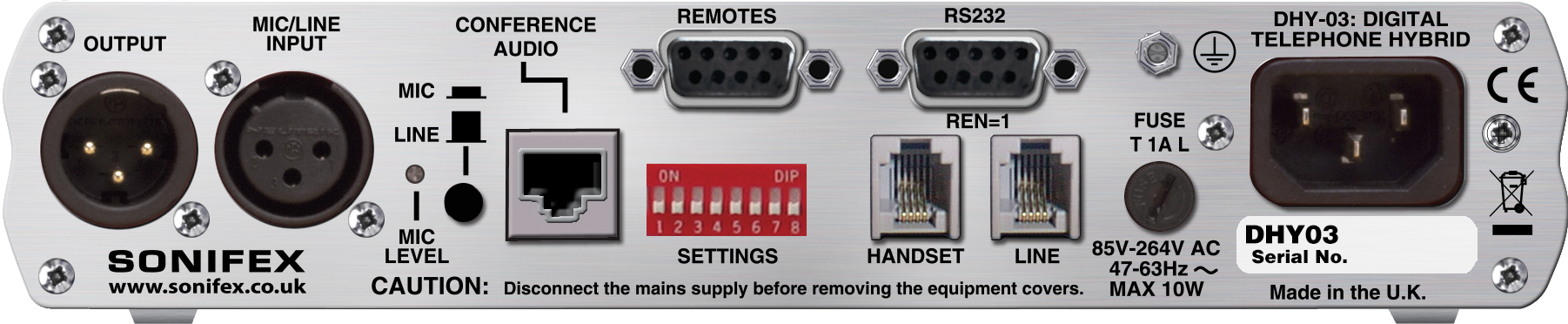

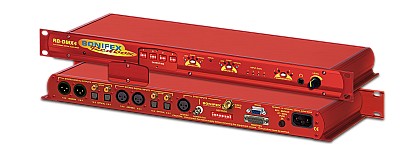

A comprehensive set of drivers is included, ensuring compatibility with a wide range of supported hardware models, including DHY-03, DHY-03EC, RB-ADDA2, RB-SC2, RB-DS2, RB-PD2, RB-DD4, RB-DSD1, RB-DSD8, RB-VHDDD8, RB-VHEDD8, RB-DEDD8, RB-DEED8, RB-DMX4, RB-TGHDB, RB-TGHDX, S0, S1, RM-4C8, RM-2S4, and RM-2S10.

The built-in Launcher provides a clear, centralised interface for accessing all available devices. From this screen, users can quickly view connected devices and open individual control windows with a single click.

Devices are organised through the Device List, which serves as the hub for managing connections. Users can easily add new devices, edit existing configurations, or remove devices as needed. This ensures your system remains up to date and tailored to your setup.

Controlling your devices is straightforward:

  • Use the UP and DOWN controls to navigate through the list of available devices

  • Select a device to open its dedicated control window

  • Operate and configure the device remotely through its interface

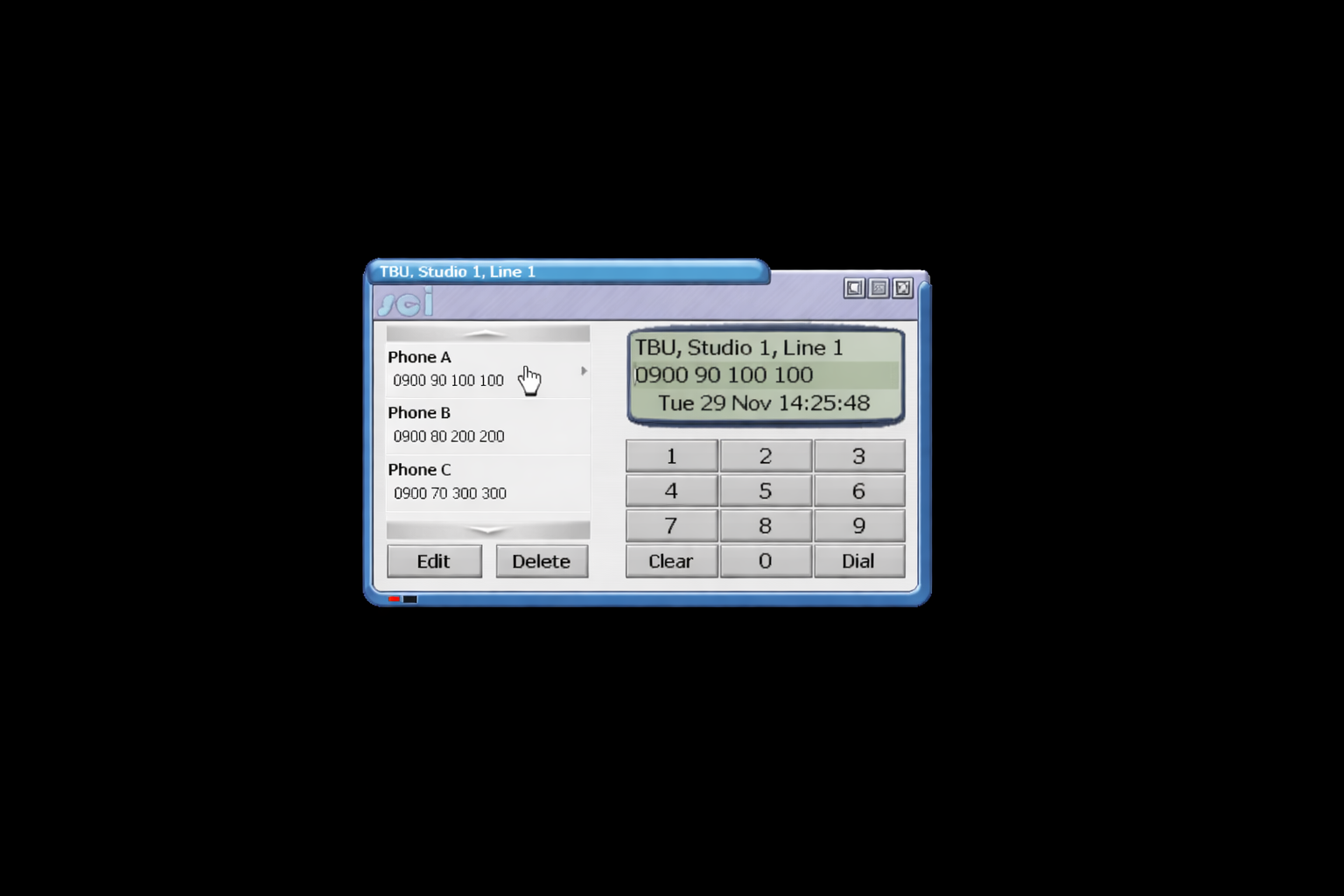

Each device window provides direct access to its specific controls.

The Device List window is where all device connections are defined and maintained. It offers full control over your device ecosystem, enabling you to:

  • Add new devices

  • Edit connection details

  • Remove devices no longer in use

This structured approach ensures efficient management, even in multi-device environments.

Instructions

  1. Press the ‘+’ button on the Launcher window.

  2. Use the ‘Discover Devices’ function or manually define devices using ‘Edit->New Device’.

  3. Give meaningful descriptions to each device by selecting ‘Edit->Edit Device’ from the menu.

  4. Select ‘File->Save’ from the menu.

  5. Close the Device List window to re-display the Launcher.

Typical Applications

Ideal for AV installations, broadcast environments, and integrated control systems where multiple legacy devices require reliable remote configuration and management.

Product Data

Technical Specifications

Downloads & Resources

Support

Handbooks & Guides

No handbooks currently listed.

Firmware

SCi 2 Full Installation (install as an administrator)
Version 2.0.12 · 18/12/2015
Download ↗
SCi 2 - Desktop Monitor Installation (install as an administrator)
Version 2.0.10 · 24/06/2013
Download ↗

Firmware Notes

SCi 2 FAQDownload ↗
SCi 2 Software release notesDownload ↗

Brochures

Brochures, guides and supporting literature are available from the Sonifex brochures library.Visit brochures page ↗

Declarations

Access CE and UKCA declarations and other product compliance documentation.Visit declarations page ↗
