S2-M6SS

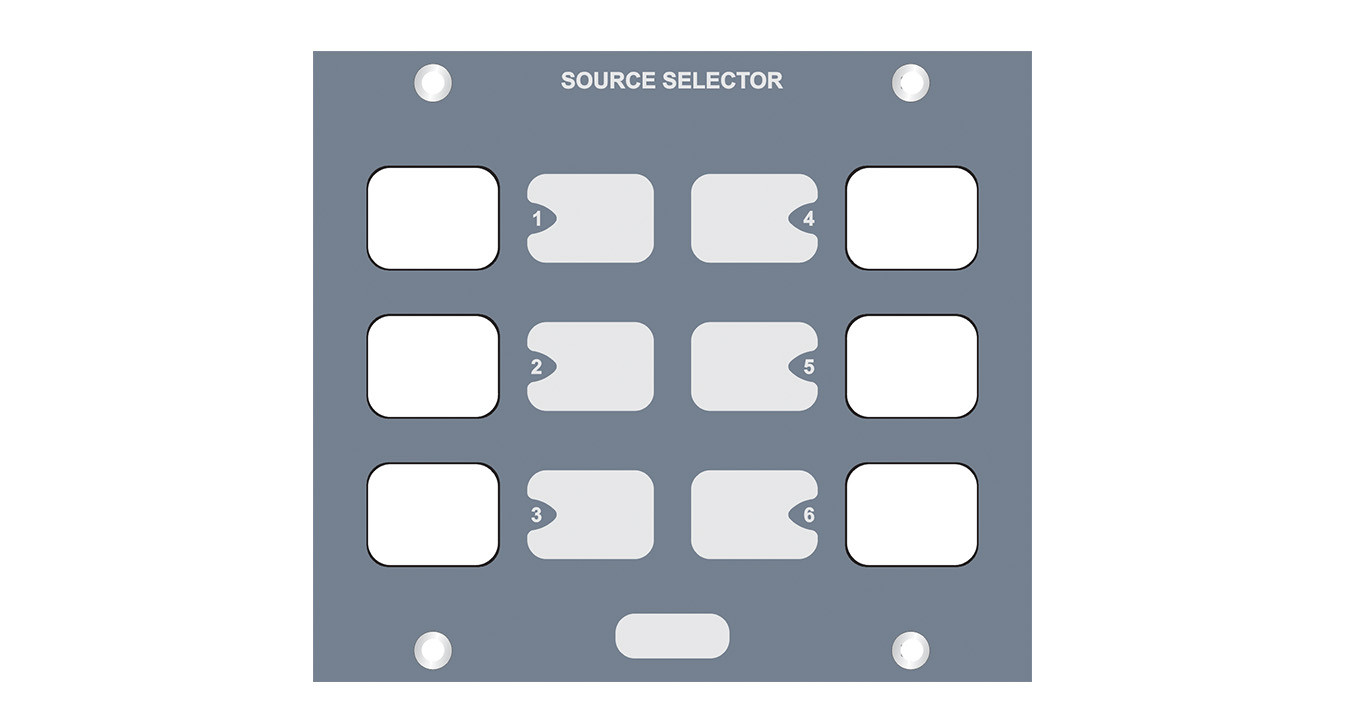

Meterbridge 6 Way Source Select Panel

The S2-M6SS meterbridge source selector panel produces a stereo analogue audio output from 6 selectable stereo analogue sources, which can be connected to a stereo input channel within the mixer, or the EXT 1 and EXT 2 monitor inputs, to provide up to 12 external monitor inputs.

About S2-M6SS

The S2-M6SS meterbridge source selector panel produces a stereo analogue audio output from 6 selectable stereo analogue sources, which can be connected to a stereo input channel within the mixer, or the EXT 1 and EXT 2 monitor inputs, to provide up to 12 external monitor inputs. There are 6 illuminated push buttons, which select and indicate the current channel selection. The 6 stereo sources are connected on the rear of the panel via a connector, which uses exactly the same pin configuration as the stereo audio source input connector on the S2-C6SS channel.

The rubber buttons used on this module can be replaced with buttons showing different text, for a small charge. To see the available alternative button types, see our ‘Rubber Keyswitch Buttons’ page.

Typical Applications

Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.

Product Data

Technical Specifications

Downloads & Resources

Support

Handbooks & Guides

S2-M6SS HandbookDownload ↗
S2 Rubber Keyswitch Buttons OptionsDownload ↗

Firmware

No firmware currently listed.

Firmware Notes

Full release notes for all firmware versions will appear here when available.

Brochures

Brochures, guides and supporting literature are available from the Sonifex brochures library.Visit brochures page ↗

Declarations

Access CE and UKCA declarations and other product compliance documentation.Visit declarations page ↗
