Word Clock

RB-DDA6W

6 Way Word Clock Distribution Amplifier

The RB-DDA6W word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned.

RK1_logo-optimized RK2_logo-optimized

About RB-DDA6W

The RB-DDA6W word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems.

It has a single female BNC audio input which is distributed to 6 female BNC outputs. The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.

Typical Applications

Distribution of word clock signal from a master generator to other studio equipment to keep them synchronised.

Product Data

Technical Specifications

Audio Specification
Input impedance:
50Ω
Output impedance:
<50Ω
Connections
Inputs:
1 x BNC female
Outputs:

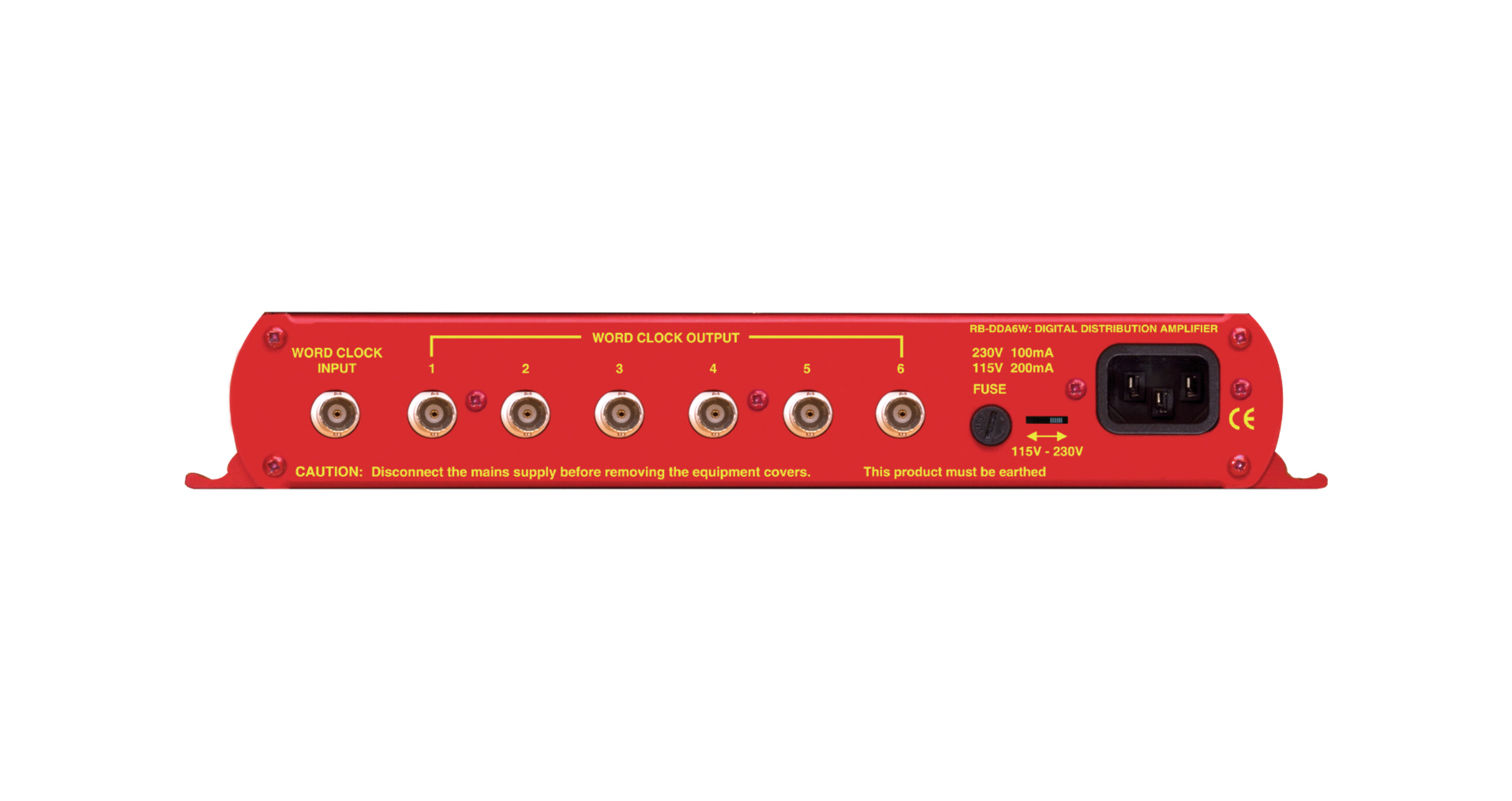

6 x BNC female
Mains Input:
Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating:
Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating:
Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-DDA6W
6 way word clock distribution amplifier
Physical Specification
Dimensions (Raw):
28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
11” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed):
36cm (W) x 20.5cm (D) x 6cm (H)
Dimensions (Boxed):
14.2” (W) x 8” (D) x 2.4” (H)
Weight:
Nett: 0.9kg Gross: 1.35kg
Weight:
Nett: 2lbs   Gross: 3lbs
