Word Clock

RB-DDA6W-2P

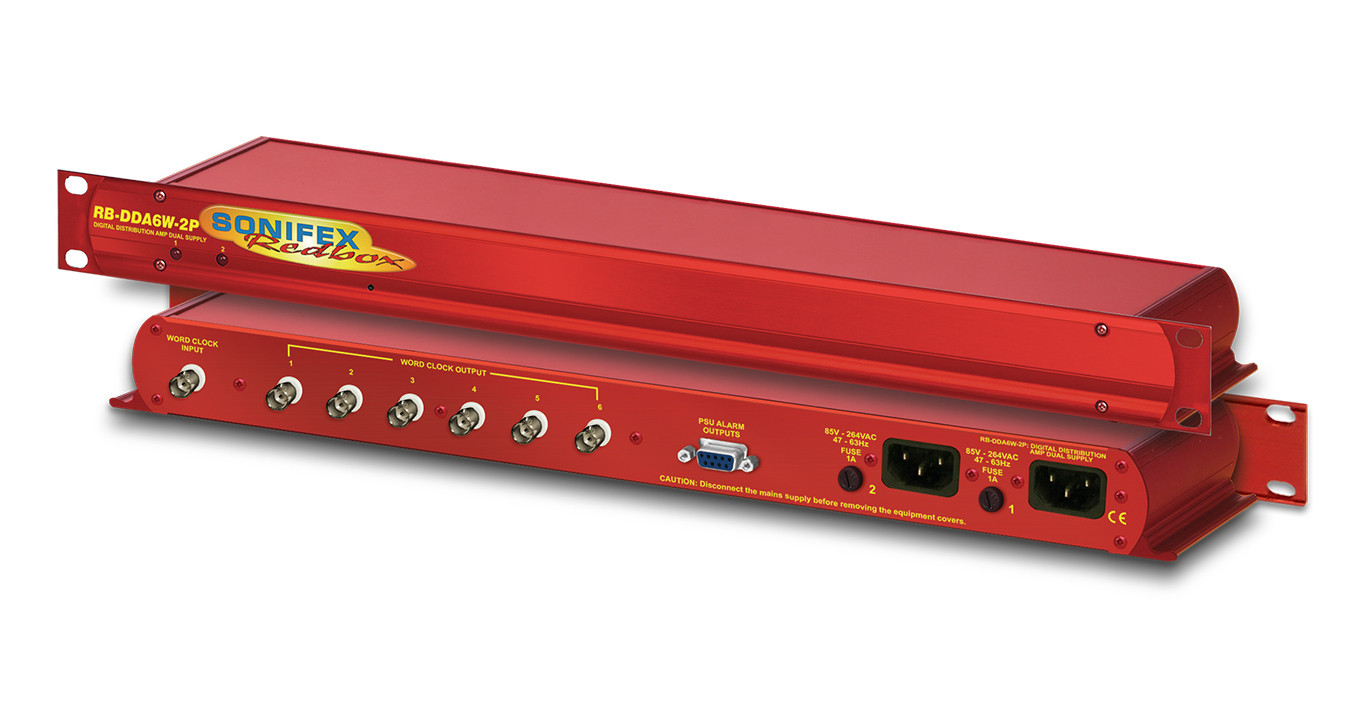

6 Way Word Clock Distribution Amplifier with Dual Power Supplies

The RB-DDA6W-2P word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned.

RK3_logo-optimized

About RB-DDA6W-2P

The RB-DDA6W-2P word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems. It has a single female BNC audio input which is distributed to 6 female BNC outputs. The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.

The unit provides redundancy protection by using two power supply units that can be supplied from separate mains feeds. The unit automatically load shares between the two supplies so that if either supply should fail the unit will continue to work correctly. If both supplies fail the input is connected directly to output 1.

The condition of the two supplies is indicated on the front panel by two red LEDs which illuminate to indicate the correct function of the supply. On the alarm output connector there is a changeover relay to indicate the status of each supply. This is normally closed to indicate power fail and once the supply is working correctly the relay activates to make a normally open contact.

Typical Applications

Distribution of word clock signal from a master generator to other studio equipment to keep them synchronised.

Product Data

Technical Specifications

Audio Specification
Input impedance:
50ฮฉ
Output impedance:
<50ฮฉ
Connections
Audio Inputs:
1 x BNC female
Audio Outputs:
6 x BNC female
Alarm Outputs:
2 x Relay output indicators on 1 x 9 pin D-Type socket
Mains Input:
2 x Filtered IEC, 85-264V switchable, fused, 6W max
Fuse Rating:
2 x Anti-surge fuse 1A 20 x 5mm
Equipment Type
RB-DDA6W-2P
6 way word clock distribution amplifier with dual power supplies
Physical Specification
Dimensions (Raw):
48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw):
19โ€ (W) x 4.3โ€ (D) x 1.7โ€ (H) (1U)
Dimensions (Boxed):
58.5cm (W) x 22.5cm (D) x 7cm (H)
Dimensions (Boxed):
23โ€ (W) x 8.9โ€ (D) x 2.8โ€ (H)
Weight:
Nett: 1.5kg Gross: 2.0kg
Weight:
Nett: 3.3lbs Gross: 4.4lbs
